Test D: Power Window Right Dose Not Operate From Either Switch - Pickup

Check condition of ACC/IGN circuit breaker. If circuit breaker is in good condition, use the following diagnostic procedures. See Fig 1 .

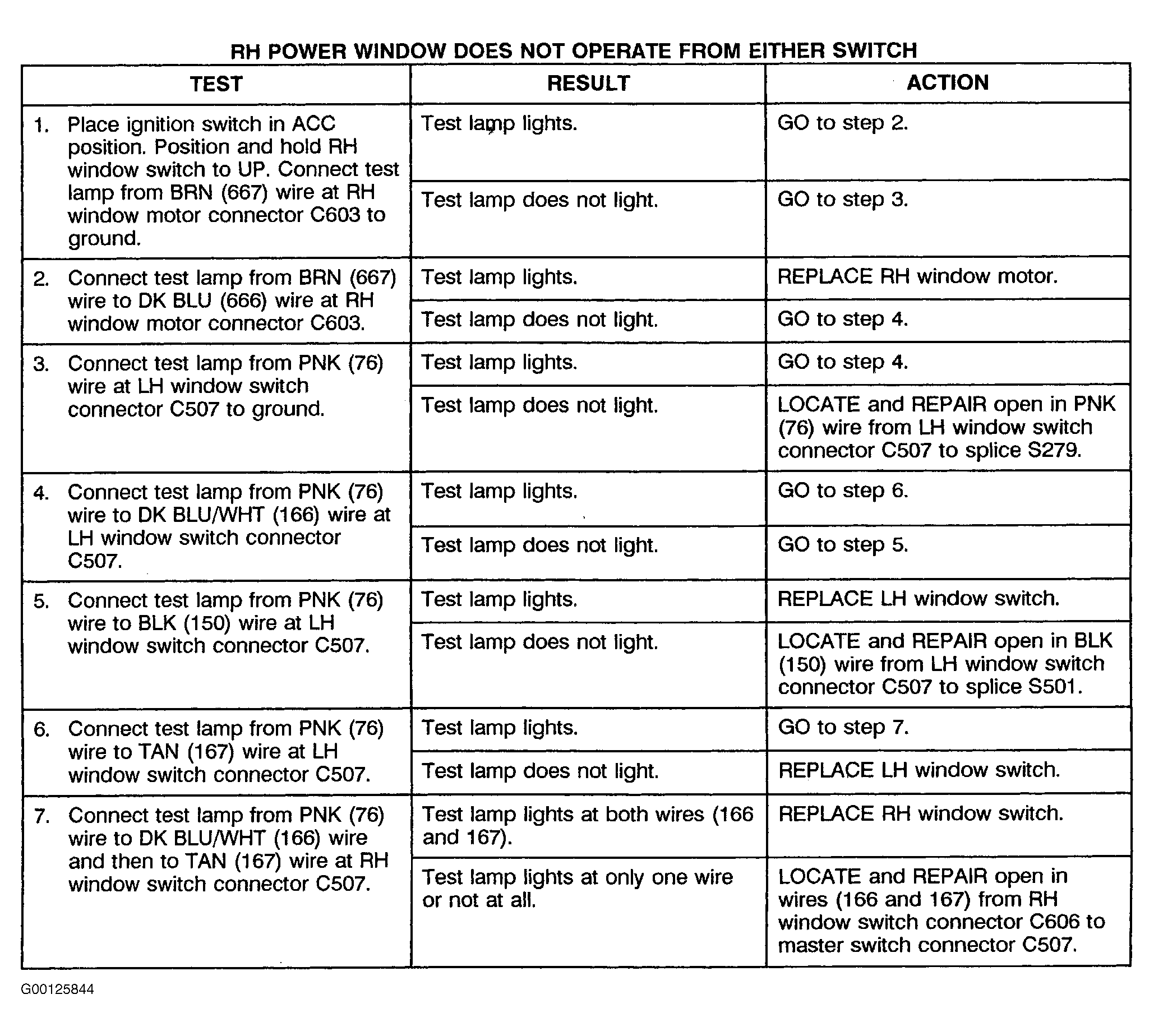

Fig 1: Test D: Power Window Right Dose Not Operate From Either Switch - Pickup

Courtesy of GENERAL MOTORS CORP.
