Code 67 - Open Motor Circuit Or Shorted VCM Output: Notes

This code sets when VCM has detected no or low voltage at Red VCM connector terminal No. 25 (4.3L VIN Z M/T) or Gray VCM connector terminal No. 28 (except 4.3L VIN Z M/T) during ABS motor operation.

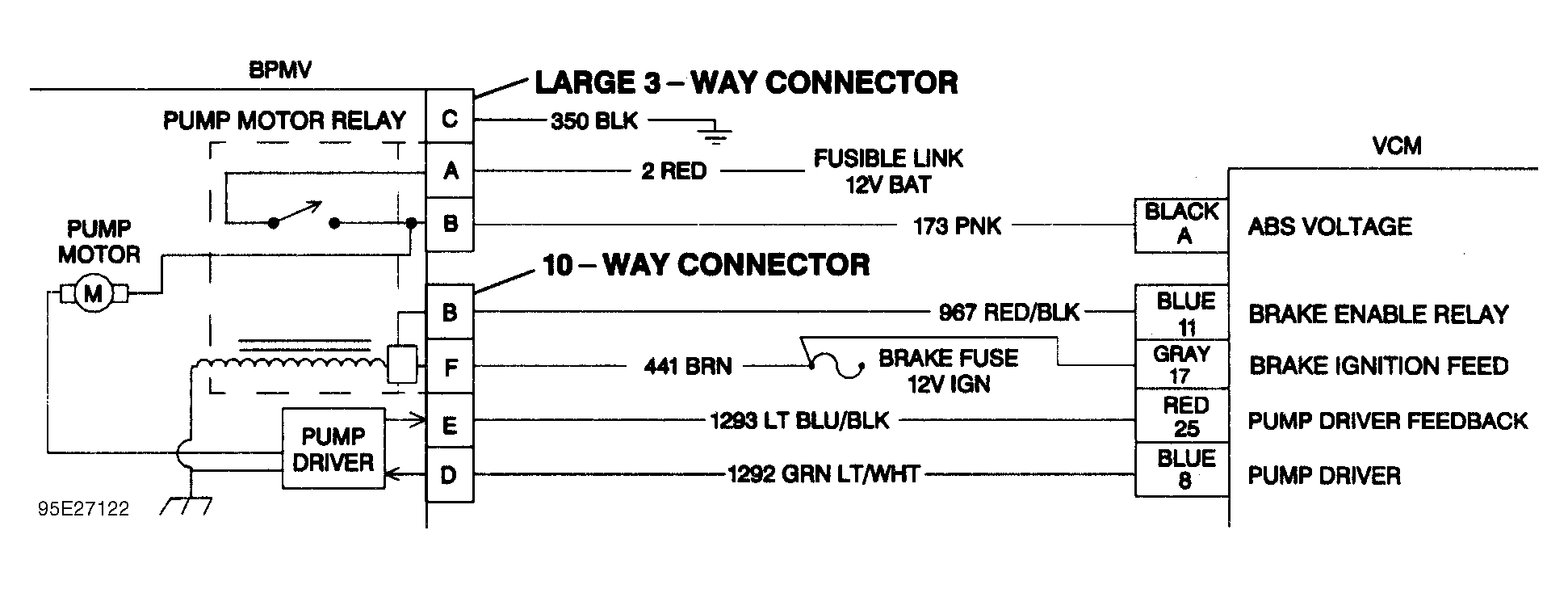

Fig 1: Code 67 - Schematic (4.3L M/T - VIN Z)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Code 67 - Schematic (Except 4.3L M/T - VIN Z)

Courtesy of GENERAL MOTORS CORP.

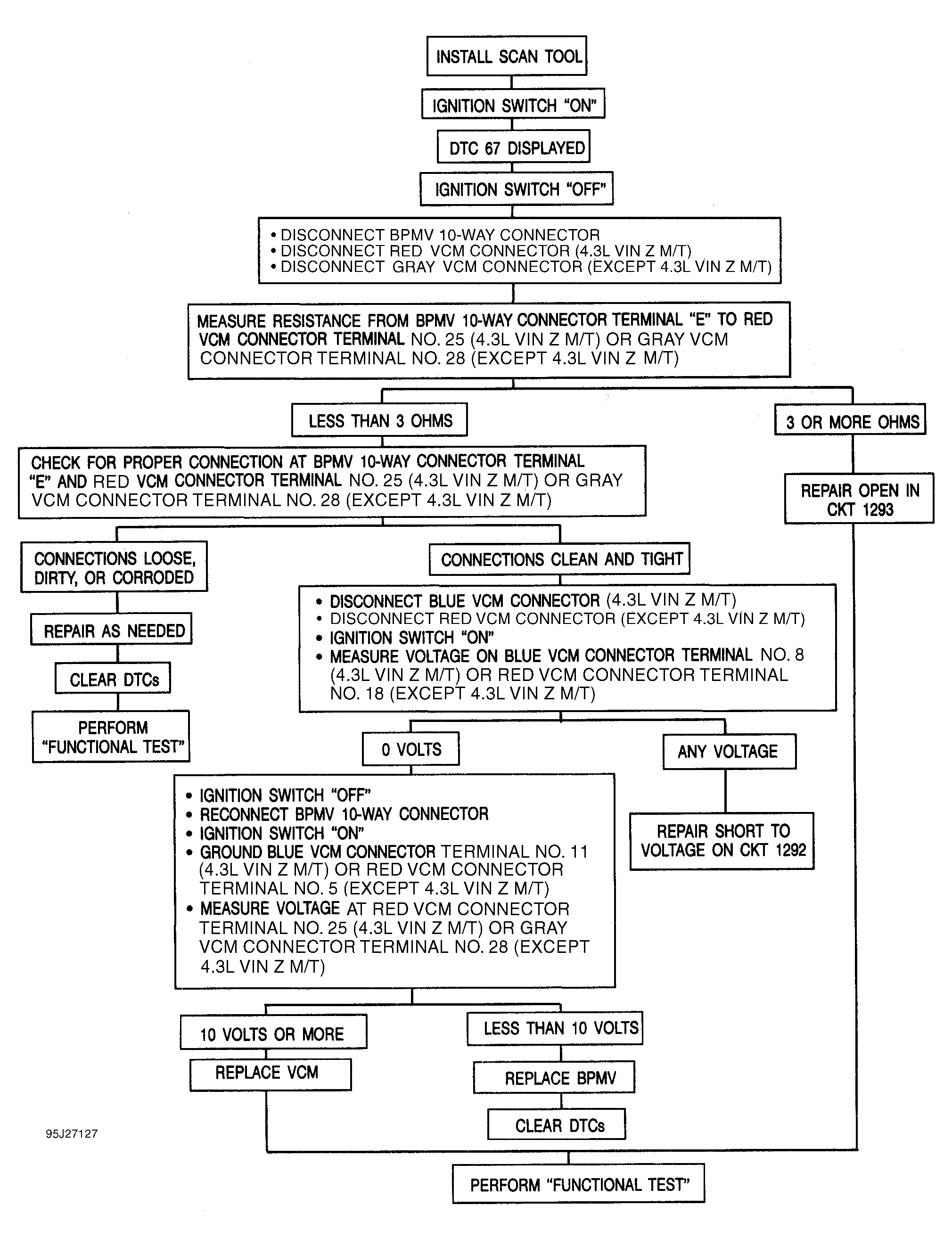

Fig 3: Code 67 - Open Motor Circuit/Shorted VCM Output - Flow Chart

Courtesy of GENERAL MOTORS CORP.
