Speed Control Switch
WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, 1995 Dodge Caravan, and 1995 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

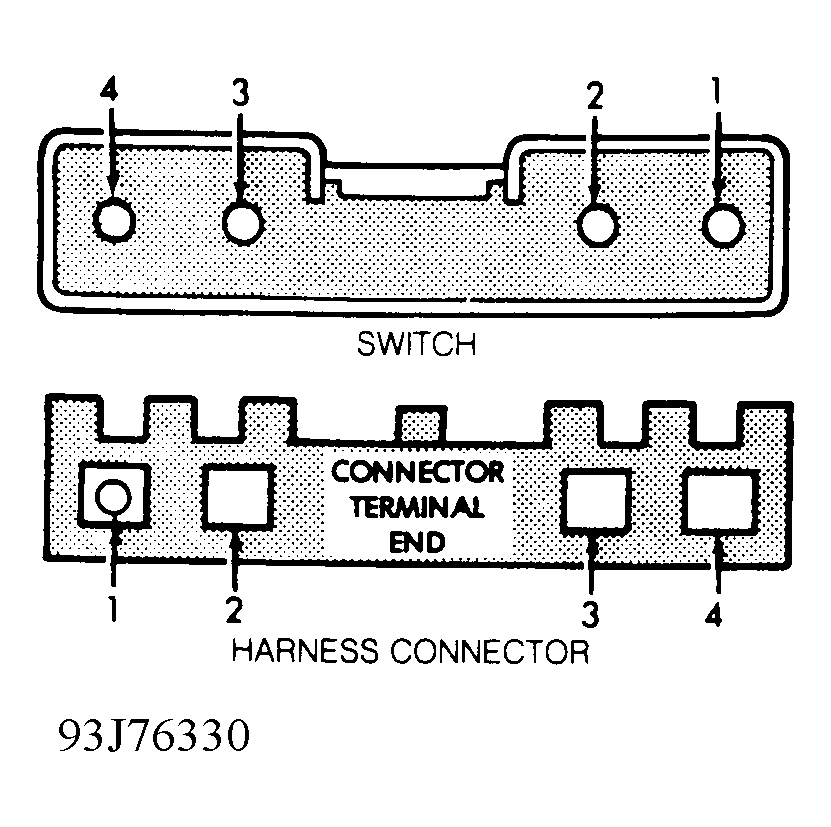

Access speed control switch. Disconnect speed control switch connector. See Figure . Using an ohmmeter, check speed control switch. If speed control switch does not test as specified in SPEED CONTROL SWITCH table, replace switch.
SPEED CONTROL SWITCH
| Switch Position | Check Between Terminals No. | Ohms | ||||
|---|---|---|---|---|---|---|
| OFF | 3 & 4 | 5890-6510 | ||||
| OFF | 1 & 3 | (1) | ||||
| ON | 1 & 4 | 5890-6510 | ||||
| ON | 1 & 3 | (2) | ||||
| ON/SET | 3 & 4 | 1020-1130 | ||||
| ON/RESUME | 3 & 4 | 2040-2260 | ||||
|
||||||
