Connector Identification

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1996 GMC Vandura Special, 1996 GMC Vandura, 1996 GMC Savana Special, 1996 GMC Savana Camper Special, and 1996 GMC Savana. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To identify SIR wiring connector terminals, see Fig 1 .

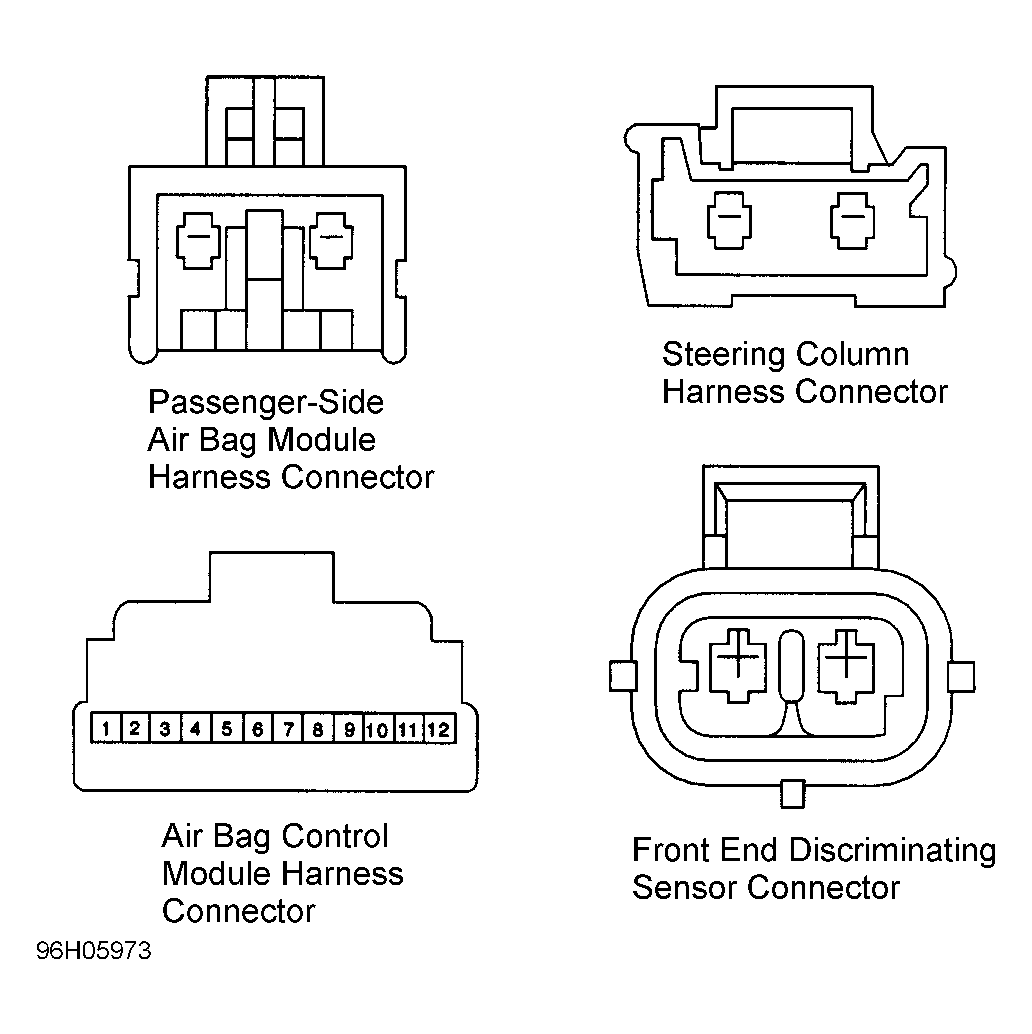

Fig 1: Identifying SIR Wiring Connector Terminals

Courtesy of GENERAL MOTORS CORP.
