Data Link Connector

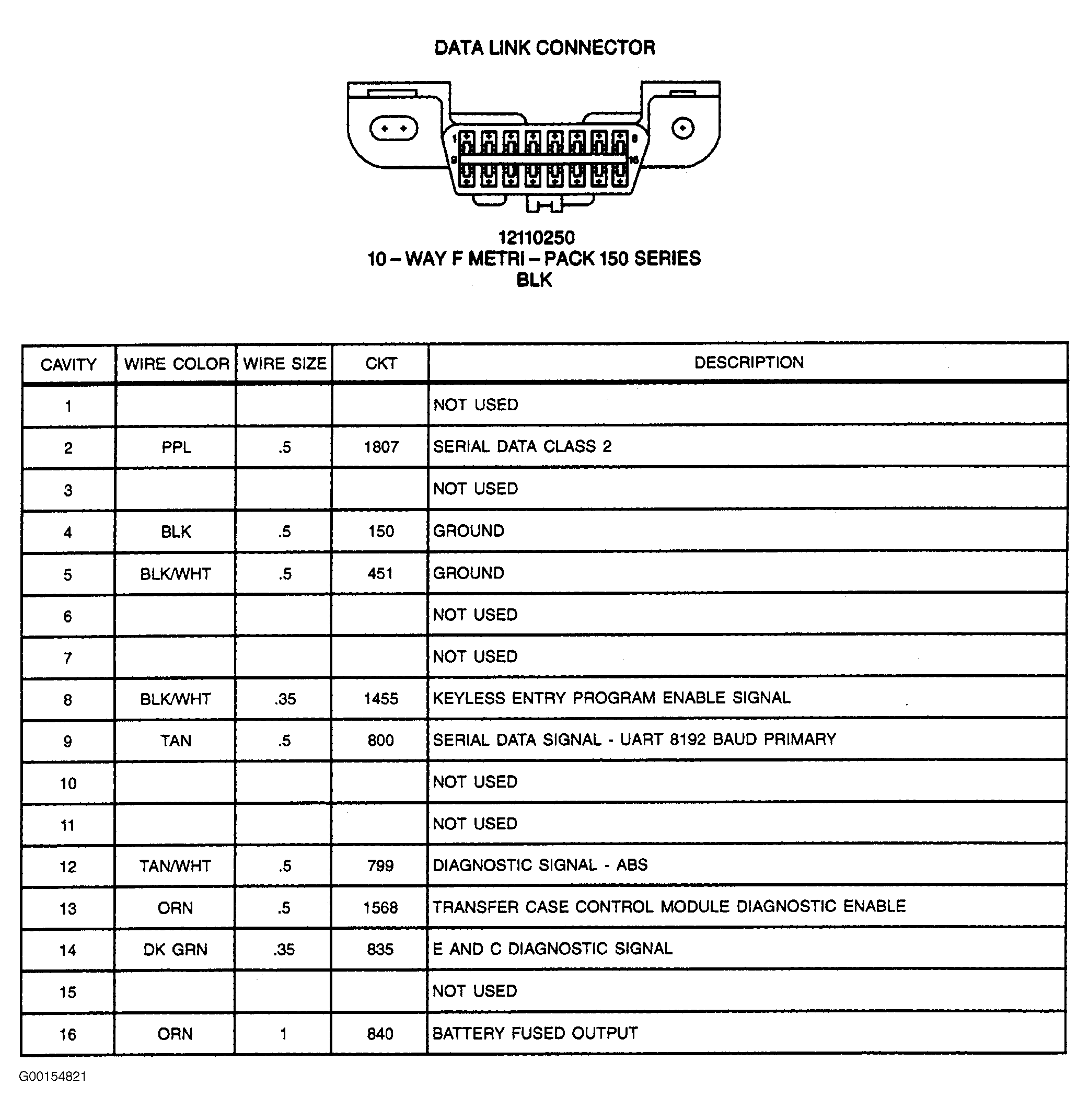

Fig 1: Data Link - 10-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
