Fuel Sender Assembly: Installation
WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
- Install the fuel level sensor to the fuel sender assembly. See FUEL LEVEL SENSOR .

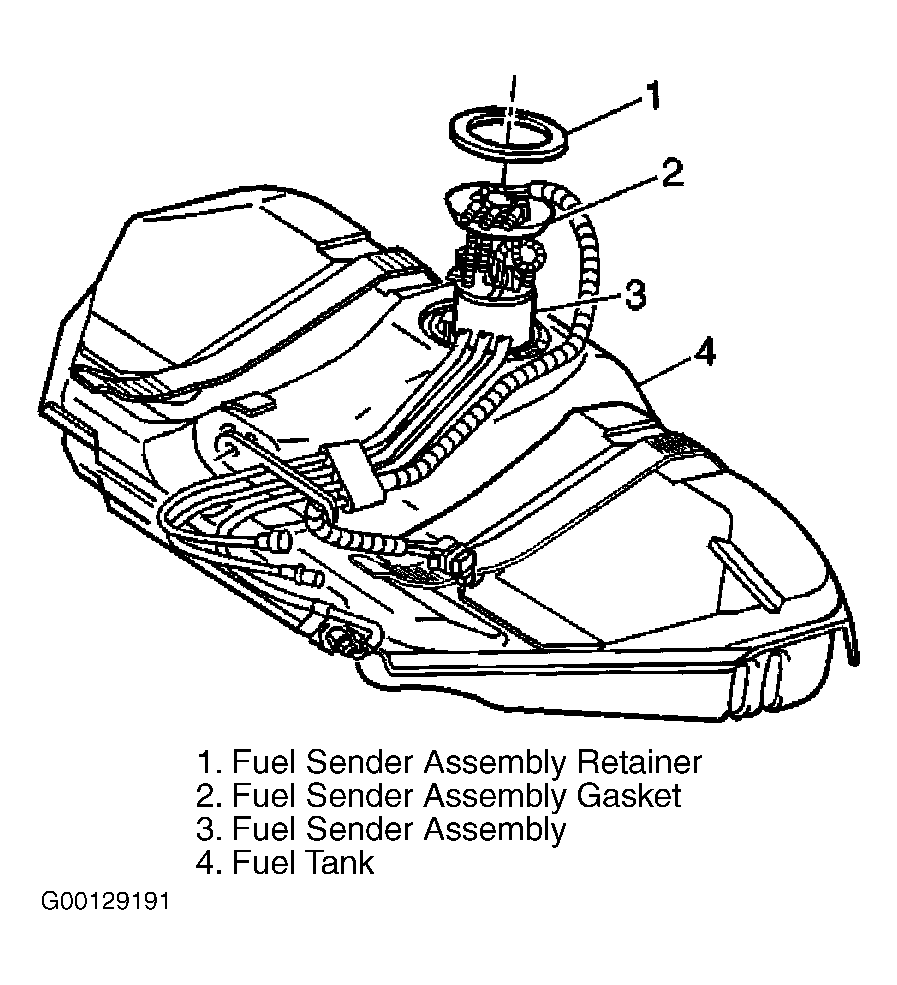

- Install the NEW seal on the fuel tank. See Figure .
- Align the fuel pipes parallel with the mark on the fuel tank.
- Slowly apply pressure to the top of the spring loaded sender until the sender aligns flush with the retainer on tank.
- Install the retaining ring using the Fuel Sender Lock Nut Wrench.
- Connect the wiring harness to the fuel sender and the FTP sensor.
- Install the fuel tank. See FUEL TANK .
