Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the DRL module (4) to the left outside knee bolster bracket (1).
  2. Connect the electrical connector to the DRL module.
  3. Install the instrument panel driver knee bolster panel. TRIM PANEL REPLACEMENT - KNEE BOLSTER

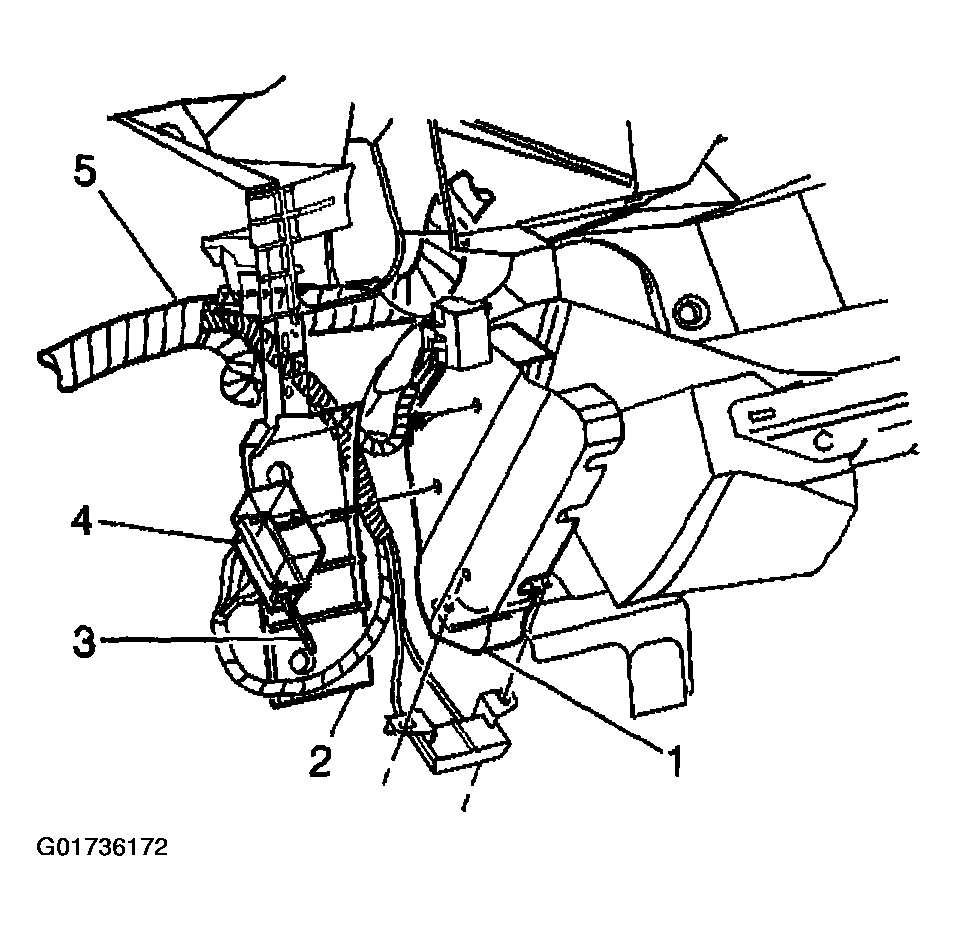

    Fig 1: Installing DRL Module To Left Outside Knee Bolster Bracket
    G01736172Courtesy of GENERAL MOTORS CORP.
