Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. Refer to ENGINE COVER REPLACEMENT .
  2. Disconnect the electrical connector from the illuminated entry module.
  3. Remove the plastic fastener that retains the illuminated entry module to the sound insulation.
  4. Remove the illuminated entry module from the vehicle.

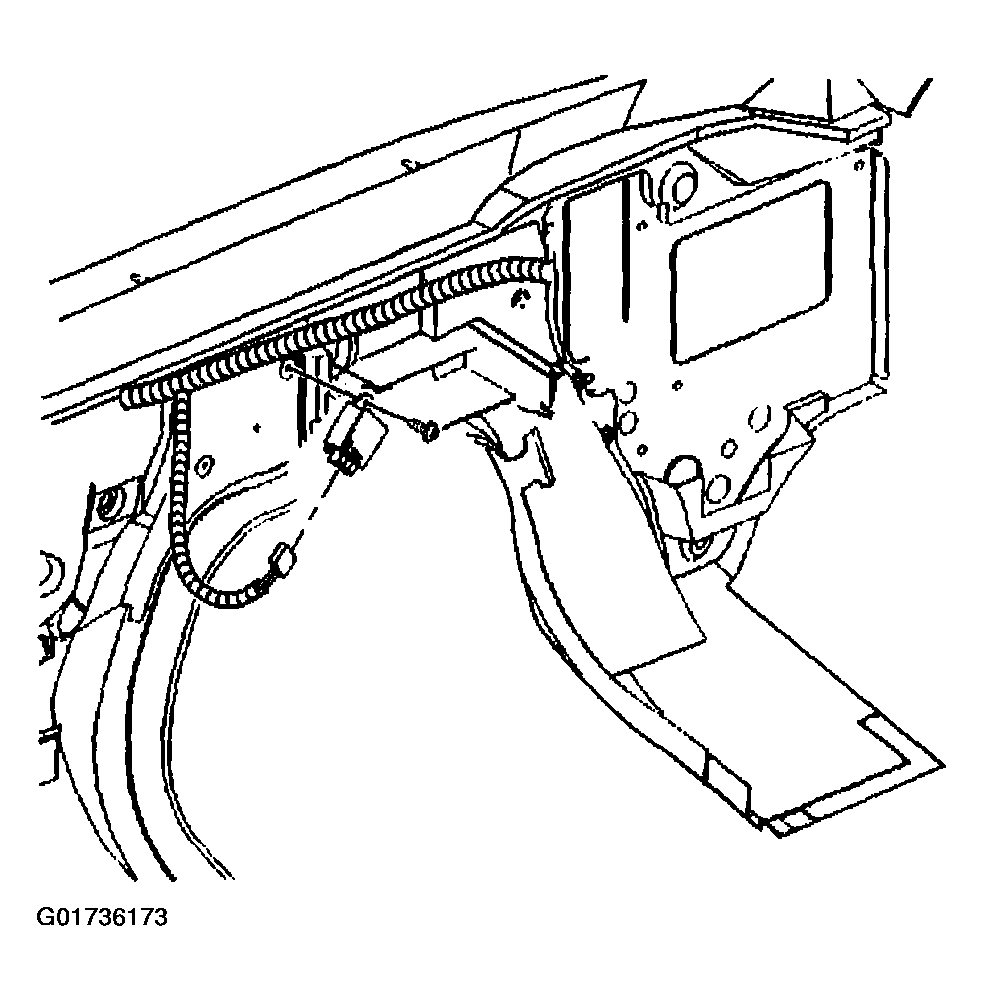

    Fig 1: Removing Illuminated Entry Module Components
    G01736173Courtesy of GENERAL MOTORS CORP.
