Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module to the bracket.
  2. Connect the electrical connector to the cruise control module.
  3. Install the cruise control cable to the module.

    Refer to CRUISE CONTROL CABLE REPLACEMENT  .

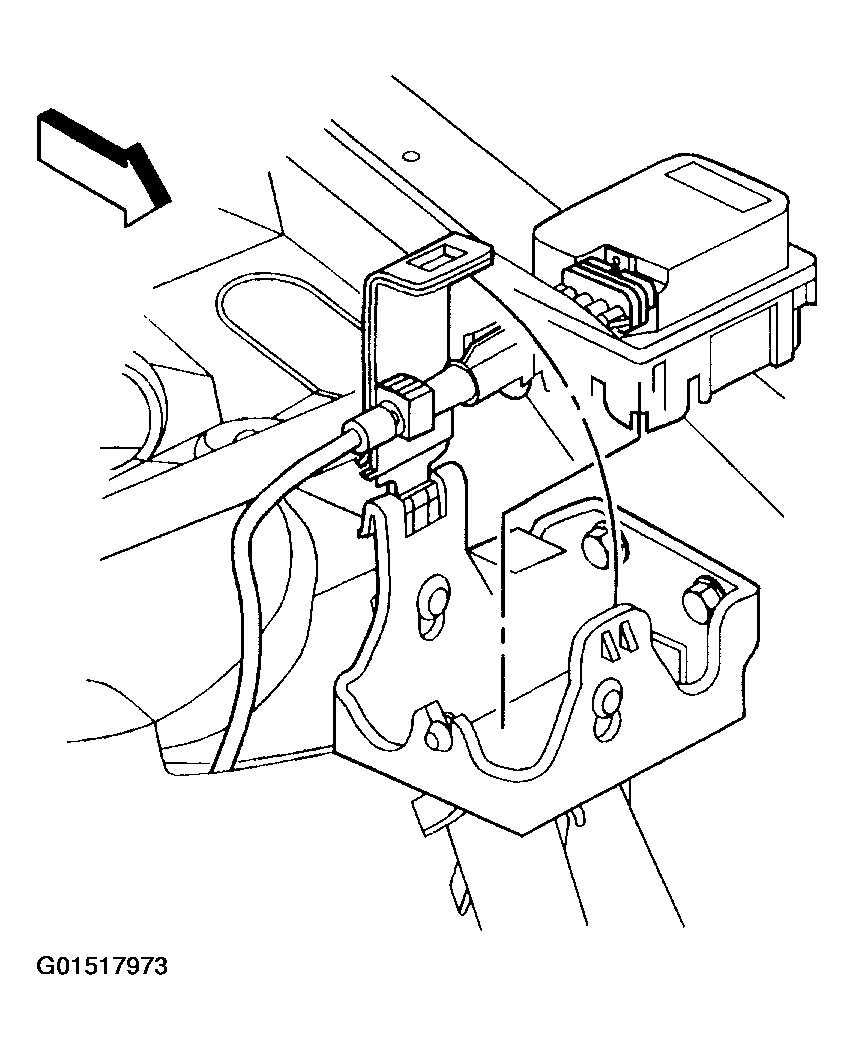

    Fig 1: Installing Cruise Control Module To Bracket
    G01517973Courtesy of GENERAL MOTORS CORP.
