Scan Tool Output Control

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

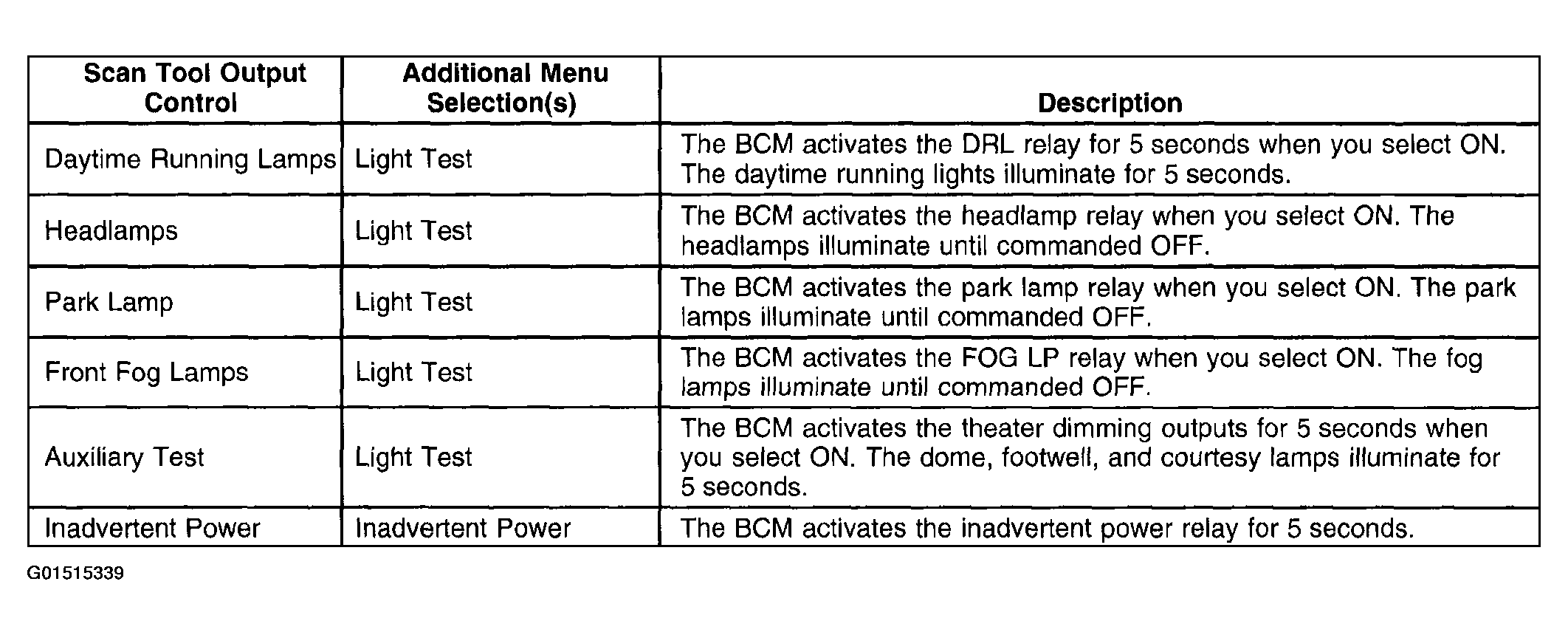

Fig 1: Scan Tool Output Control - Body Control Module (BCM)
G01515339Courtesy of GENERAL MOTORS CORP.
