SIR Zone Identification Views (Aztek)
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

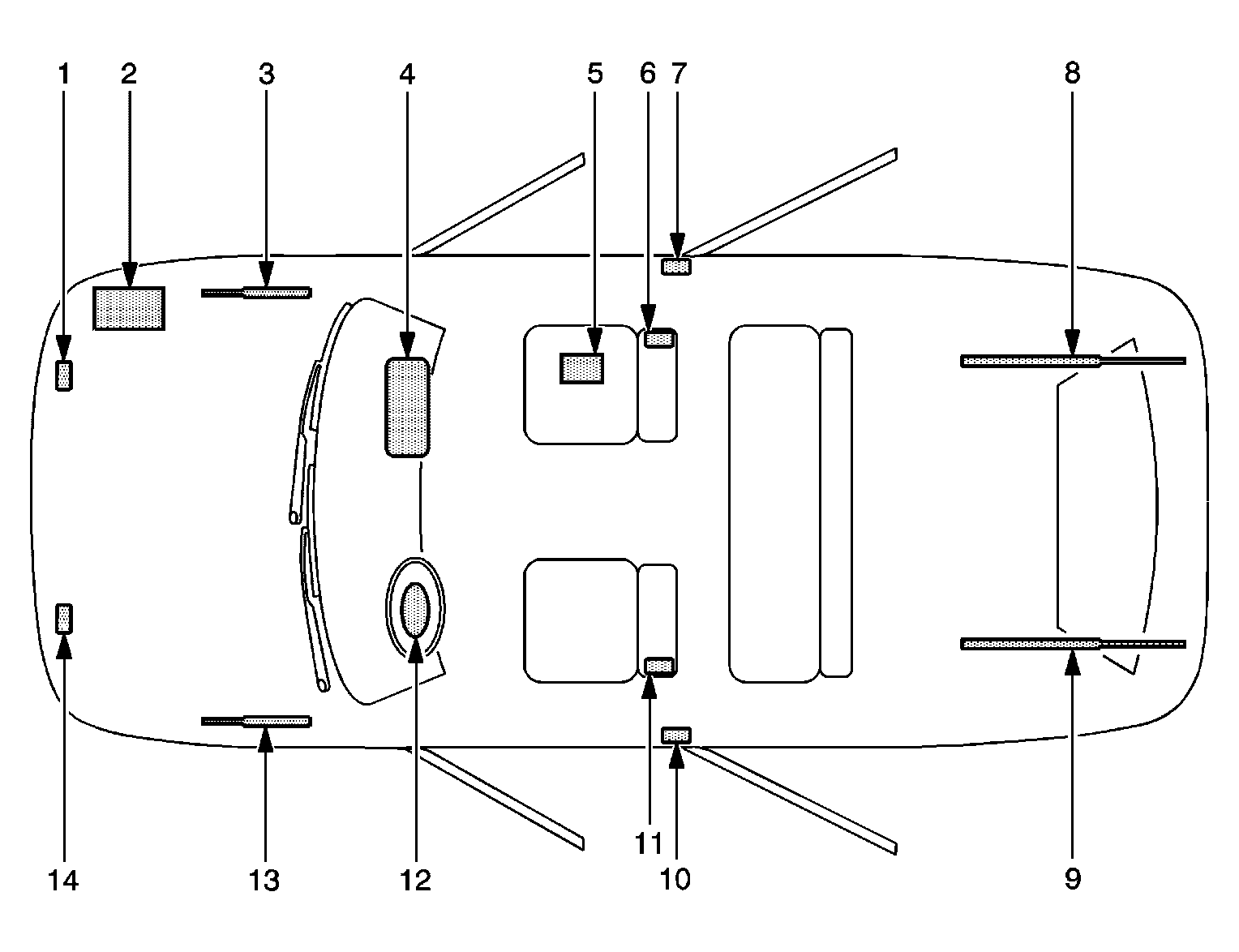

The SIR Zone Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling Zones for a given service procedure, refer to SIR Disabling and Enabling Zones .
| Callout | Component Name |
|---|---|
| 1 | Front End Sensor (EFS)-Located on the front of the vehicle in the engine compartment |
| 2 | Vehicle Battery-Located under the hood on the right side |
| 3 | Front Hood Assist Rod-A gas shock located under the front hood on the passenger side |
| 4 | I/P Air Bag-Located at the top right under the instrument panel |
| 5 | Sensing and Diagnostic Module (SDM)-Located underneath the vehicle carpet under the passenger seat |
| 6 | RF Side Impact Air Bag-Located on the seat back of passenger seat |
| 7 | Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom |
| 8 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the passenger side |
| 9 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the driver side |
| 10 | Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom |
| 11 | LF Side Impact Air Bag-Located on the seat back of driver seat |
| 12 | Steering Wheel Air Bag-Located on the steering wheel |
| 13 | Front Hood Assist Rod-A gas shock located under the front hood on the driver side |
| 14 | Front End Sensor (EFS)-Located on the front of the vehicle in the engine compartment |
