Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
- Remove any dirt, grease, and other contaminants from the mounting surface.

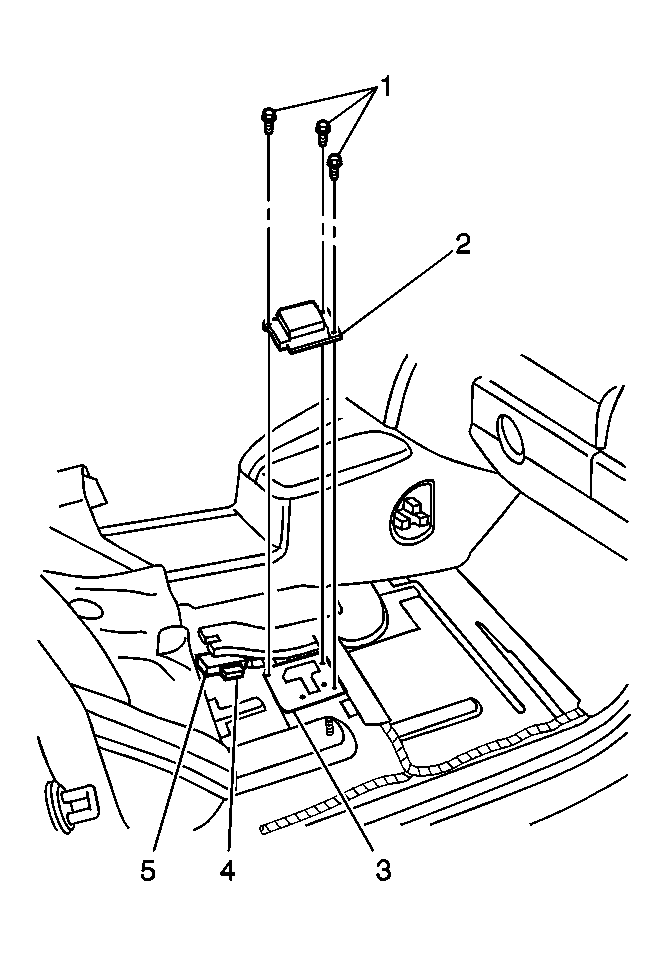

- Install the SDM (2) horizontally to the vehicle.
- Point the arrow on the SDM toward the front of the vehicle.
- Install the SDM mounting fasteners (1).
Tighten: Tighten the fasteners to 10 N.m (89 lb in).
- Install the SDM wiring harness connector (2) to the SDM (1).
- Install the CPA (3) to the SDM wiring harness connector (2).
- Place the carpet to cover the SDM. Install the carpet retainer.
- Install the right side insulator panel. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages, and Console.
- Install the right side cowl trim panel. Refer to Trim Panel Replacement - Cowl Side in Interior Trim.
- Install the passenger front seat. Refer to Seat Replacement - Bucket in Seats.
- Enable the SIR system. Refer to SIR Disabling and Enabling Zone 9 .
- Reprogram the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration in Body Control Systems.
NOTE:
Refer to Fastener Notice in Cautions and Notices.
IMPORTANT:
The AIR BAG indicator may remain ON after the SDM has been replaced. DTC B1001 may set requiring the SDM part number to be set in multiple modules. If the indicator remains ON after enabling the SIR system, perform the diagnostic system check and follow the steps thoroughly to ensure that the SDM is set properly.
