Power Door Systems Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

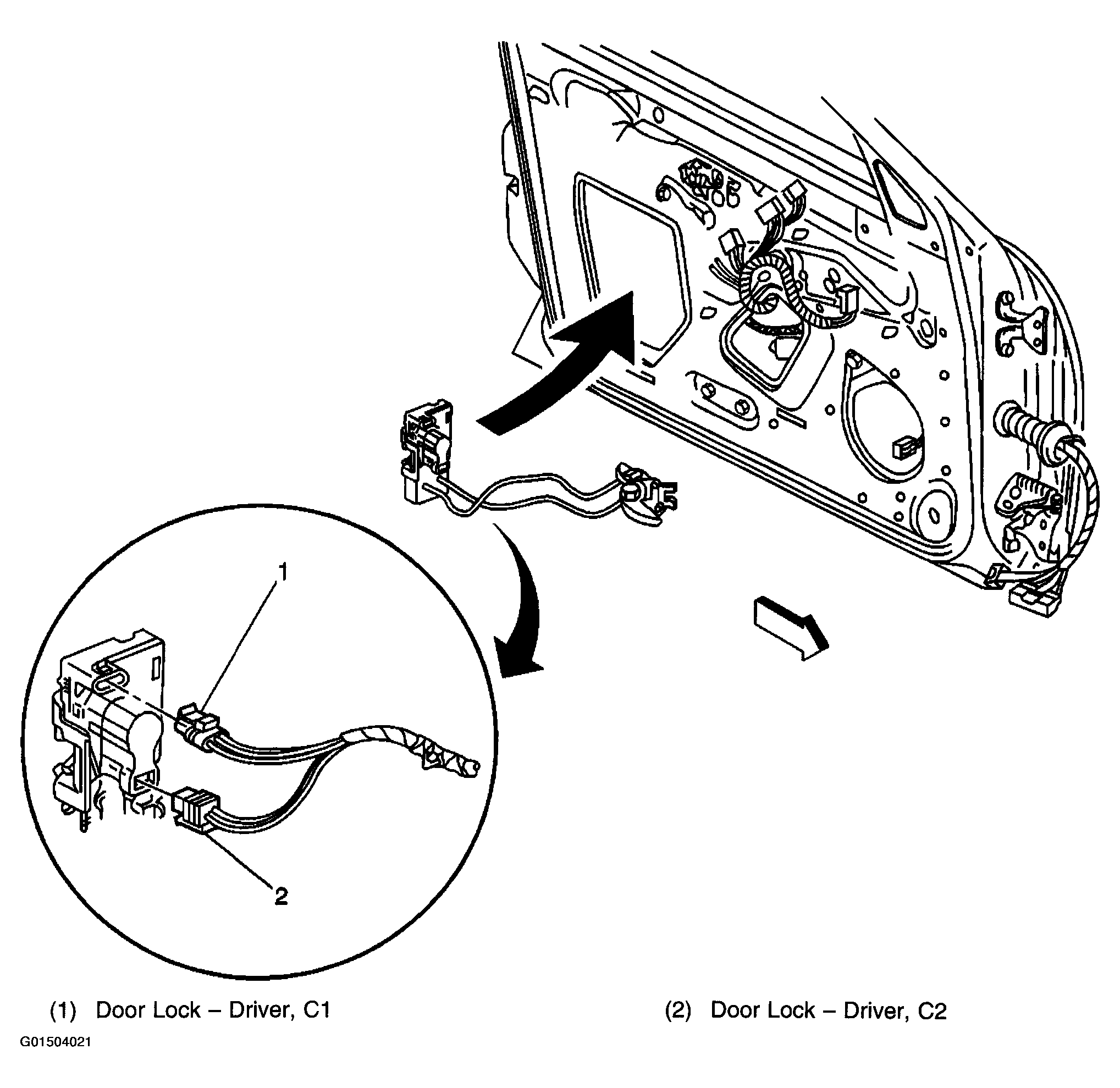

Fig 1: Inside Left Front Door, Right Similar Component View
G01504021Courtesy of GENERAL MOTORS CORP.

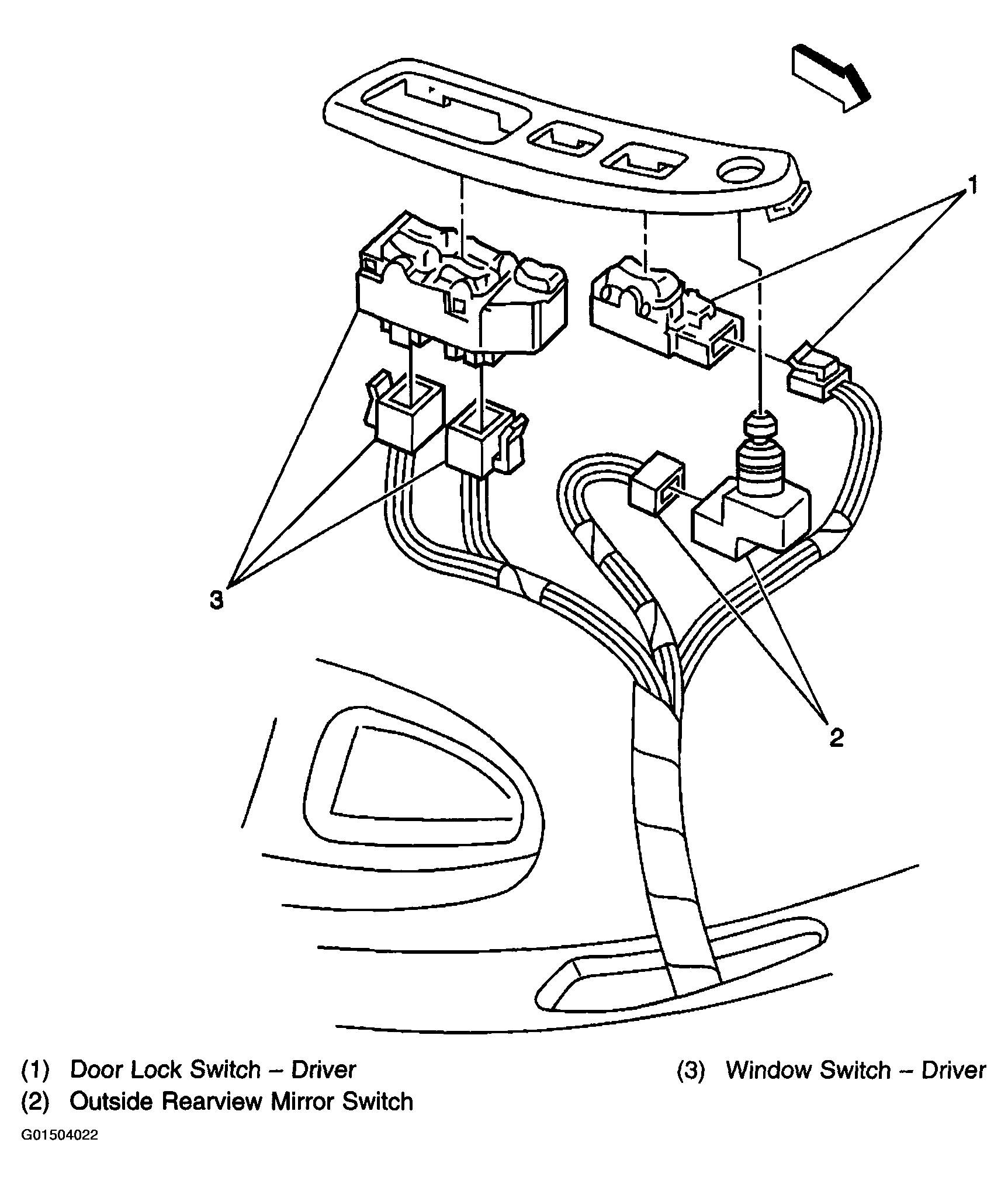

Fig 2: Left Front Door, 4-Door Component View
G01504022Courtesy of GENERAL MOTORS CORP.

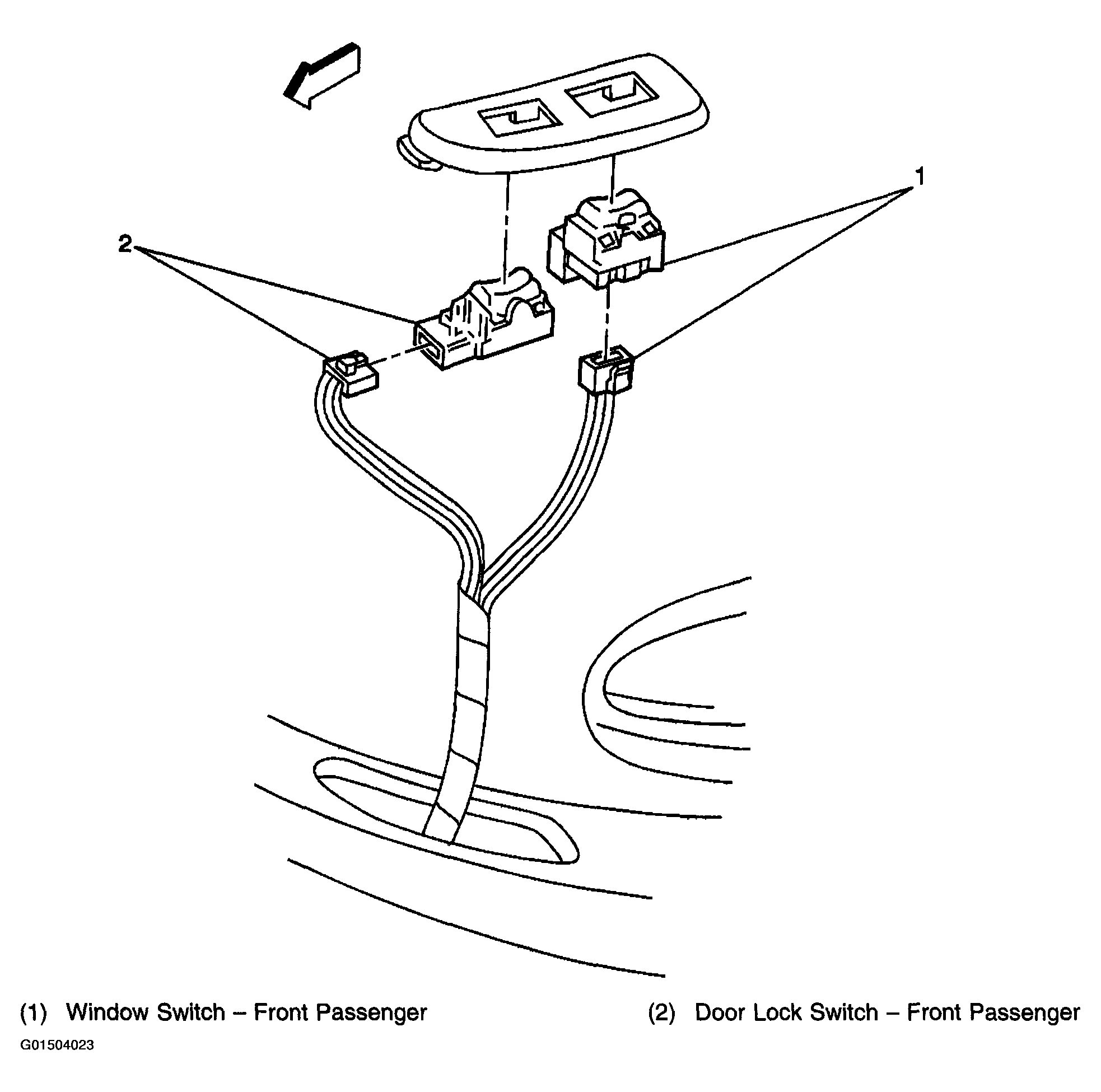

Fig 3: Right Front Door, 4-Door Component View
G01504023Courtesy of GENERAL MOTORS CORP.

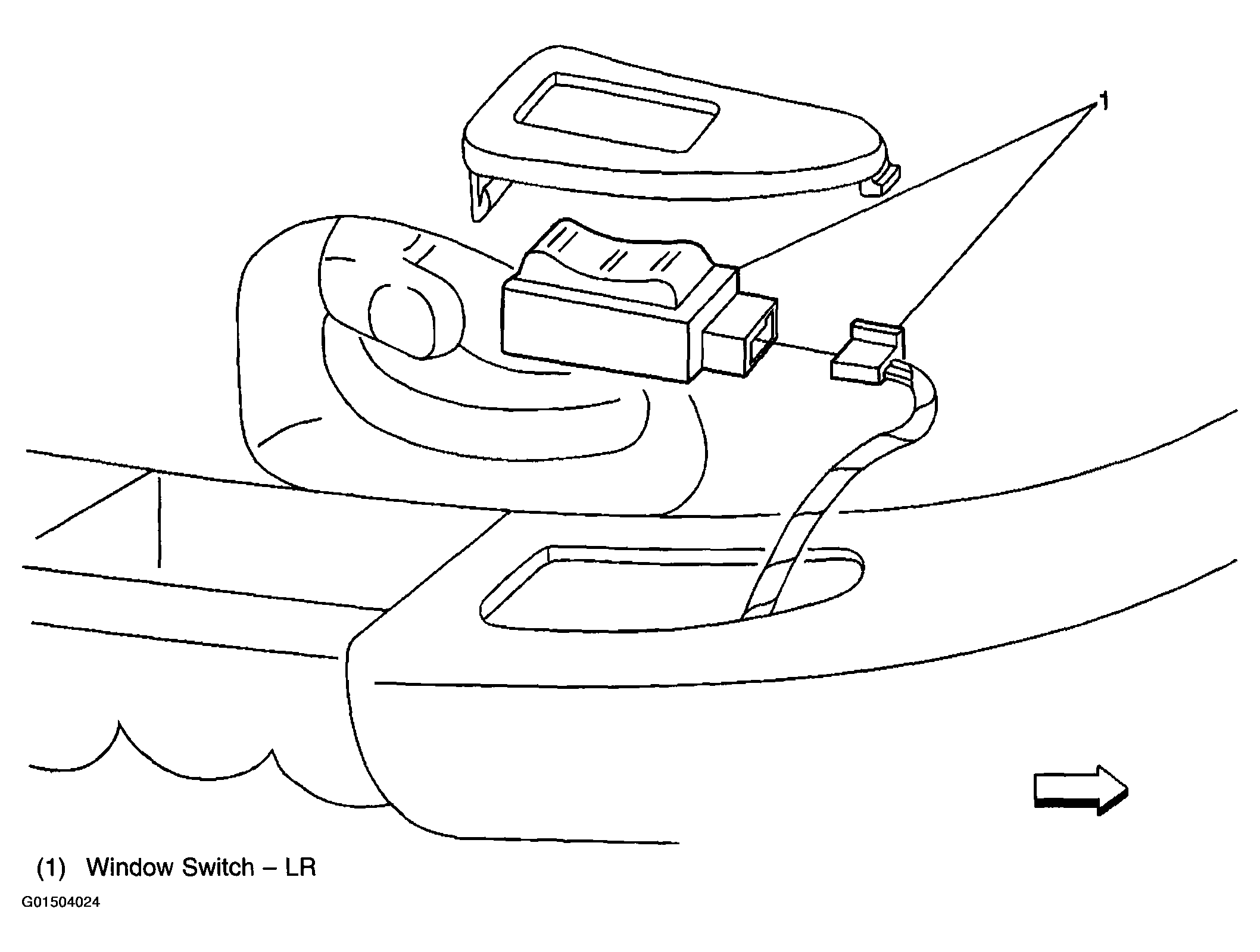

Fig 4: Left/Right Rear Door Window Switch Component View
G01504024Courtesy of GENERAL MOTORS CORP.

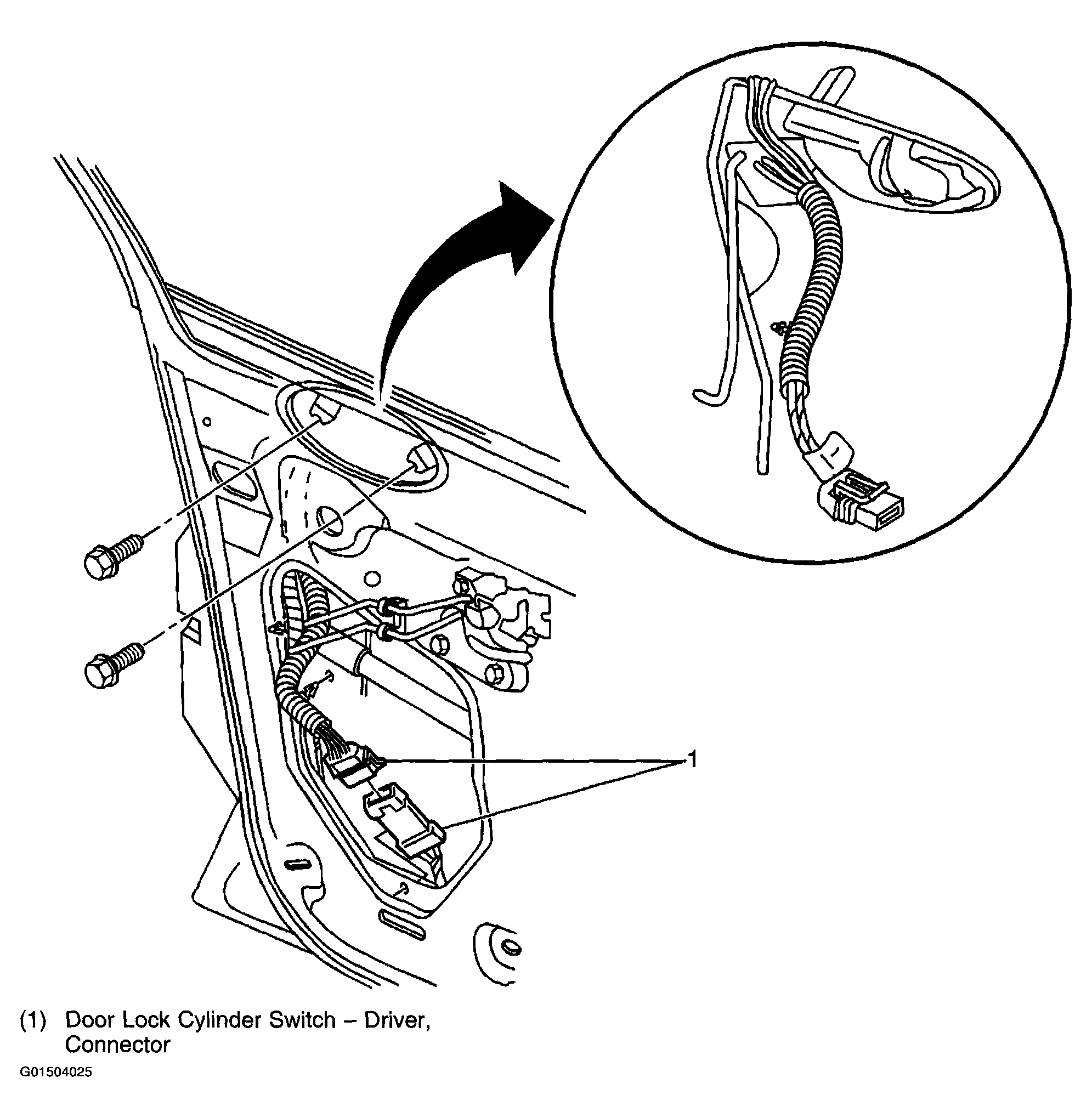

Fig 5: Left/Right Front Door Lock Cylinder Switch Component View
G01504025Courtesy of GENERAL MOTORS CORP.

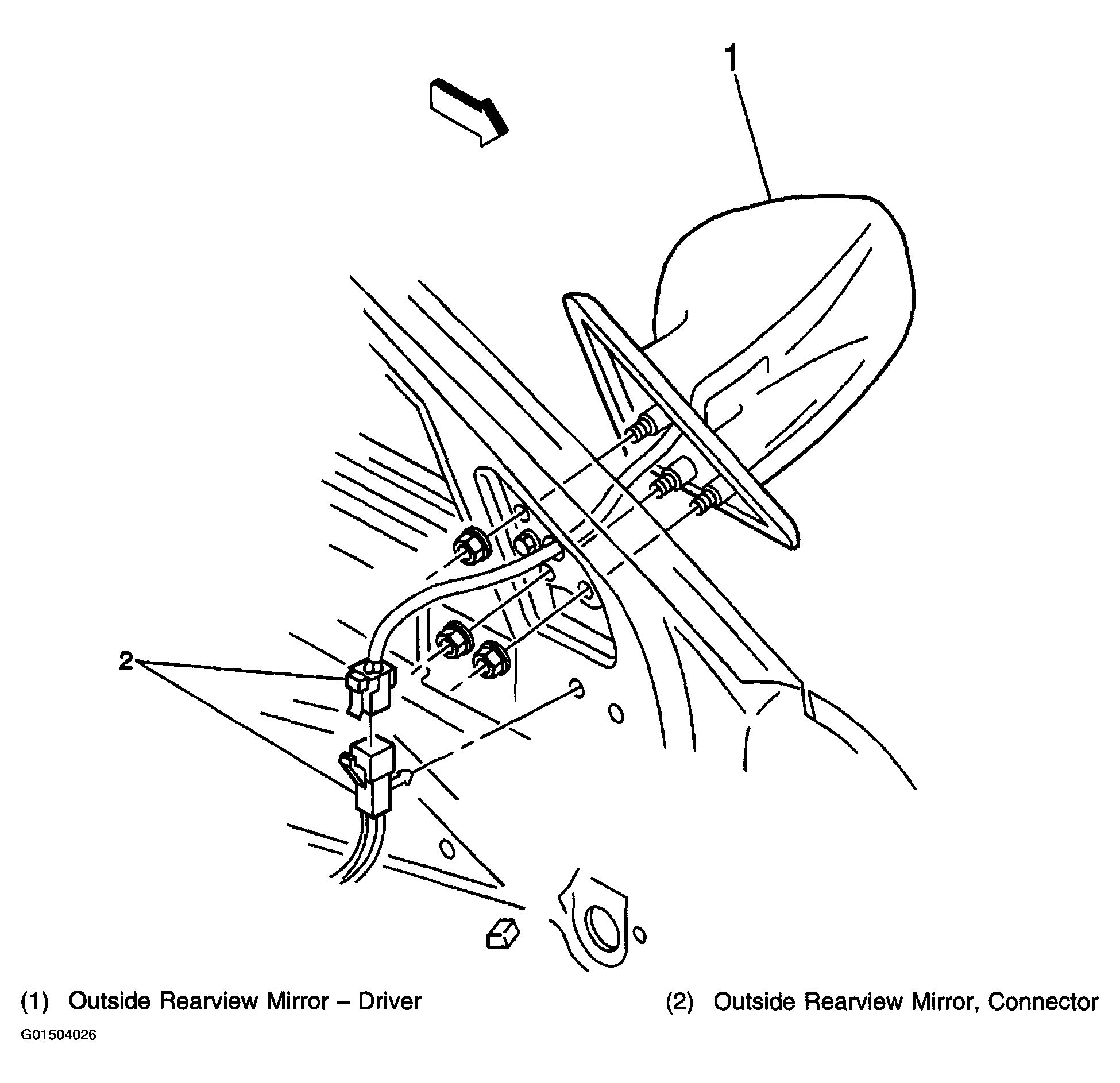

Fig 6: Outside Rearview Mirrors Component View
G01504026Courtesy of GENERAL MOTORS CORP.

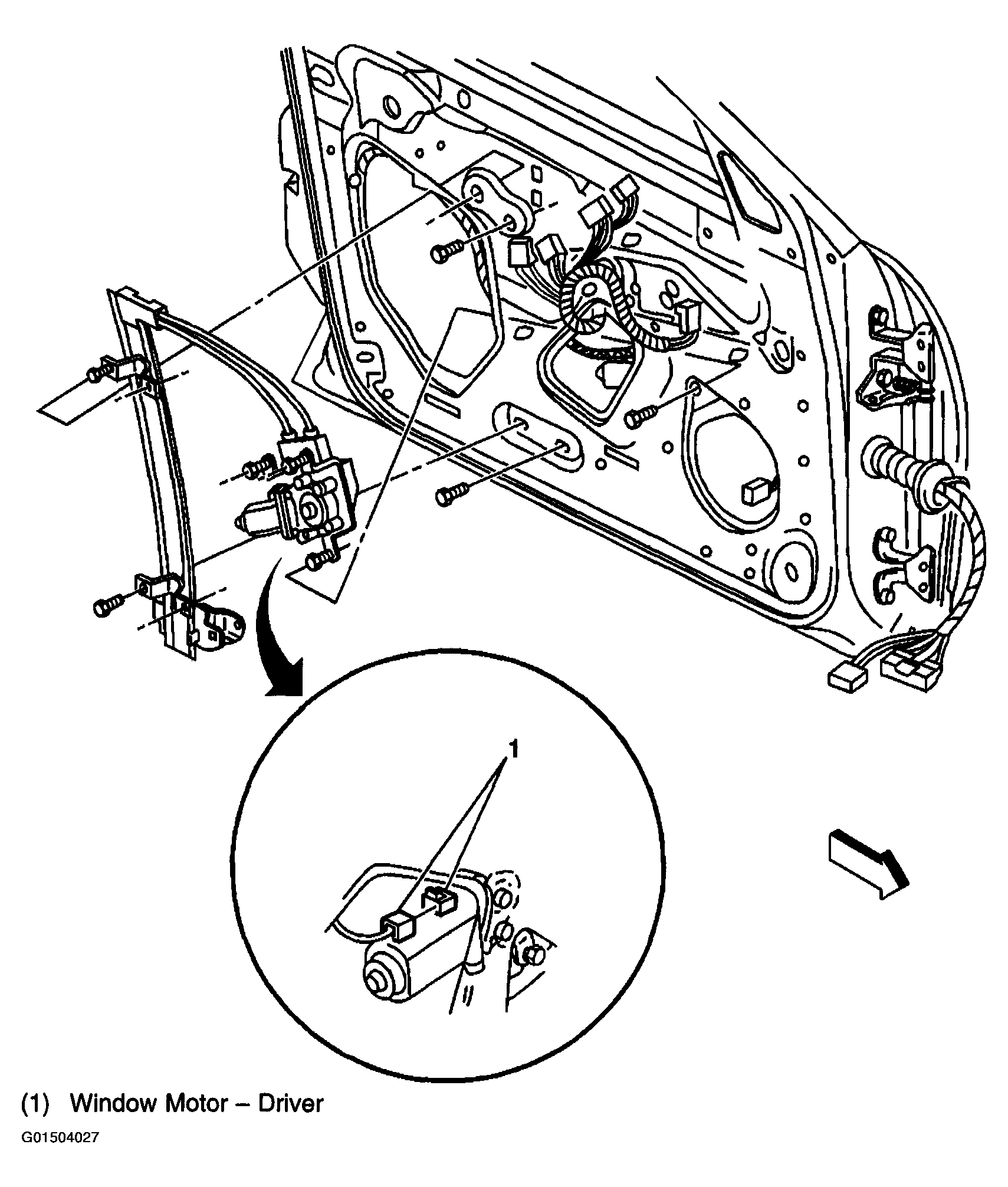

Fig 7: Window Motor-Driver, 4-Door, Front Passenger Similar Component View
G01504027Courtesy of GENERAL MOTORS CORP.

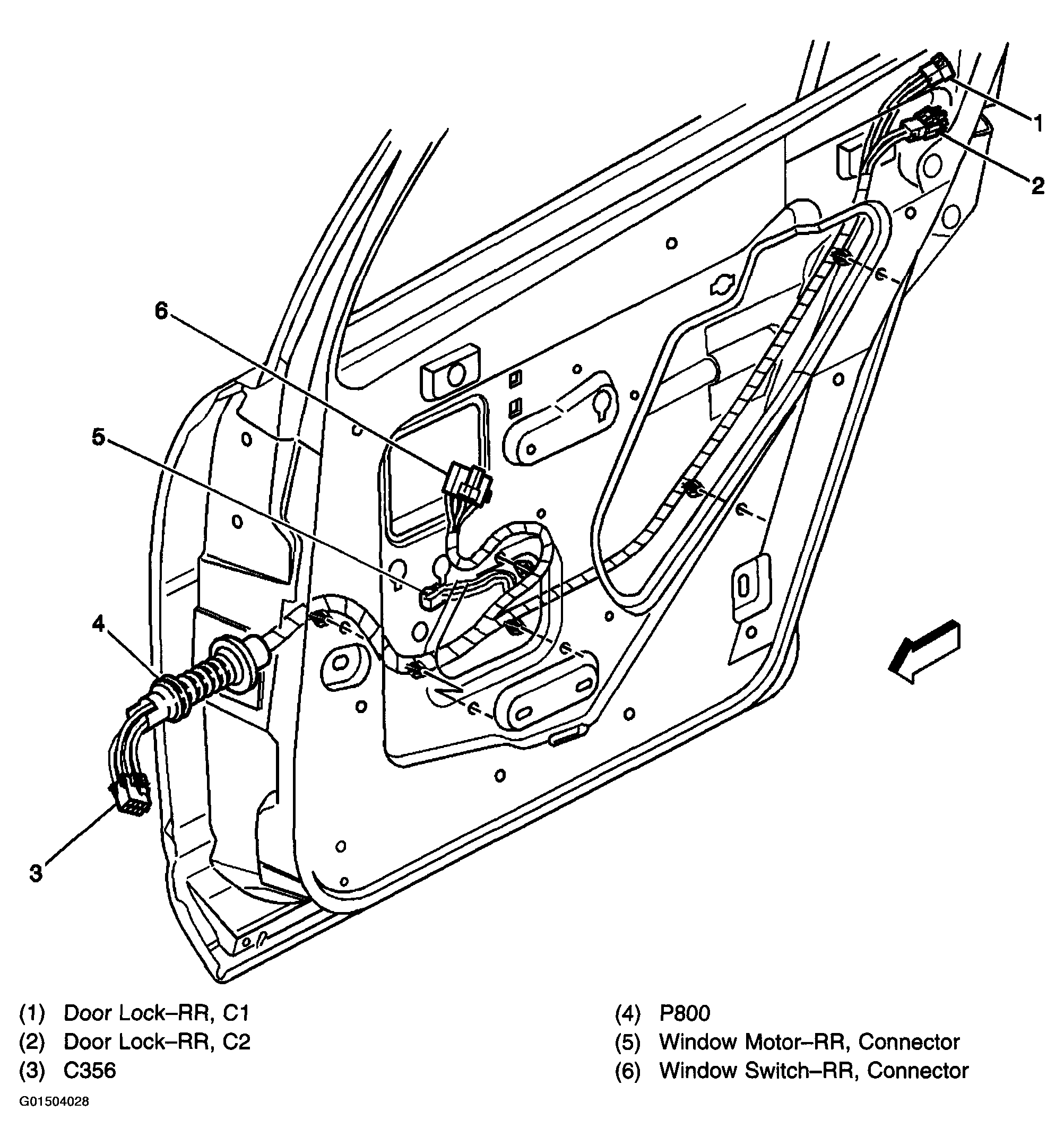

Fig 8: Identifying Right/Left Rear Door Component View
G01504028Courtesy of GENERAL MOTORS CORP.
