Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

This procedure covers the removal and installation of the front and rear door.
Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR or Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR .
Remove the retaining guide block (1).
Pull the rod (2) upward until it releases from the retaining guide block.

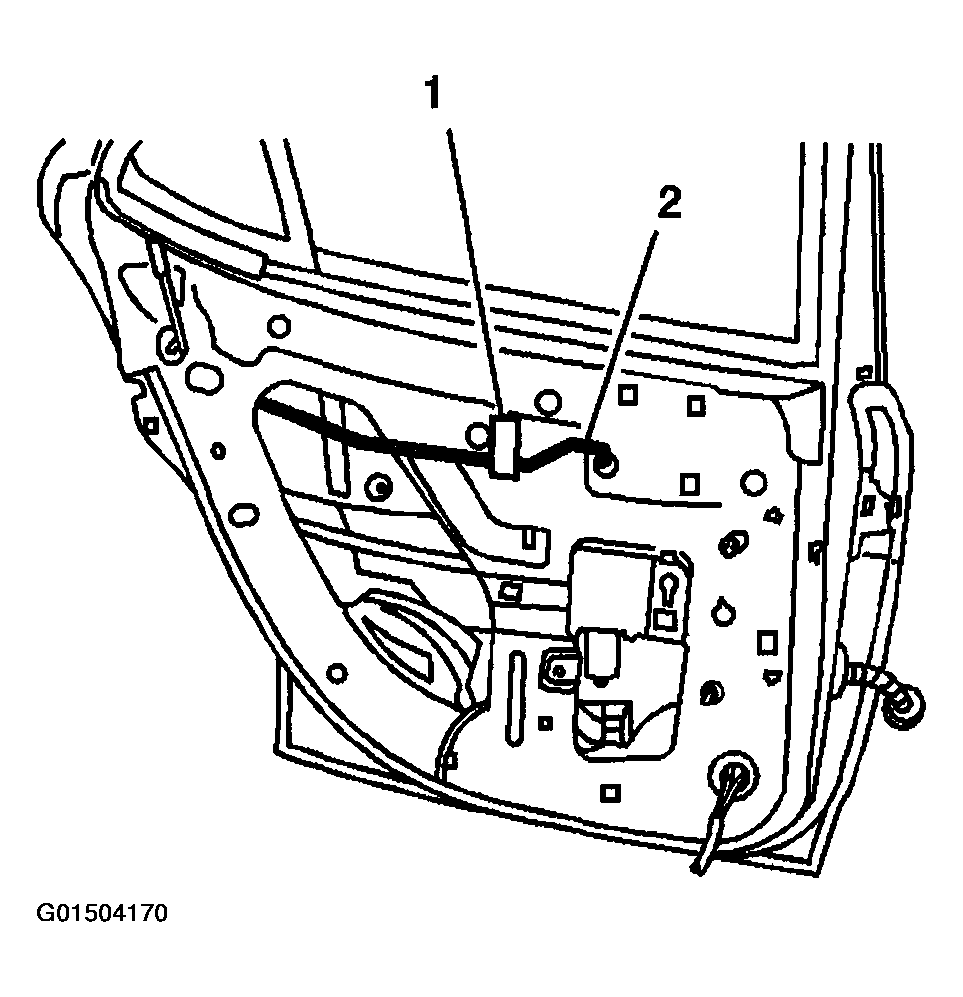

Fig 1: Removing Retaining Guide Block
Courtesy of GENERAL MOTORS CORP.
