Power Seat Systems Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

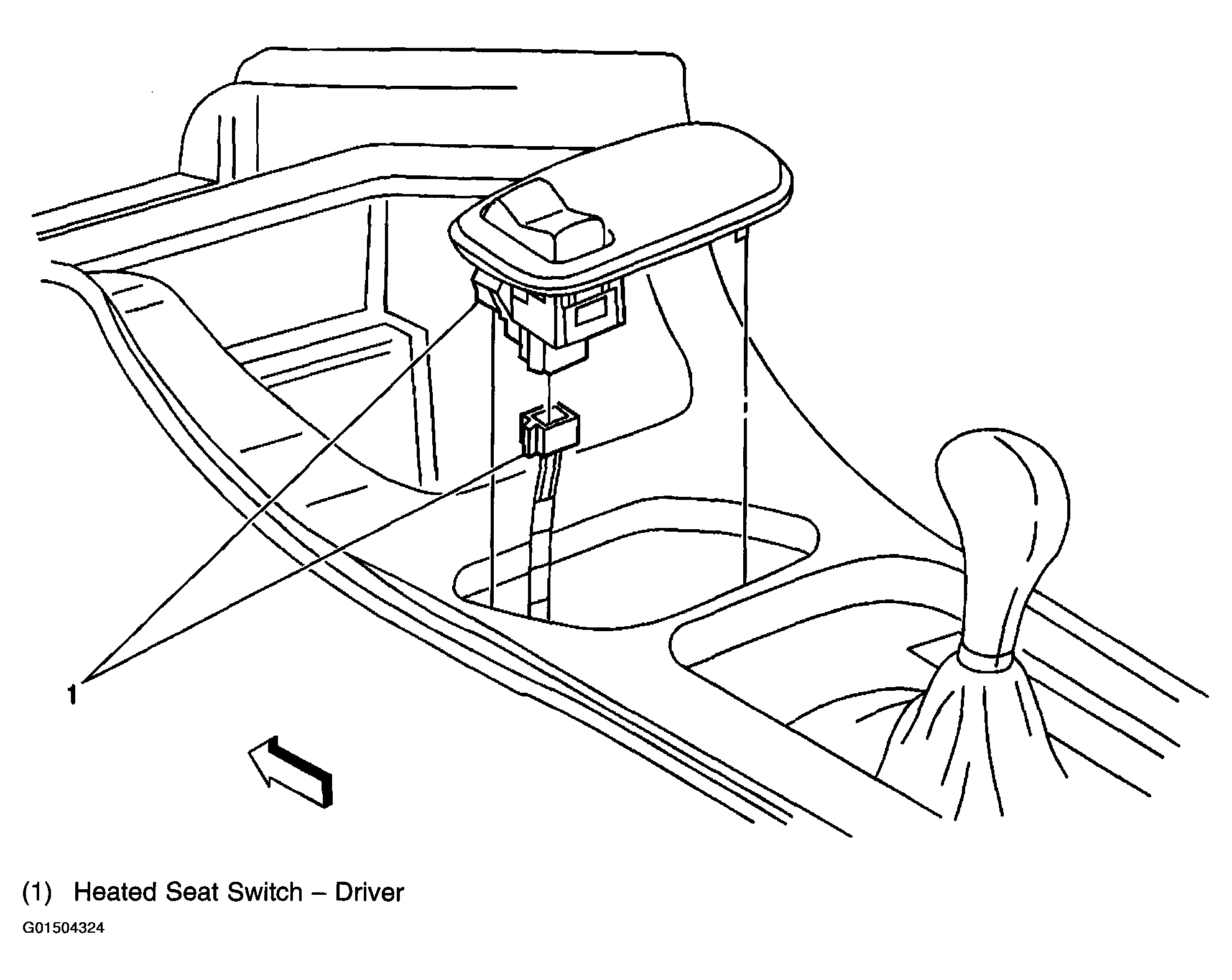

Fig 1: Heated Seat Switch - Driver Component View
G01504324Courtesy of GENERAL MOTORS CORP.

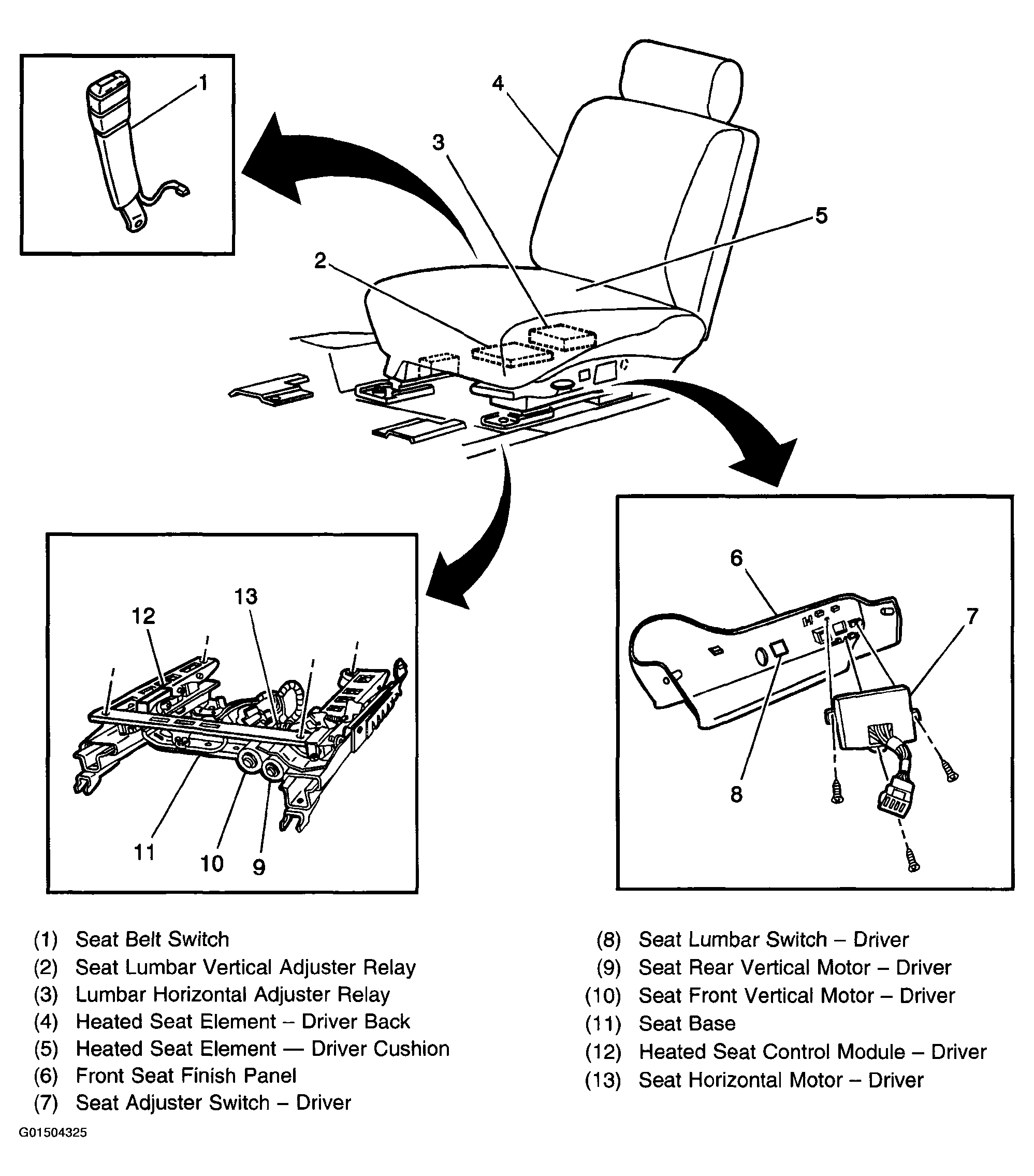

Fig 2: Driver Seat Component View
G01504325Courtesy of GENERAL MOTORS CORP.
