Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR. Refer to xDISABLING & ACTIVATING AIR BAG SYSTEM in Restraints.
  2. Remove the trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - ON VEHICLE in Steering Wheel and Column.
  3. Remove the theft deterrent module wiring harness from the steering column harness.

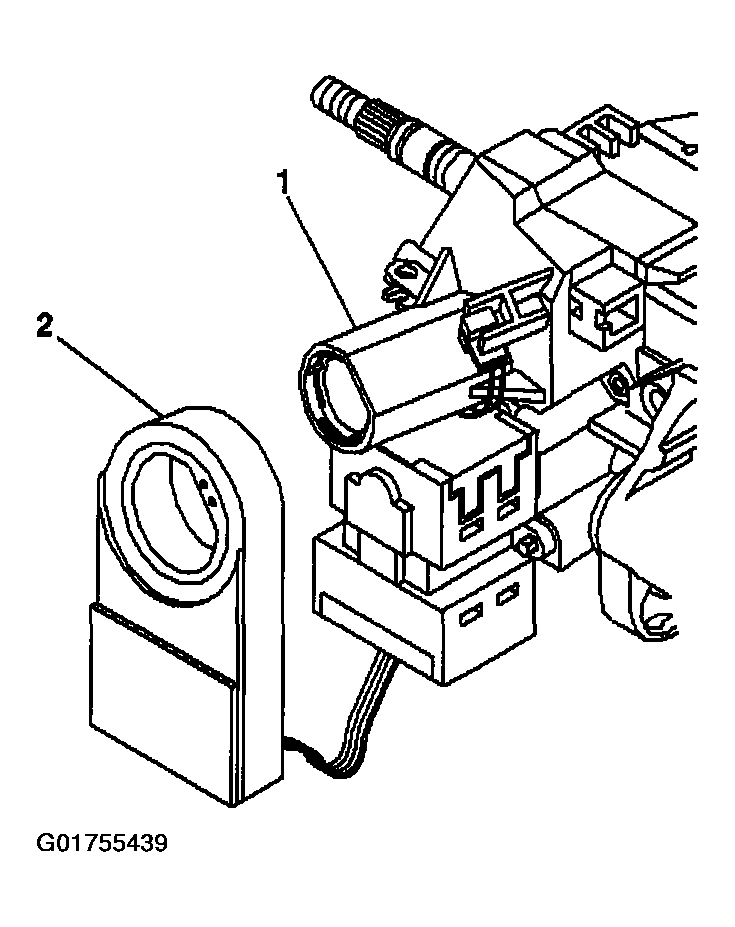

    4. Fig 1: Identifying Theft Deterrent Module
    G01755439Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector.
  5. Pull the theft deterrent module (2) away from the lock cylinder housing (1).
