Power Roof Systems Component Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

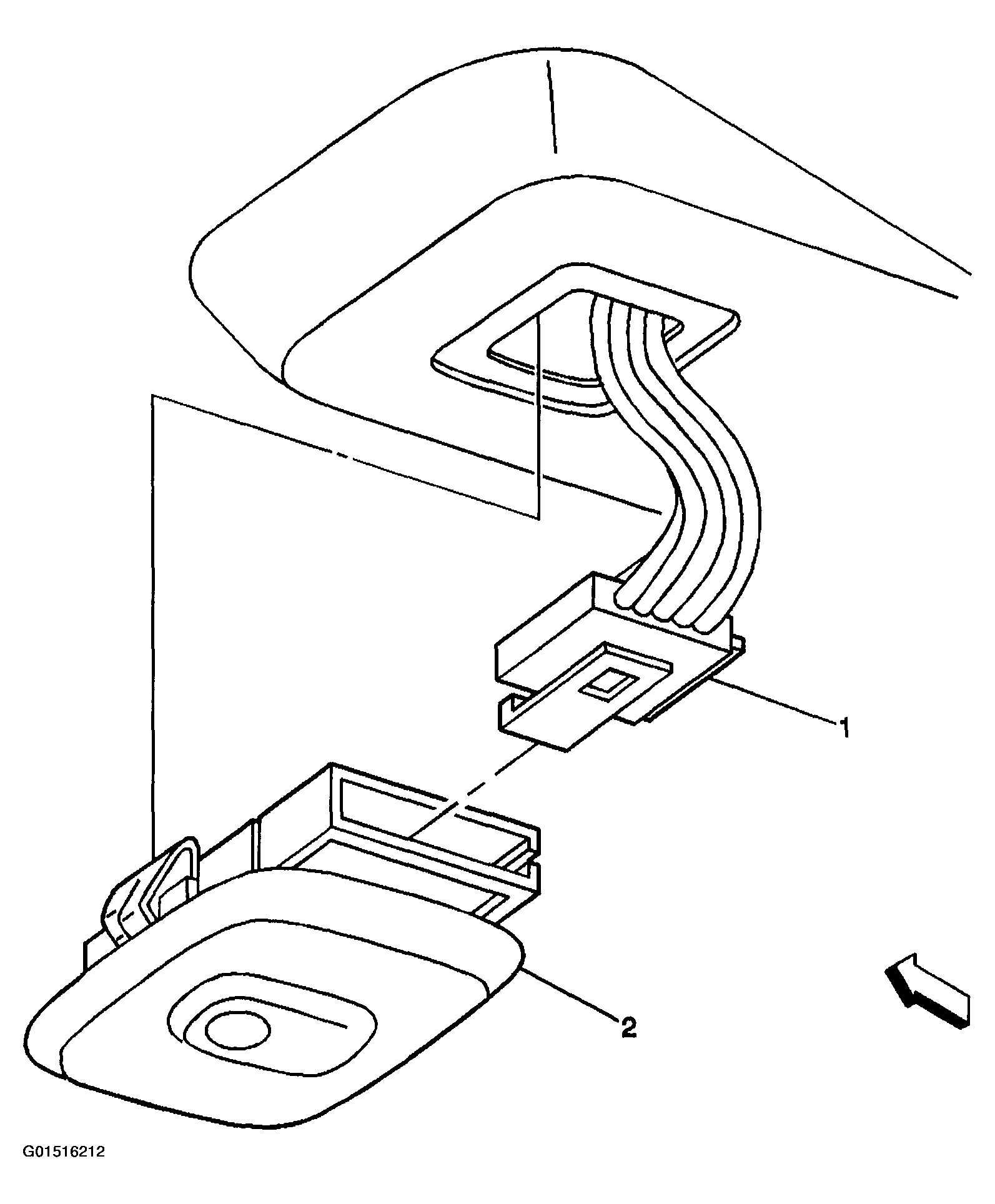

Fig 1: Locating Sunroof Switch

Courtesy of GENERAL MOTORS CORP.

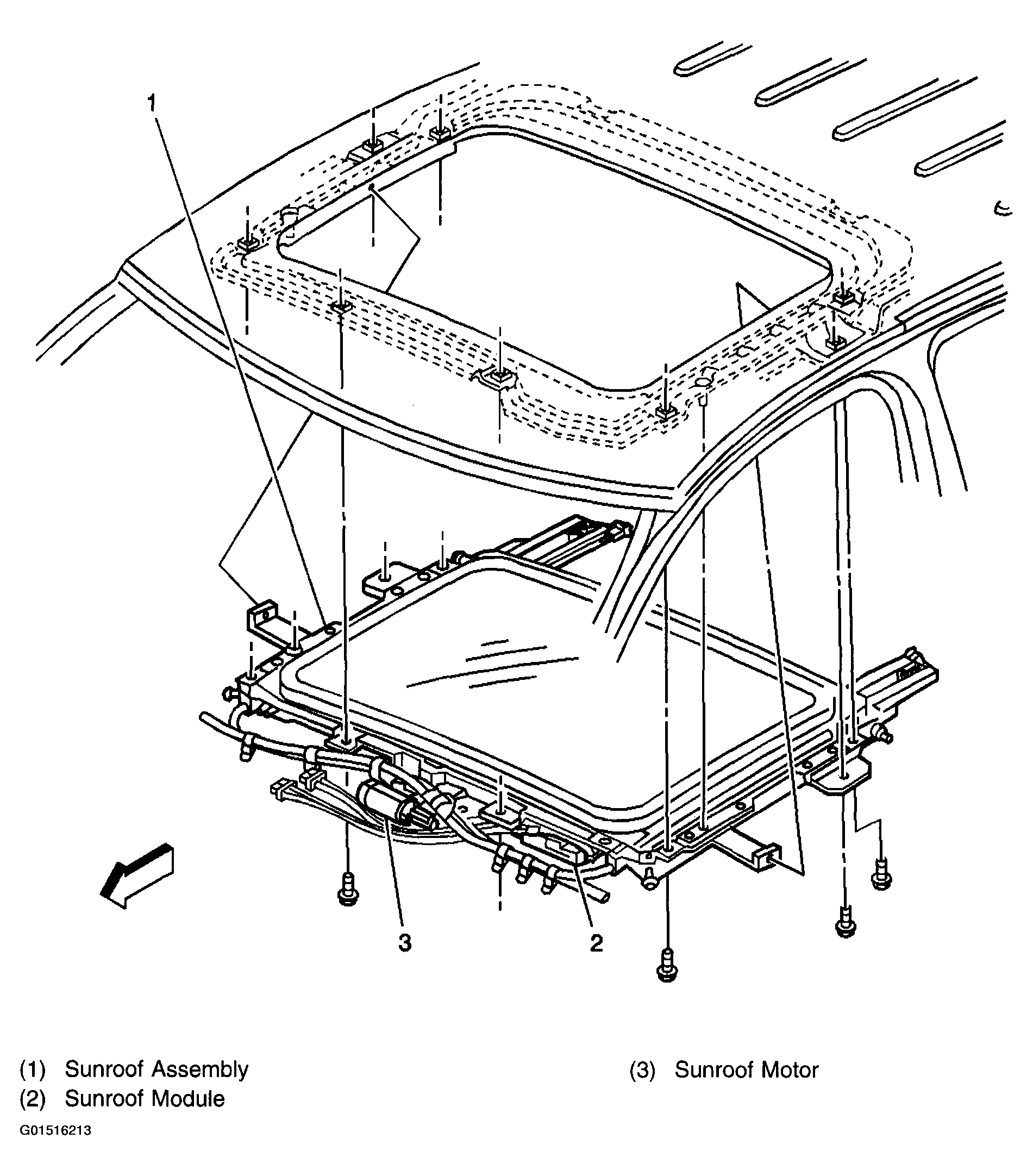

Fig 2: Locating Sunroof Module & Motor

Courtesy of GENERAL MOTORS CORP.

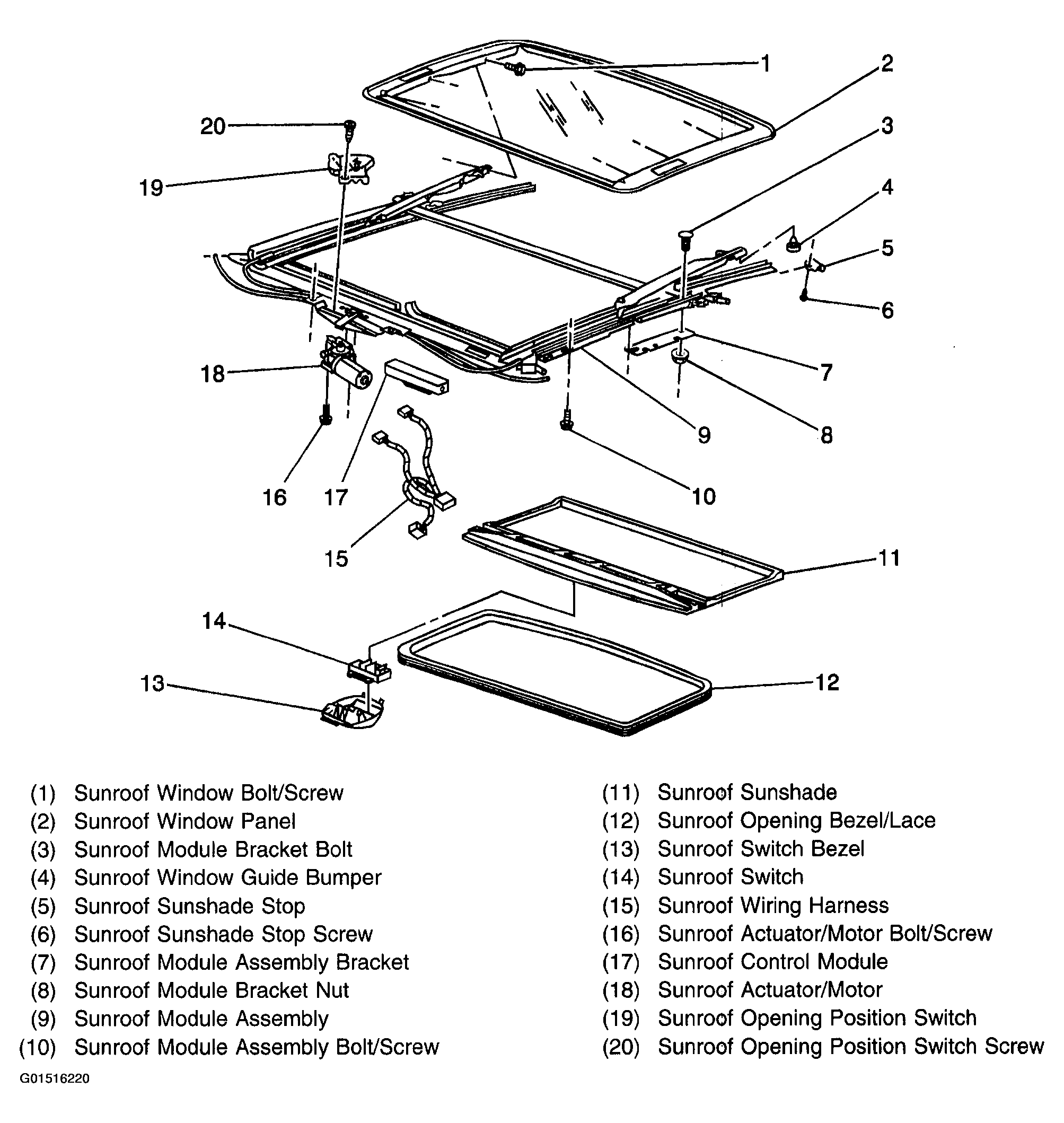

Fig 3: Identifying Power Sunroof Components

Courtesy of GENERAL MOTORS CORP.
