Door Lock Control Module

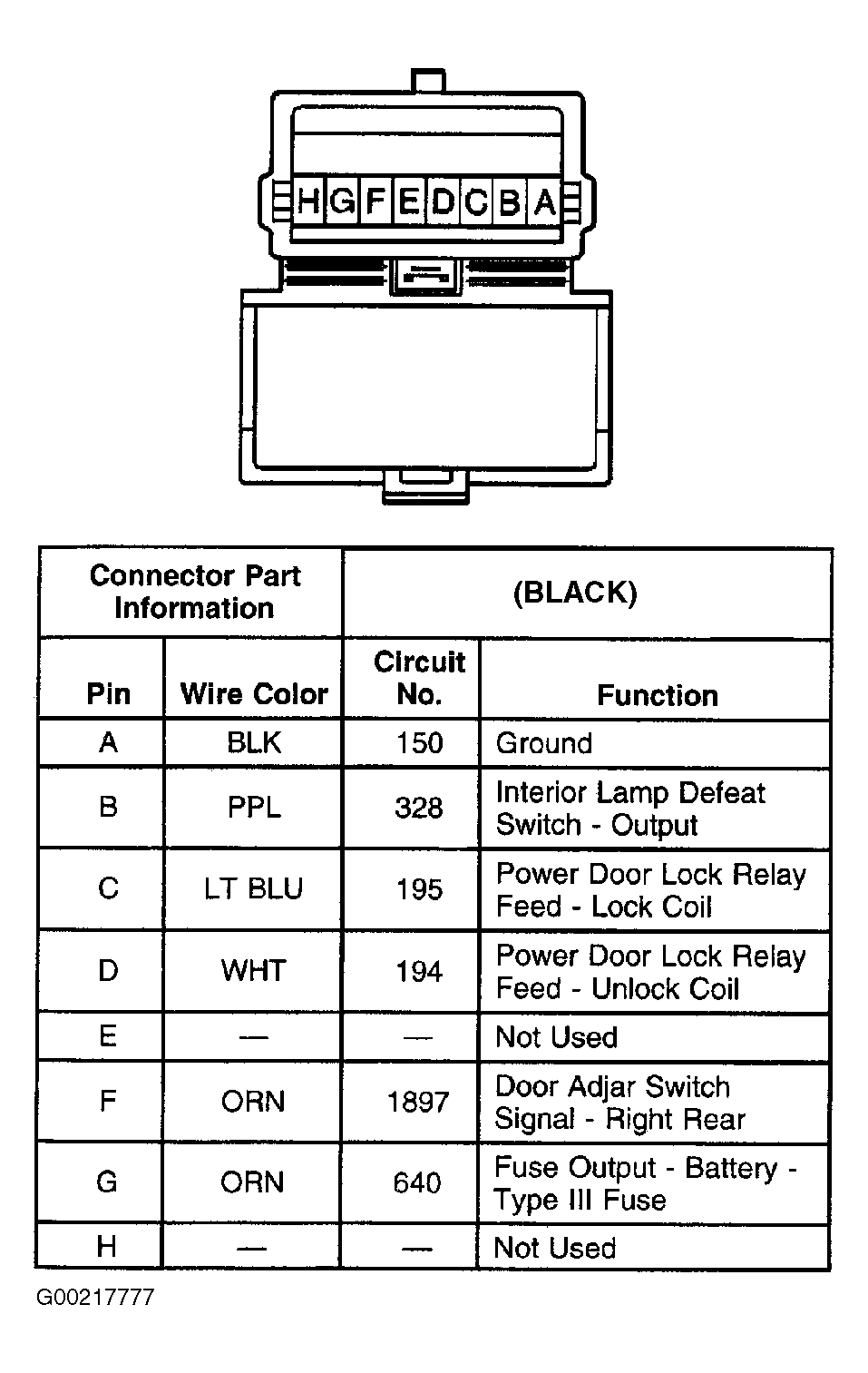

Fig 1: Door Lock Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
