Disassembled Views

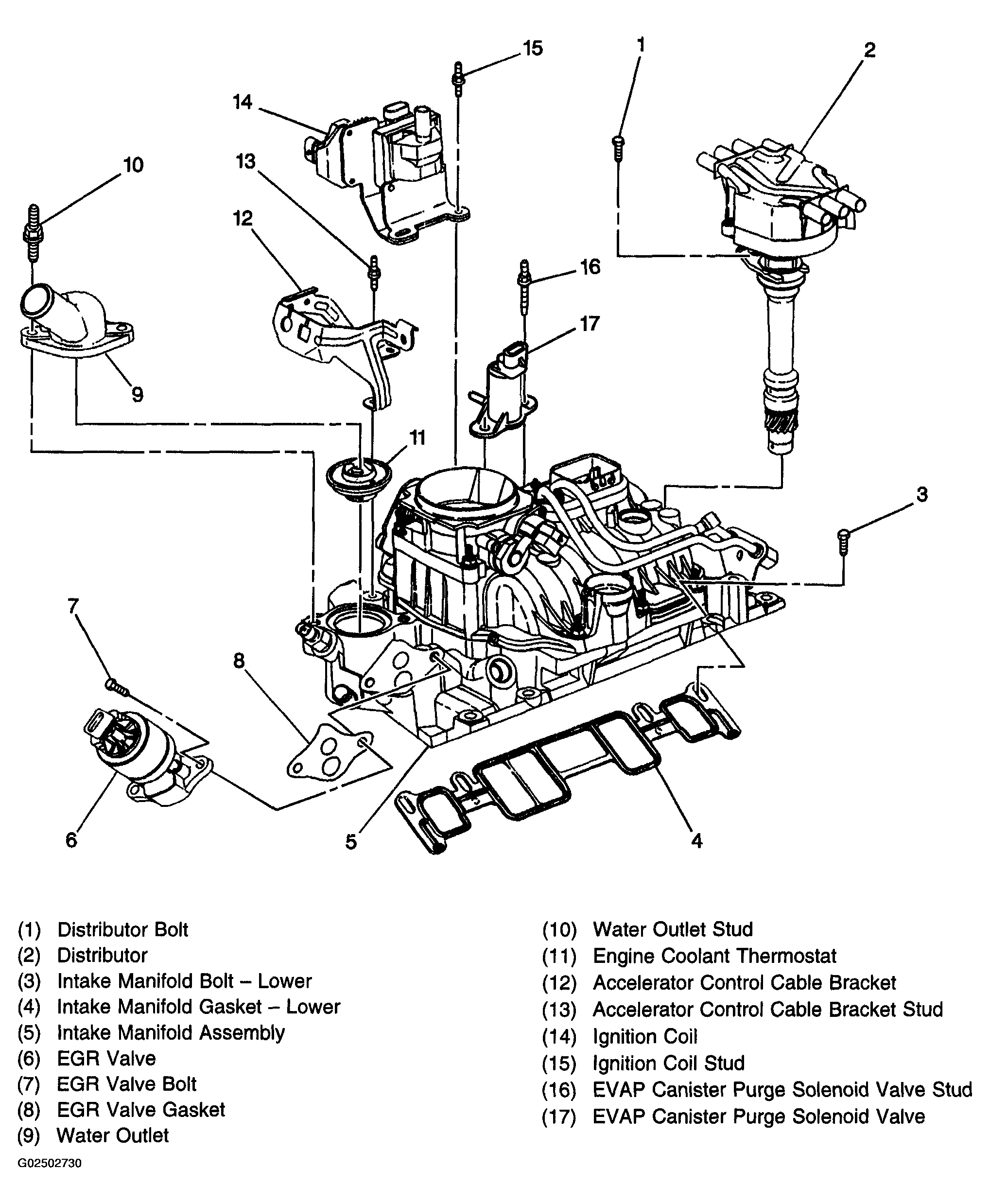

Fig 1: Identifying Upper & Lower Intake Manifold Components

Courtesy of GENERAL MOTORS CORP.

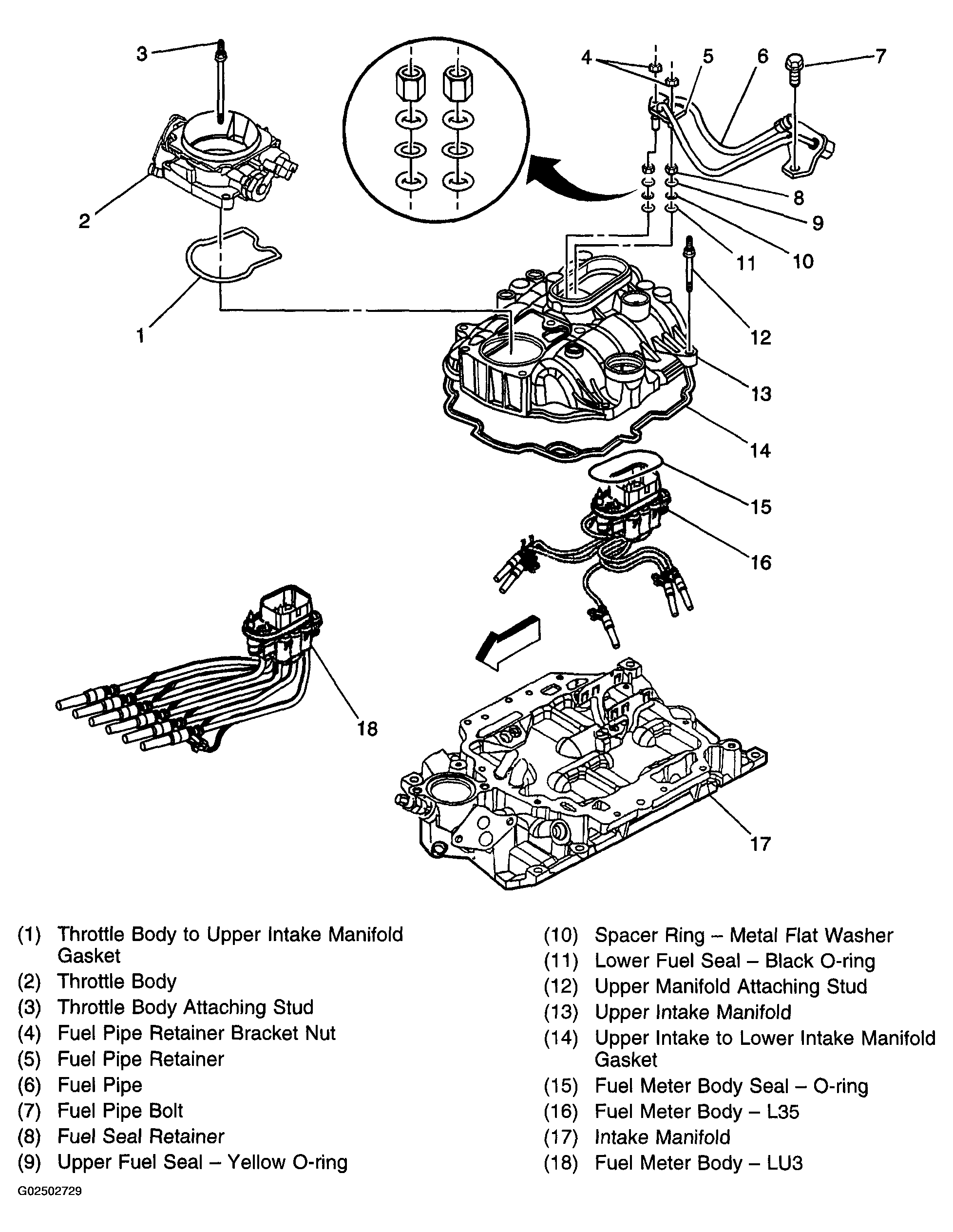

Fig 2: Identifying Upper Engine Components (View 1)

Courtesy of GENERAL MOTORS CORP.

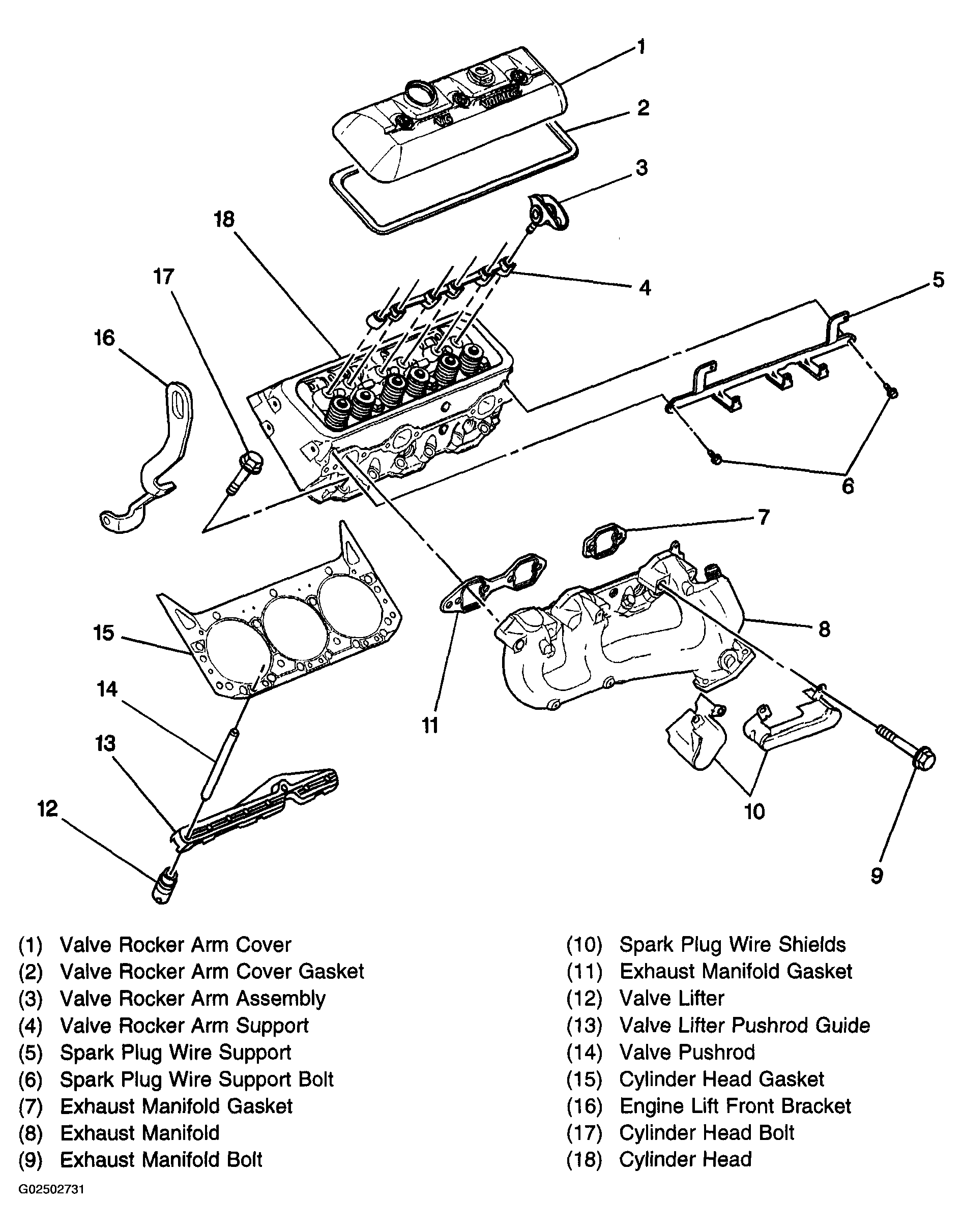

Fig 3: Identifying Upper Engine Components (View 2)

Courtesy of GENERAL MOTORS CORP.

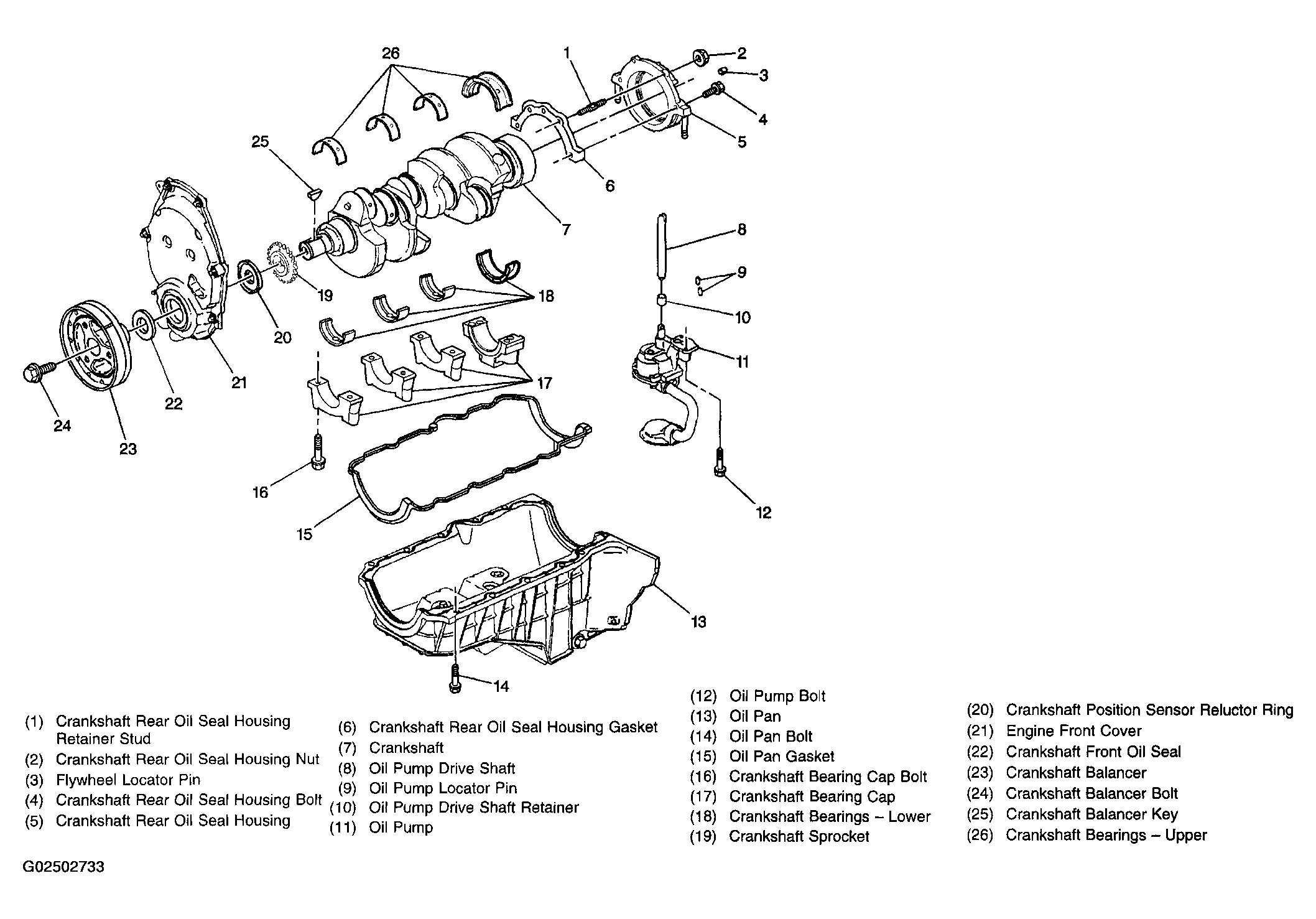

Fig 4: Identifying Lower Engine Components (View 1)

Courtesy of GENERAL MOTORS CORP.

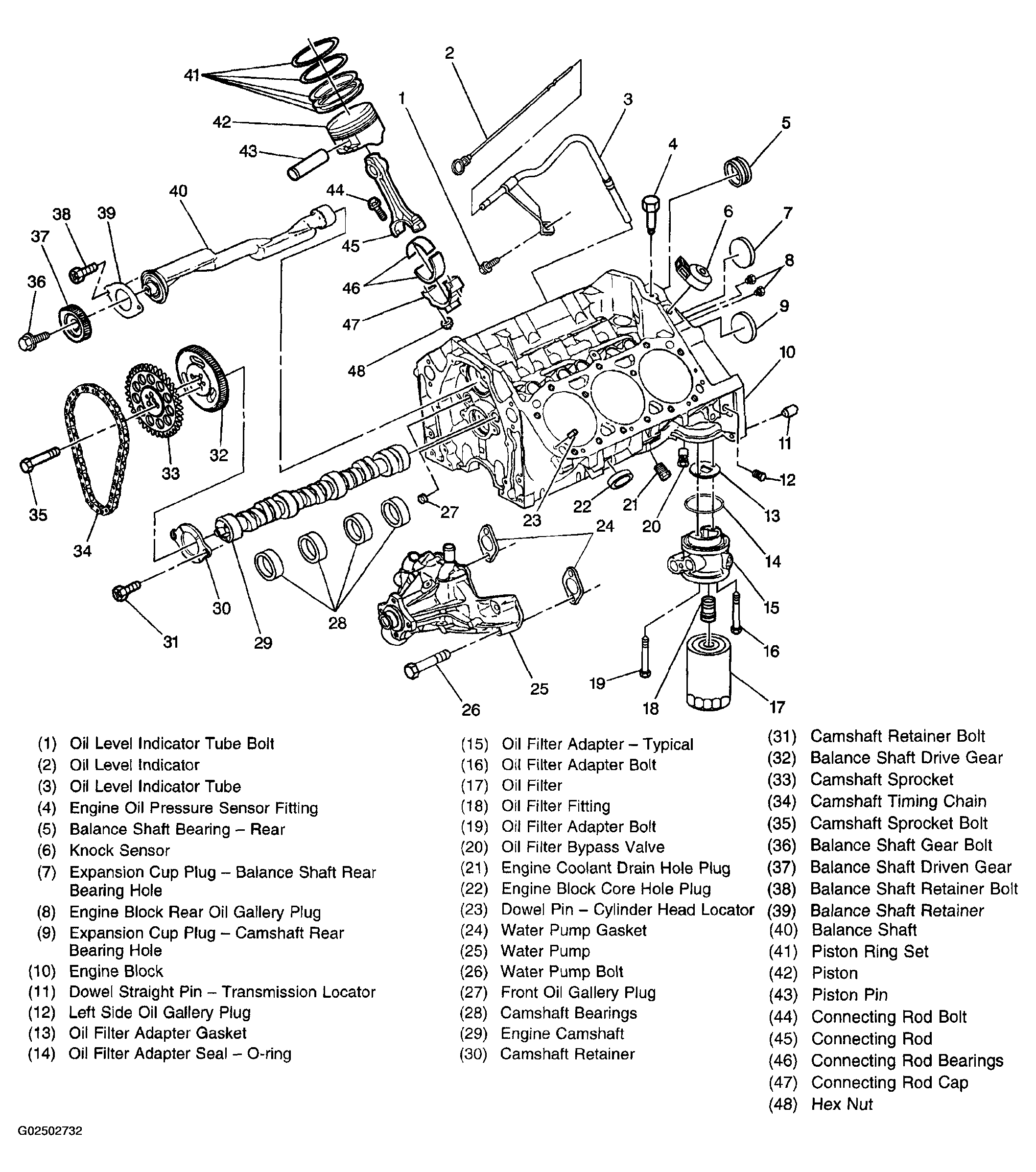

Fig 5: Identifying Lower Engine Components (View 2)

Courtesy of GENERAL MOTORS CORP.
