Installation Procedure

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the remote control door lock receiver (2) to the instrument panel center support bracket.
  2. Install the remote control door lock receiver retainer (3).
  3. Connect the electrical connector to the remote control door lock receiver.

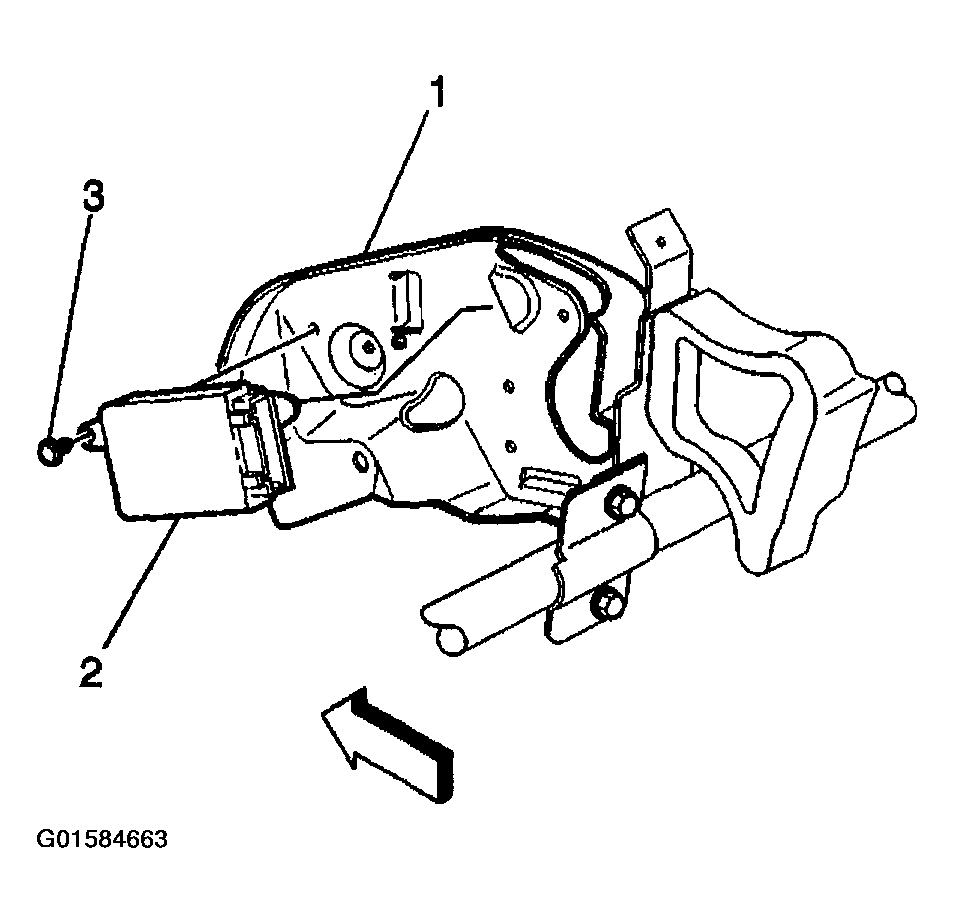

    Fig 1: Remote Control Door Lock Receiver & Retainer
    G01584663Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel center support bracket (4).
    NOTE: Refer to FASTENER NOTICE .
  5. Install the bolt (3) that retains the reinforcement to the instrument panel center support bracket.

    Tighten

    Tighten the bolt to 2 N.m (18 lb in).

  6. Install the bolts (2) that retain the instrument panel center support bracket to the steering column bracket (1).

    Tighten

    Tighten the bolts to 65 N.m (47 lb ft).

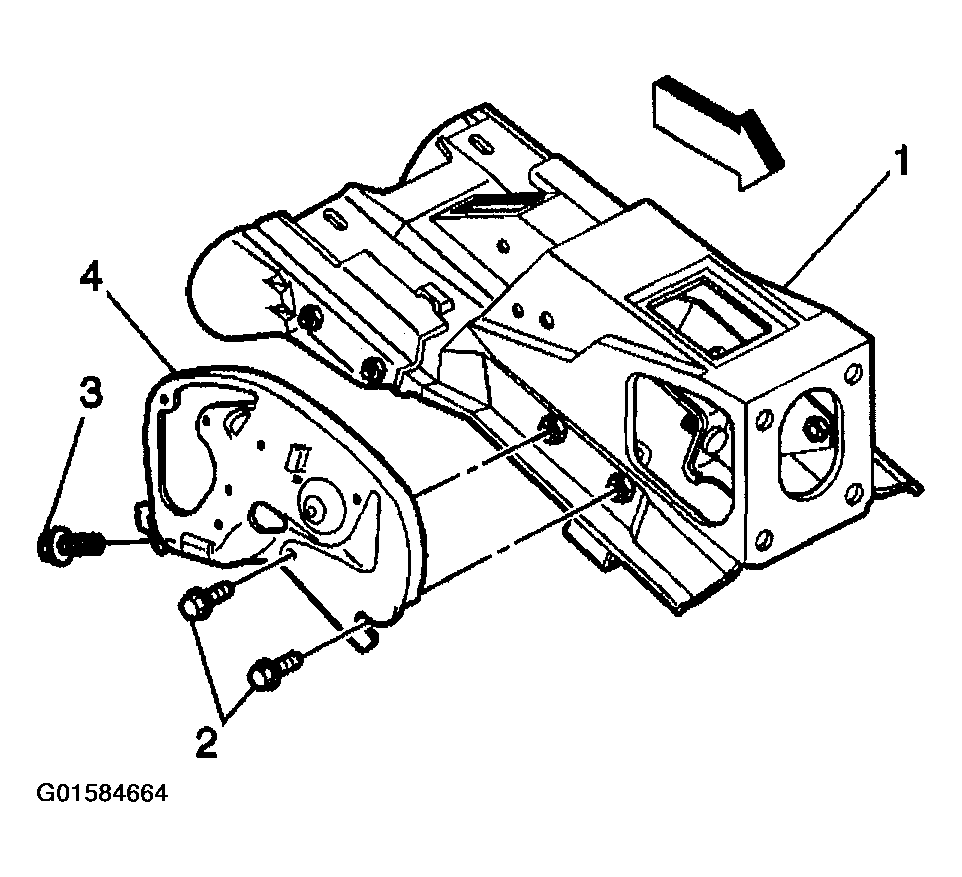

    Fig 2: Steering Column Bracket, Instrument Panel Center Support Bracket & Bolts
    G01584664Courtesy of GENERAL MOTORS CORP.
