ABS Connector End Views

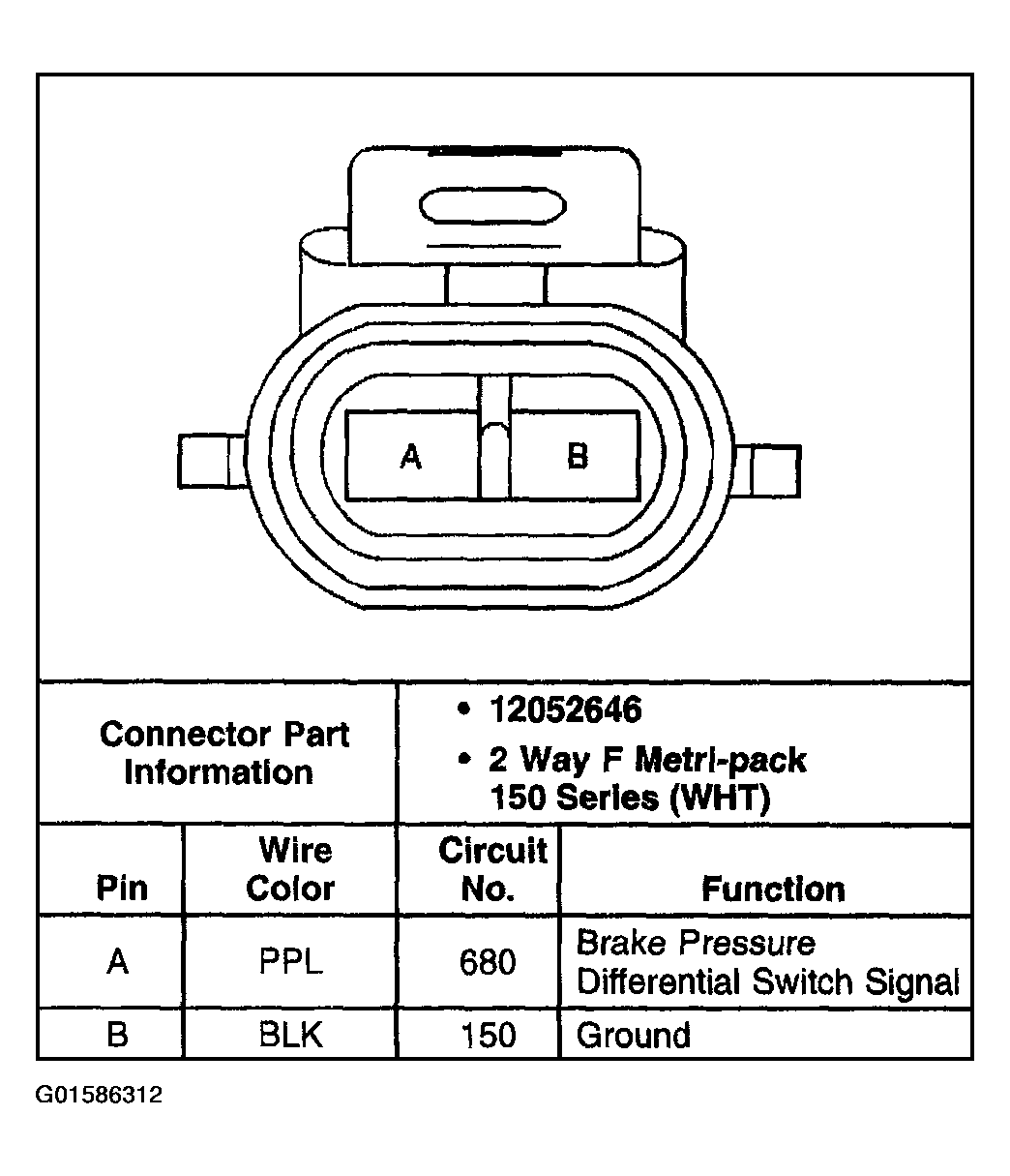

Fig 1: Brake Pressure Differential Switch Connector End Views
G01586312Courtesy of GENERAL MOTORS CORP.

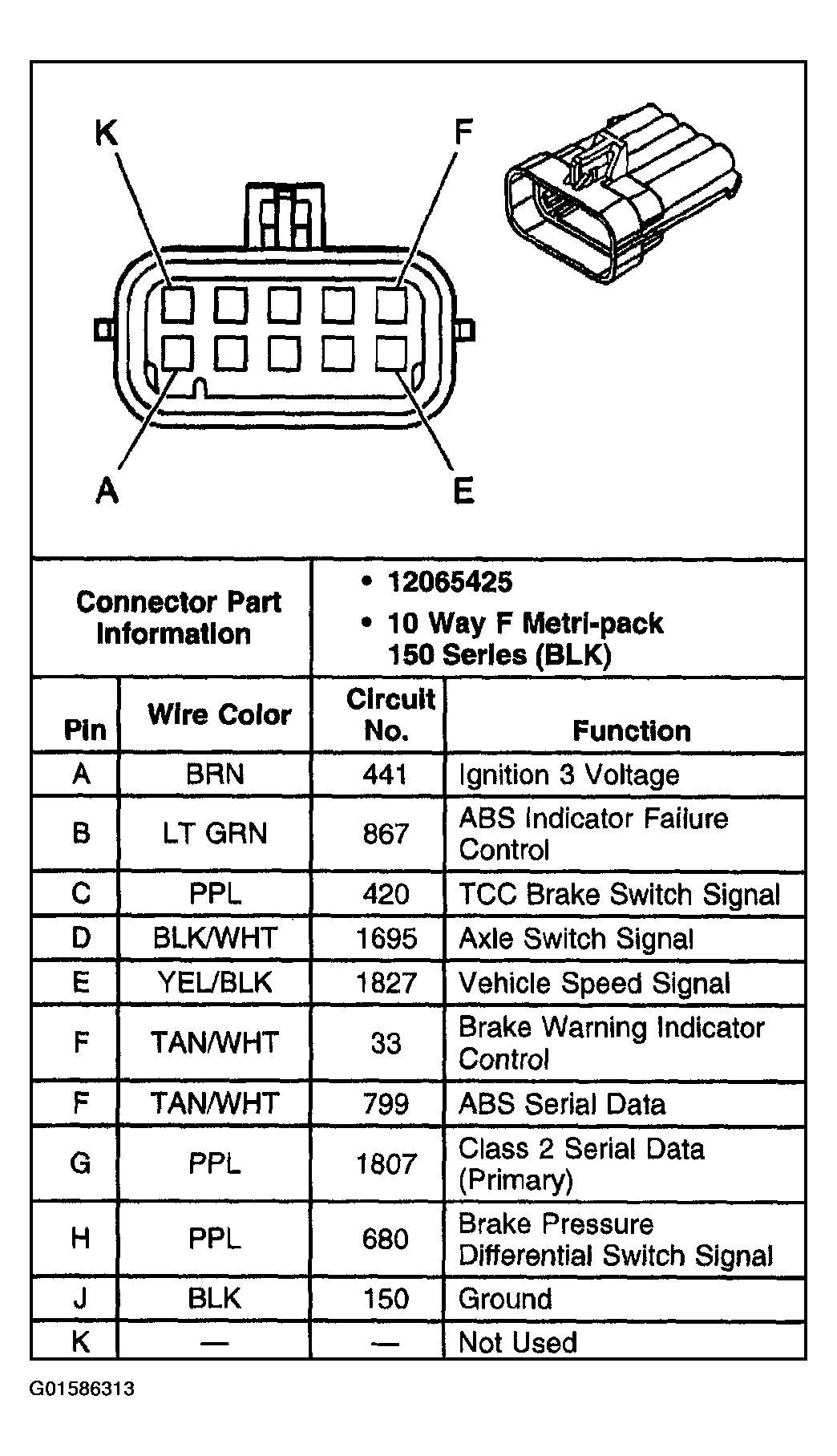

Fig 2: Electronic Brake Control Module (EBCM) C1 Connector End Views
G01586313Courtesy of GENERAL MOTORS CORP.

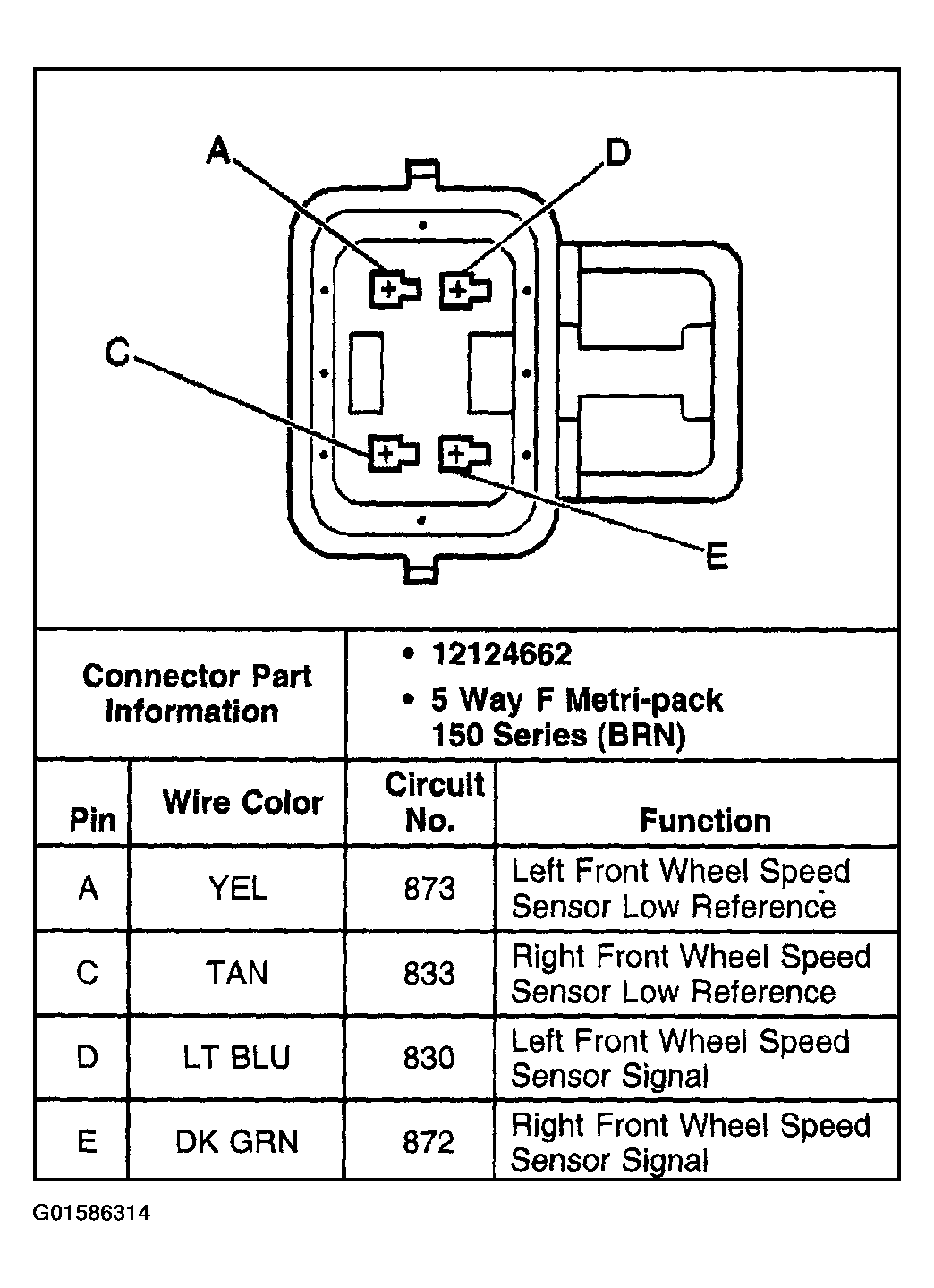

Fig 3: Electronic Brake Control Module (EBCM) C2 Connector End Views
G01586314Courtesy of GENERAL MOTORS CORP.

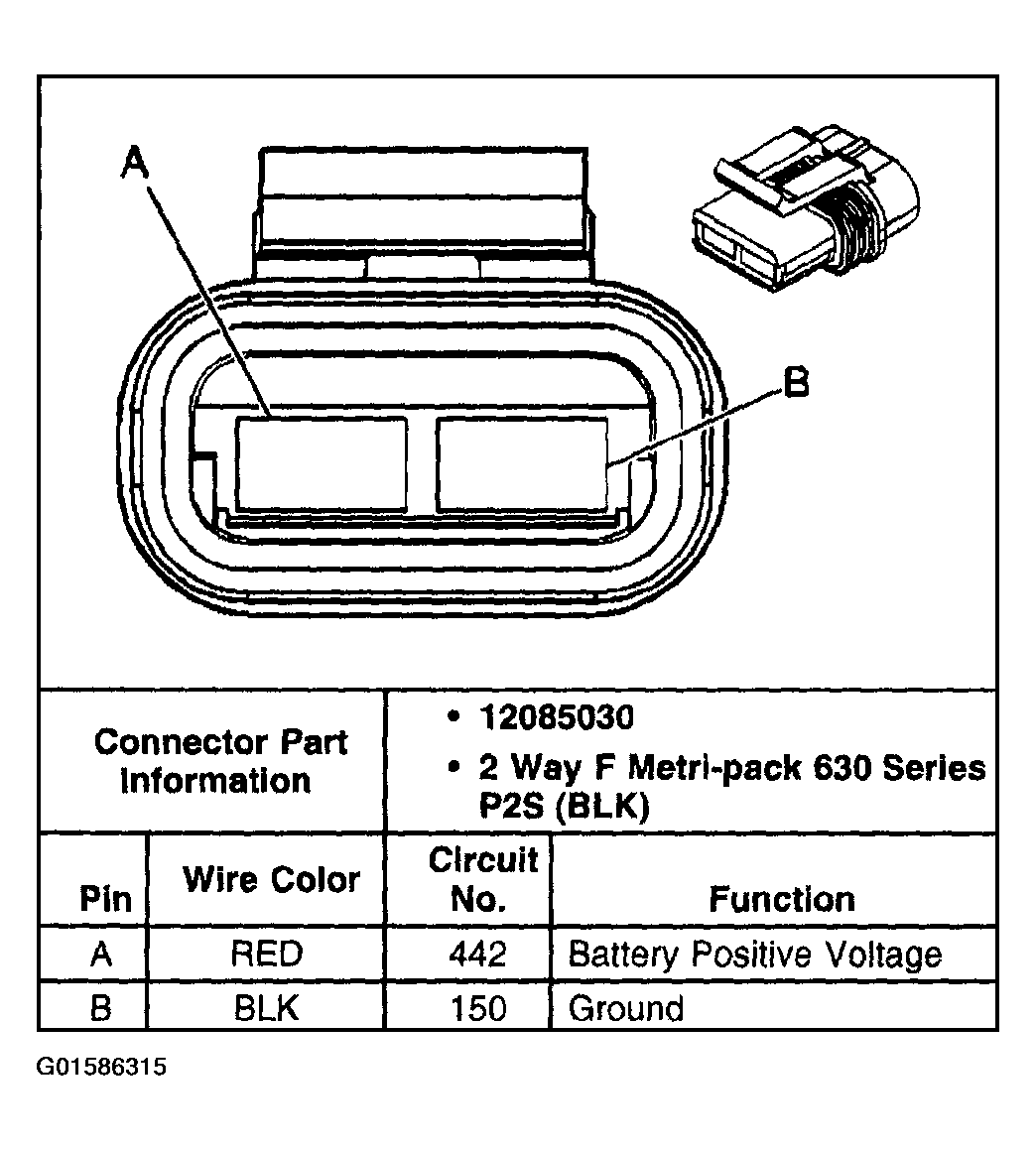

Fig 4: Electronic Brake Control Module (EBCM) C3 Connector End Views
G01586315Courtesy of GENERAL MOTORS CORP.

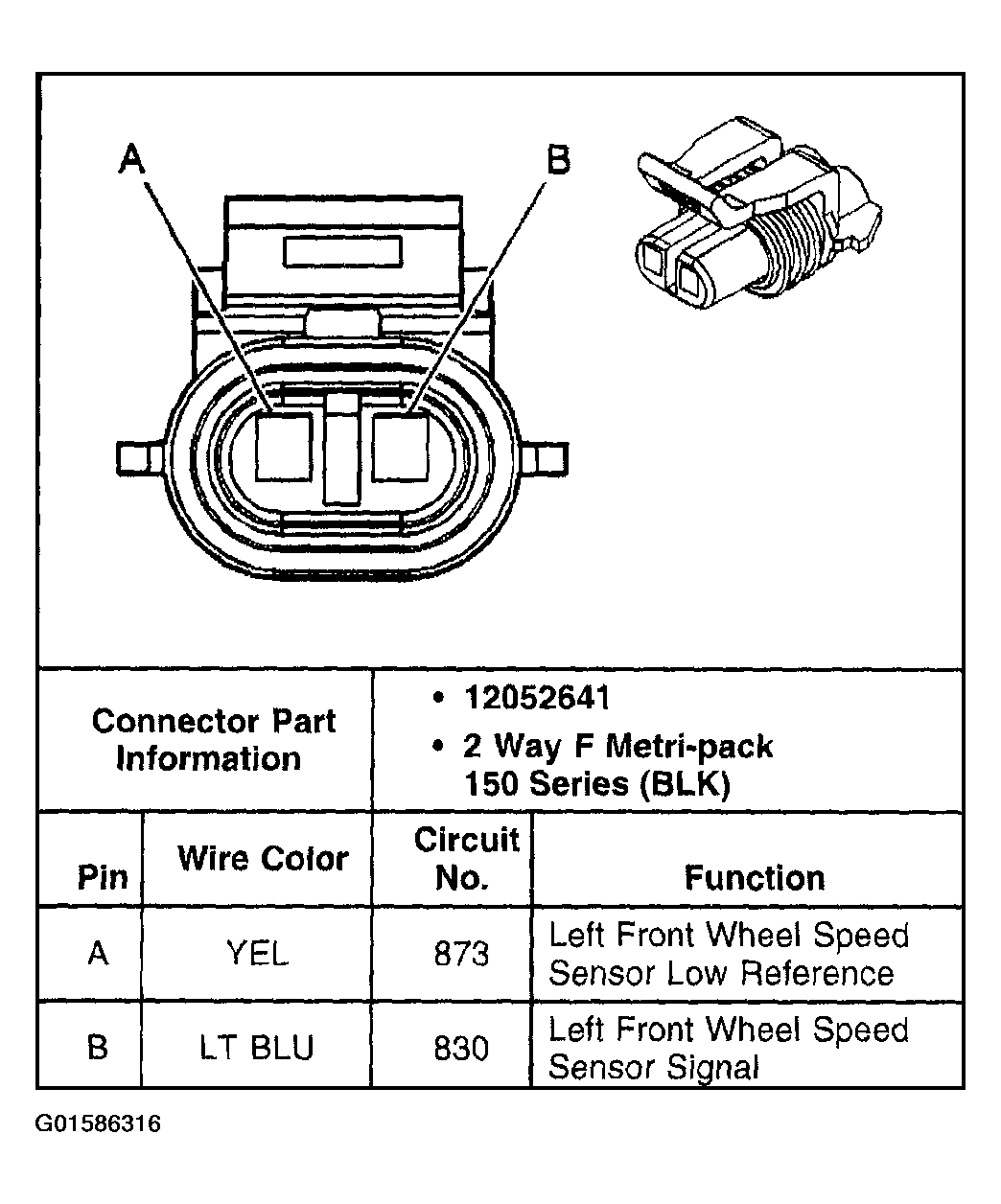

Fig 5: Wheel Speed Sensor Connector End Views - LF
G01586316Courtesy of GENERAL MOTORS CORP.

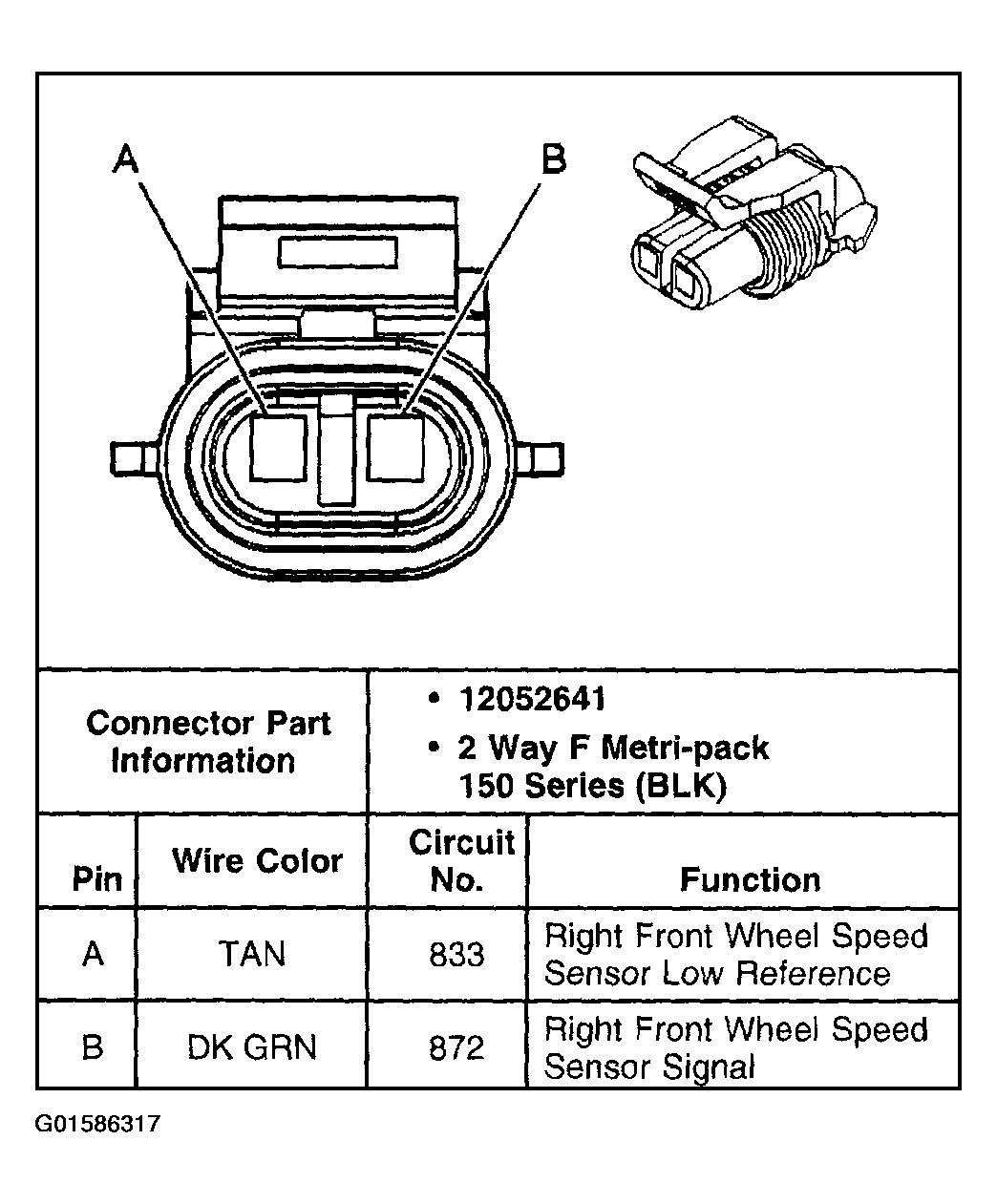

Fig 6: Wheel Speed Sensor Connector End Views - RF
G01586317Courtesy of GENERAL MOTORS CORP.

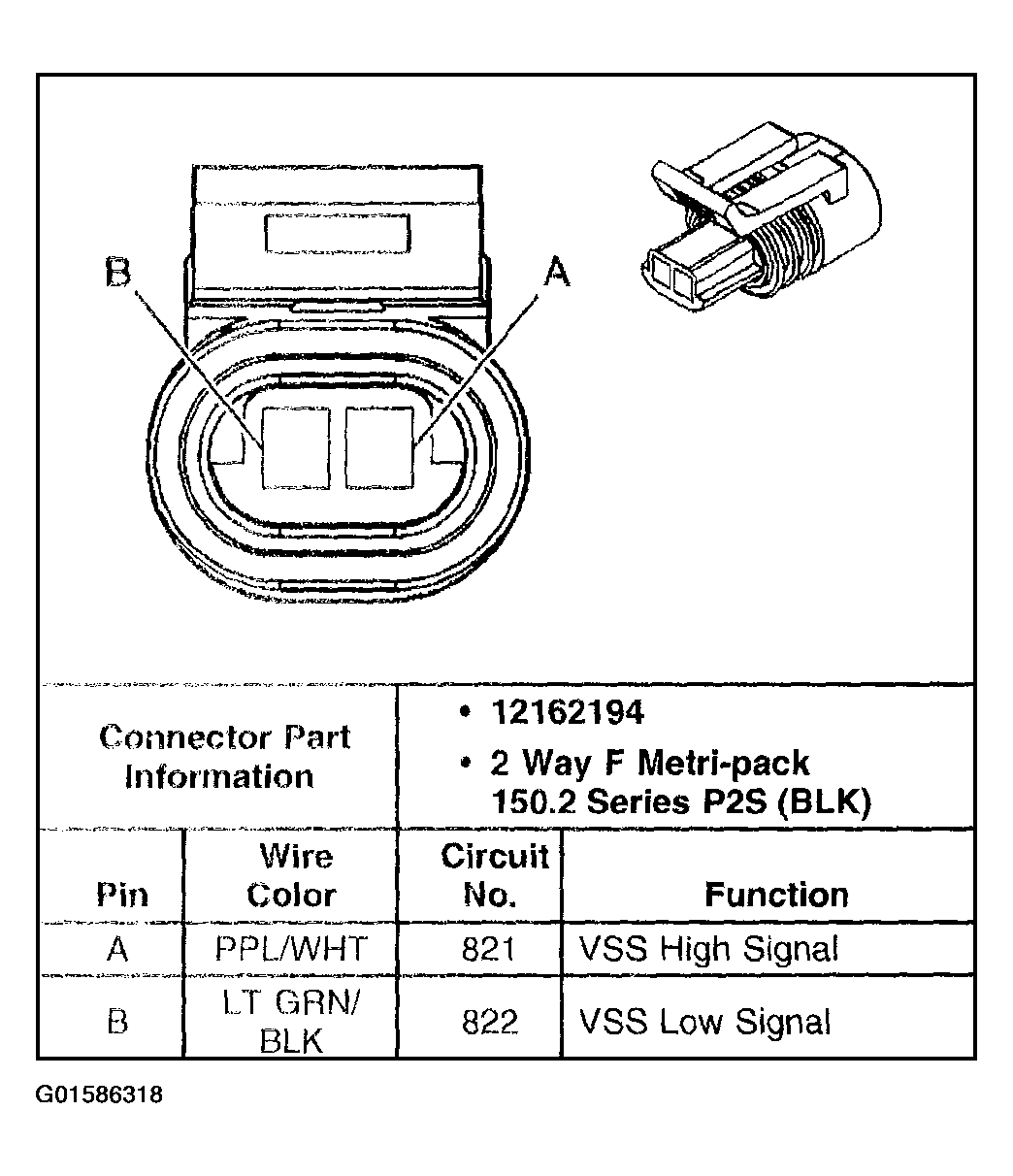

Fig 7: Vehicle Speed Sensor (VSS) Connector End Views - A/T
G01586318Courtesy of GENERAL MOTORS CORP.

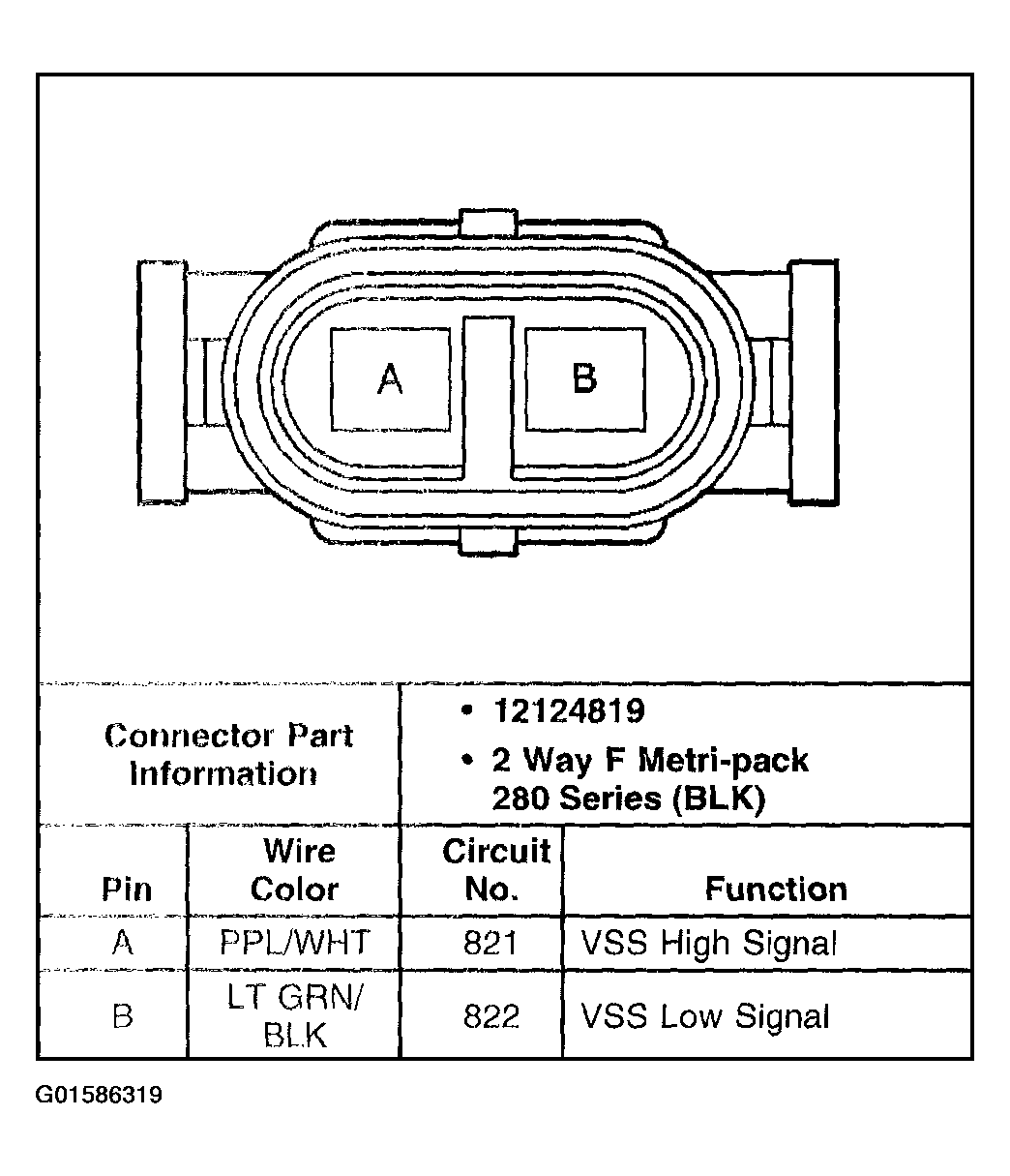

Fig 8: Vehicle Speed Sensor (VSS) Connector End Views - M/T
G01586319Courtesy of GENERAL MOTORS CORP.
