2002
>>
C3500 HD 6.5 F, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Wiring Systems
>>
Component Locator
>>
Master Electrical Component List
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Master Electrical Component List

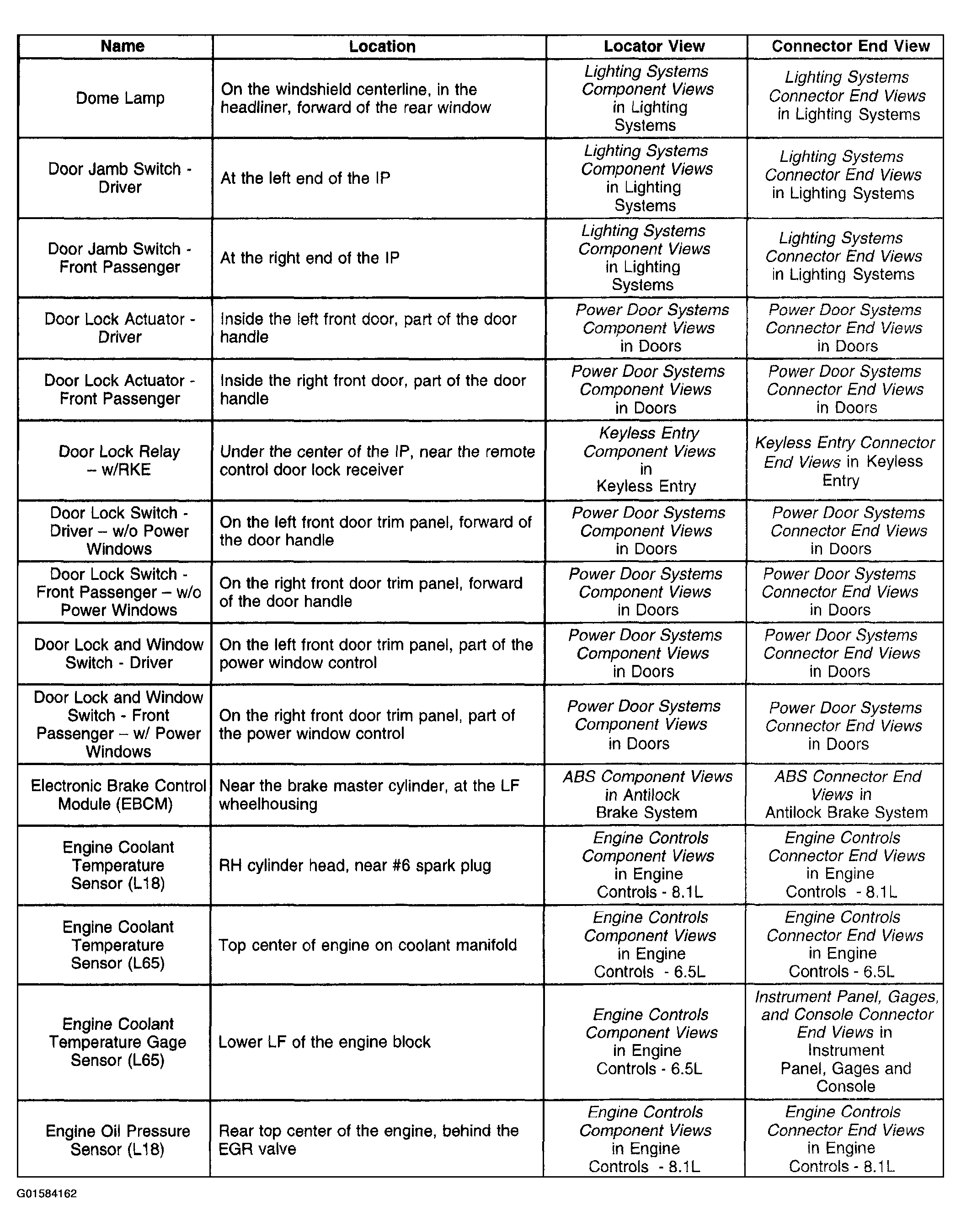

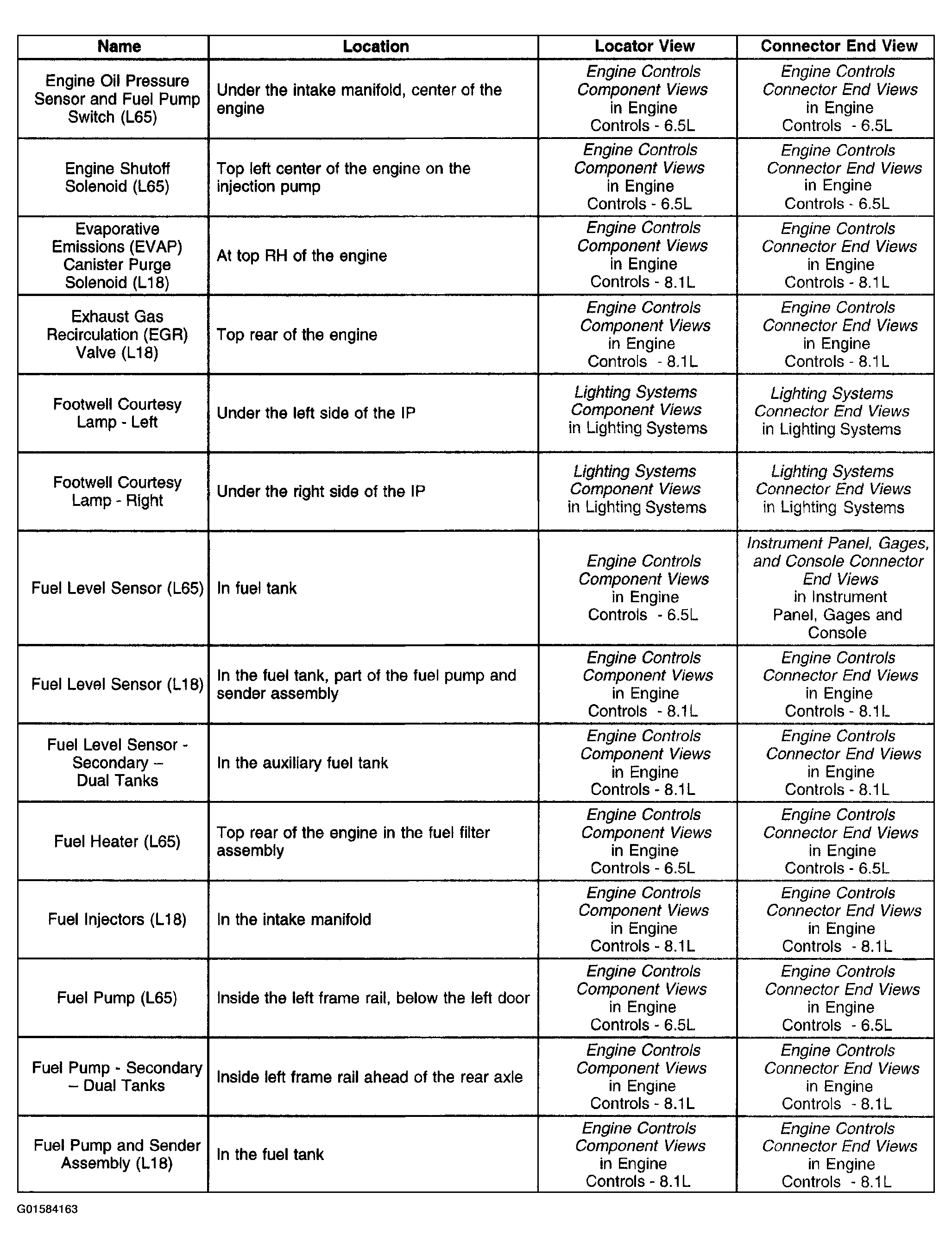

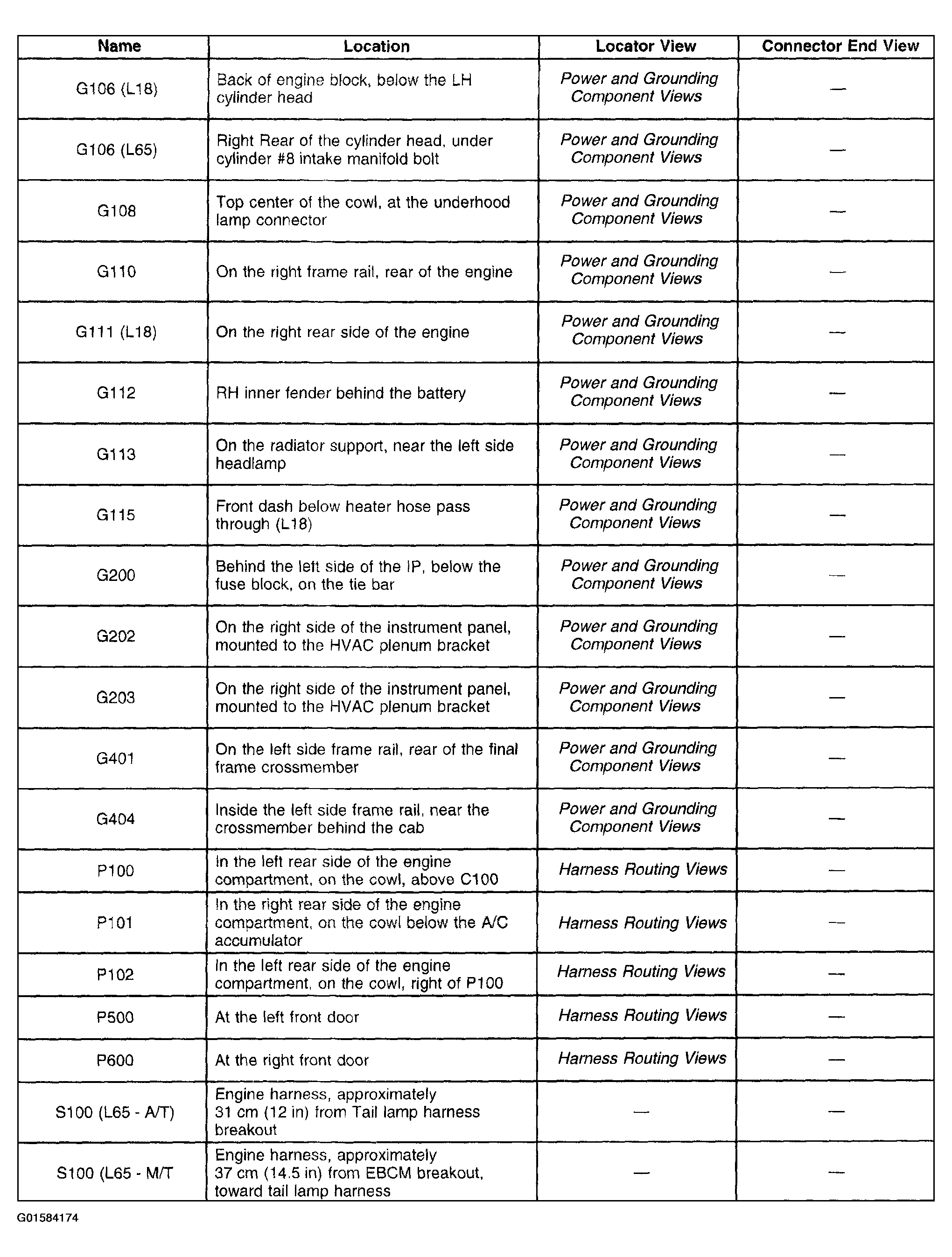

Fig 1: Master Electrical Component List (1 Of 23)
Courtesy of GENERAL MOTORS CORP.

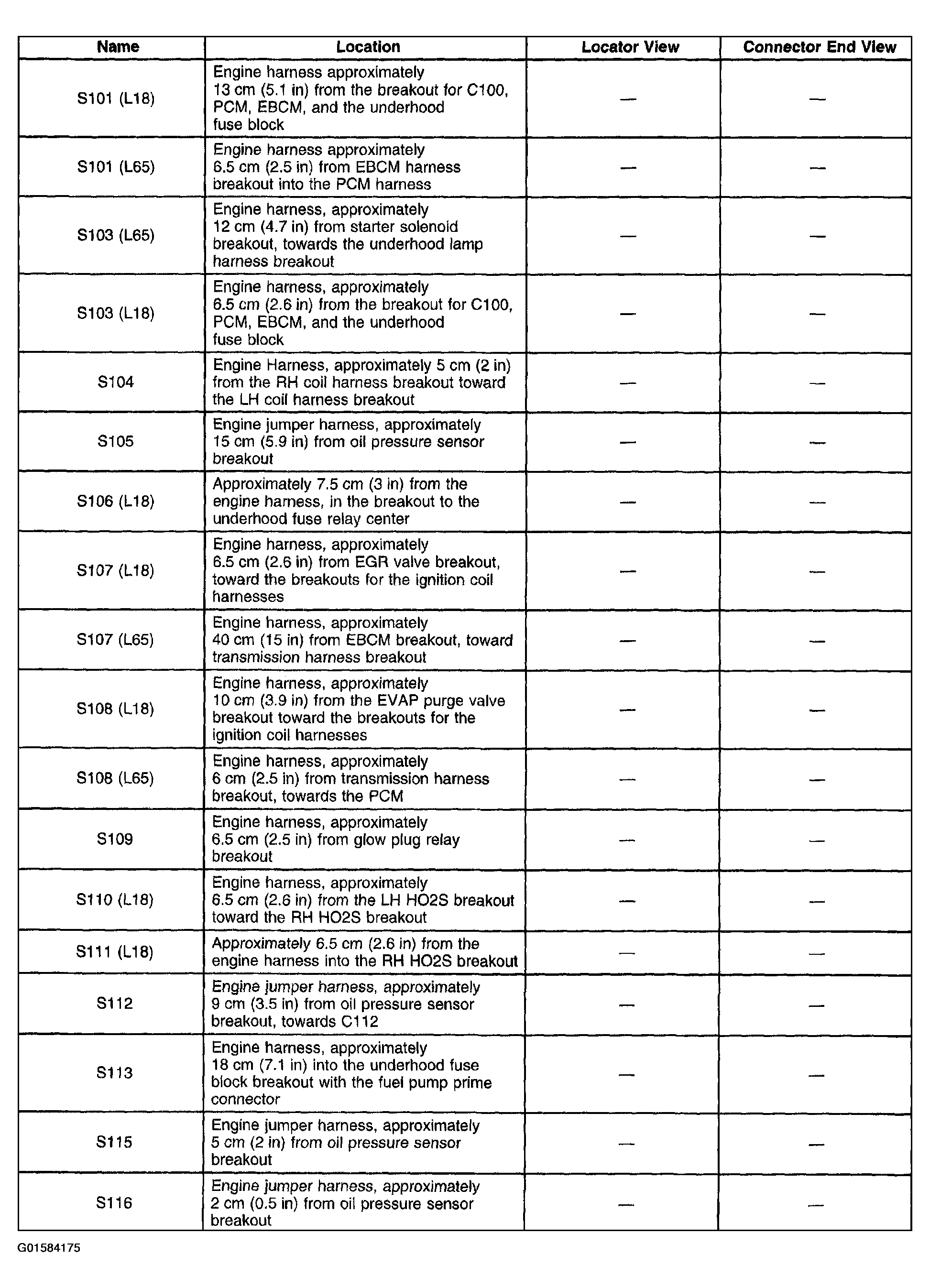

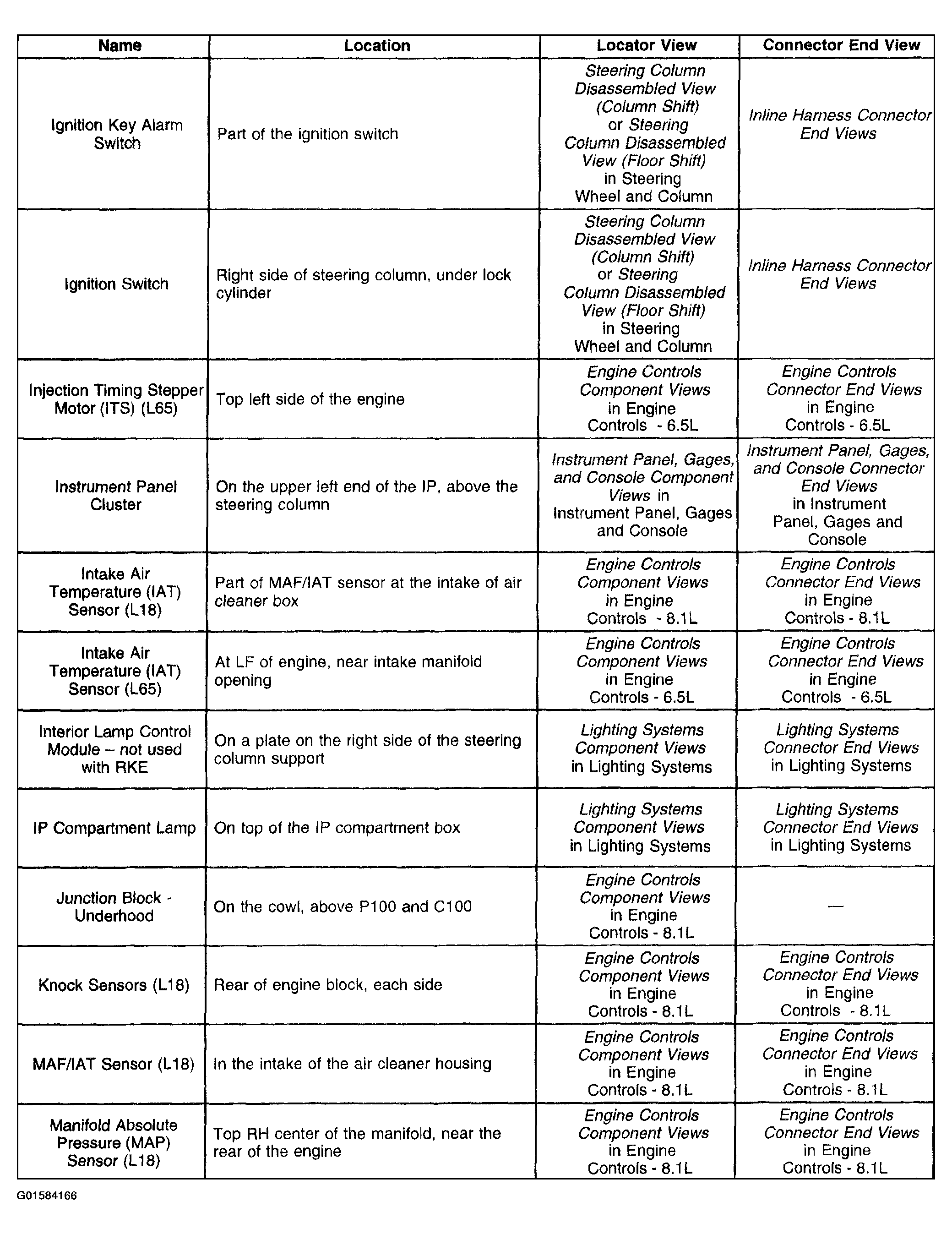

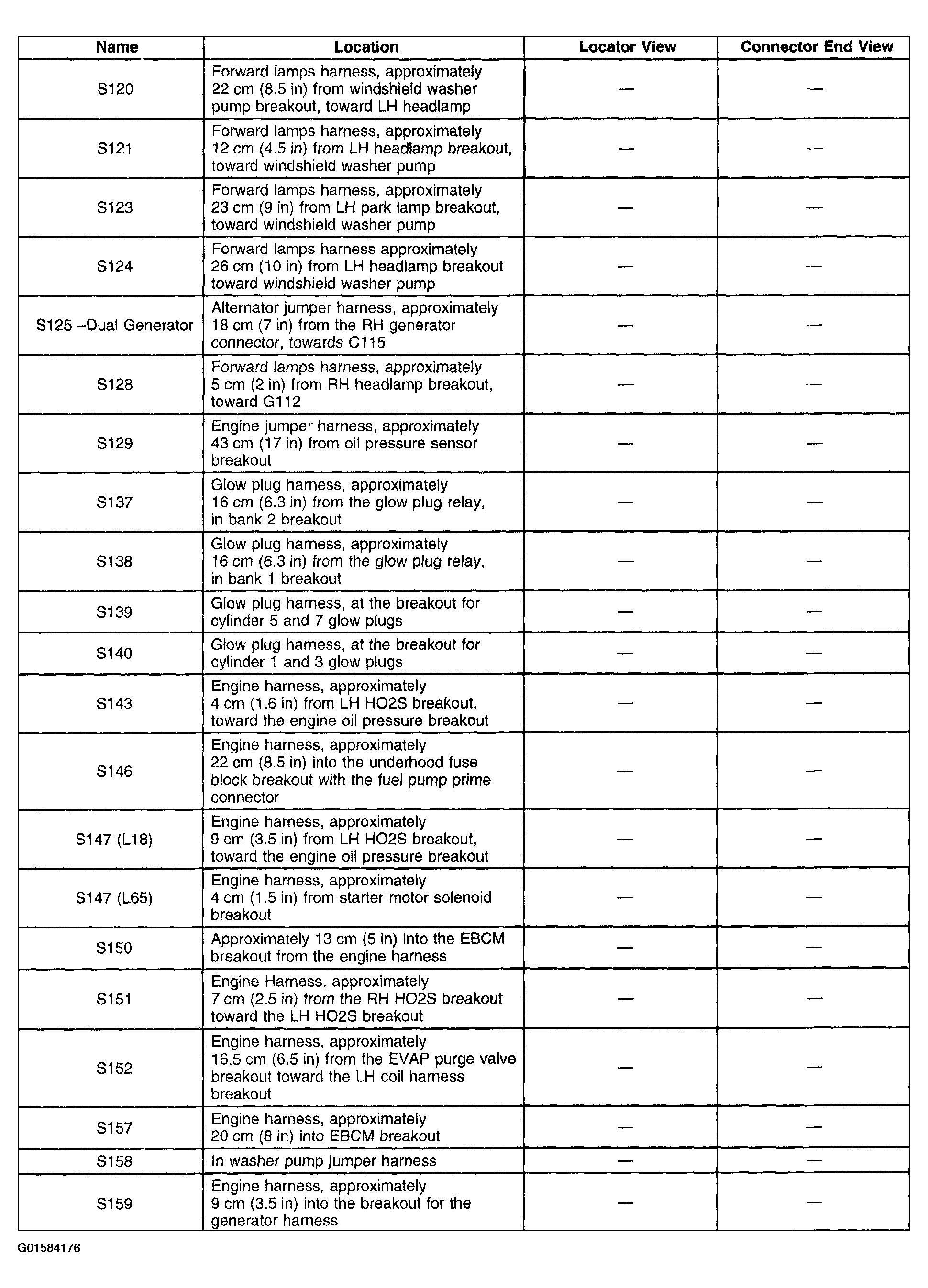

Fig 2: Master Electrical Component List (2 Of 23)
Courtesy of GENERAL MOTORS CORP.

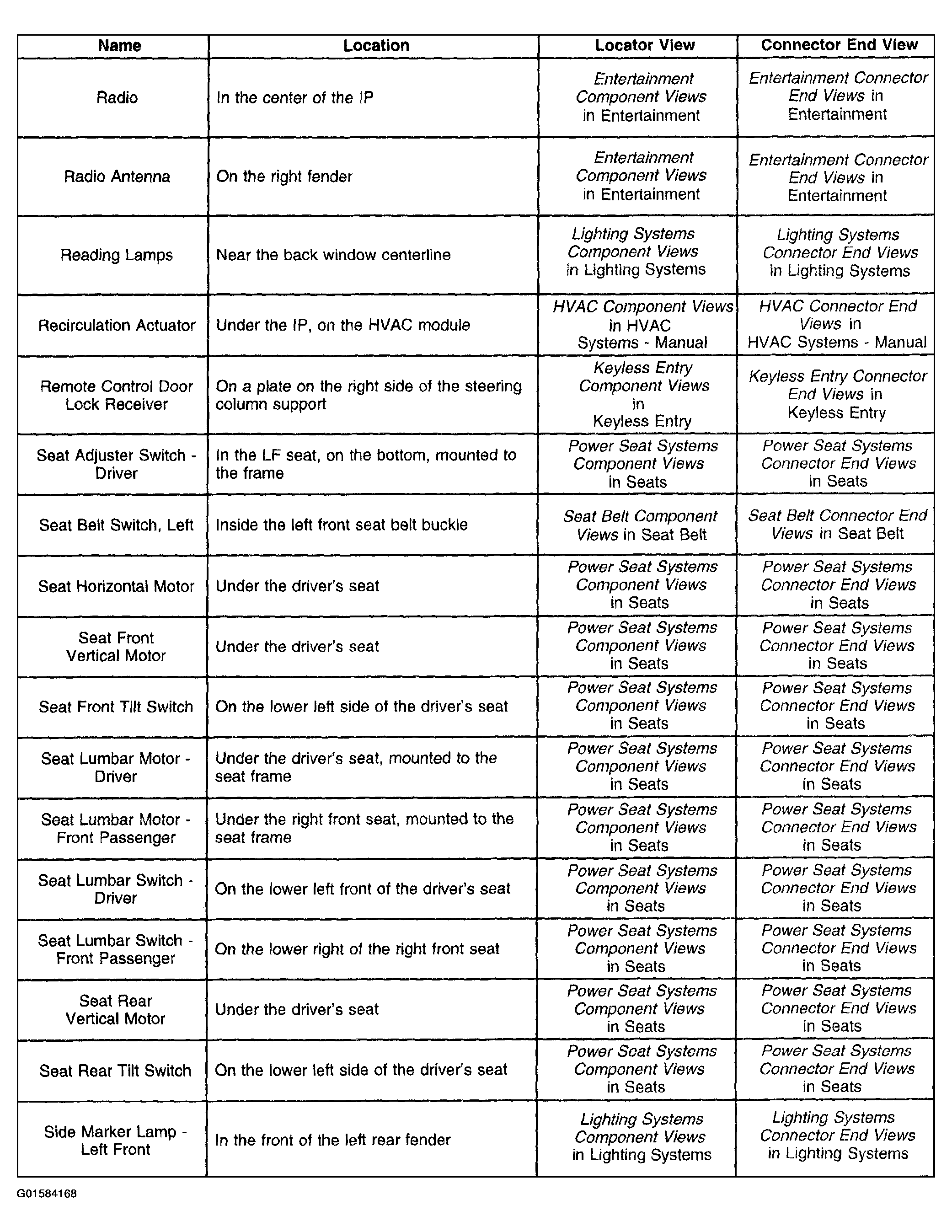

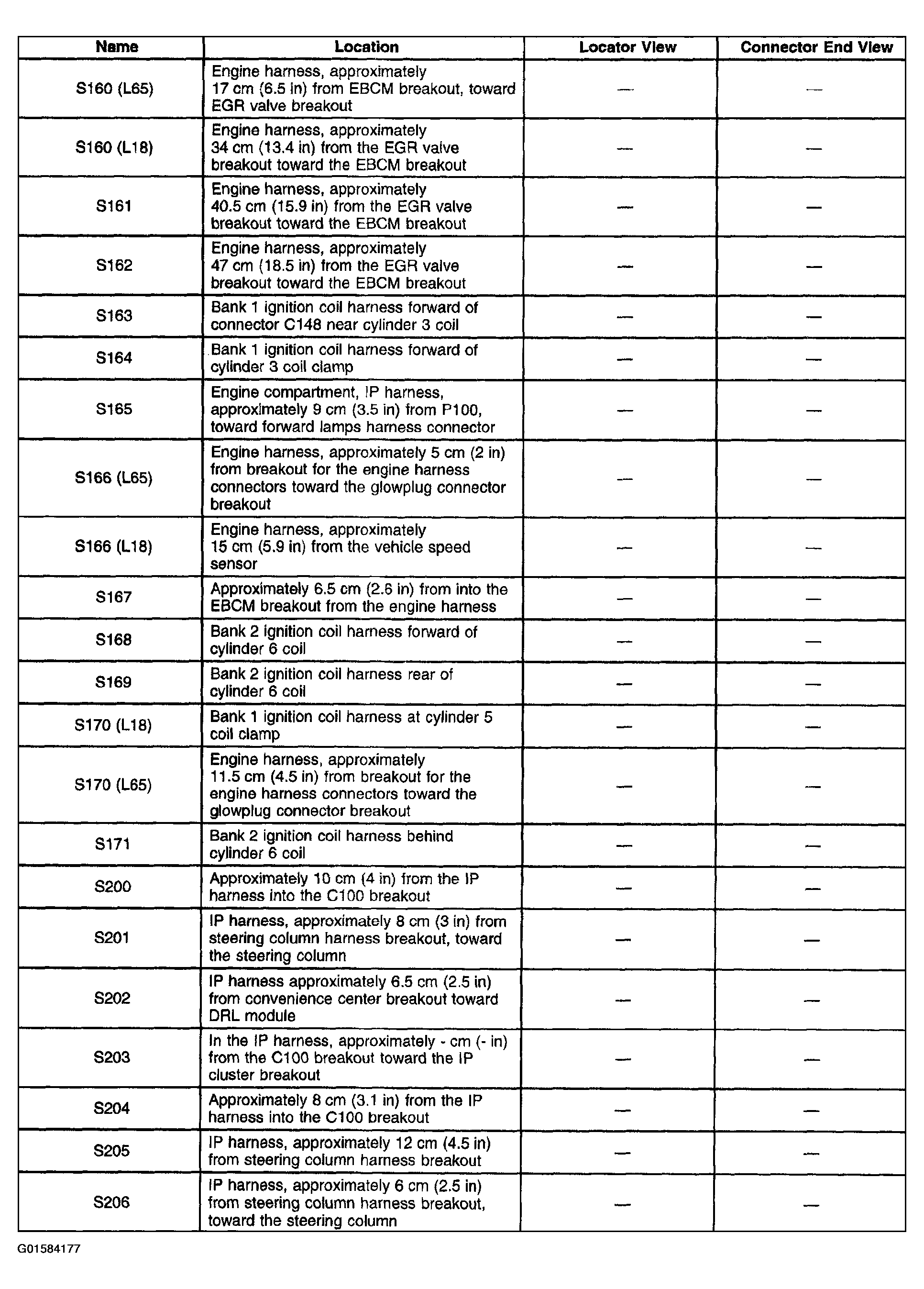

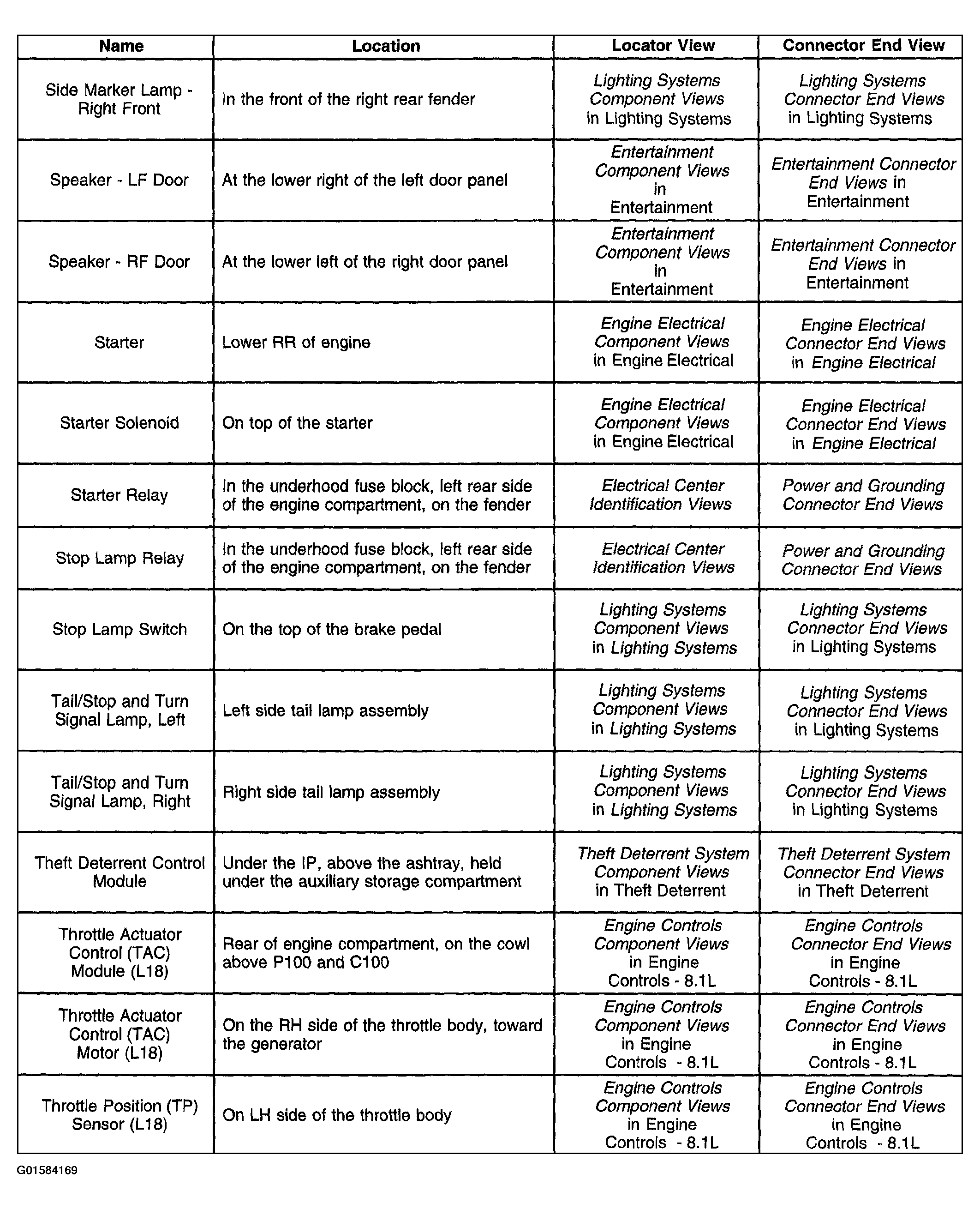

Fig 3: Master Electrical Component List (3 Of 23)
Courtesy of GENERAL MOTORS CORP.

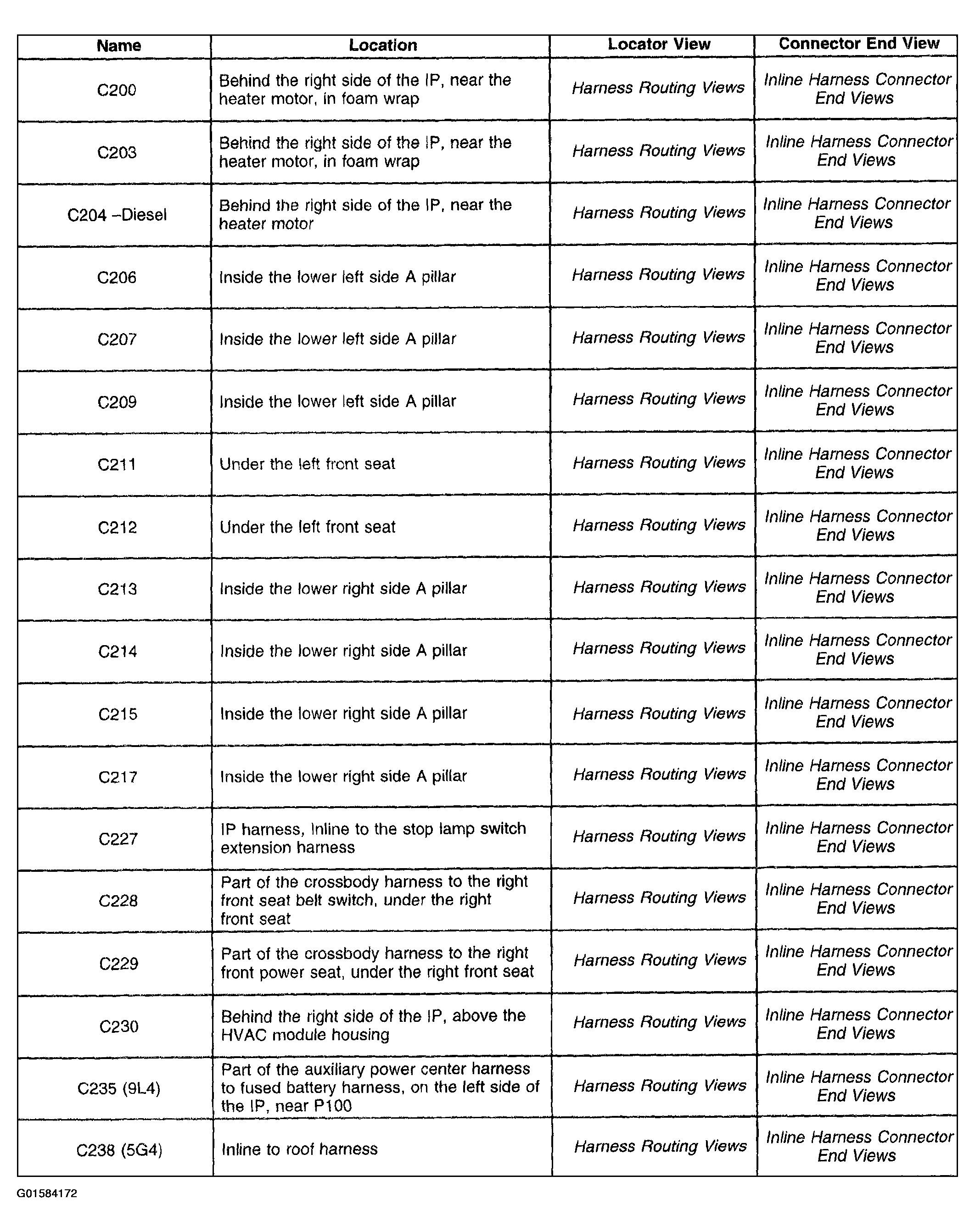

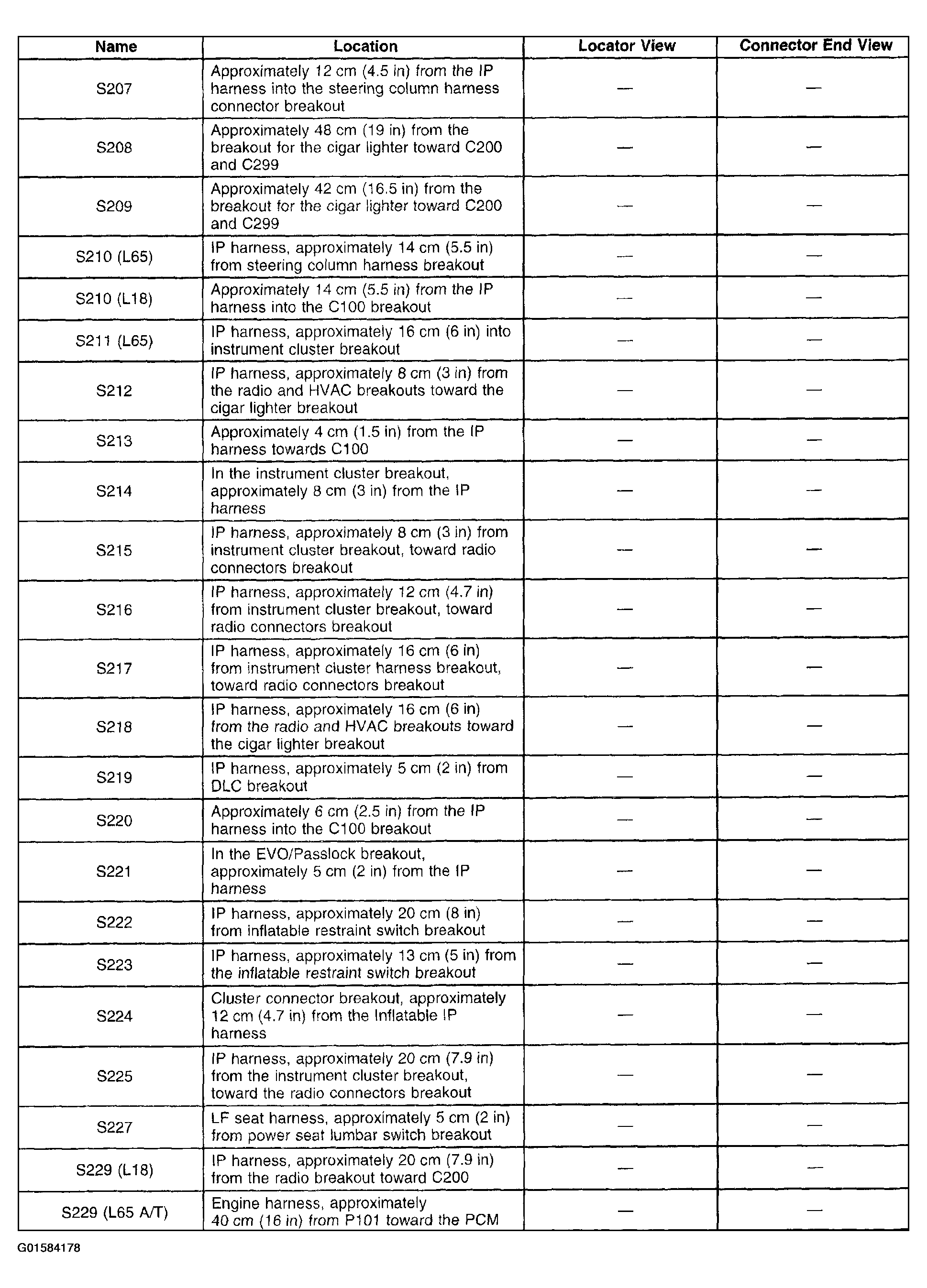

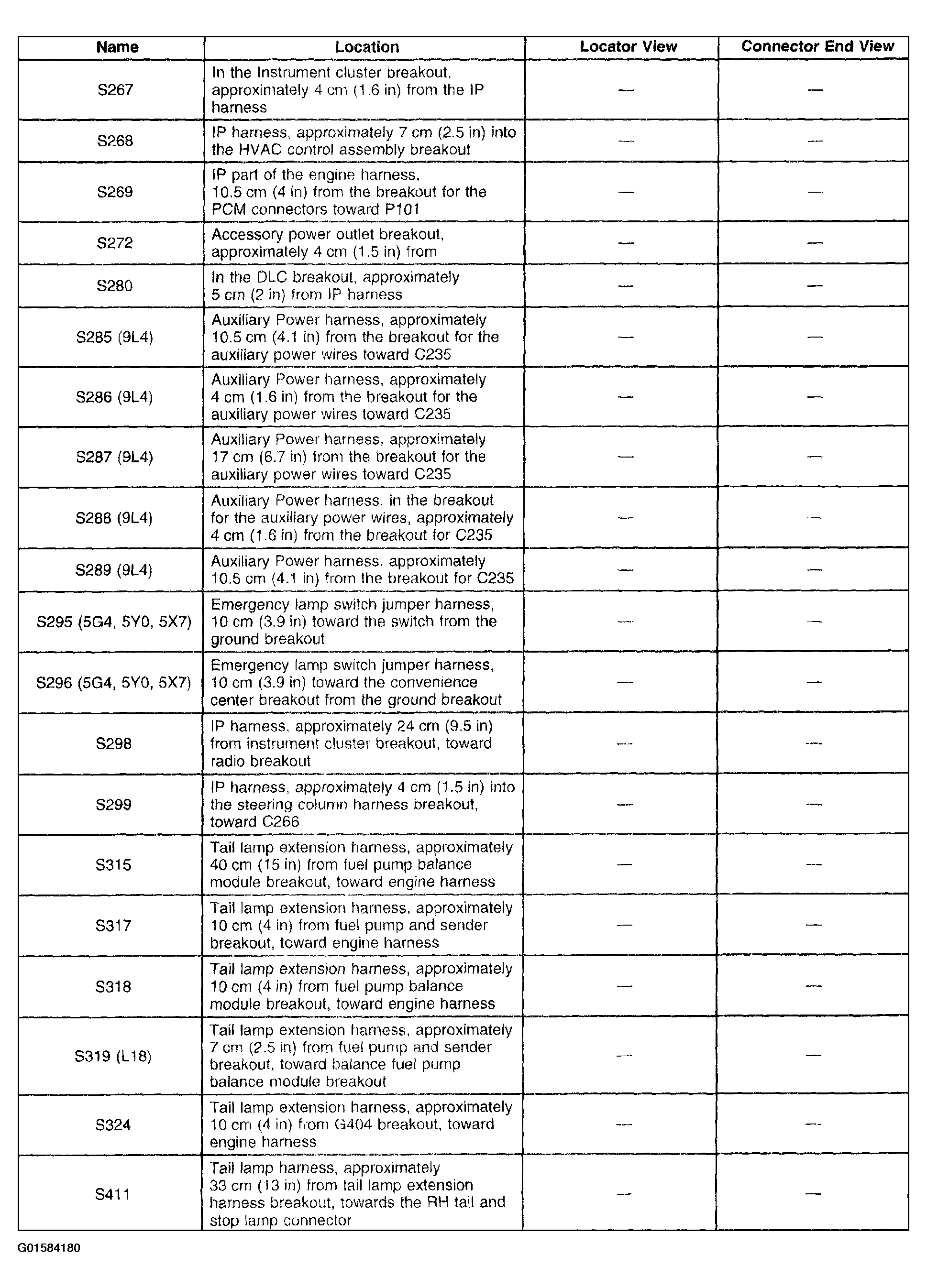

Fig 4: Master Electrical Component List (4 Of 23)
Courtesy of GENERAL MOTORS CORP.

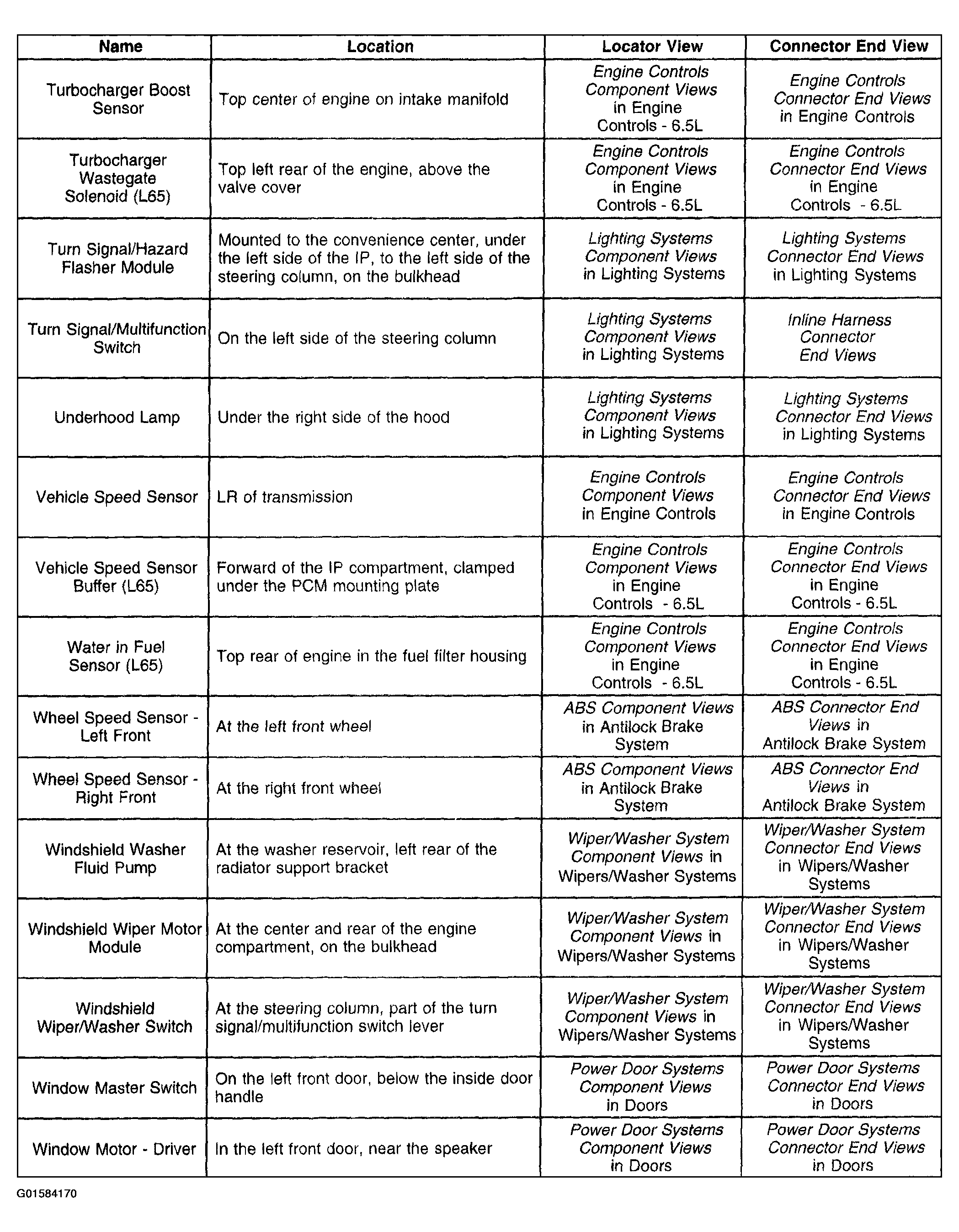

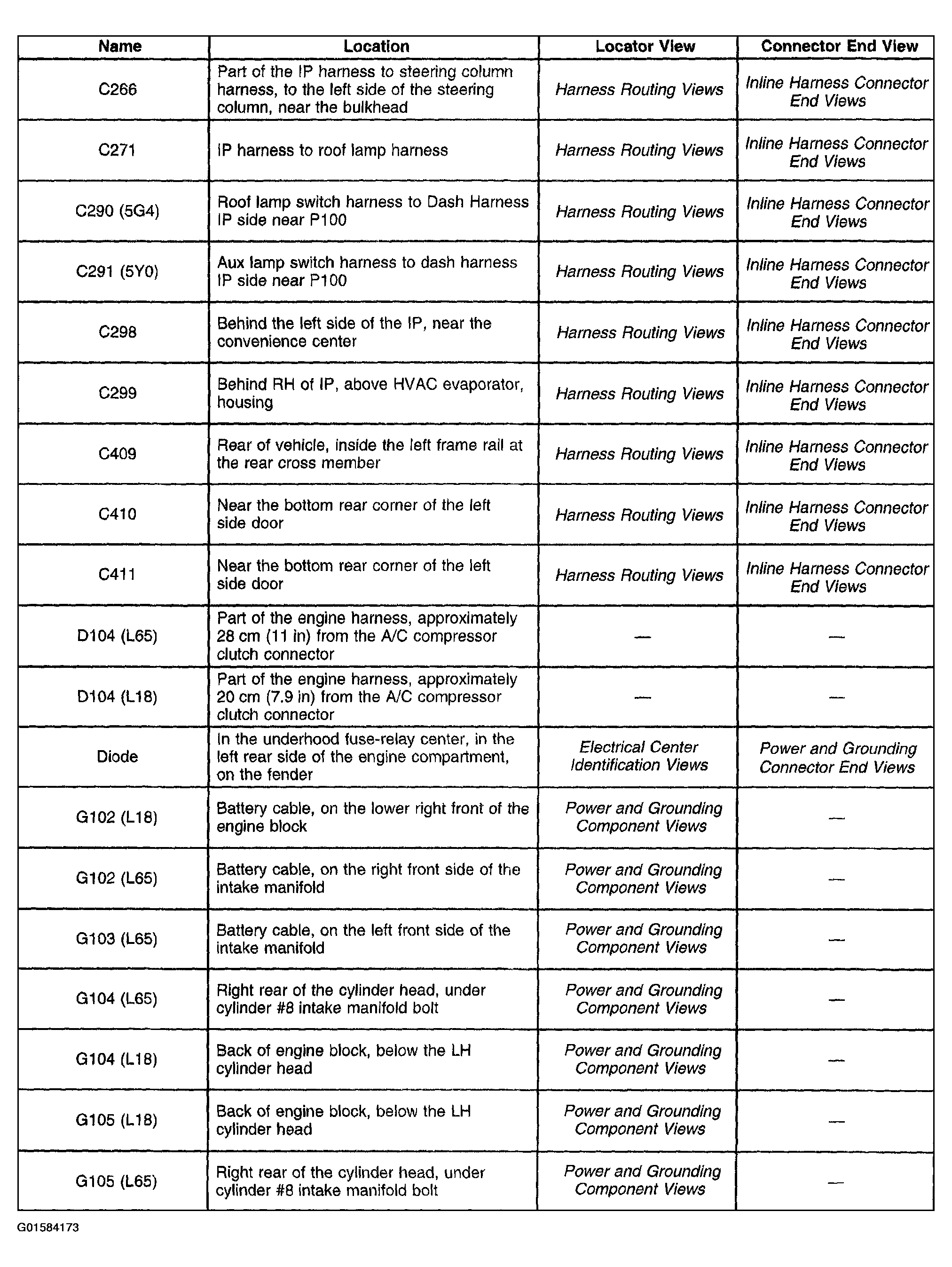

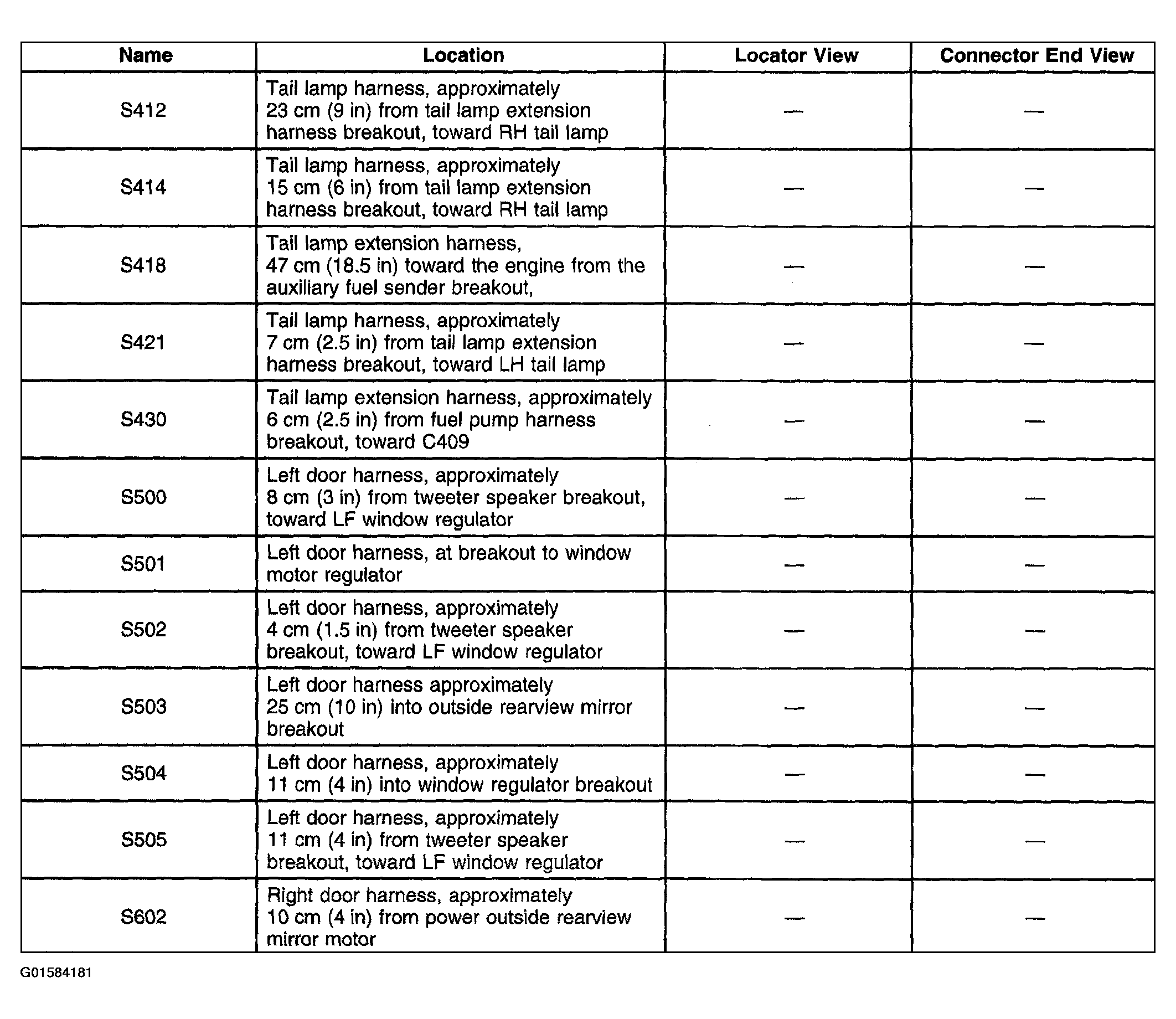

Fig 5: Master Electrical Component List (5 Of 23)
Courtesy of GENERAL MOTORS CORP.

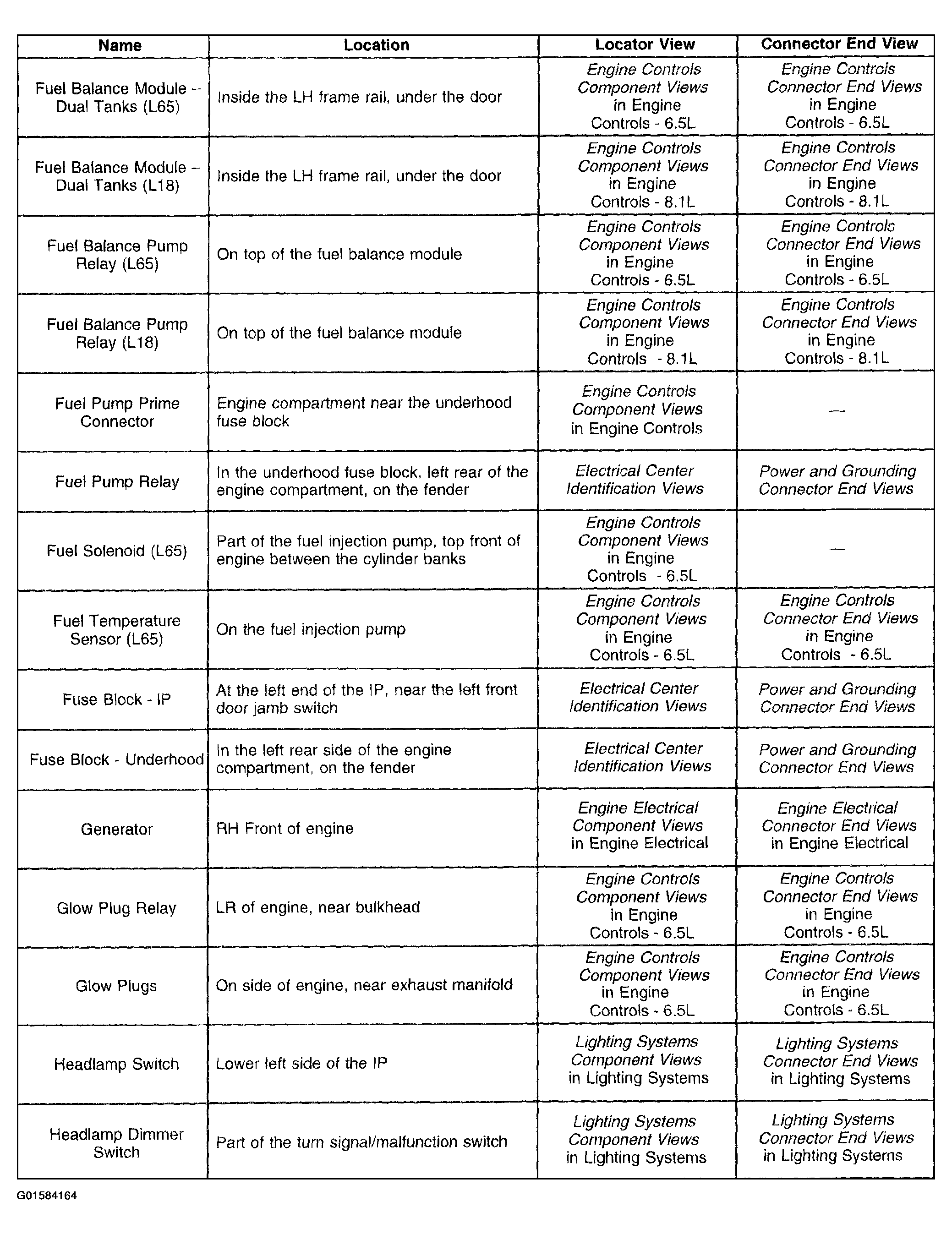

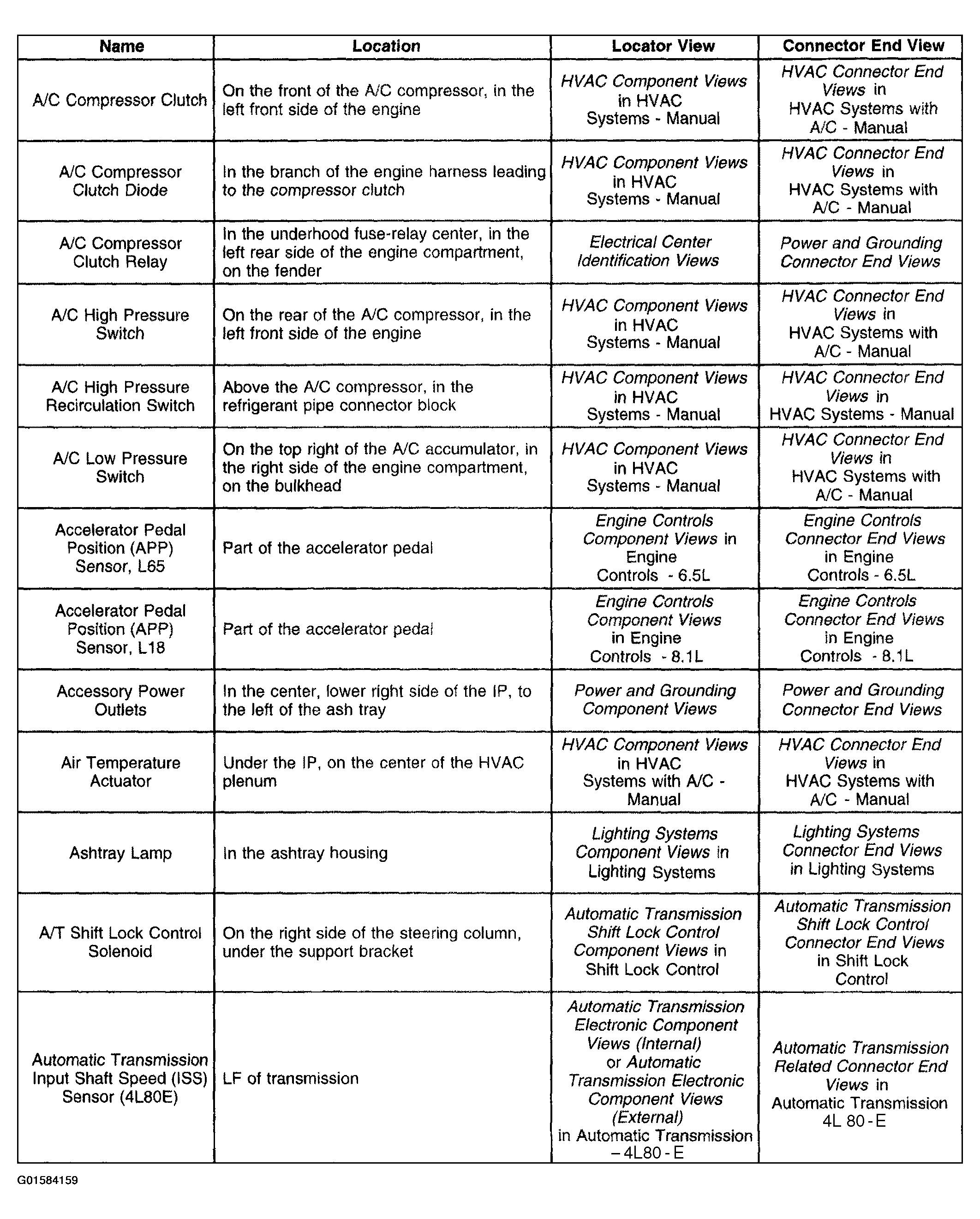

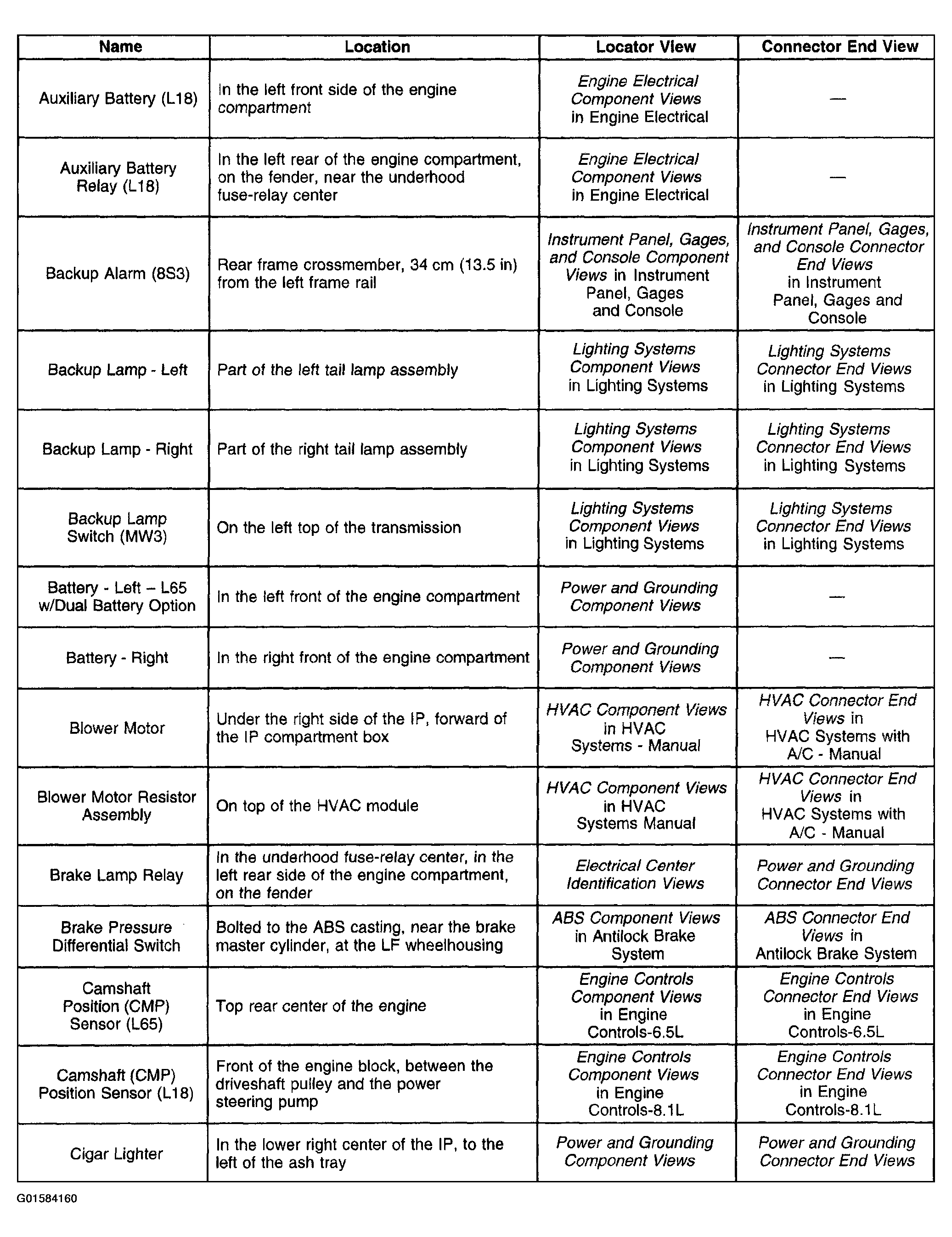

Fig 6: Master Electrical Component List (6 Of 23)
Courtesy of GENERAL MOTORS CORP.

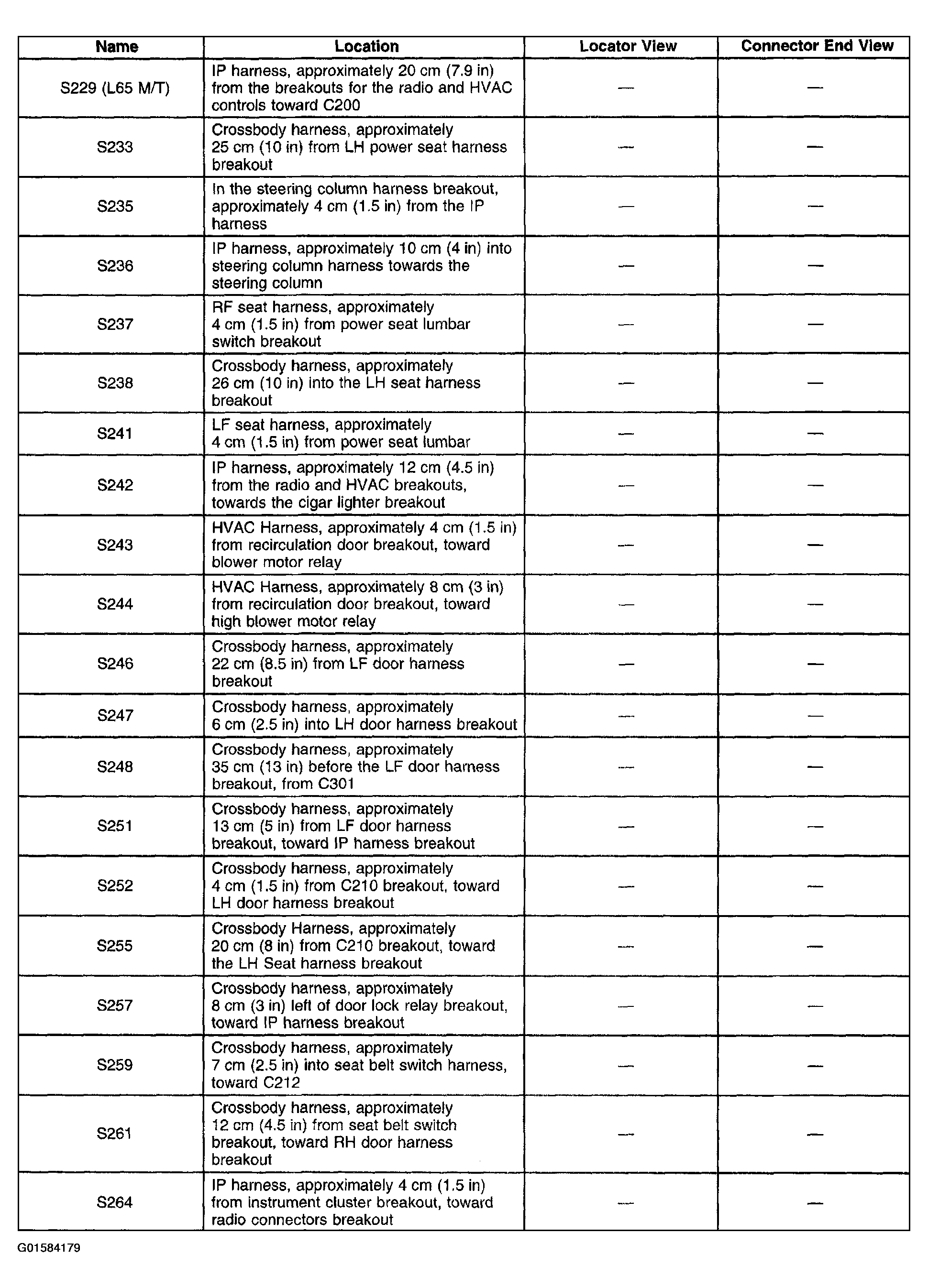

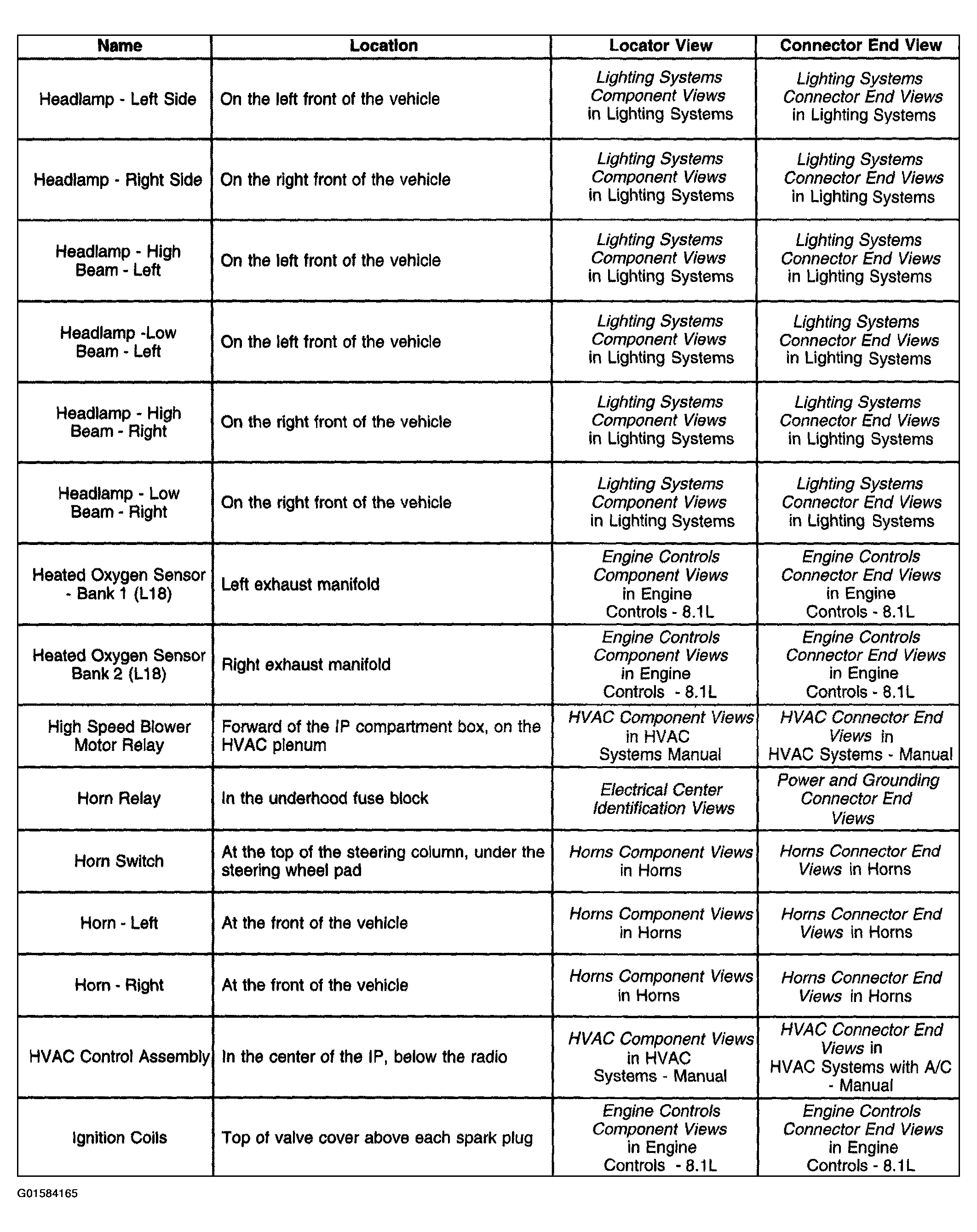

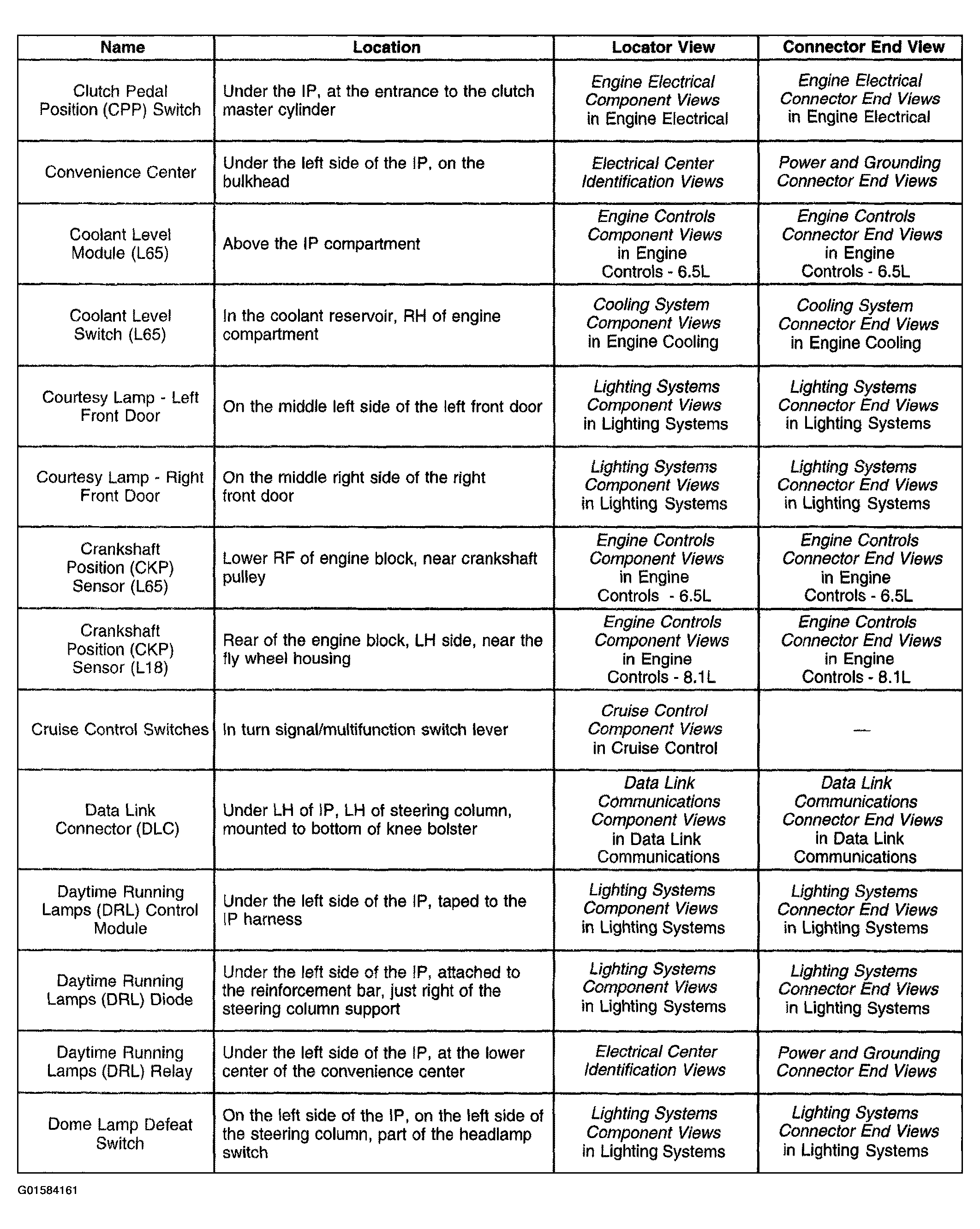

Fig 7: Master Electrical Component List (7 Of 23)
Courtesy of GENERAL MOTORS CORP.

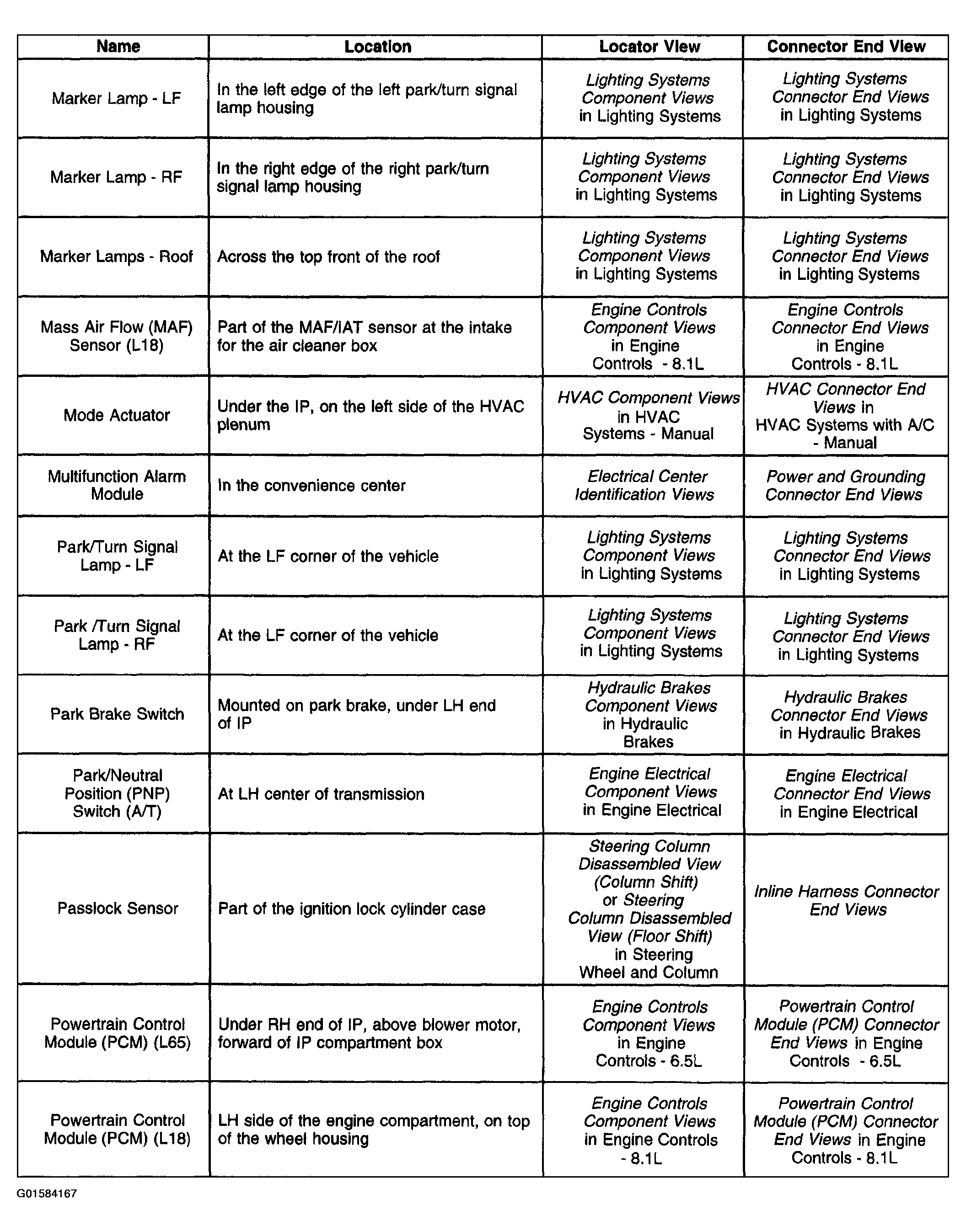

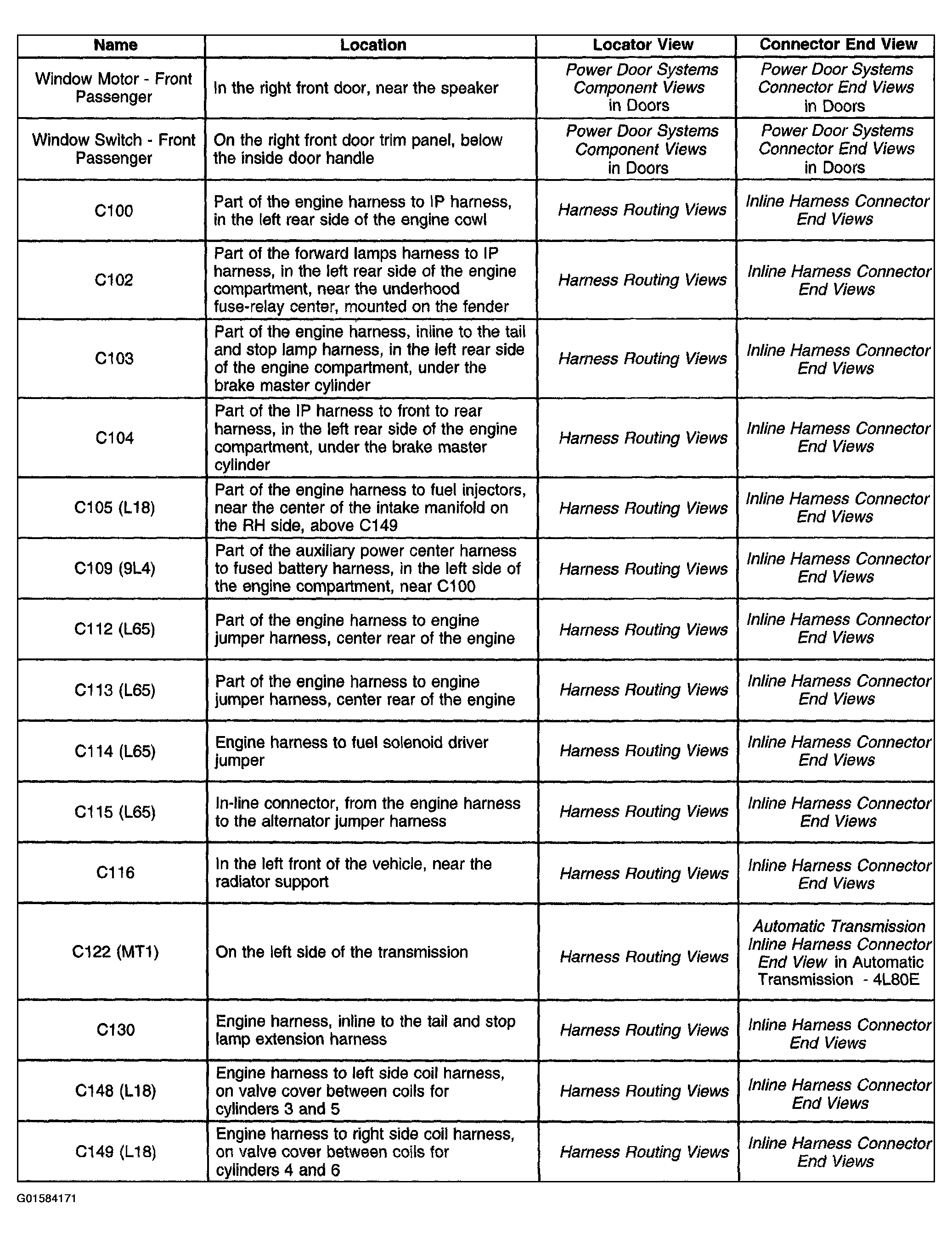

Fig 8: Master Electrical Component List (8 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Master Electrical Component List (9 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Master Electrical Component List (10 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Master Electrical Component List (11 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Master Electrical Component List (12 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Master Electrical Component List (13 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Master Electrical Component List (14 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Master Electrical Component List (15 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Master Electrical Component List (16 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Master Electrical Component List (17 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Master Electrical Component List (18 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Master Electrical Component List (19 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Master Electrical Component List (20 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Master Electrical Component List (21 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Master Electrical Component List (22 Of 23)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Master Electrical Component List (23 Of 23)
Courtesy of GENERAL MOTORS CORP.
