Interior Lamp Control Module Connector End View

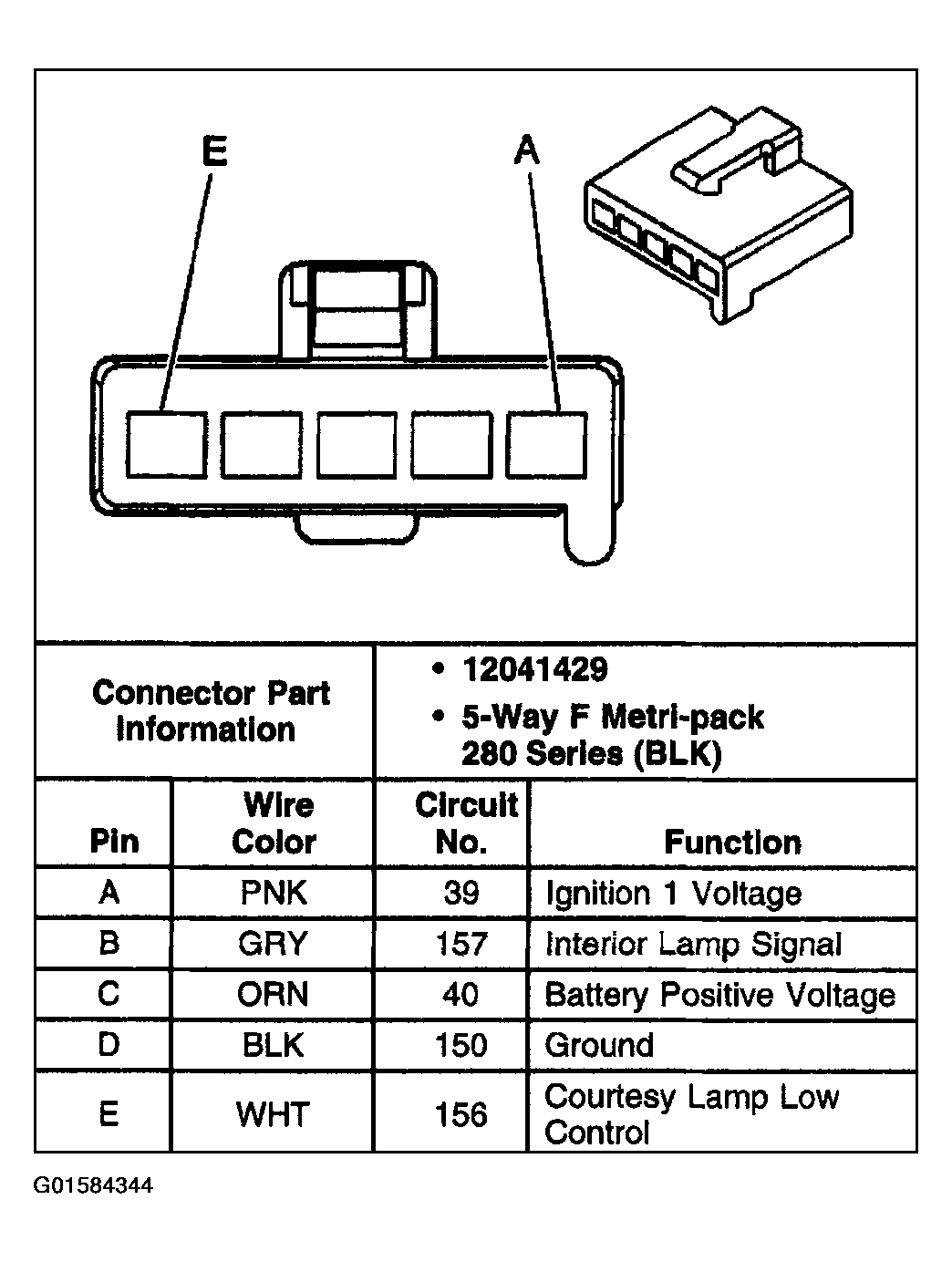

Fig 1: Interior Lamp Control Module Connector End View
G01584344Courtesy of GENERAL MOTORS CORP.
