Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the battery.
  2. Install the battery hold down retainer.
  3. Install the battery hold down retainer nut.

    Tighten

    Tighten the battery hold down retainer nut to 17 N.m (13 lb ft).

  4. Connect the positive battery cable.

    Tighten

    Tighten the positive battery cable bolt to 15 N.m (11 lb ft).

  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

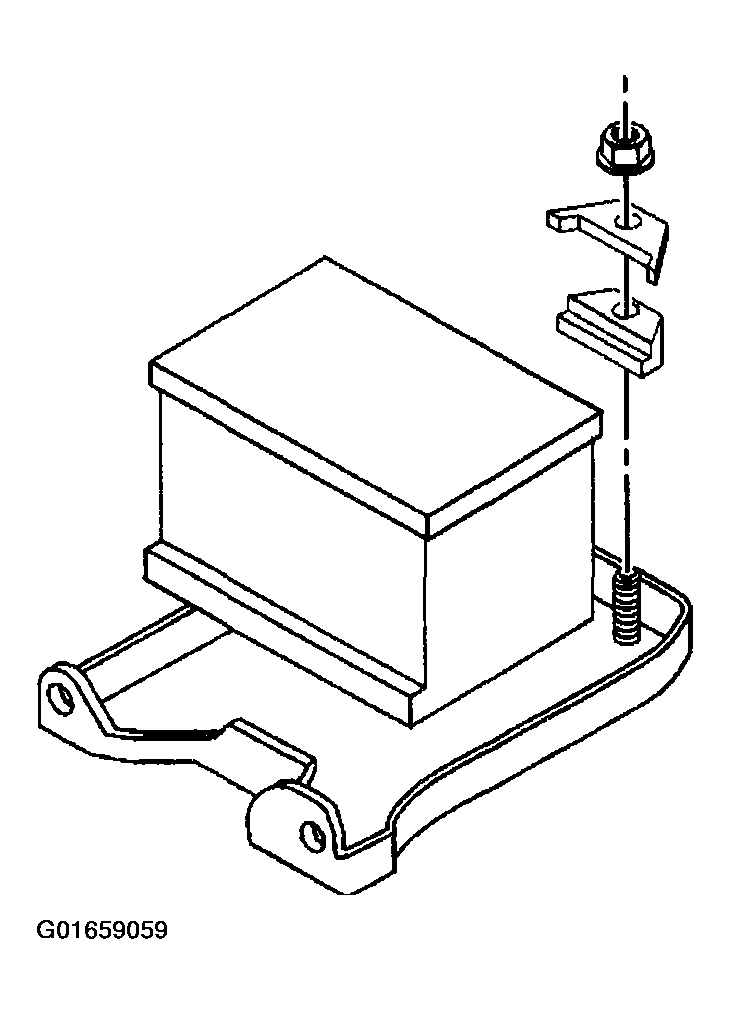

    Fig 1: Battery, Hold Down Retainer & Hold Down Retainer Nut
    G01659059Courtesy of GENERAL MOTORS CORP.
