Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Clean the BPMV seal surface with alcohol using a clean rag.
Install the seal to the BPMV if it is not cut or damaged.
NOTE: Refer to FASTENER NOTICE .
Install the EBCM to the BPMV.
Tighten the four mounting bolts in the following sequence:
Tighten
- First pass to 3 N.m (27 lb in).
- Second pass to 6 N.m (53 lb in).
Important: If the insulator nut was removed it must be replaced with a new insulator nut.
Install the front EBCM insulator mounting bolt.
Tighten

Tighten the bolt to 14 N.m (10 lb ft).

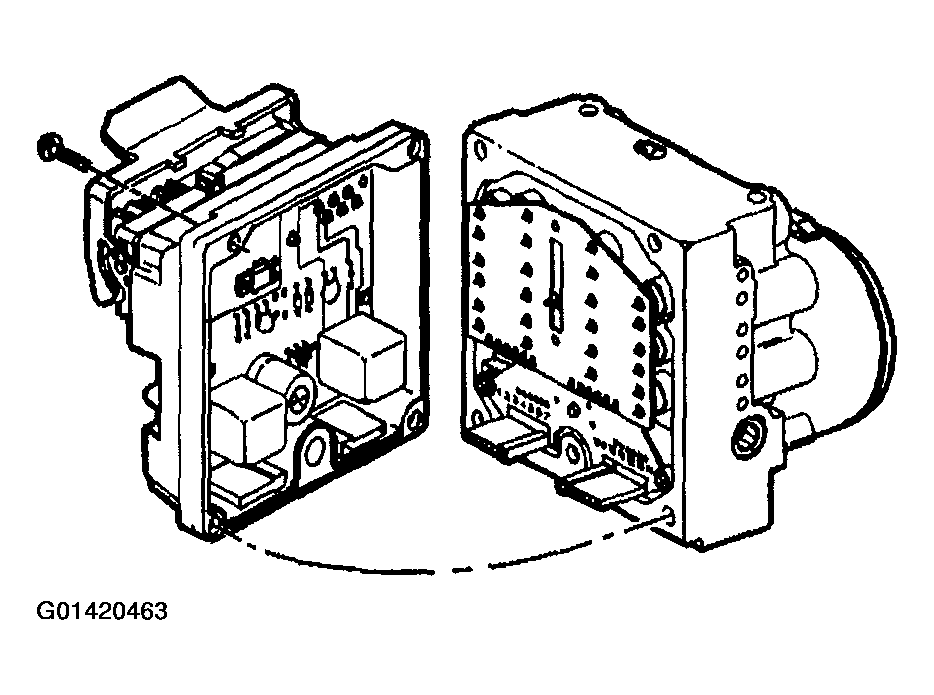

Fig 1: Installing EBCM To BPMV
Courtesy of GENERAL MOTORS CORP.
Install the EBCM/BPMV into the bracket.

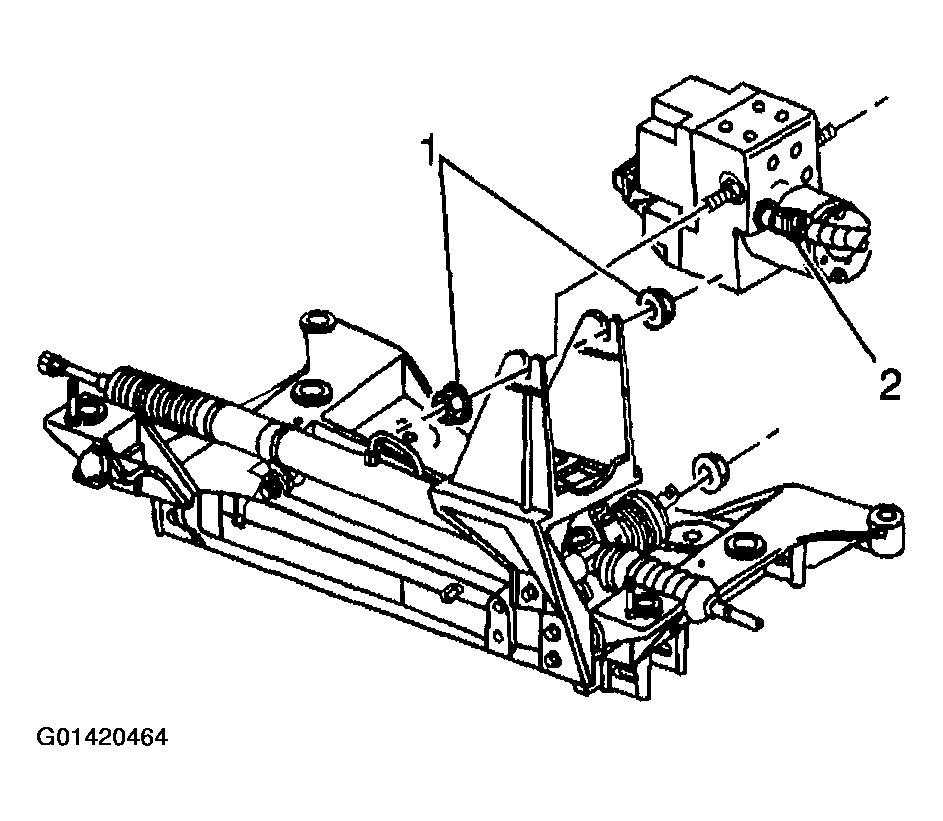

Fig 2: Installing EBCM/BPMV Into Bracket
Courtesy of GENERAL MOTORS CORP.
Install the two insulator nuts (1).
Tighten

Tighten the two insulator nuts to 12 N.m (106 lb in).
Connect the EBCM harness connector.
Important: Both sides of the EBCM harness connector must be engaged with lever before closing.
Turn the ignition switch to the ON position; do NOT start the engine.
Perform the DIAGNOSTIC SYSTEM CHECK - ABS .
