Cruise Control Component Views

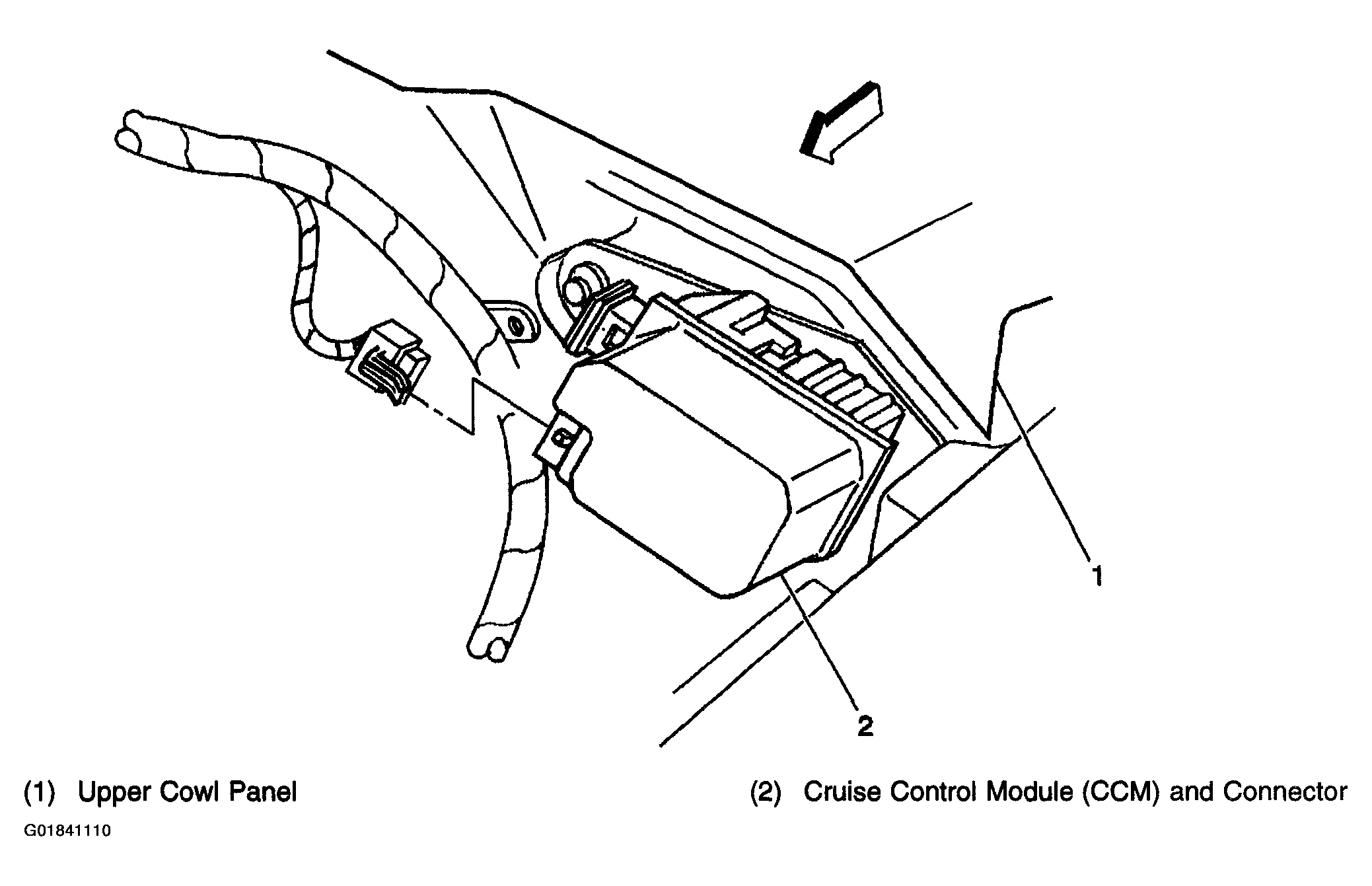

Fig 1: Cruise Control Module (CCM)
G01841110Courtesy of GENERAL MOTORS CORP.

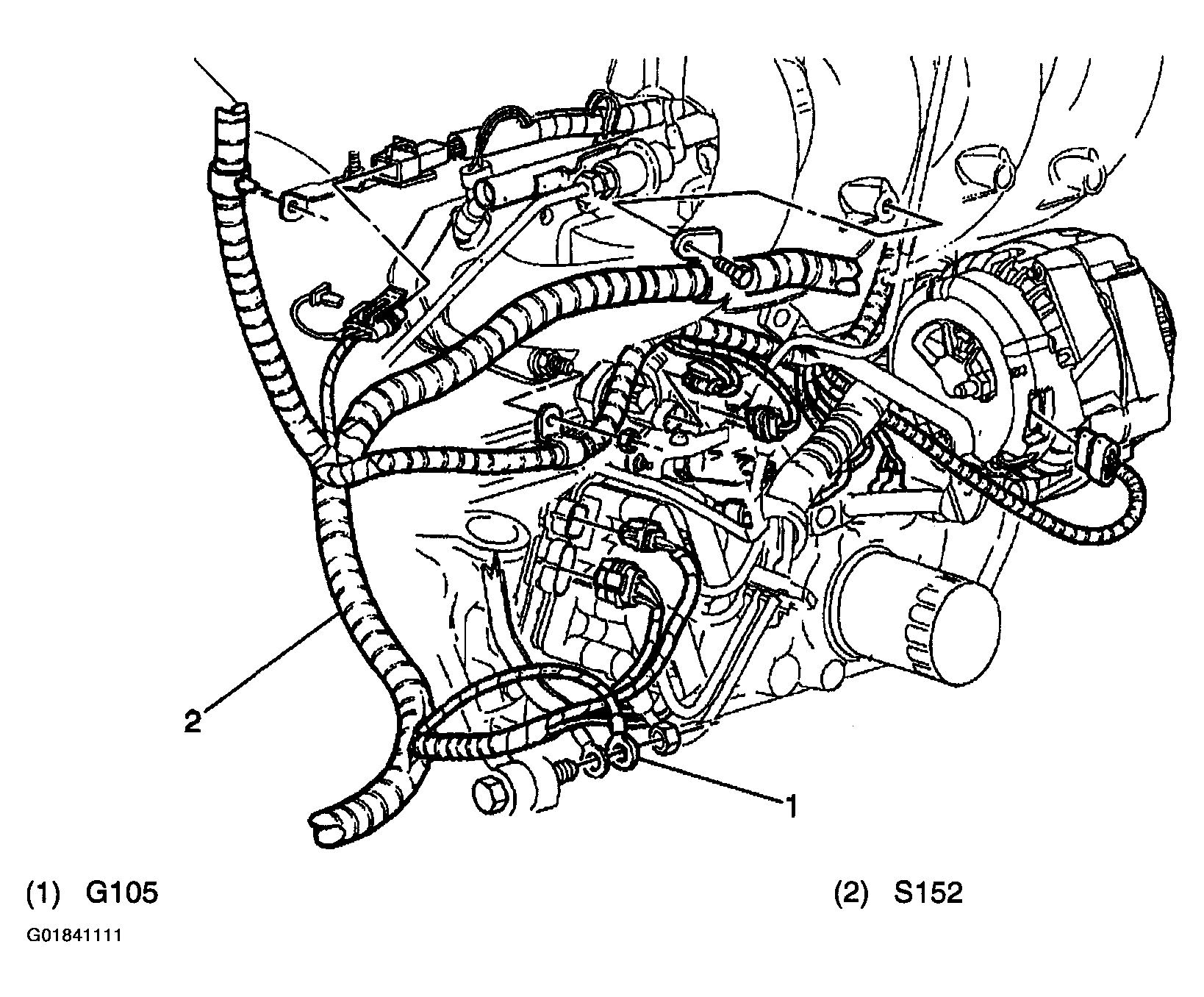

Fig 2: G105, S152
G01841111Courtesy of GENERAL MOTORS CORP.

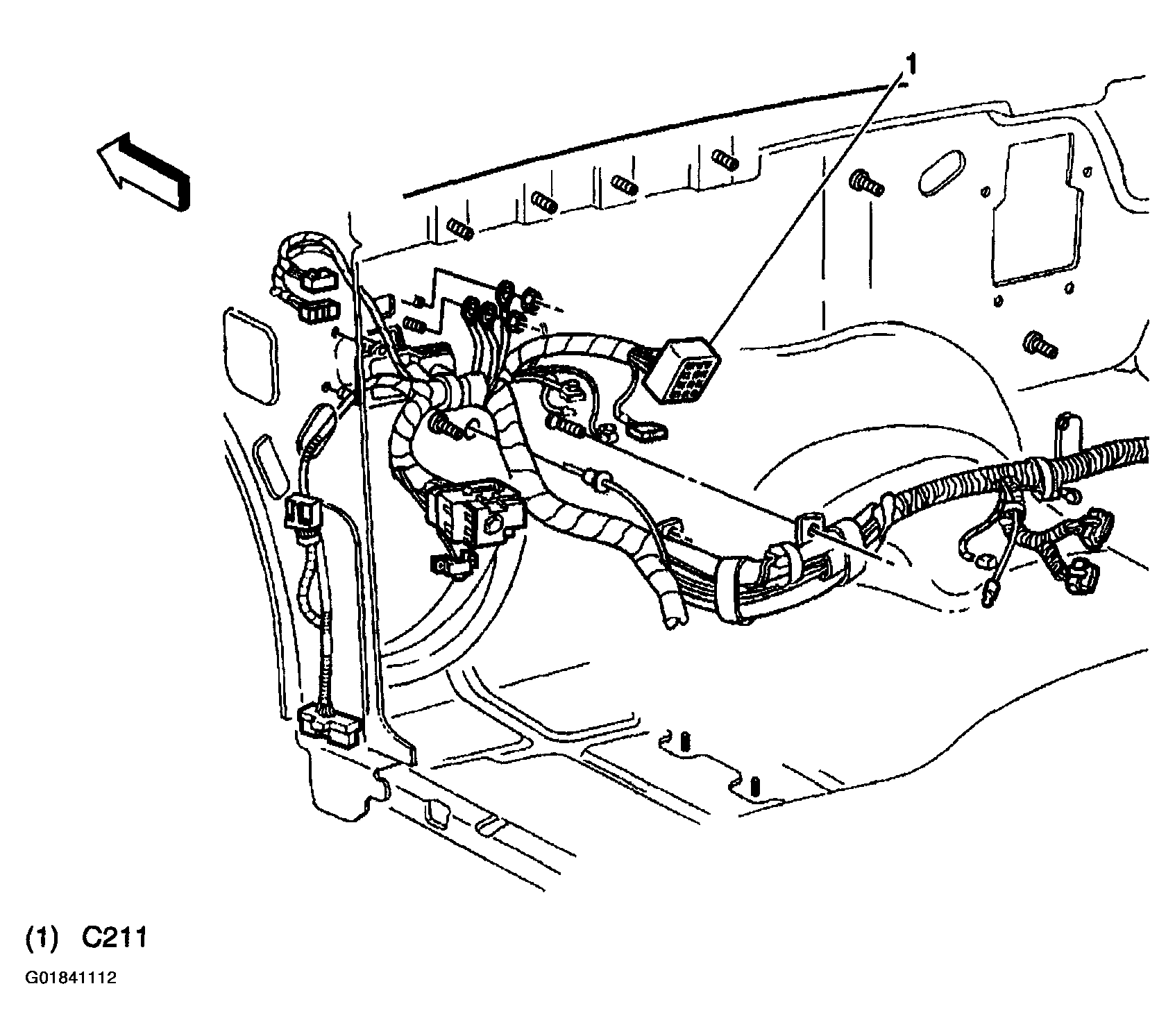

Fig 3: Instrument Panel, LF
G01841112Courtesy of GENERAL MOTORS CORP.

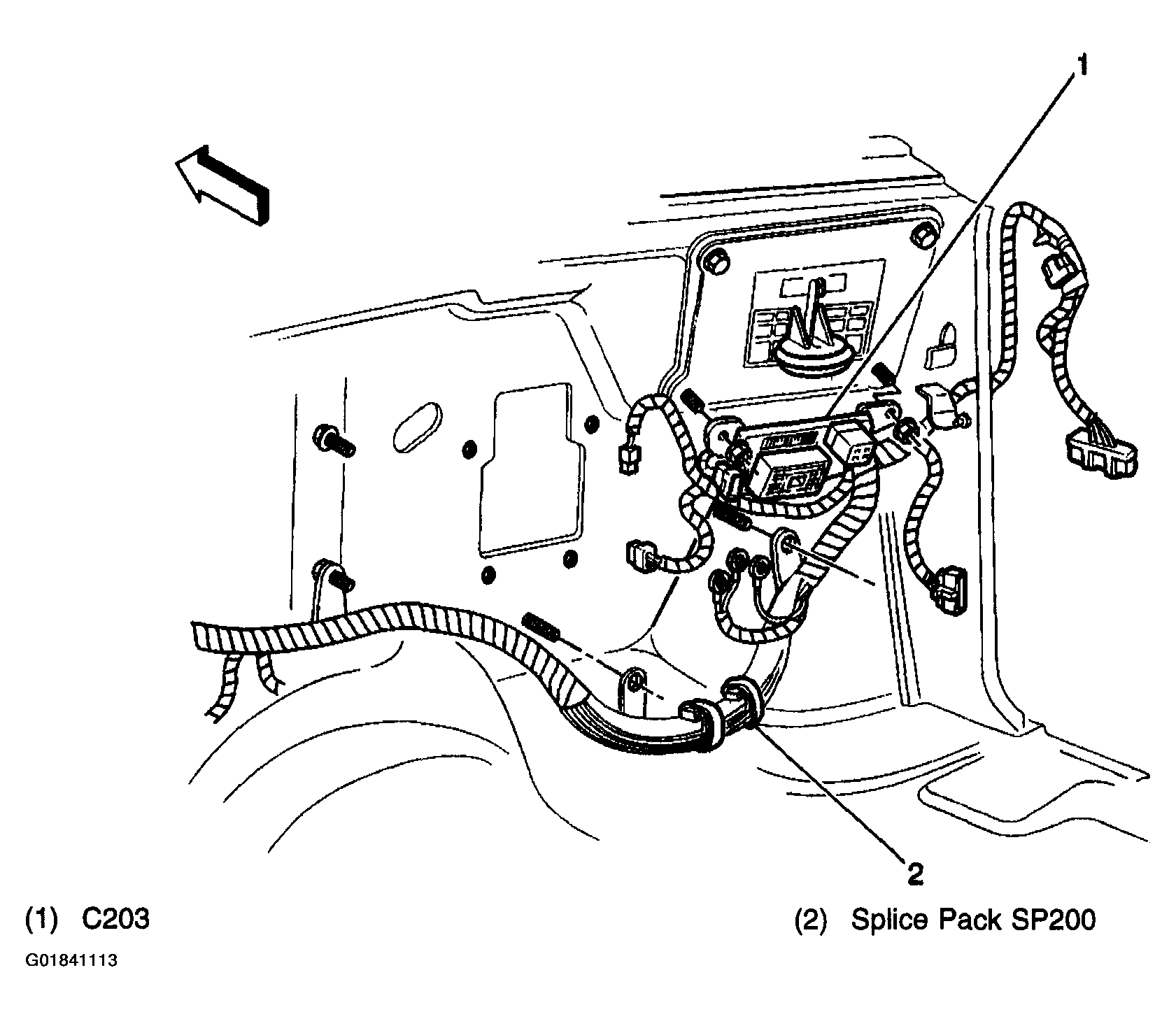

Fig 4: Instrument Panel, RF
G01841113Courtesy of GENERAL MOTORS CORP.
