Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the traction control switch to the trim plate

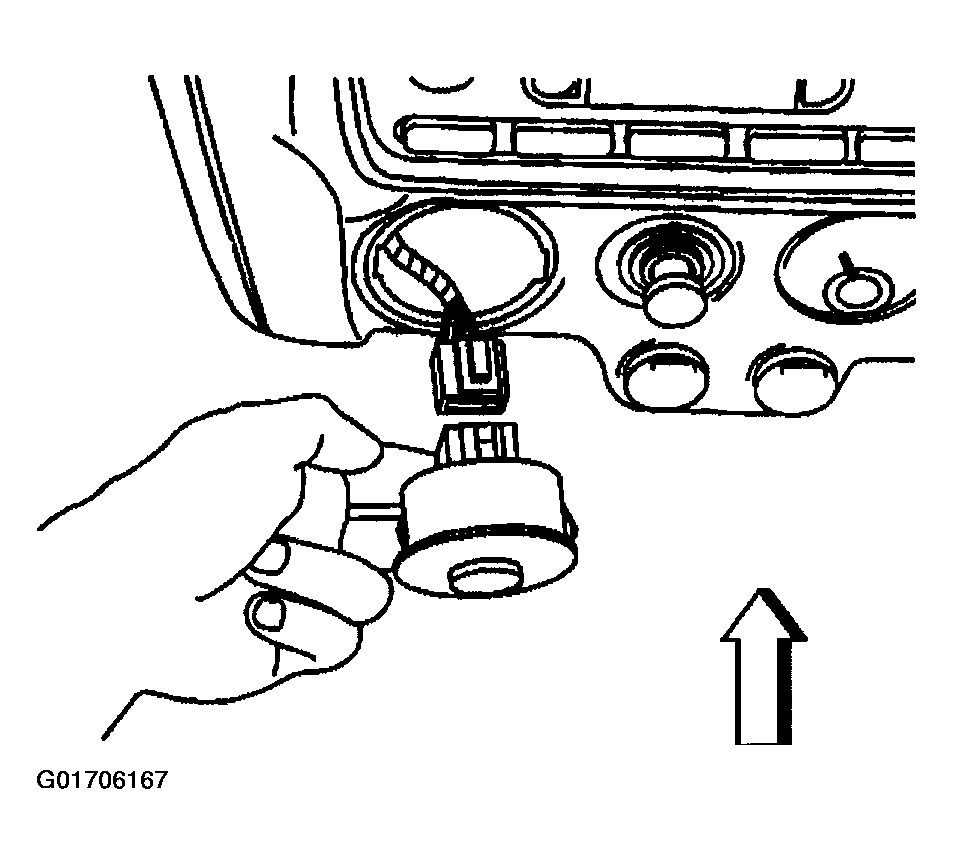

    2. Fig 1: Installing Traction Control Switch
    G01706167Courtesy of GENERAL MOTORS CORP.
  2. Install the traction control switch to the instrument panel trim plate by seating the locking tabs.
  3. Connect the electrical connector to the traction control switch.
  4. Install the accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I//P) ACCESSORY (OLDSMOBILE) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (CHEVROLET) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (GMC/OLDSMOBILE) .
