Power Door Systems Component Views

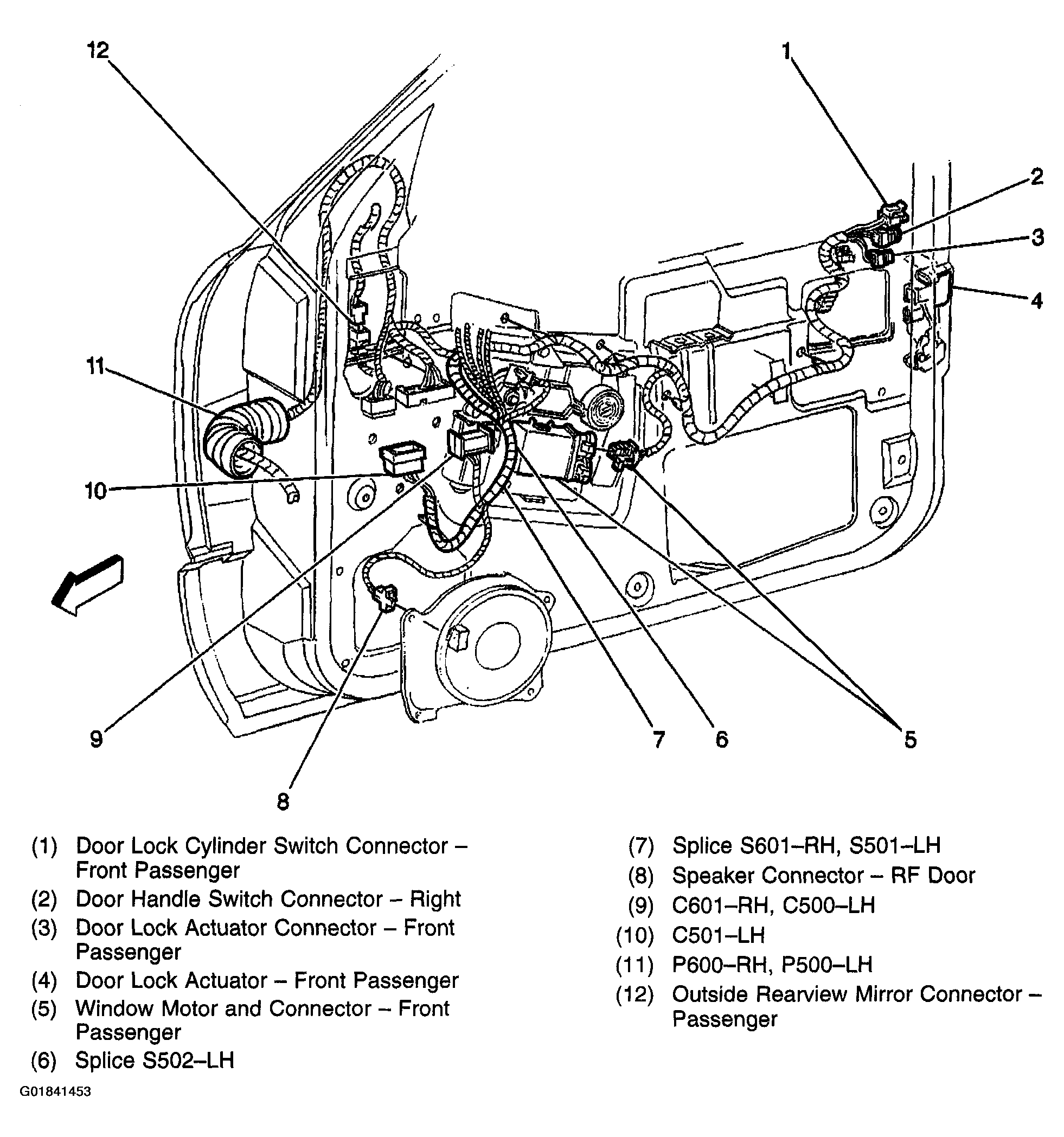

Fig 1: Front Passenger Door Shown, Driver Similar
Courtesy of GENERAL MOTORS CORP.

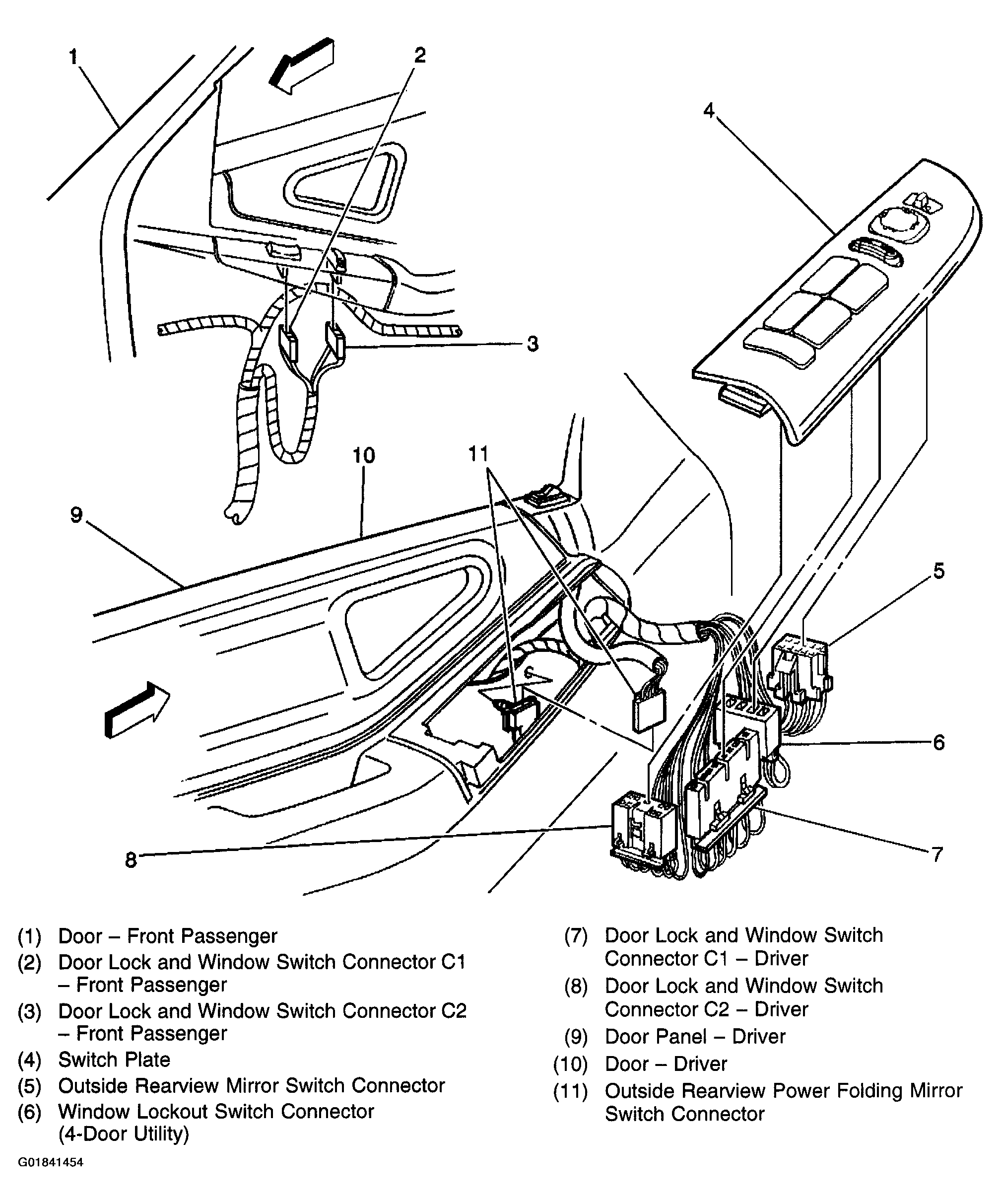

Fig 2: Door Harness Wiring Switches, Front
Courtesy of GENERAL MOTORS CORP.

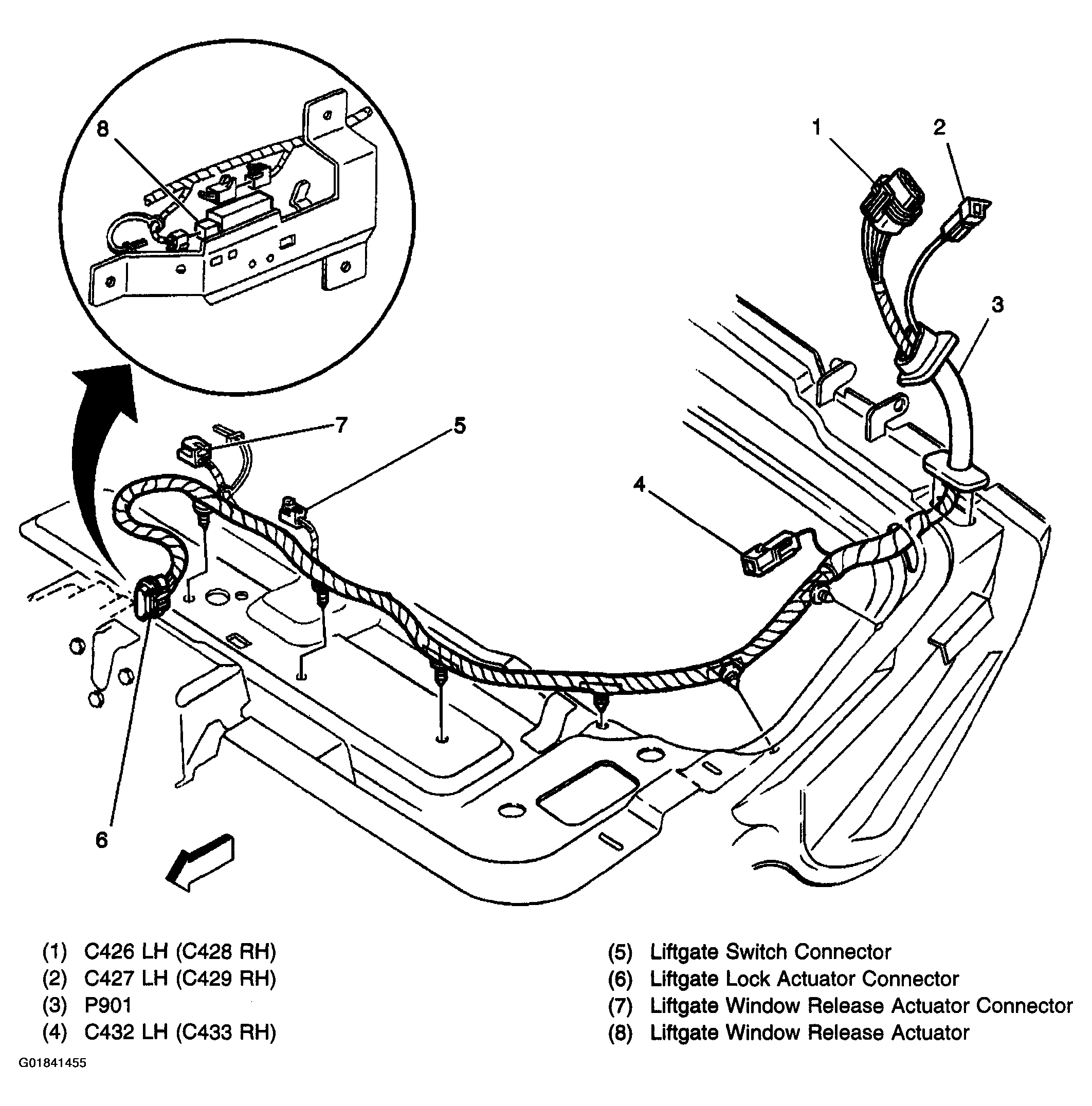

Fig 3: Liftgate LH (Utility)
Courtesy of GENERAL MOTORS CORP.

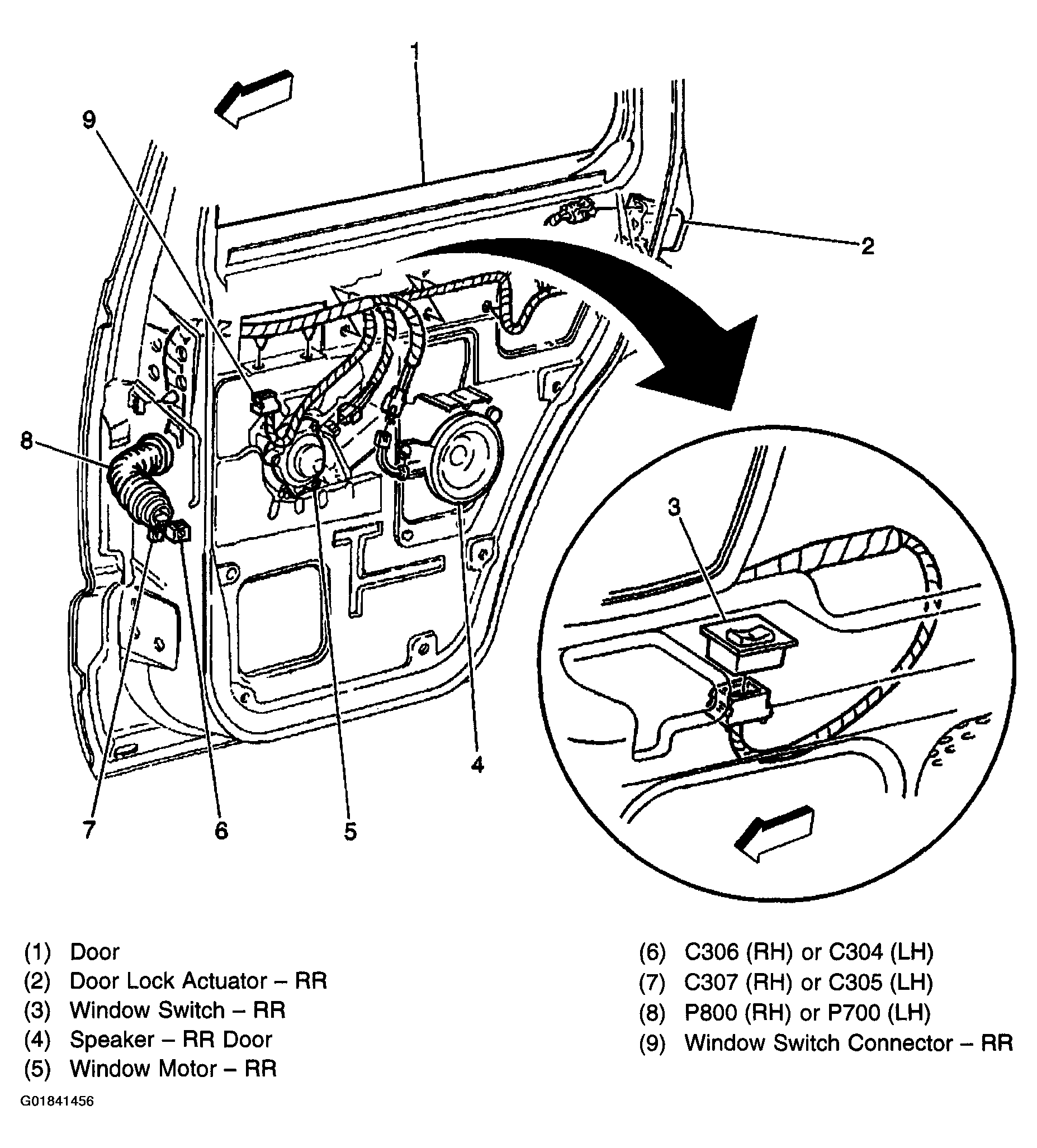

Fig 4: Door Wiring Harness (RR Shown, LR Similar)
Courtesy of GENERAL MOTORS CORP.

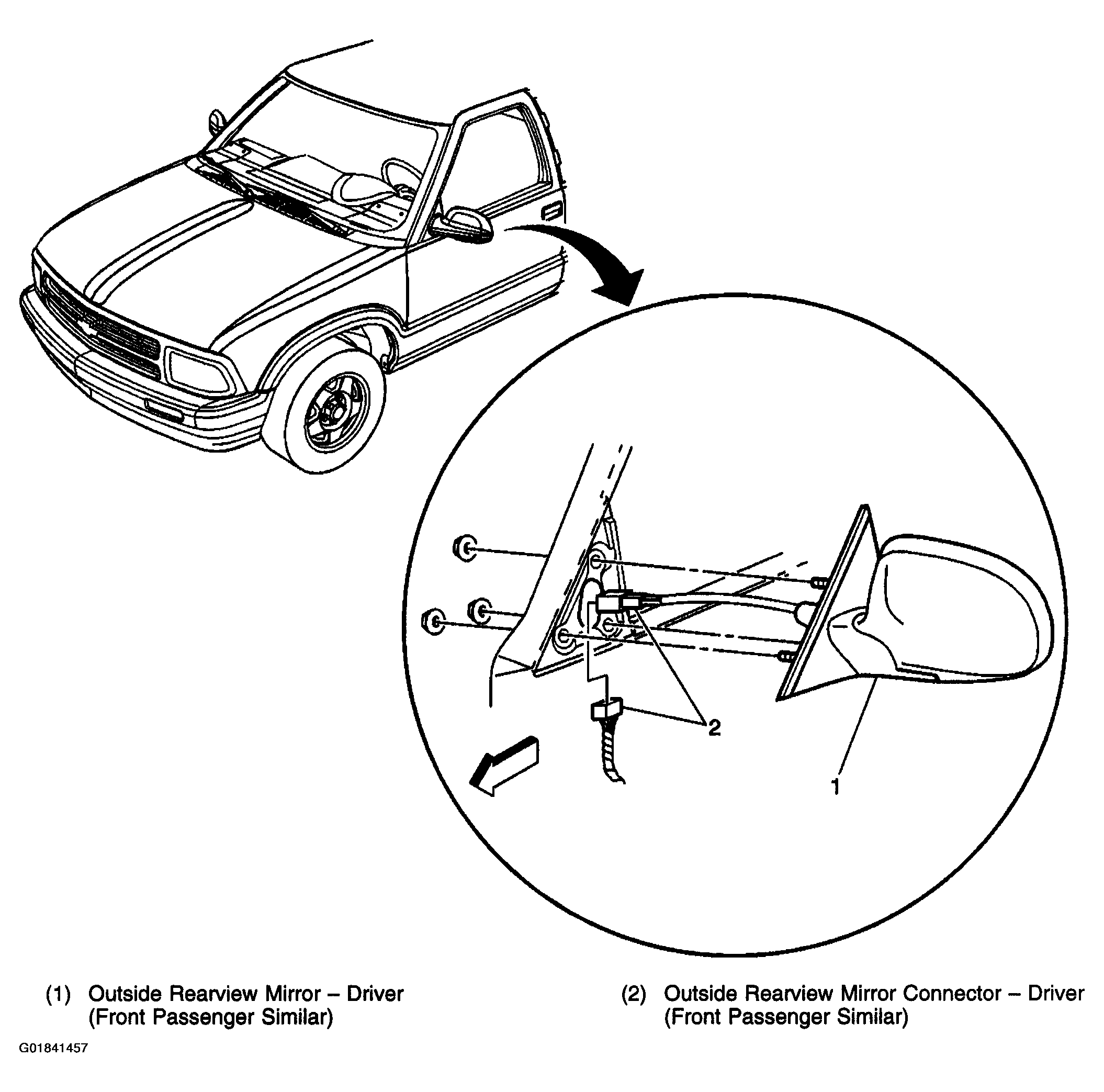

Fig 5: Outside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
