Power Door Systems Connector End Views

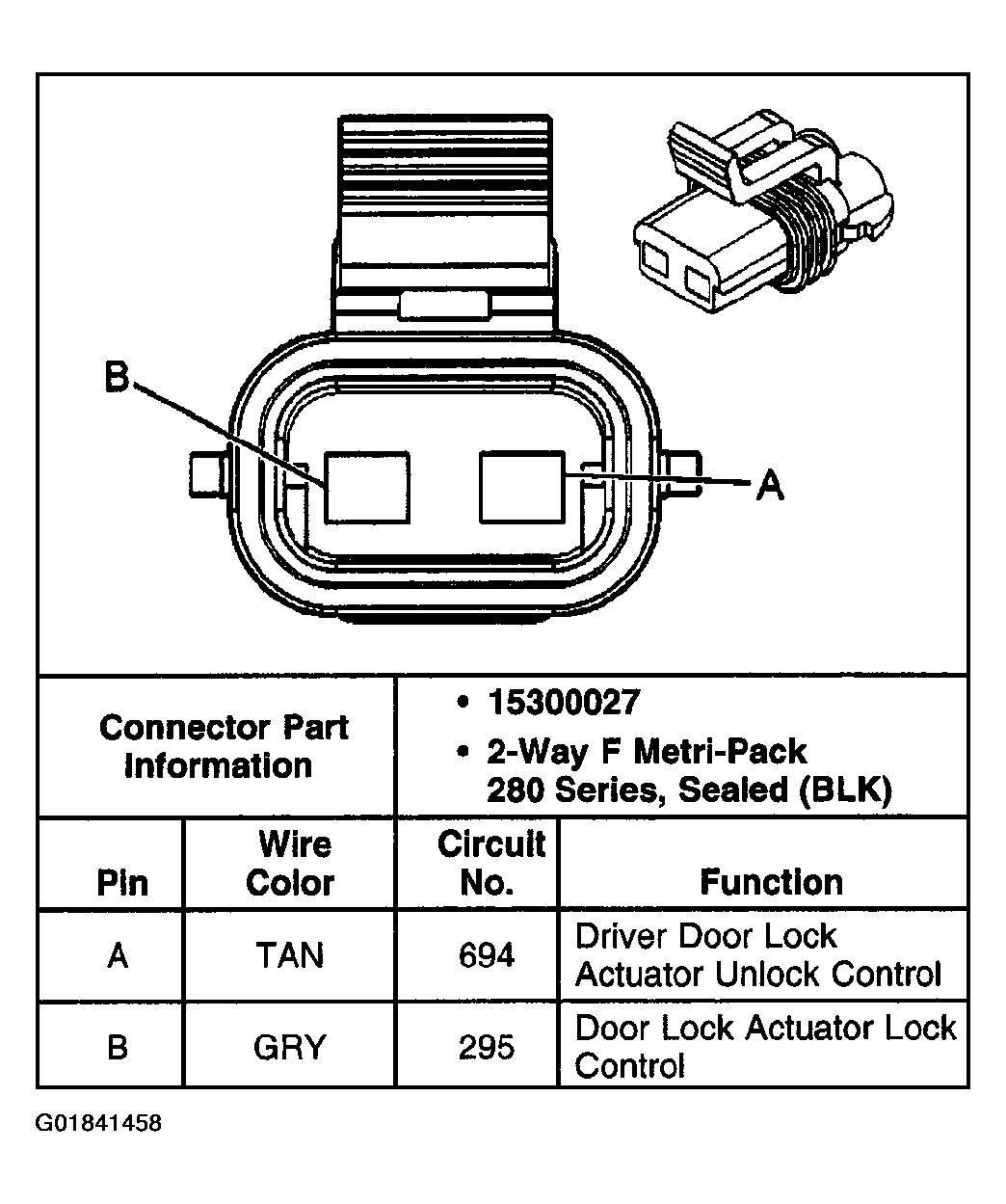

Fig 1: Door Lock Actuator - Driver

G01841458

Courtesy of GENERAL MOTORS CORP.

Fig 2: Door Lock Actuator - Front Passenger, RR, LR

G01841459

Courtesy of GENERAL MOTORS CORP.

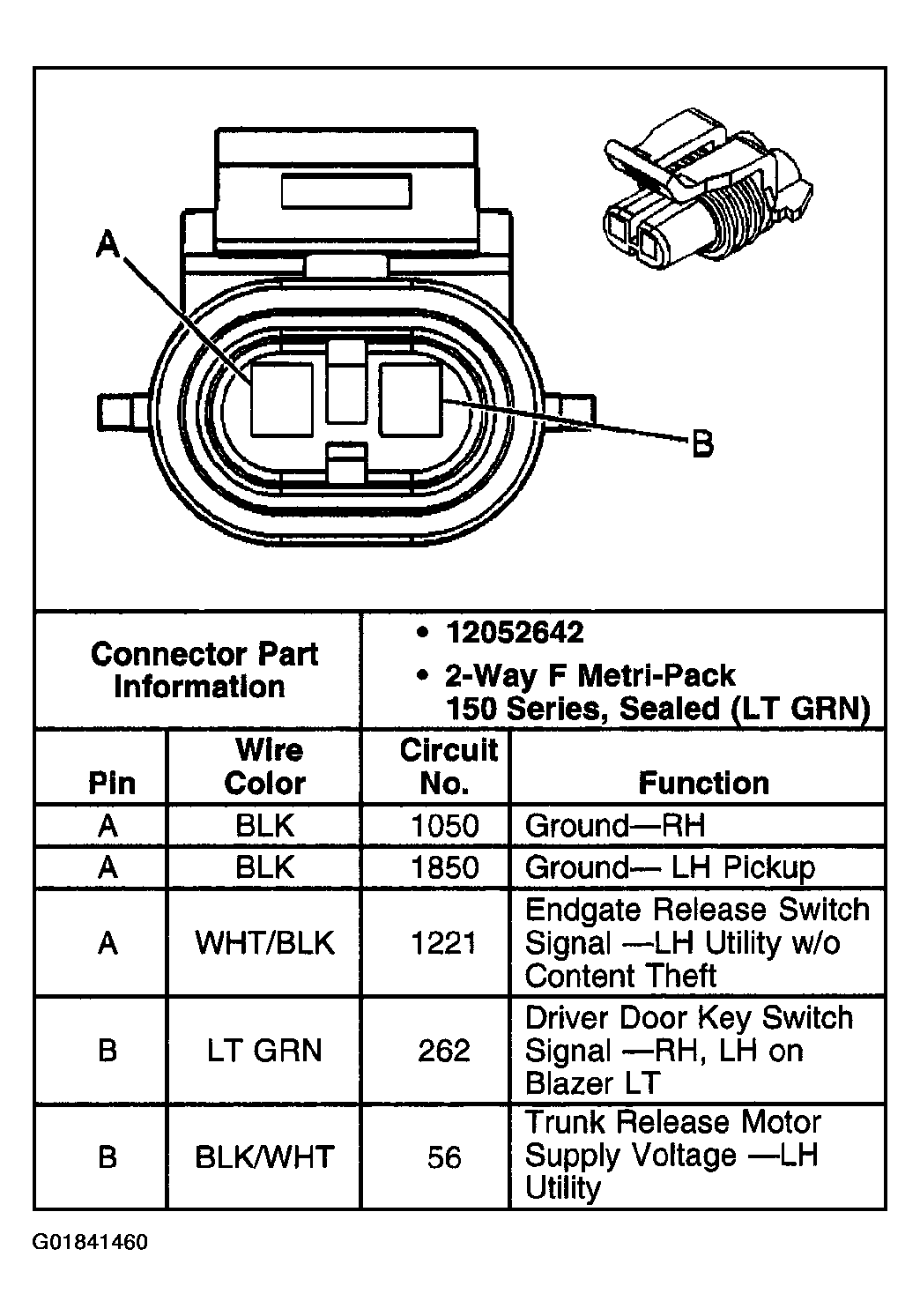

Fig 3: Door Lock Cylinder Switch - Driver/Front Passenger, Except LH Utility w/Content Theft

G01841460

Courtesy of GENERAL MOTORS CORP.

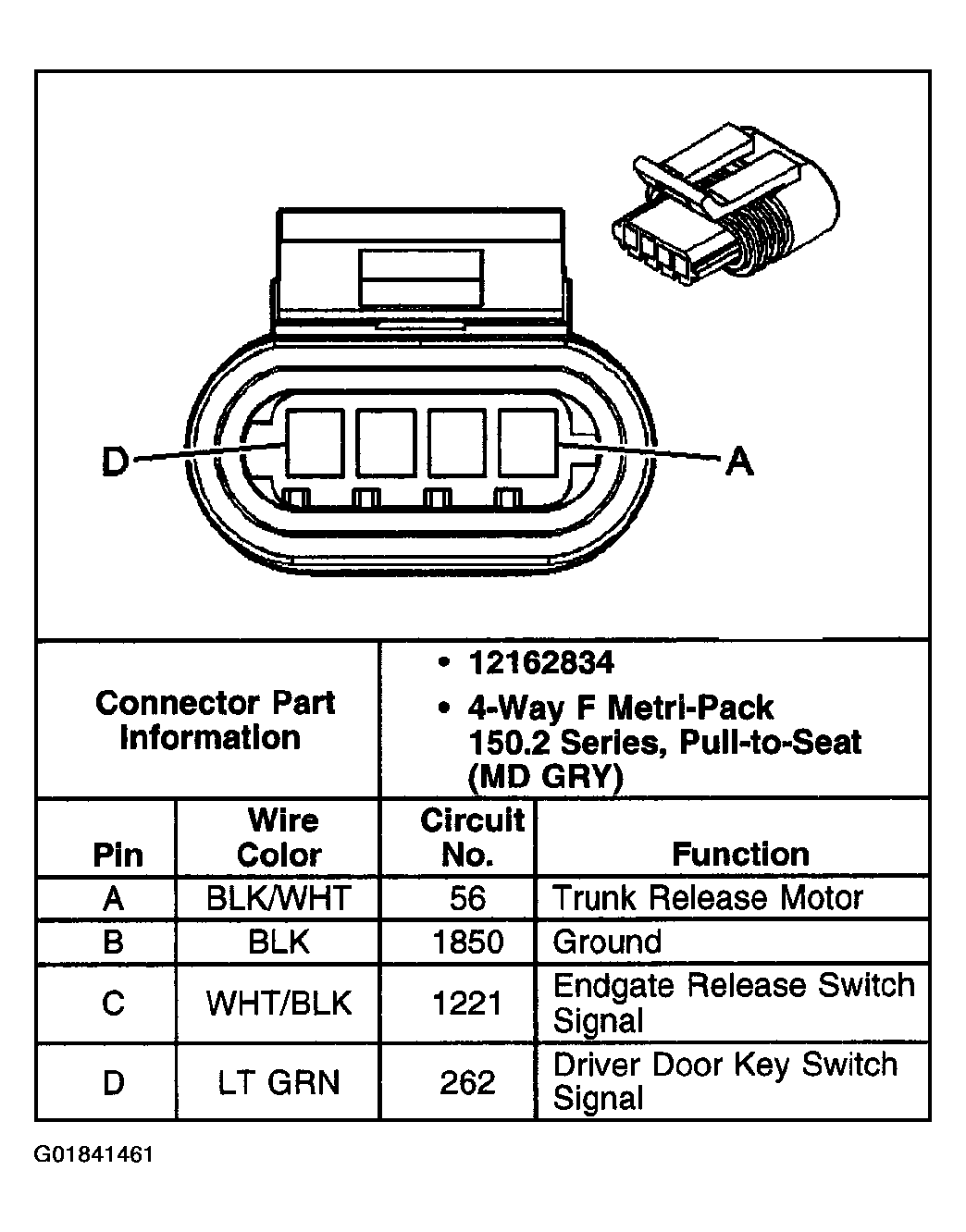

Fig 4: Door Lock Cylinder Switch - Driver, Utility w/ Content Theft

G01841461

Courtesy of GENERAL MOTORS CORP.

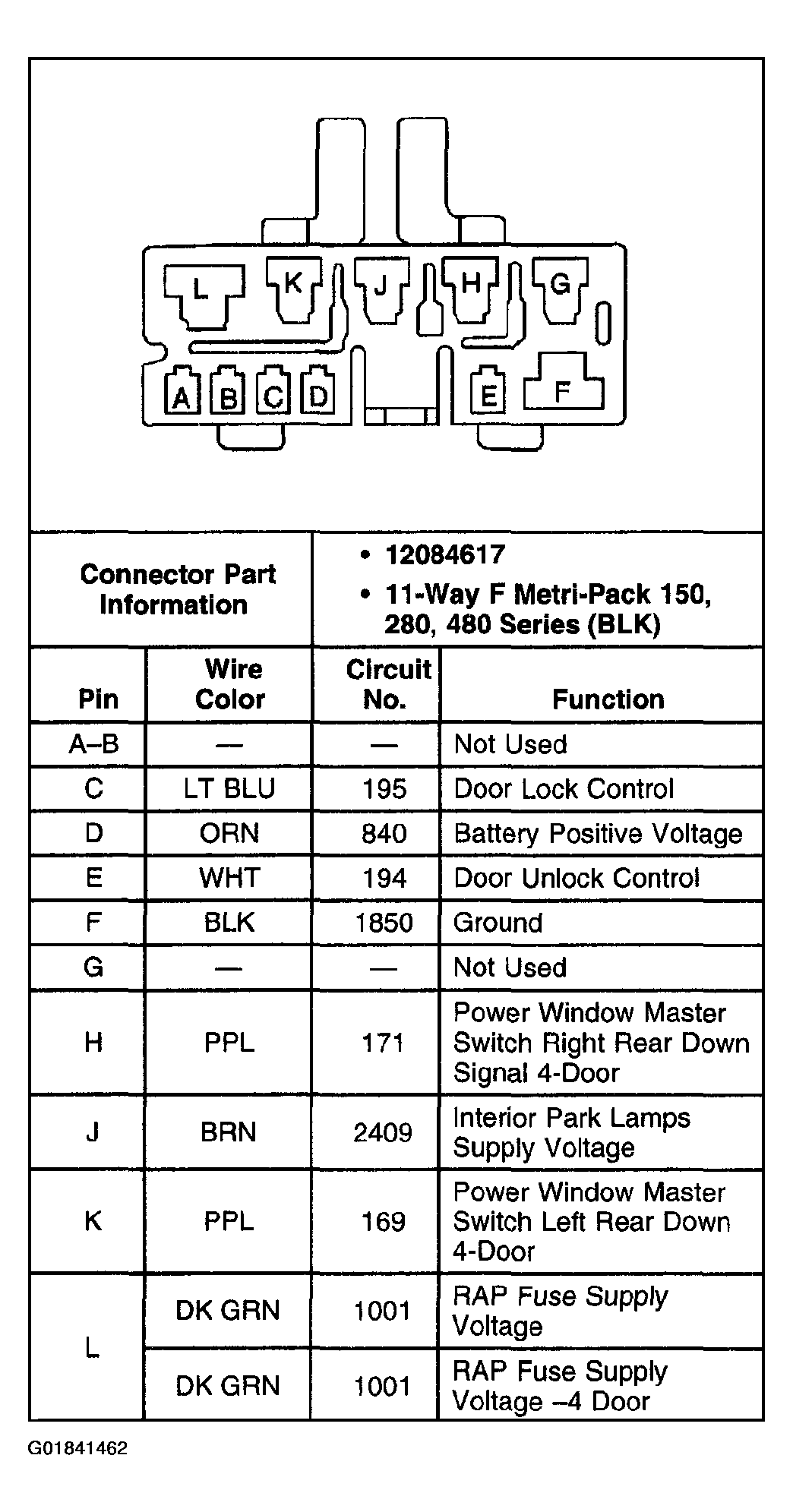

Fig 5: Door Lock and Window Switch - Driver, Connector C1

G01841462

Courtesy of GENERAL MOTORS CORP.

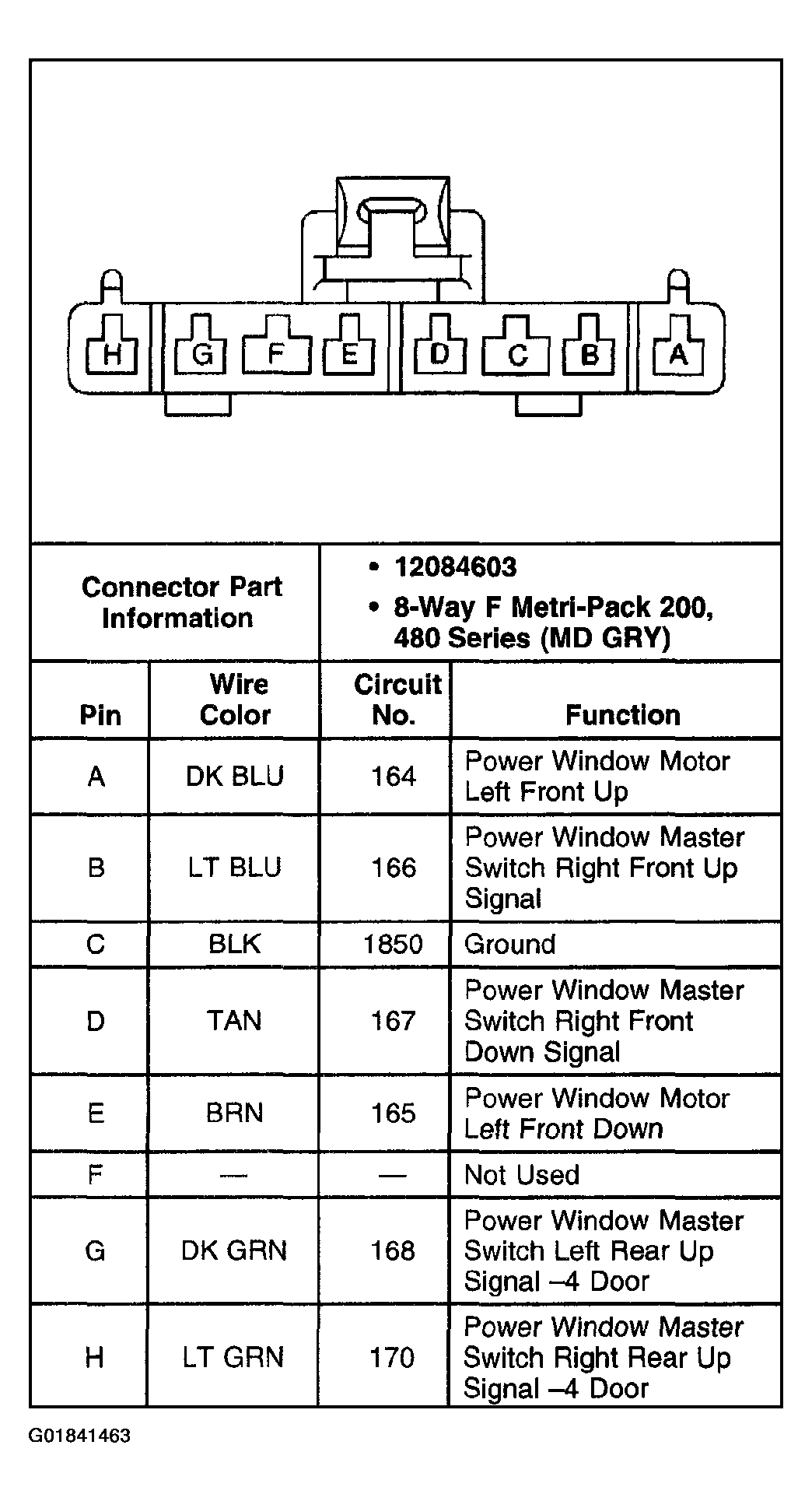

Fig 6: Door Lock and Window Switch - Driver, Connector C2

G01841463

Courtesy of GENERAL MOTORS CORP.

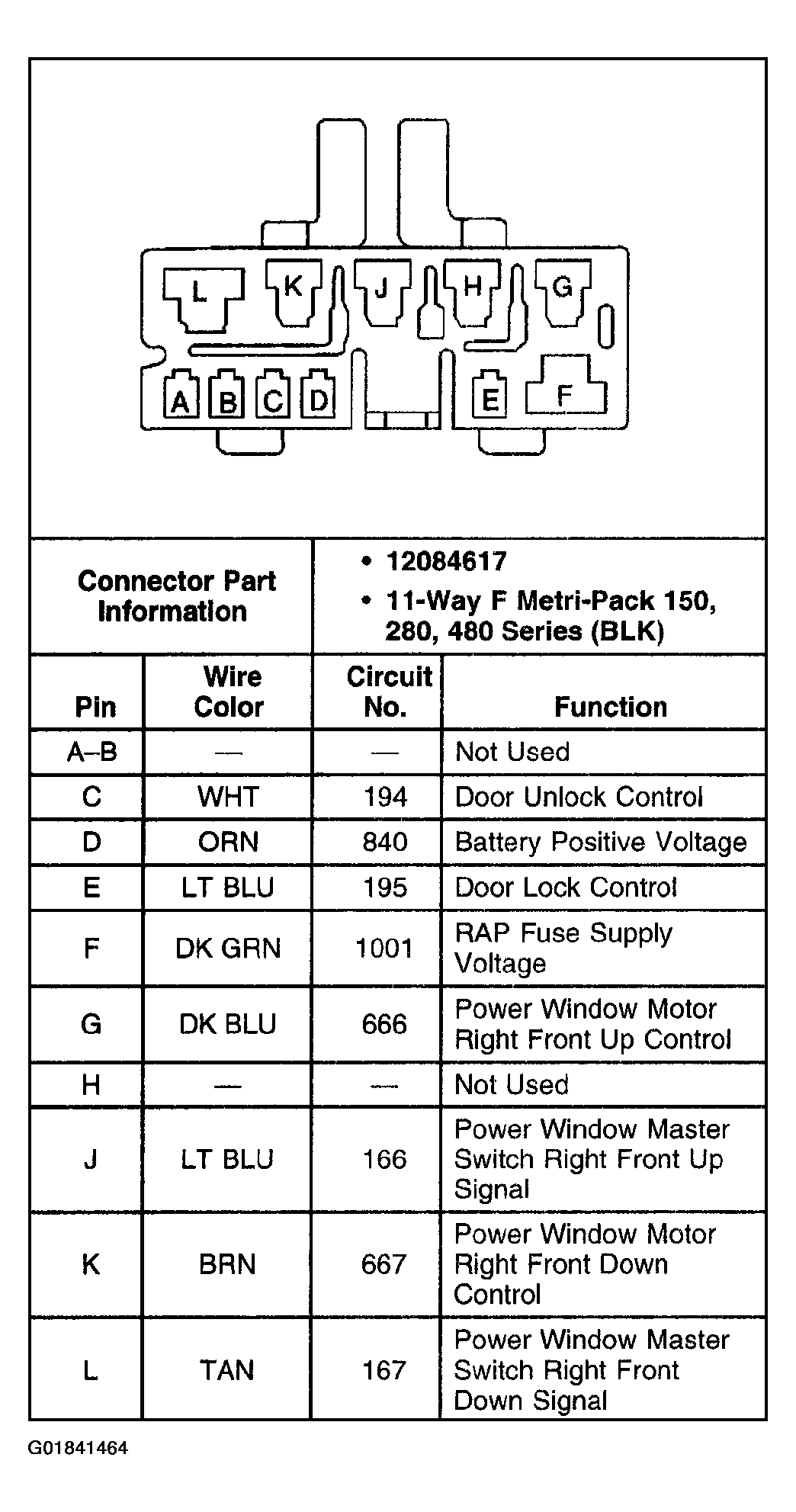

Fig 7: Door Lock and Window Switch - Front Passenger, Connector C1

G01841464

Courtesy of GENERAL MOTORS CORP.

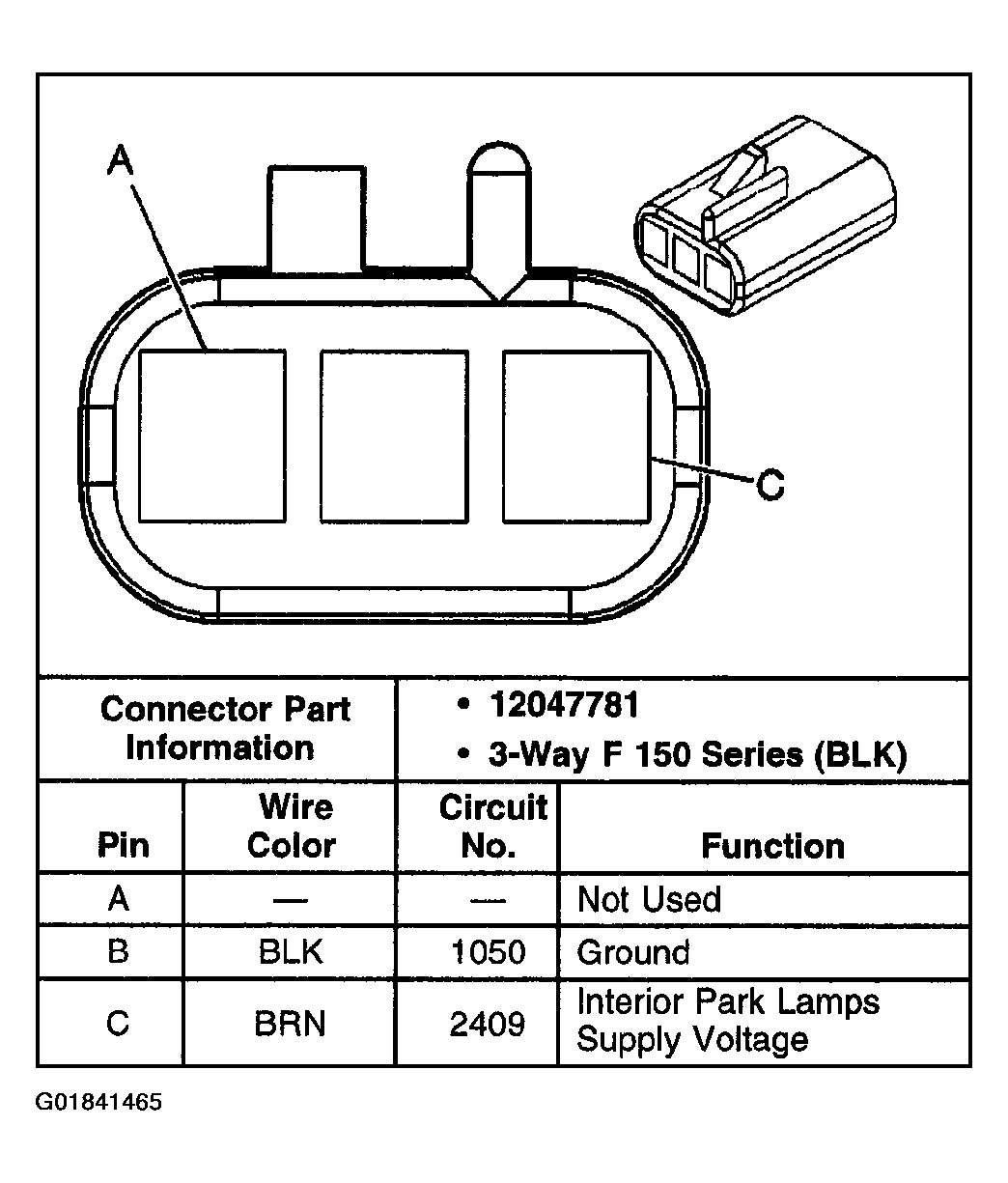

Fig 8: Door Lock and Window Switch - Front Passenger, Connector C2

G01841465

Courtesy of GENERAL MOTORS CORP.

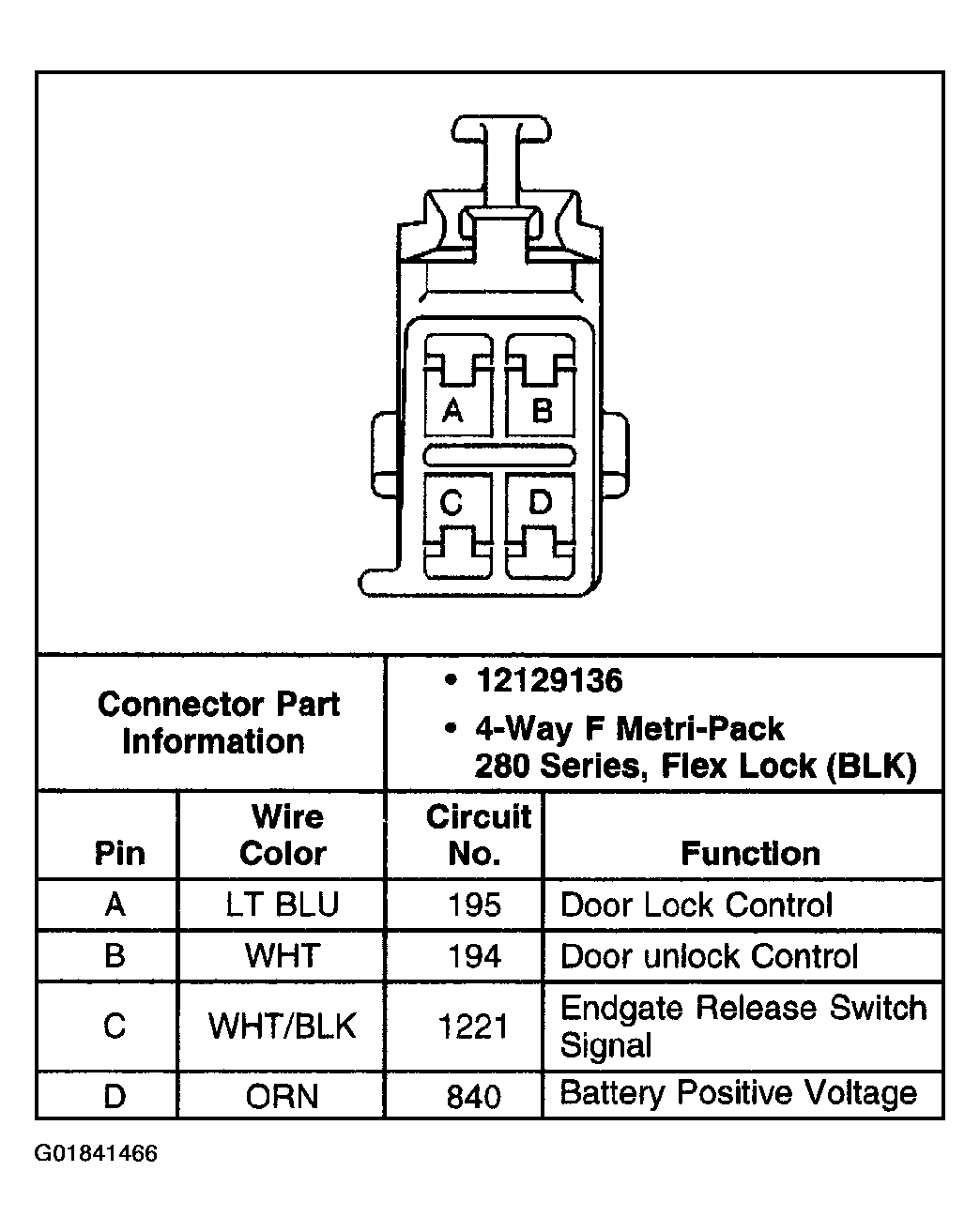

Fig 9: Endgate Lock Cylinder Switch

G01841466

Courtesy of GENERAL MOTORS CORP.

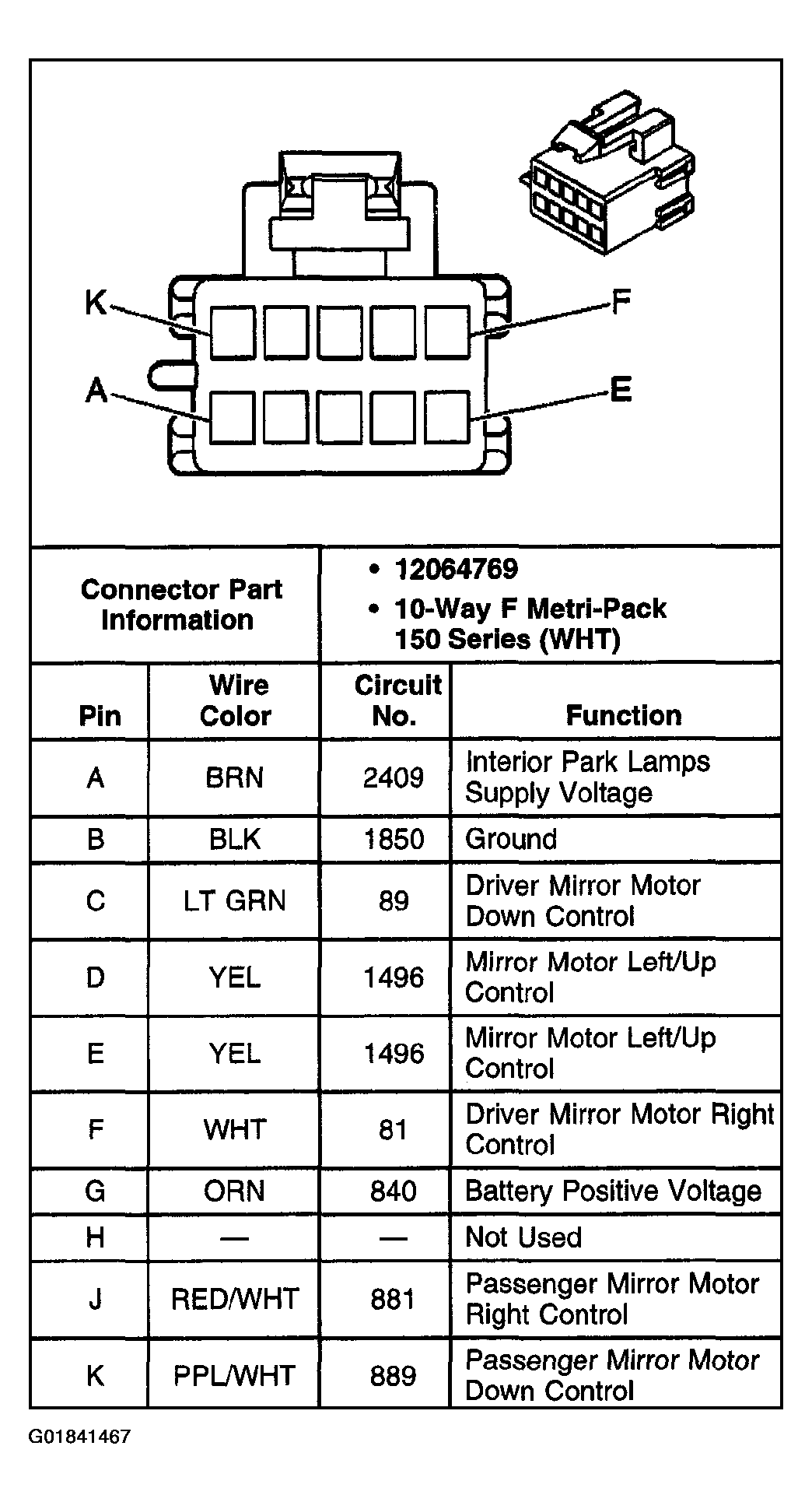

Fig 10: Outside Rearview Mirror Switch

G01841467

Courtesy of GENERAL MOTORS CORP.

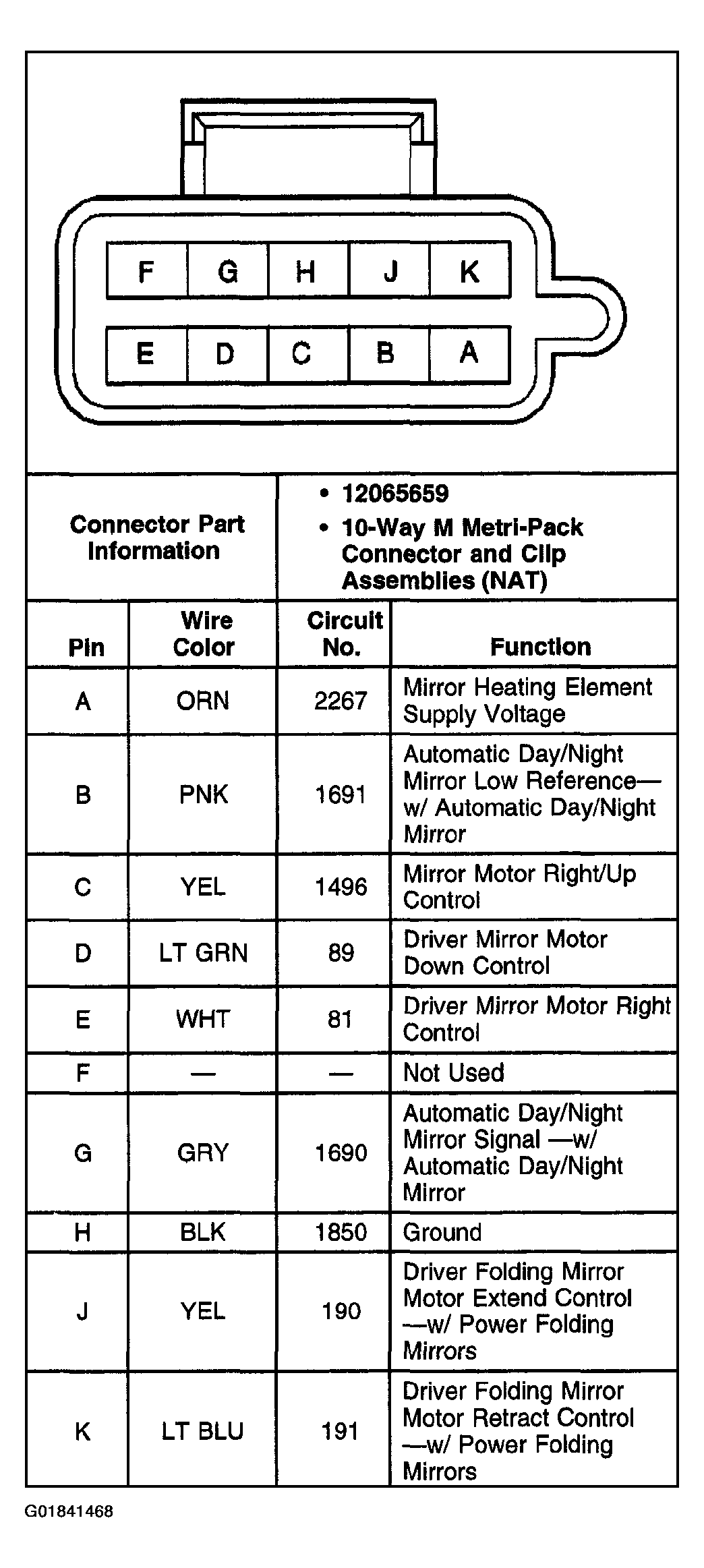

Fig 11: Outside Rearview Mirror, Driver

G01841468

Courtesy of GENERAL MOTORS CORP.

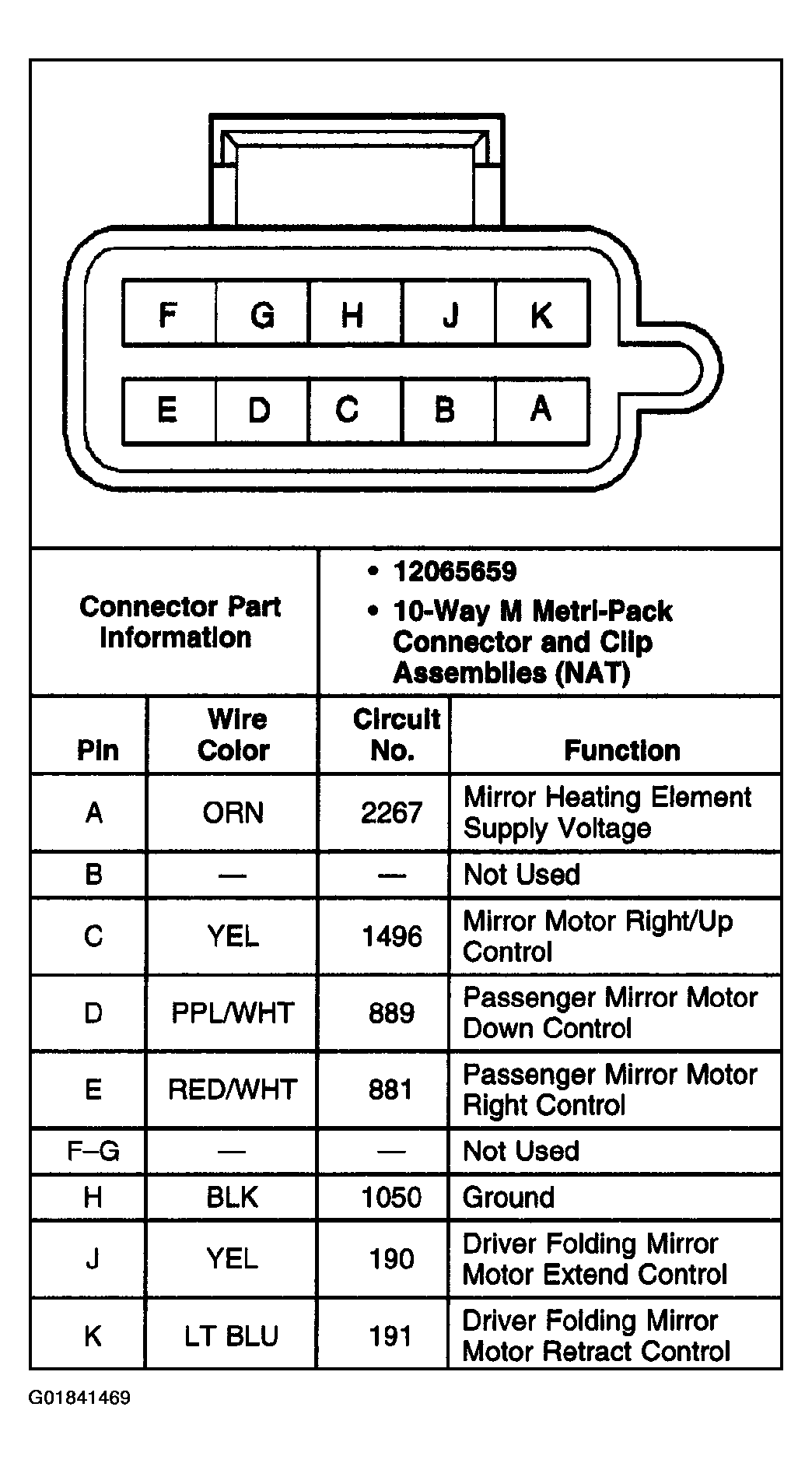

Fig 12: Outside Rearview Mirror, Front Passenger

G01841469

Courtesy of GENERAL MOTORS CORP.

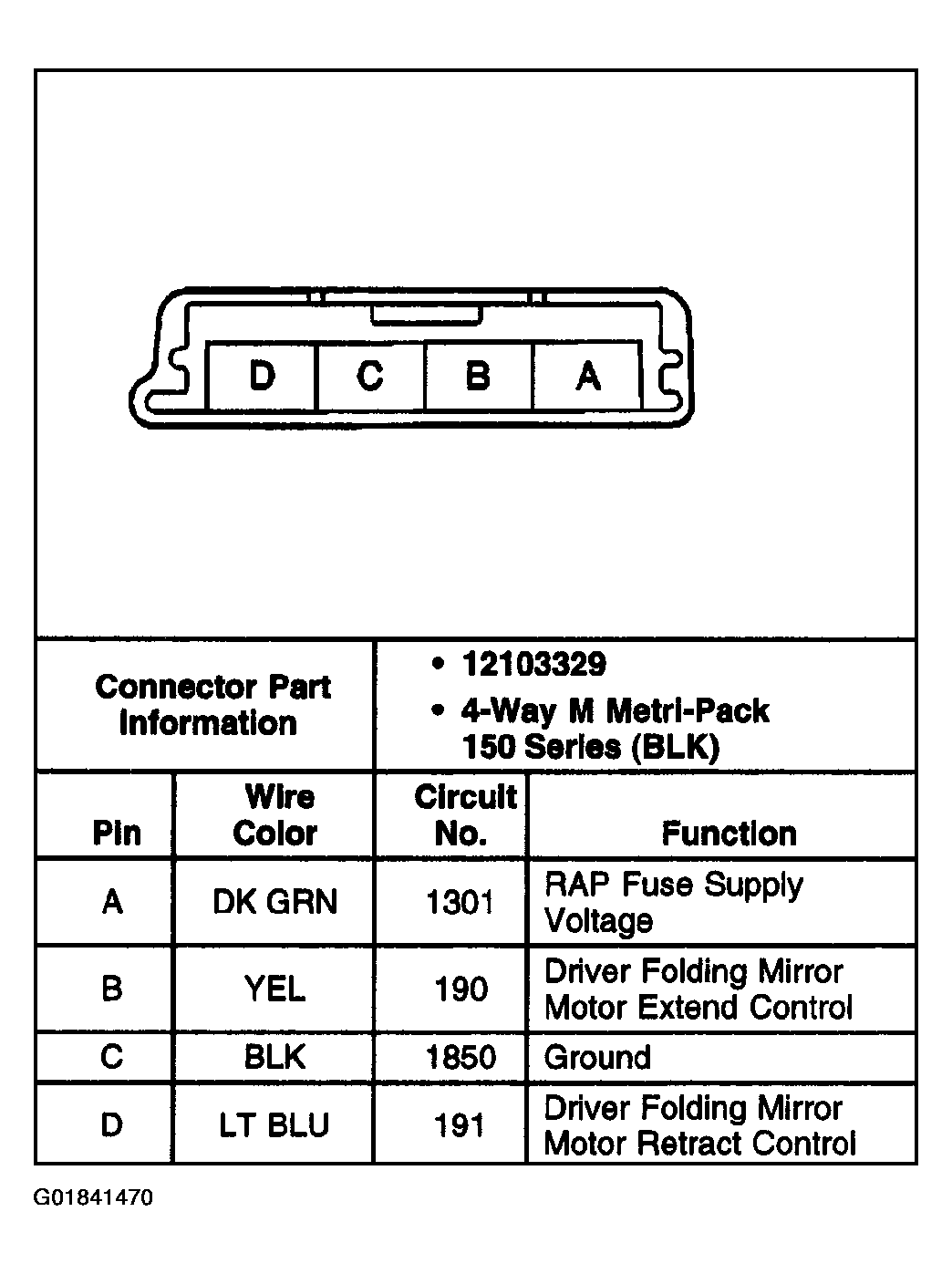

Fig 13: Outside Rearview Power Folding Mirror Switch

G01841470

Courtesy of GENERAL MOTORS CORP.

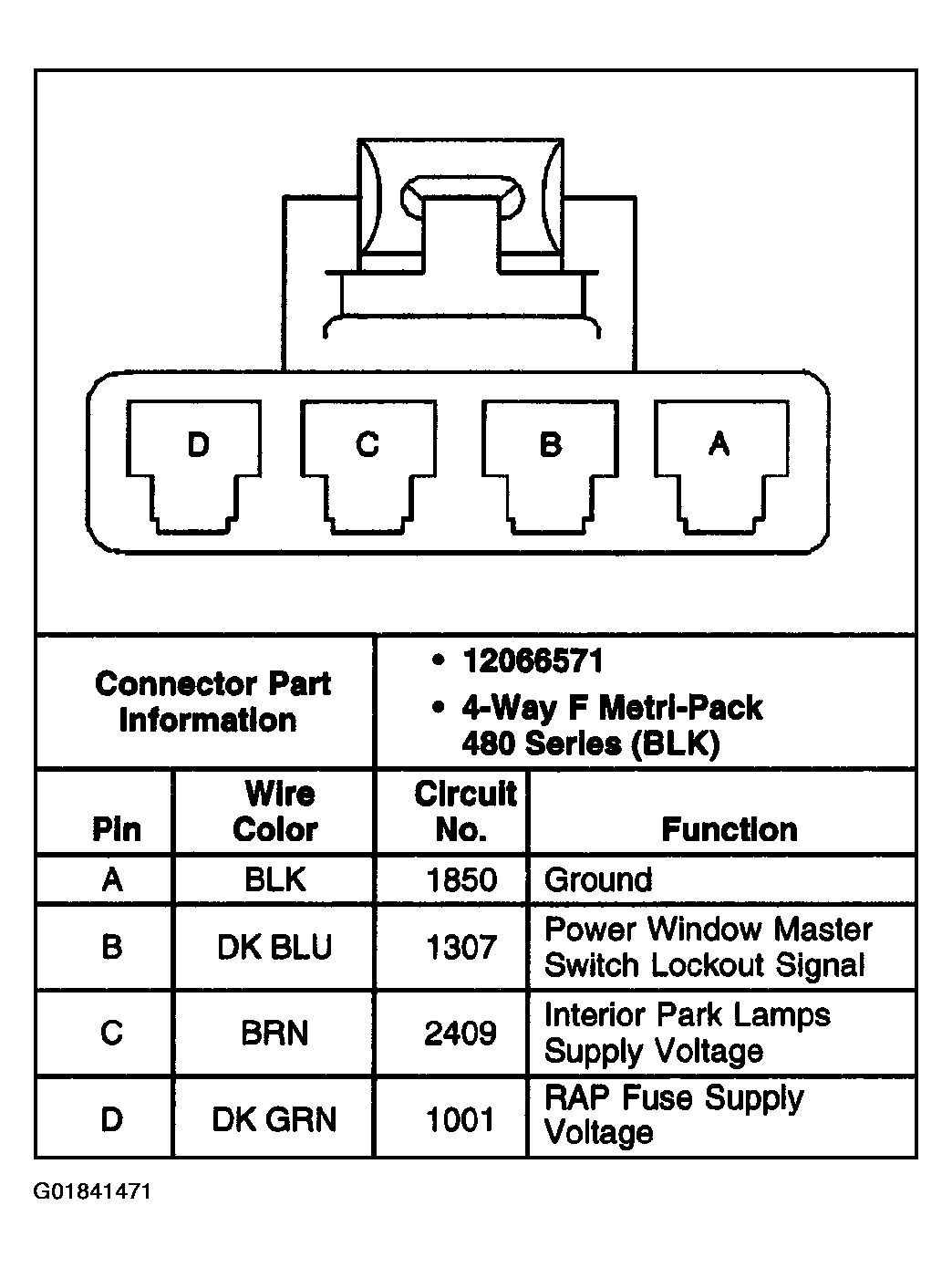

Fig 14: Window Lockout Switch

G01841471

Courtesy of GENERAL MOTORS CORP.

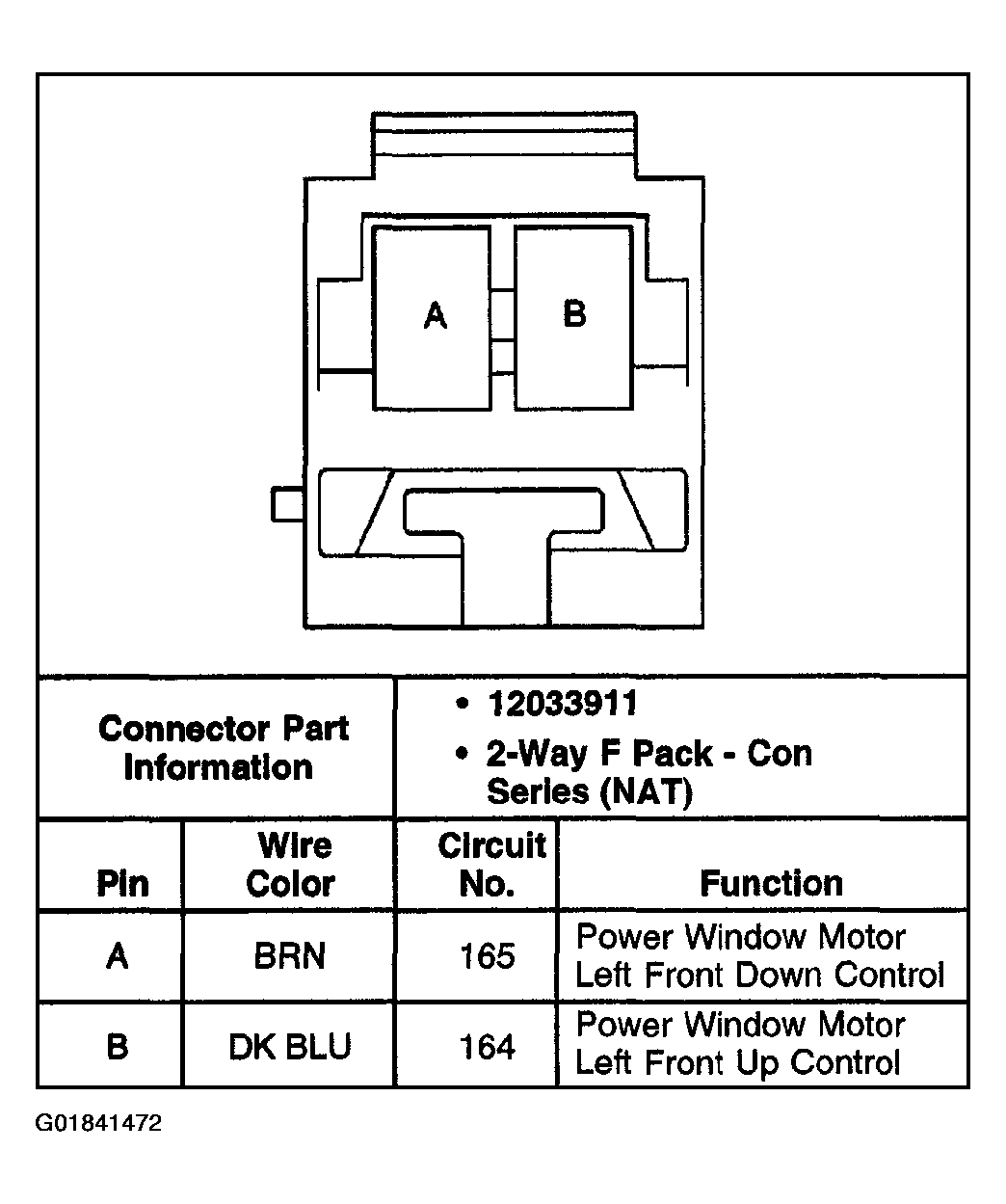

Fig 15: Window Motor - Driver

G01841472

Courtesy of GENERAL MOTORS CORP.

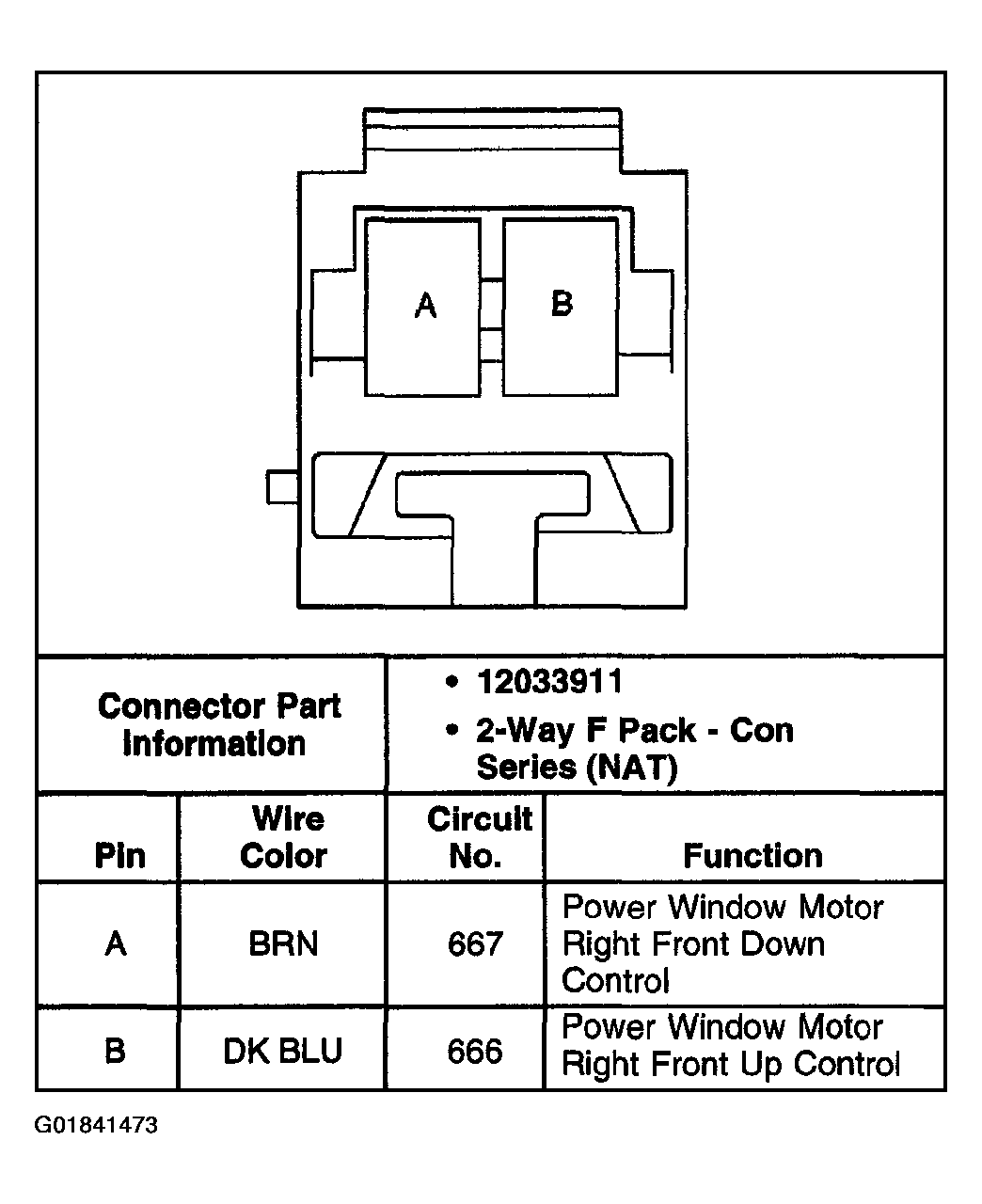

Fig 16: Window Motor - Front Passenger

G01841473

Courtesy of GENERAL MOTORS CORP.

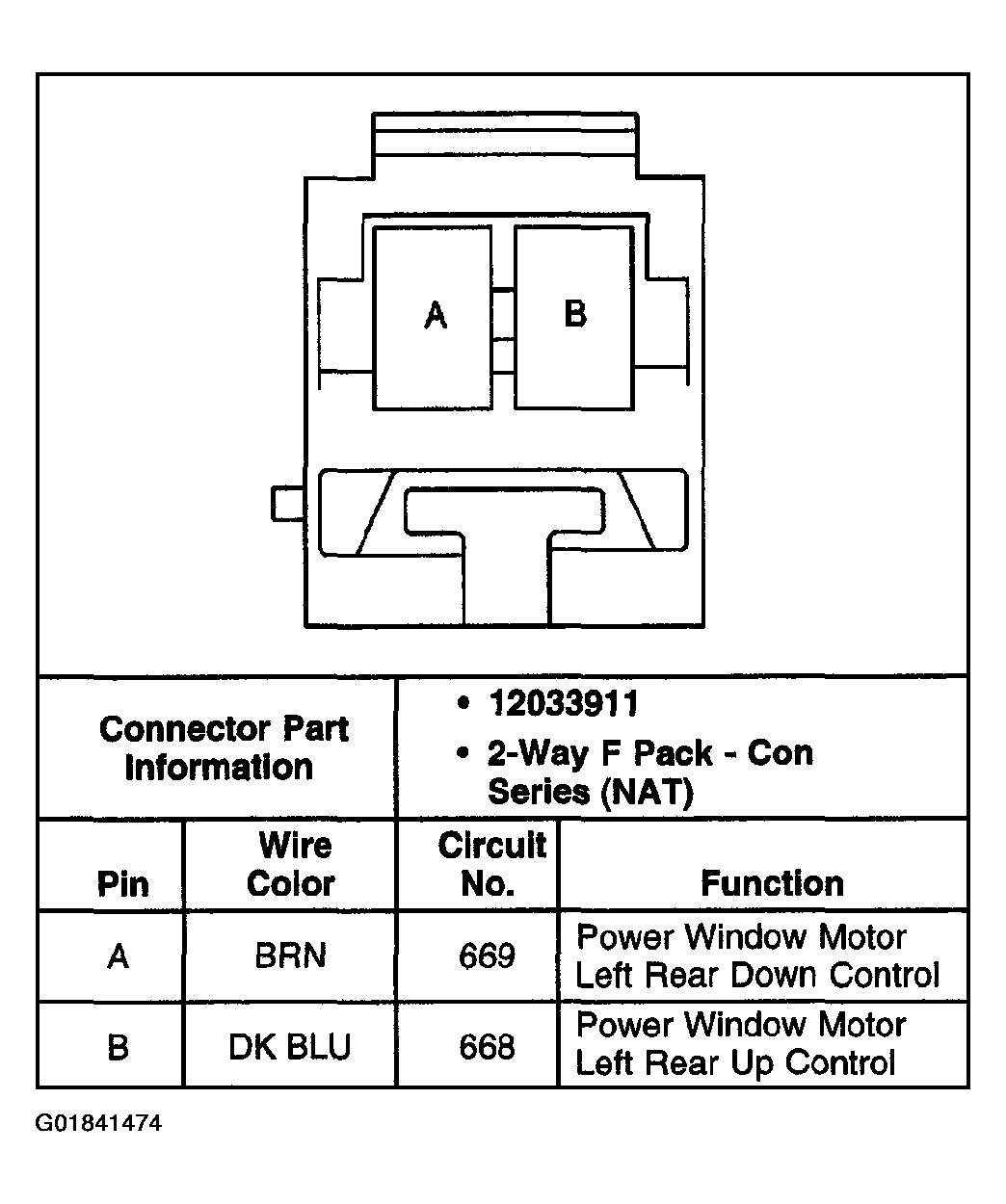

Fig 17: Window Motor - LR

G01841474

Courtesy of GENERAL MOTORS CORP.

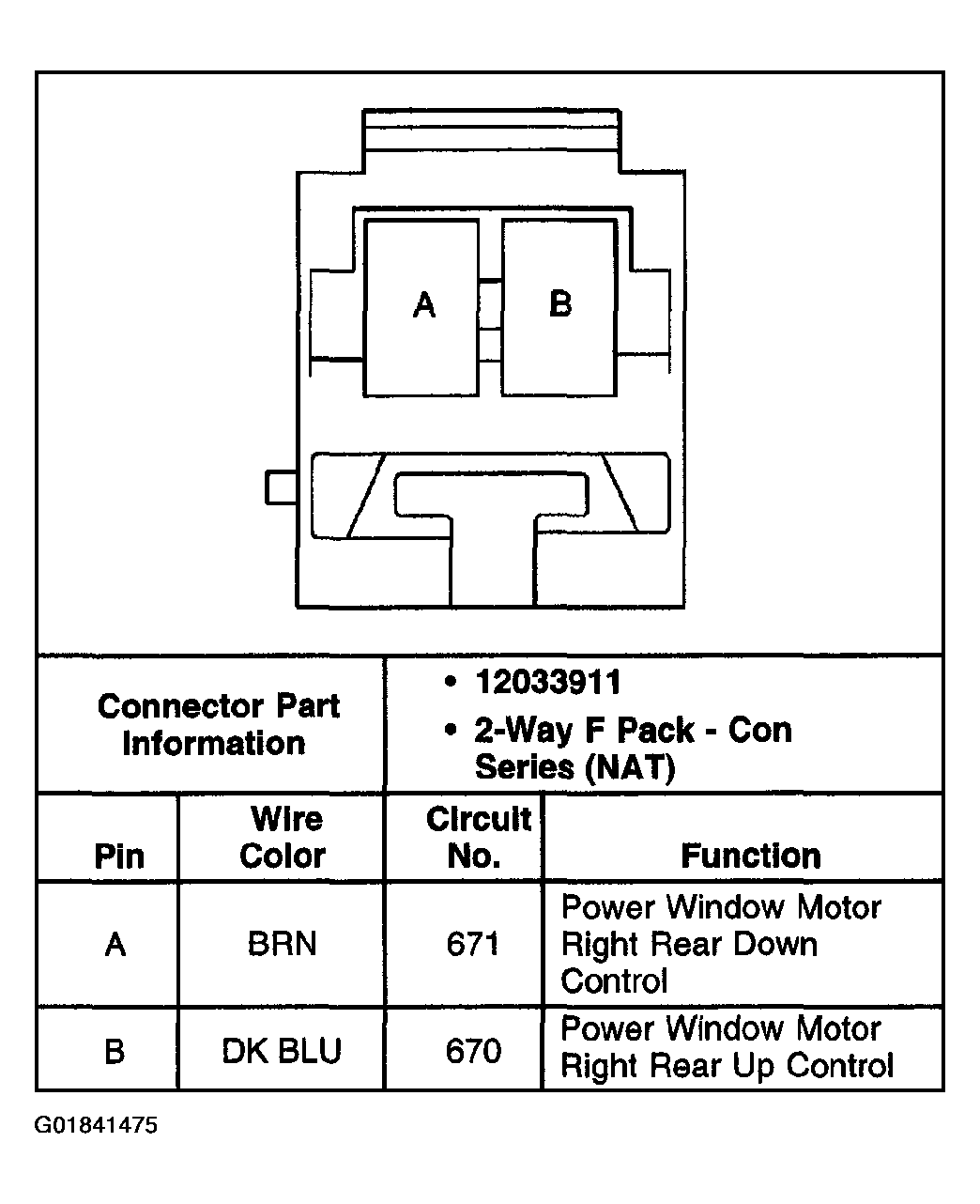

Fig 18: Window Motor - RR

G01841475

Courtesy of GENERAL MOTORS CORP.

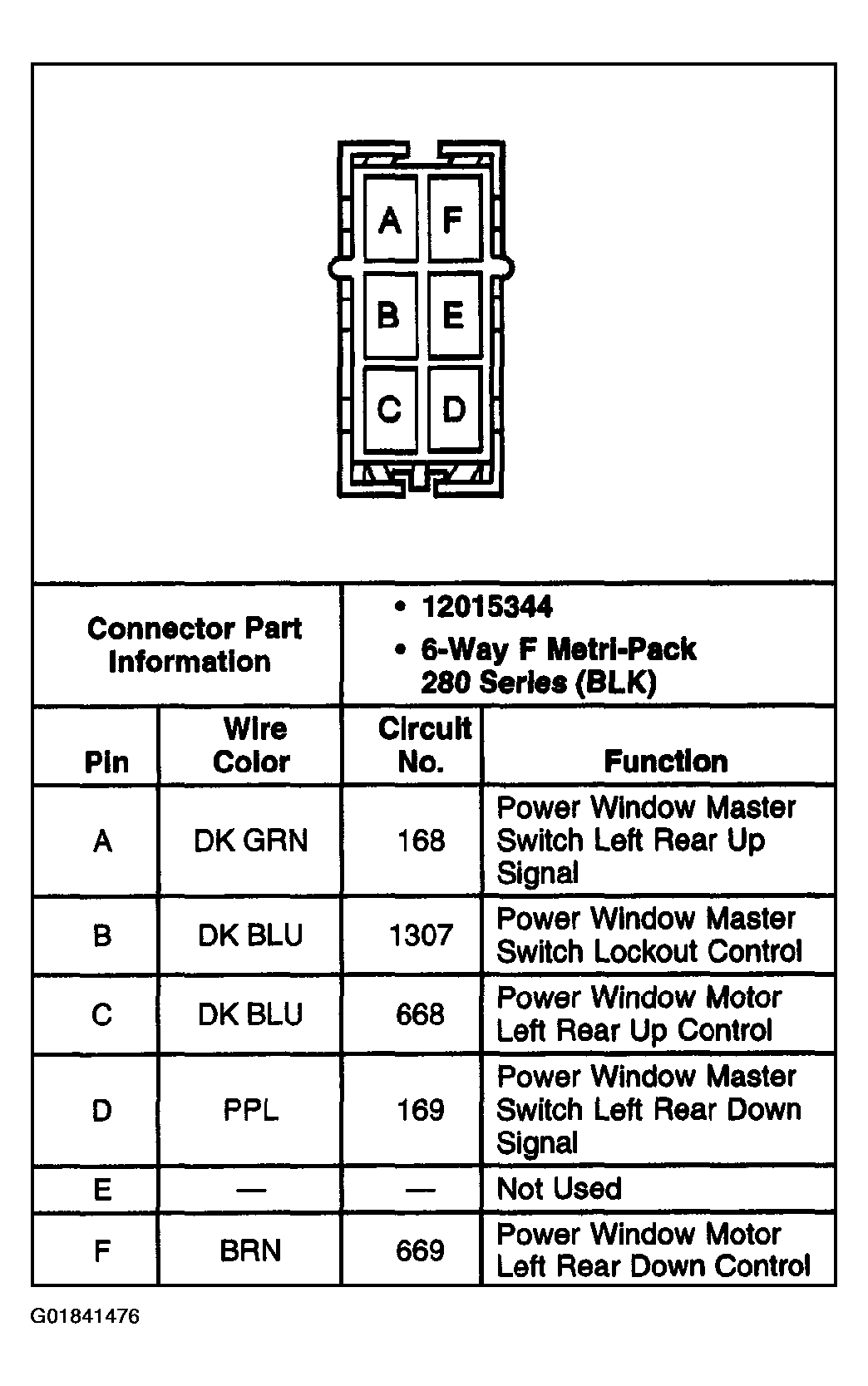

Fig 19: Window Switch - LR

G01841476

Courtesy of GENERAL MOTORS CORP.

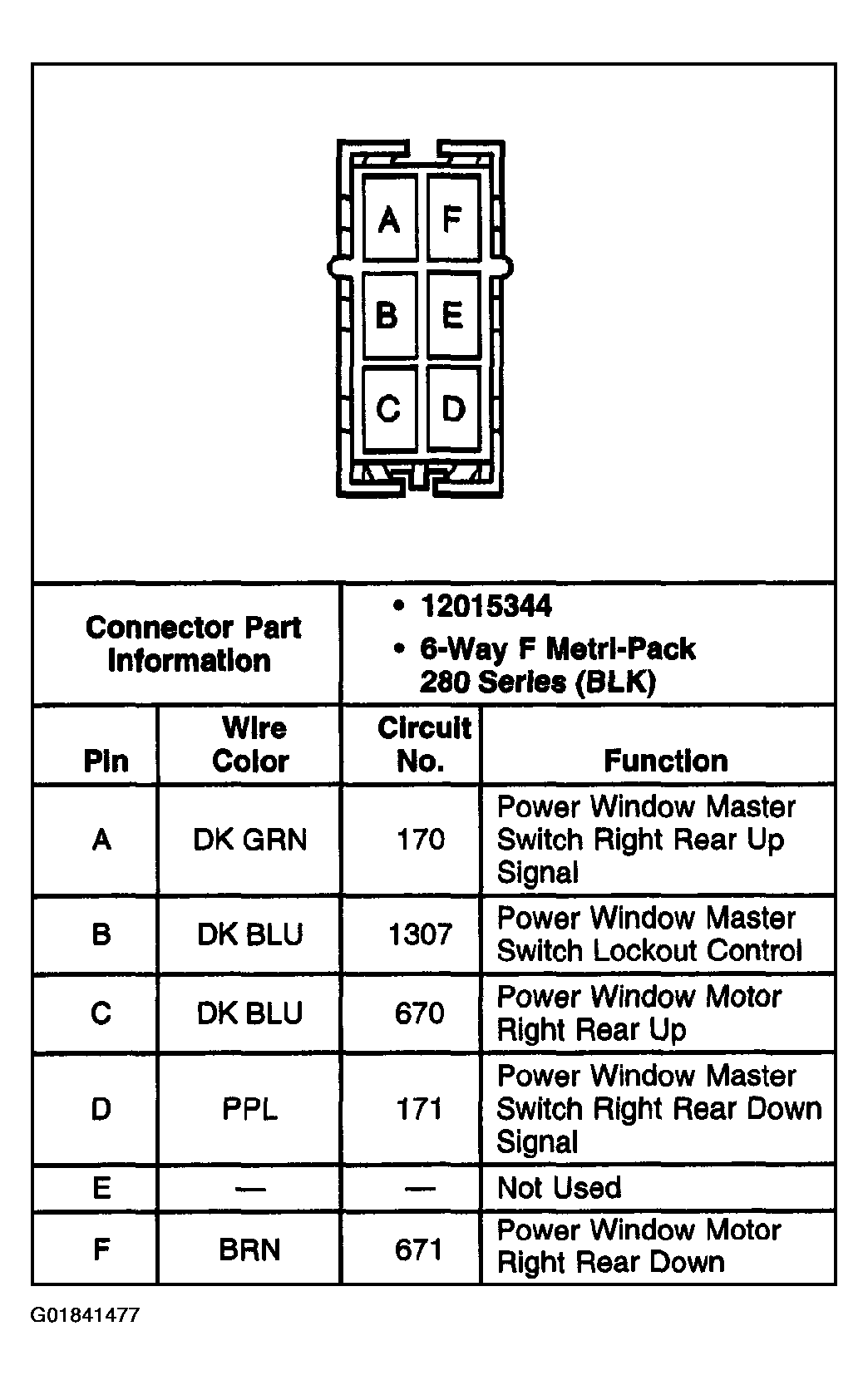

Fig 20: Window Switch - RR

G01841477

Courtesy of GENERAL MOTORS CORP.
