Power Windows Inoperative - Lockout Function

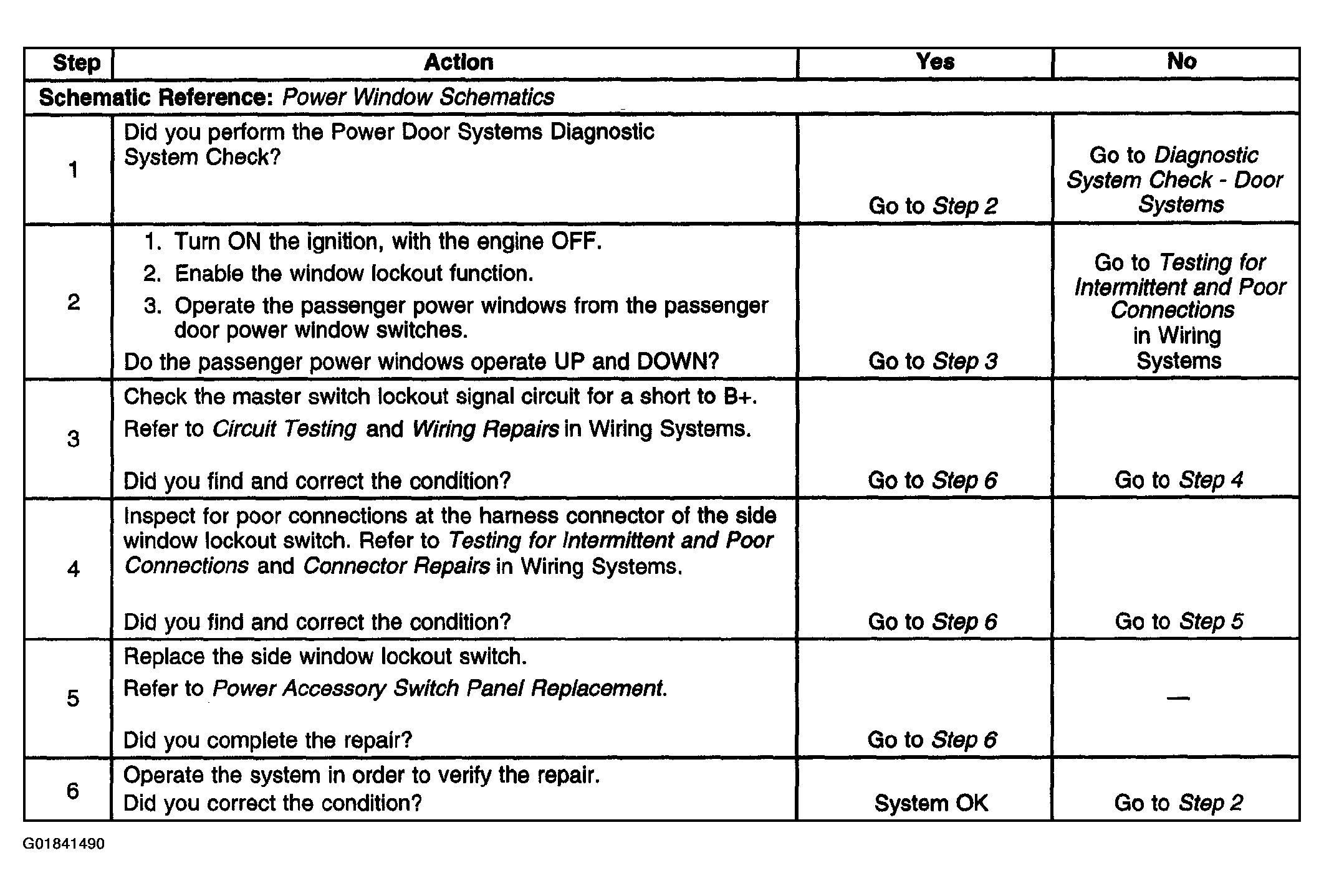

Fig 1: Power Windows Inoperative - Lockout Function
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
