Scan Tool Output Controls

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS CORP.

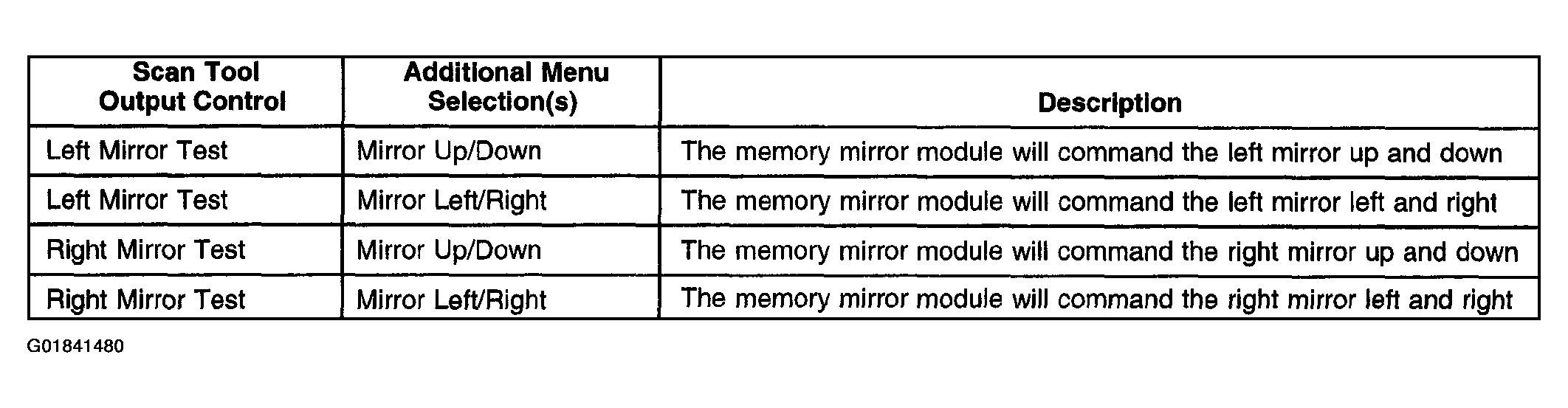

Fig 2: Memory Mirror Module

Courtesy of GENERAL MOTORS CORP.

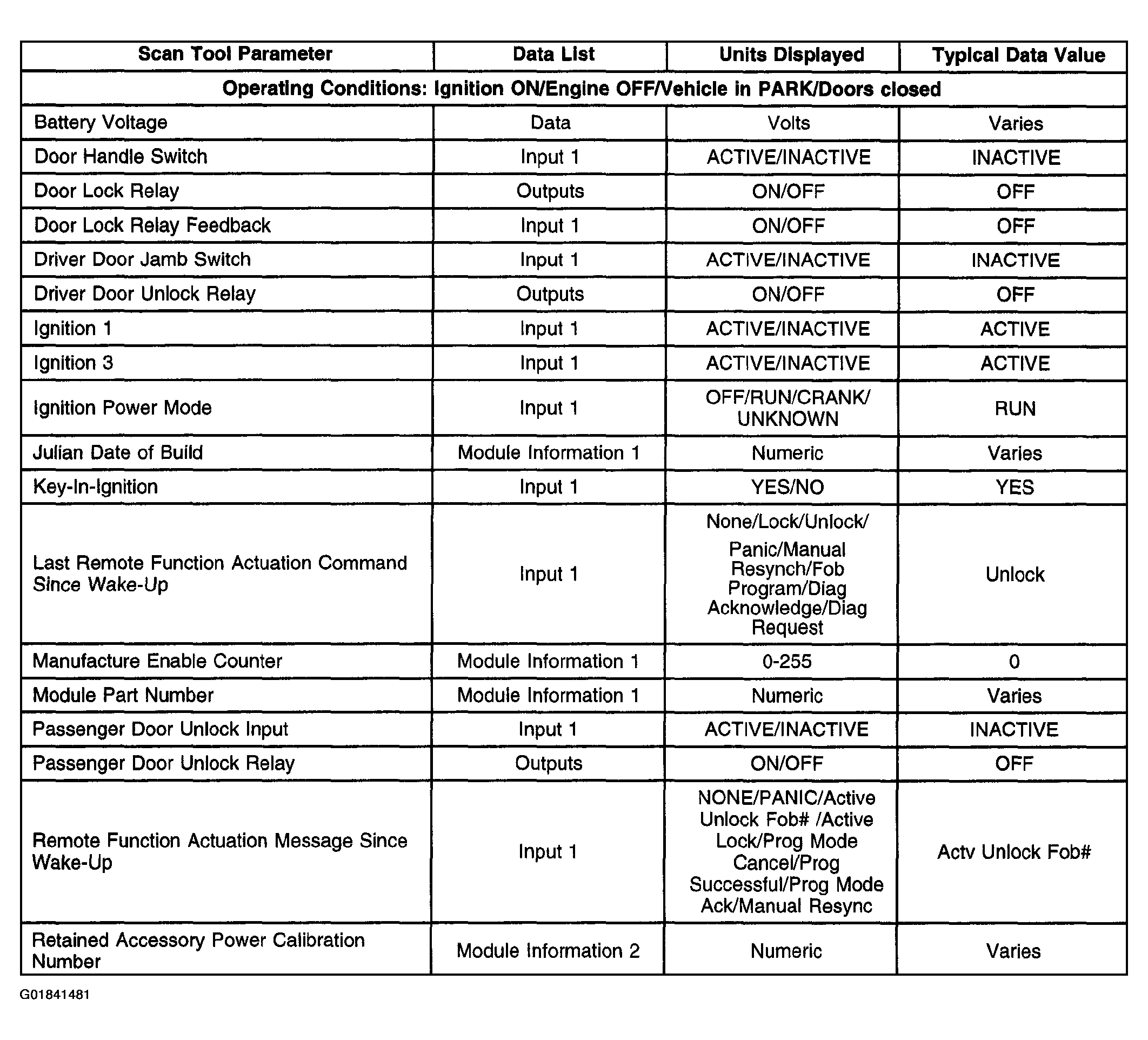

Fig 3: Scan Tool Data List (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

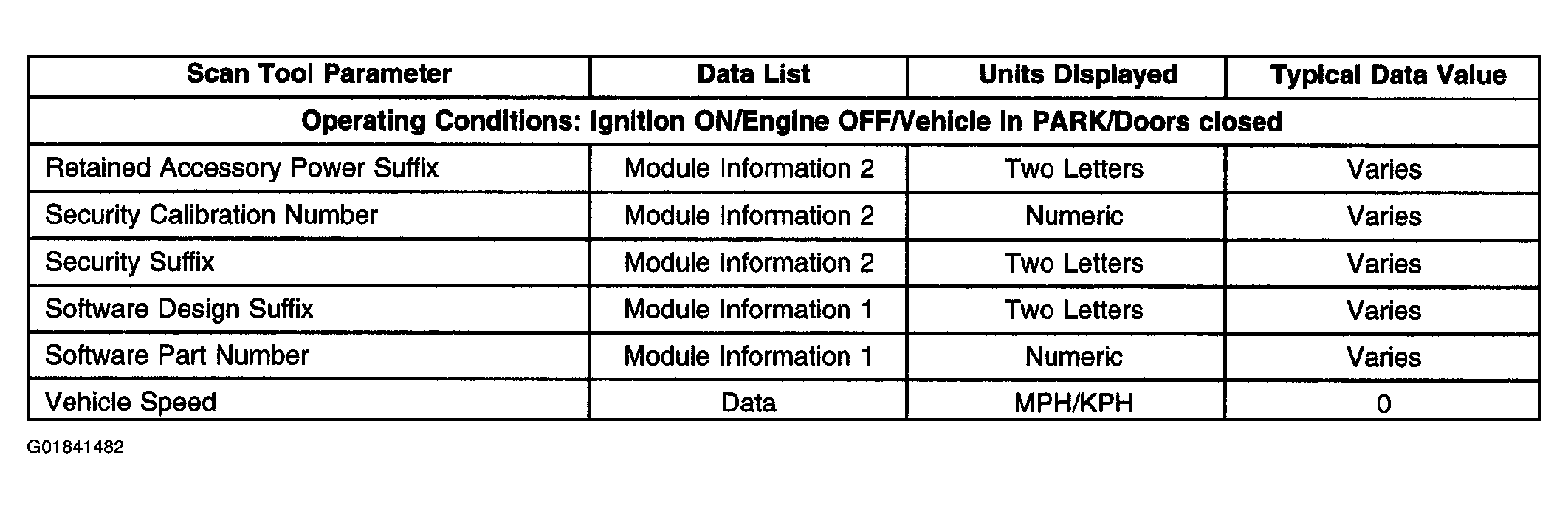

Fig 4: Scan Tool Data List (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
