Front Axle Indicator Switch Connector End View

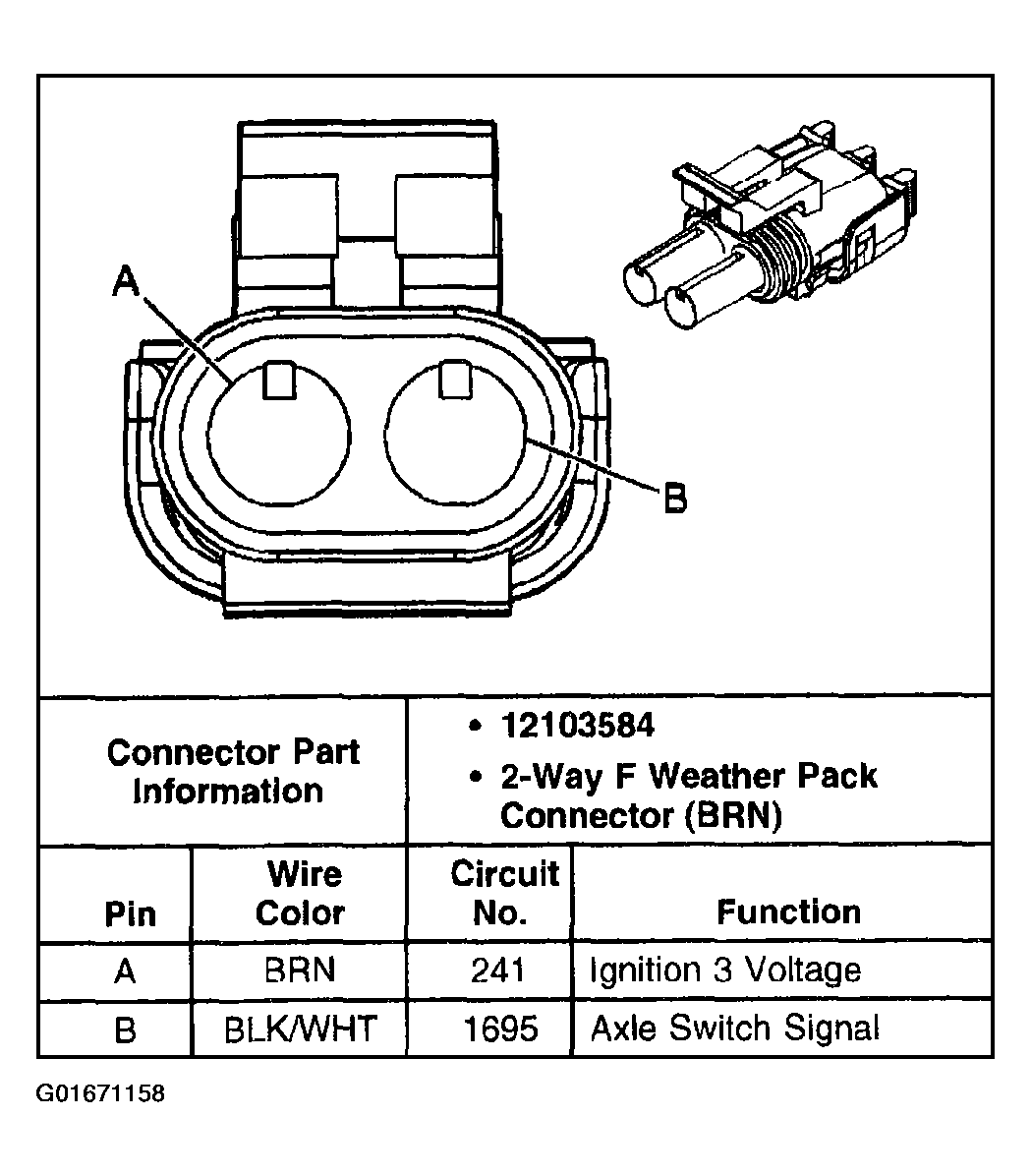

Fig 1: Front Axle Indicator Switch Connector End View
G01671158Courtesy of GENERAL MOTORS CORP.


Fig 1: Front Axle Indicator Switch Connector End View
G01671049Courtesy of GENERAL MOTORS CORP.
