Propshaft Speed Sensor Connector End View - Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Propshaft Speed Sensor Connector End View - Front

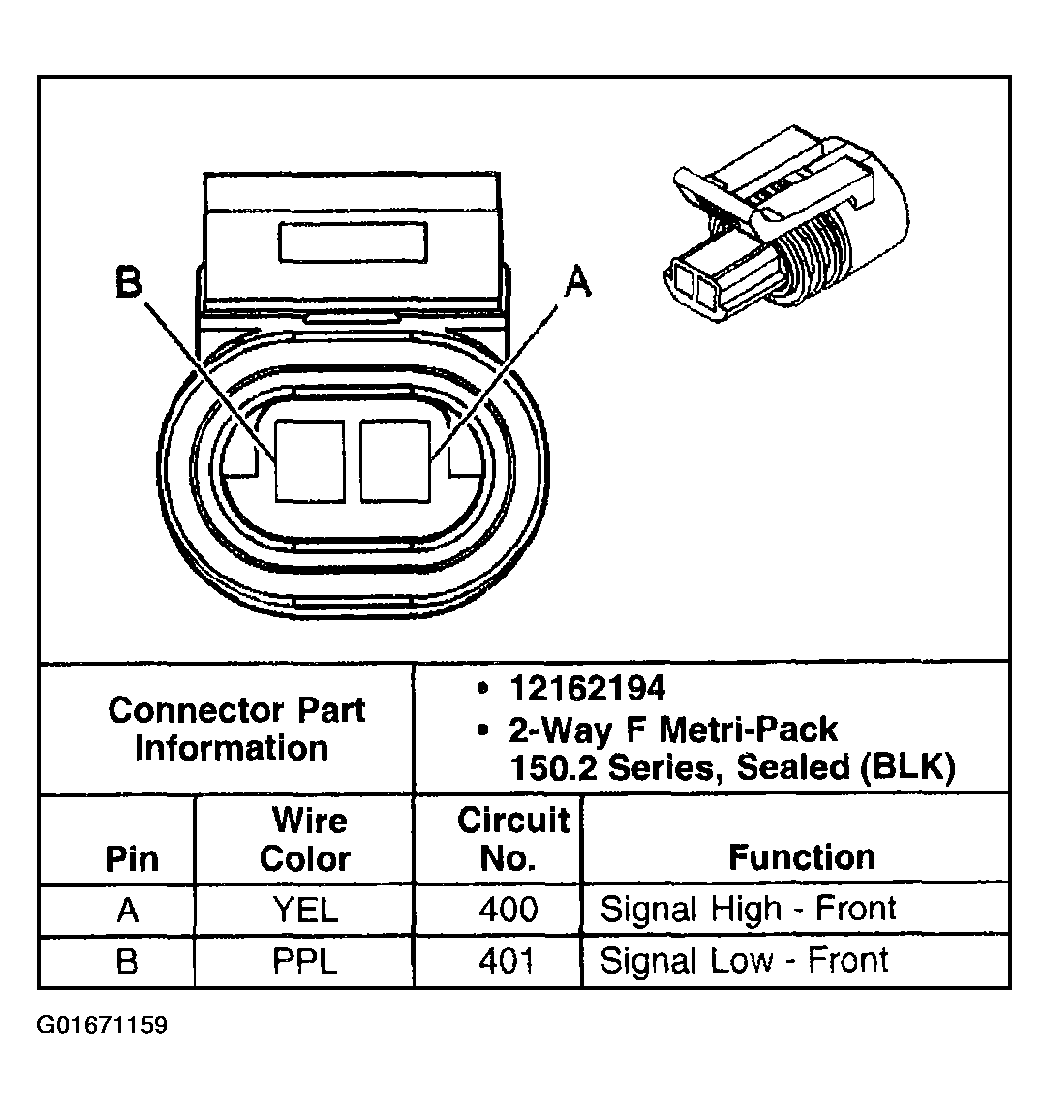

Fig 1: Propshaft Speed Sensor Connector End View - Front
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
