Data Link Communications Connector End Views
WARNING:
This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

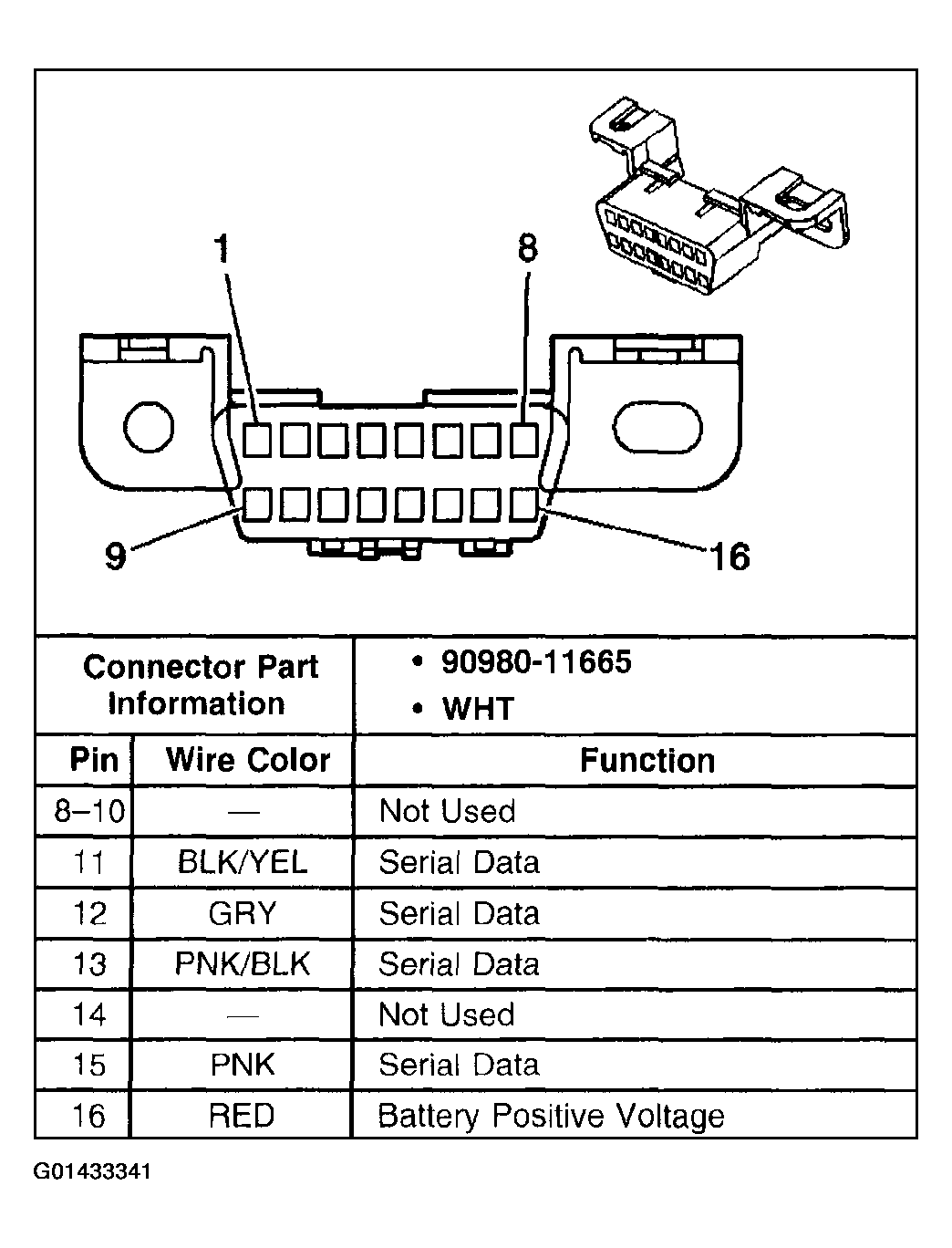

Fig 1: Identifying Data Link Connector (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Data Link Connector (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
