WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

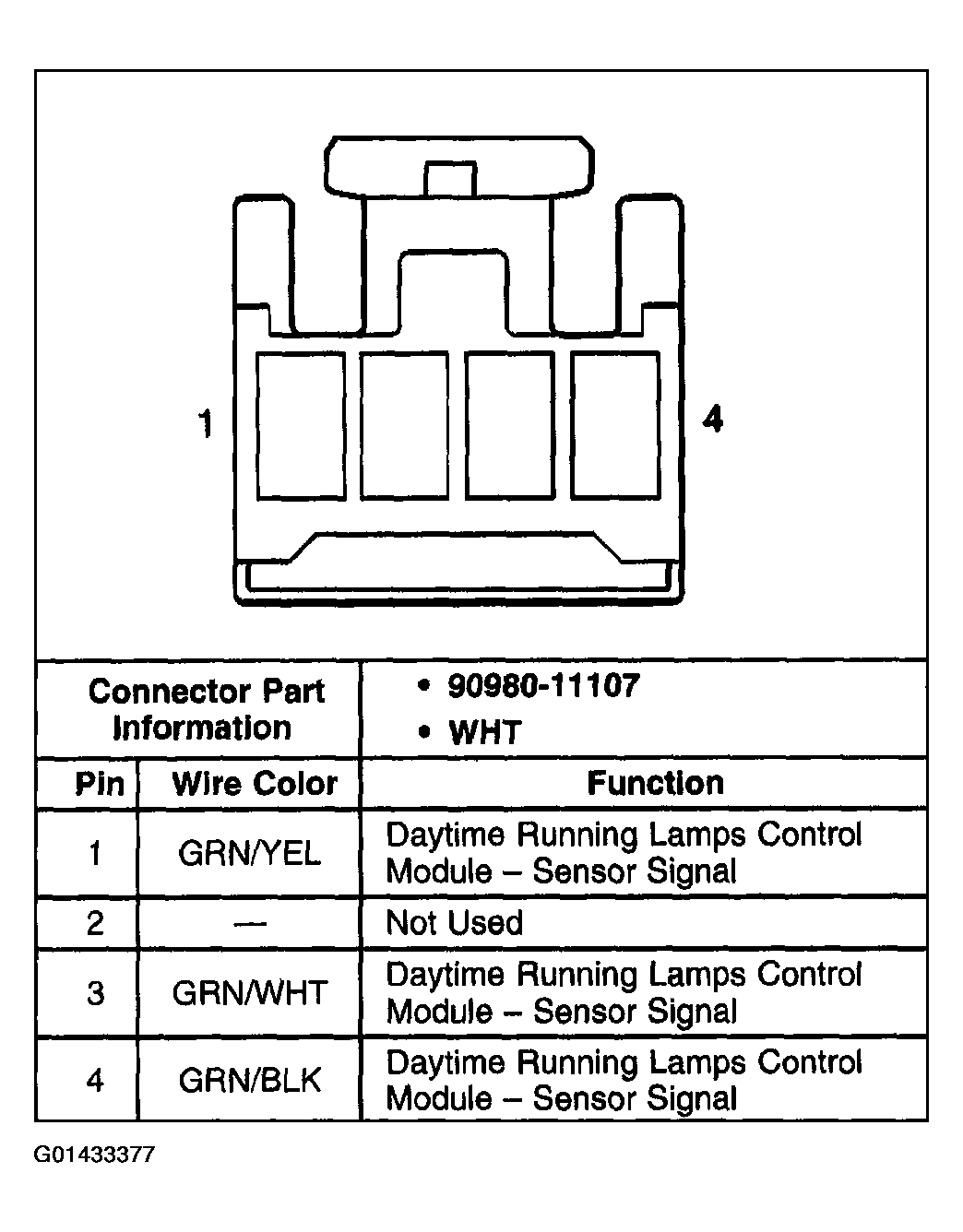

Fig 1: Identifying Ambient Light Sensor Connector End Views
Courtesy of GENERAL MOTORS CORP.

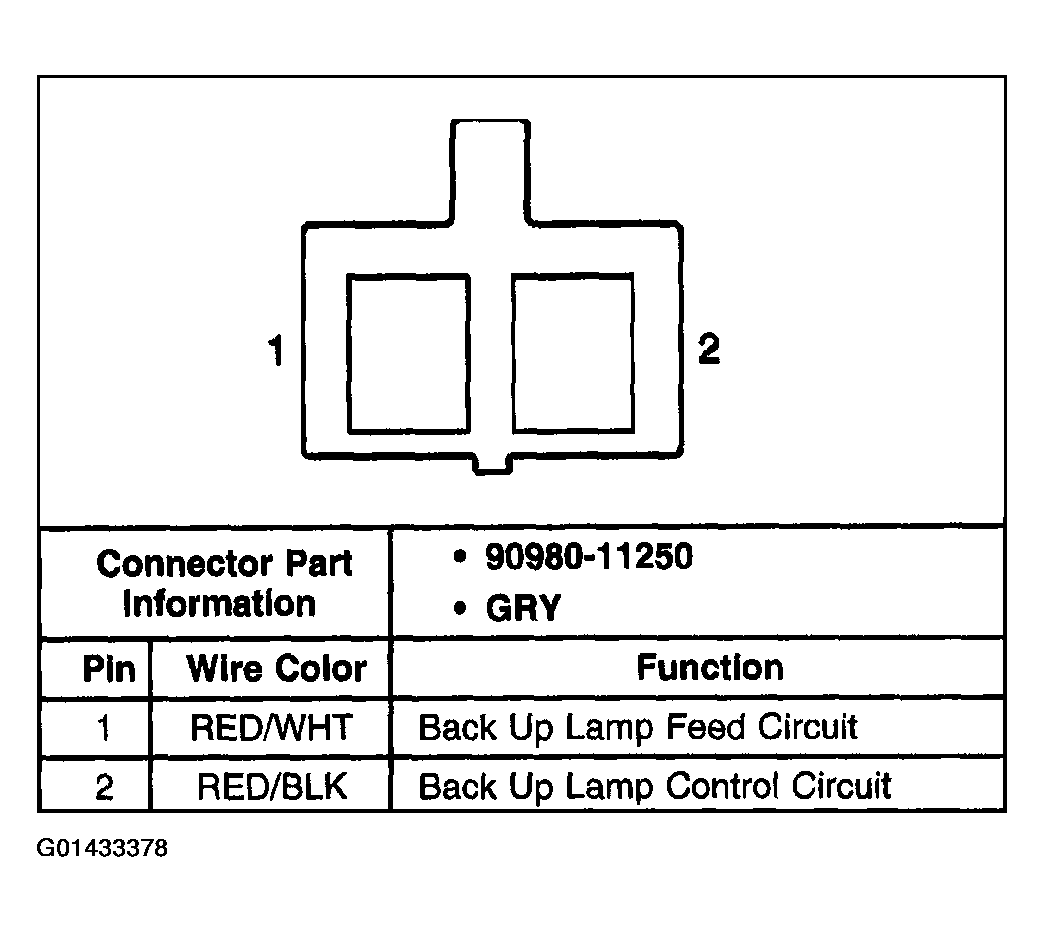

Fig 2: Identifying Back Up Lamp Switch (Manual Transmission) Connector End Views
Courtesy of GENERAL MOTORS CORP.

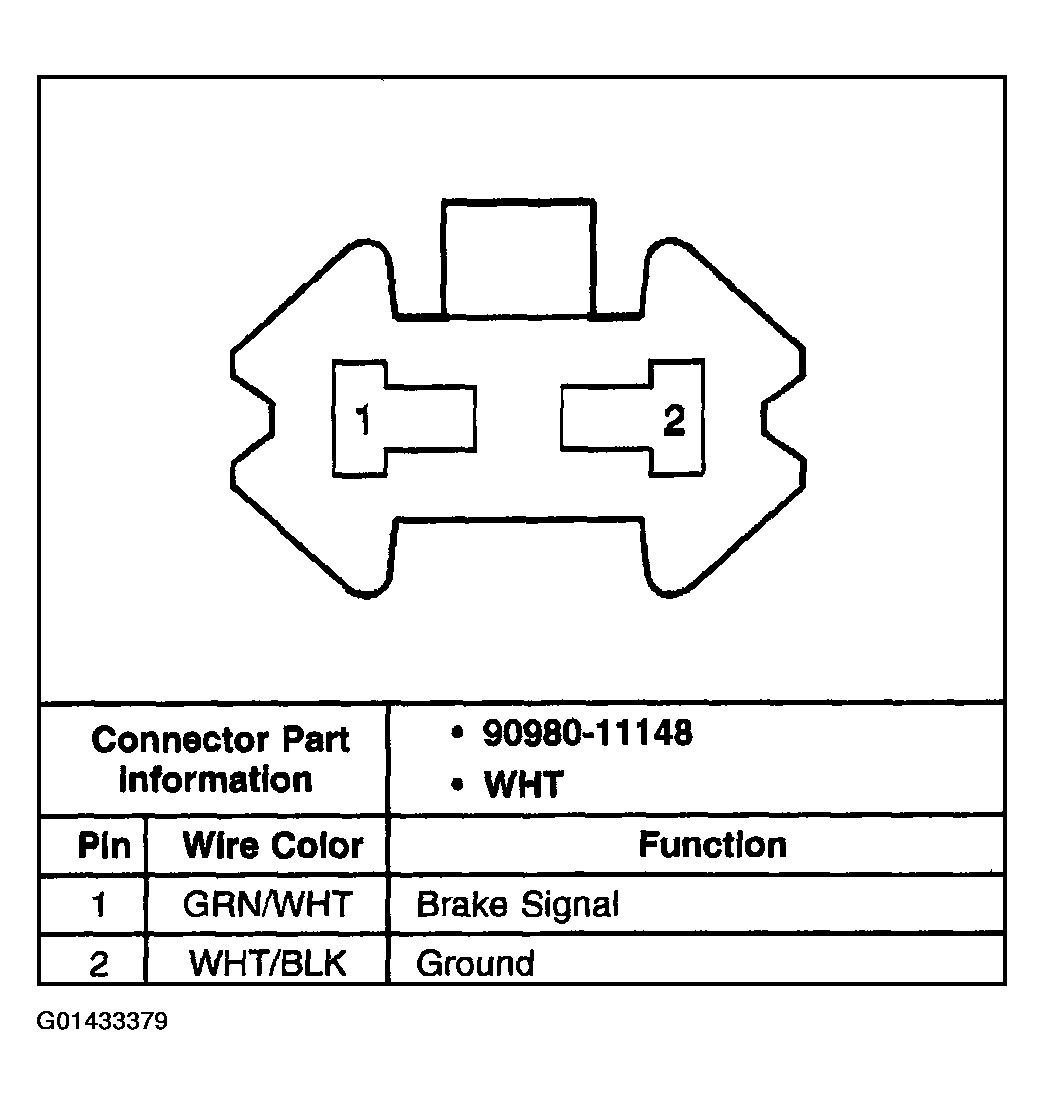

Fig 3: Identifying Center High Mounted Stop Lamp Connector End Views
Courtesy of GENERAL MOTORS CORP.

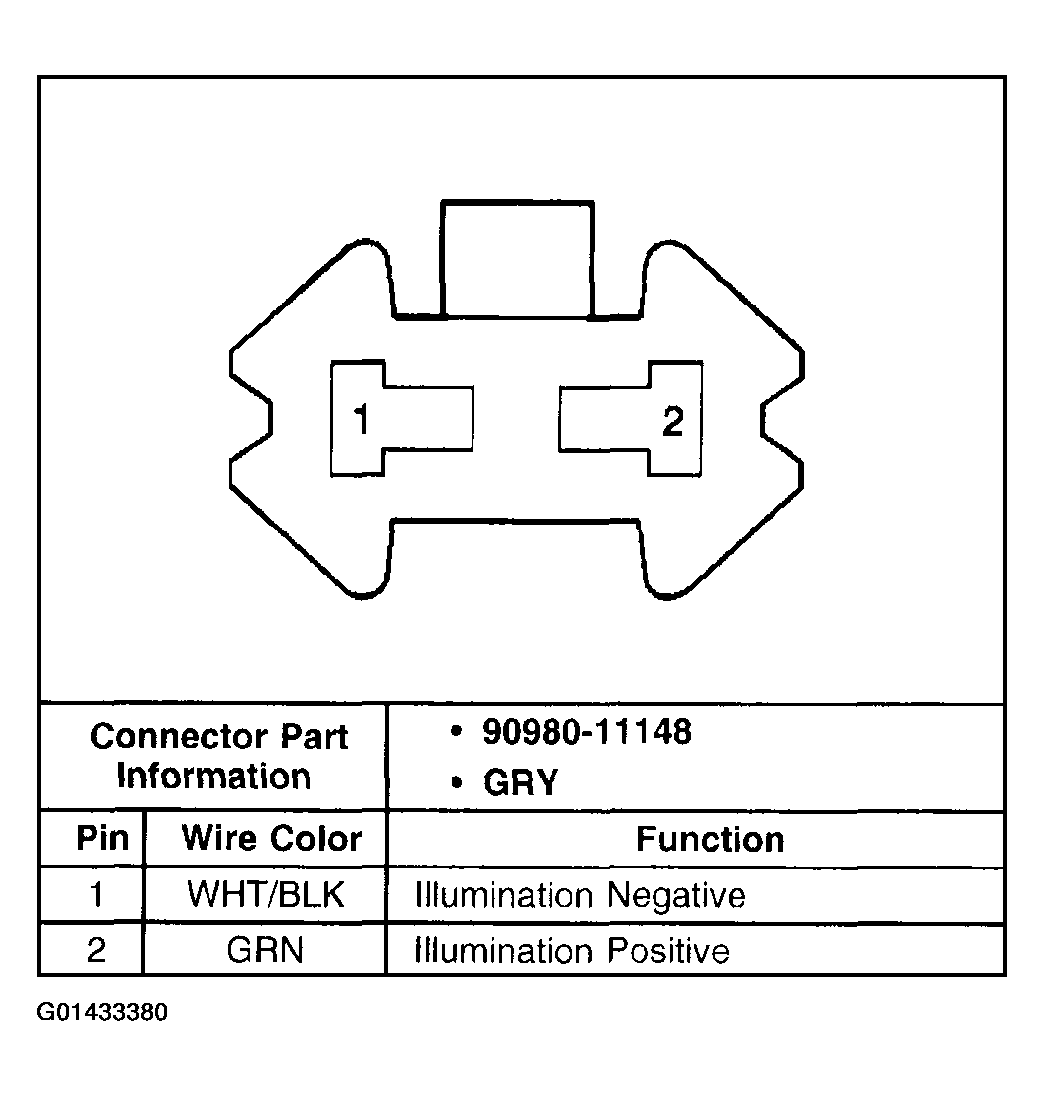

Fig 4: Identifying Cigar Lighter Illumination Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

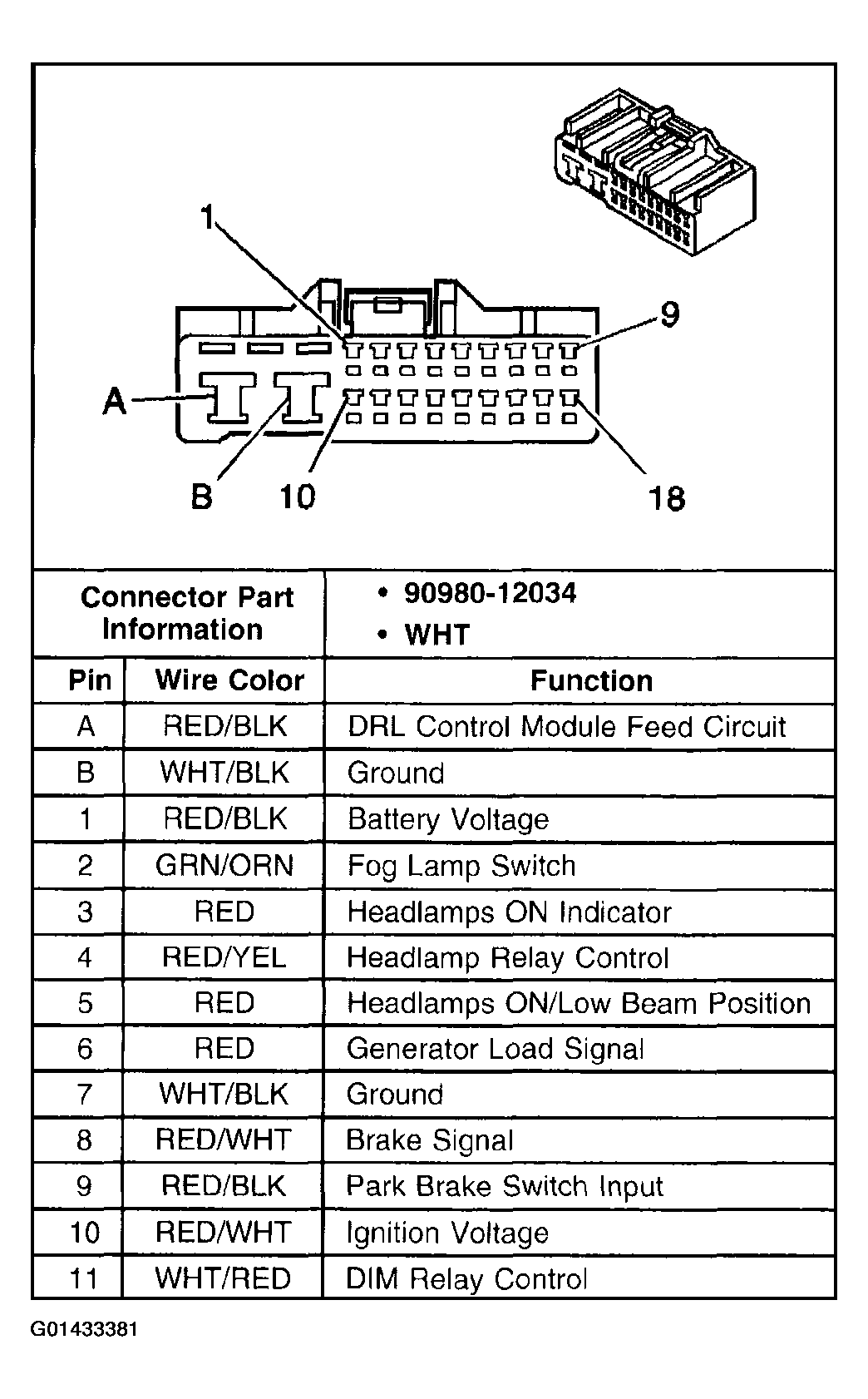

Fig 5: Identifying Daytime Running Lamps (DRL) Control Module Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

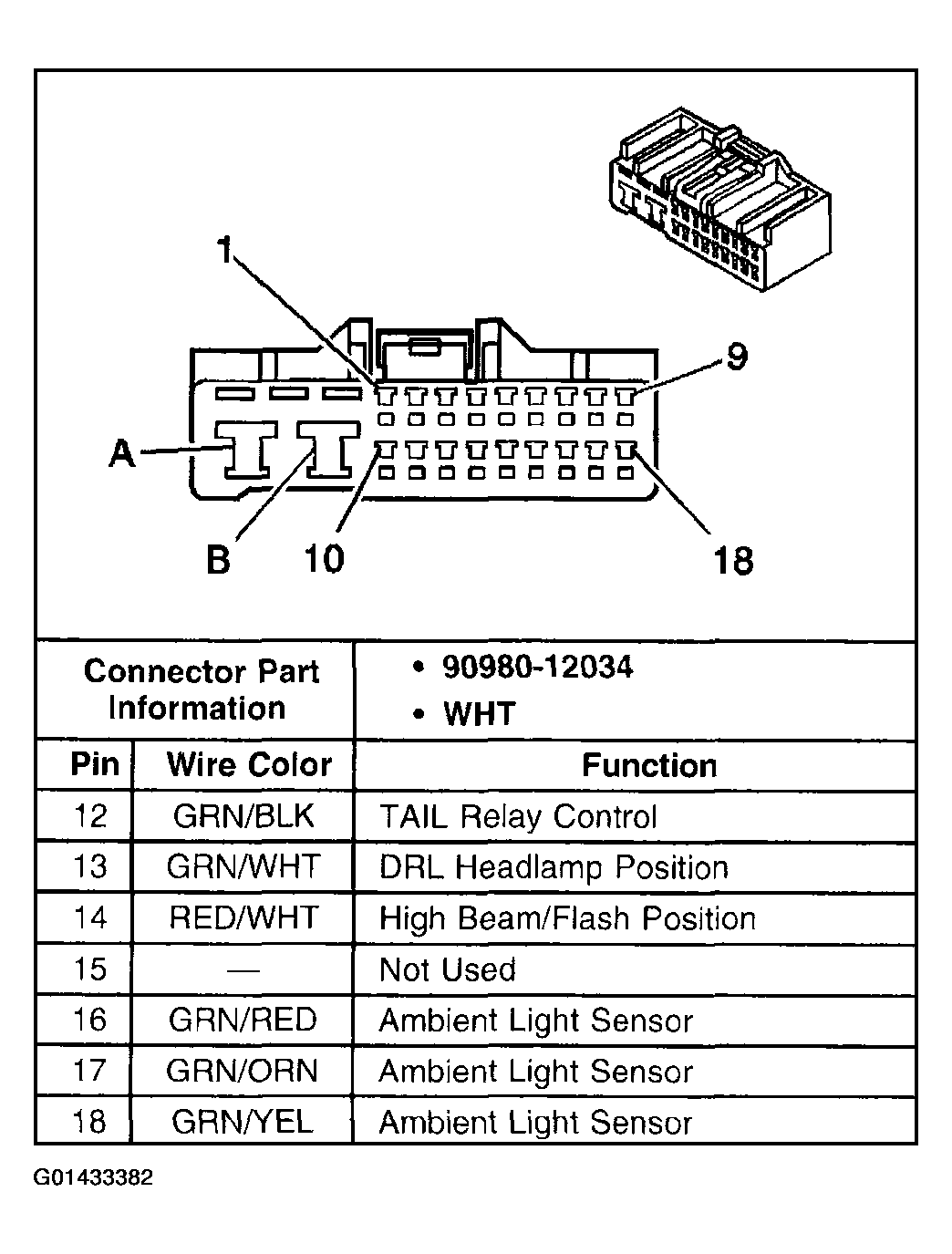

Fig 6: Identifying Daytime Running Lamps (DRL) Control Module Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Flasher Relay Connector End View
Courtesy of GENERAL MOTORS CORP.

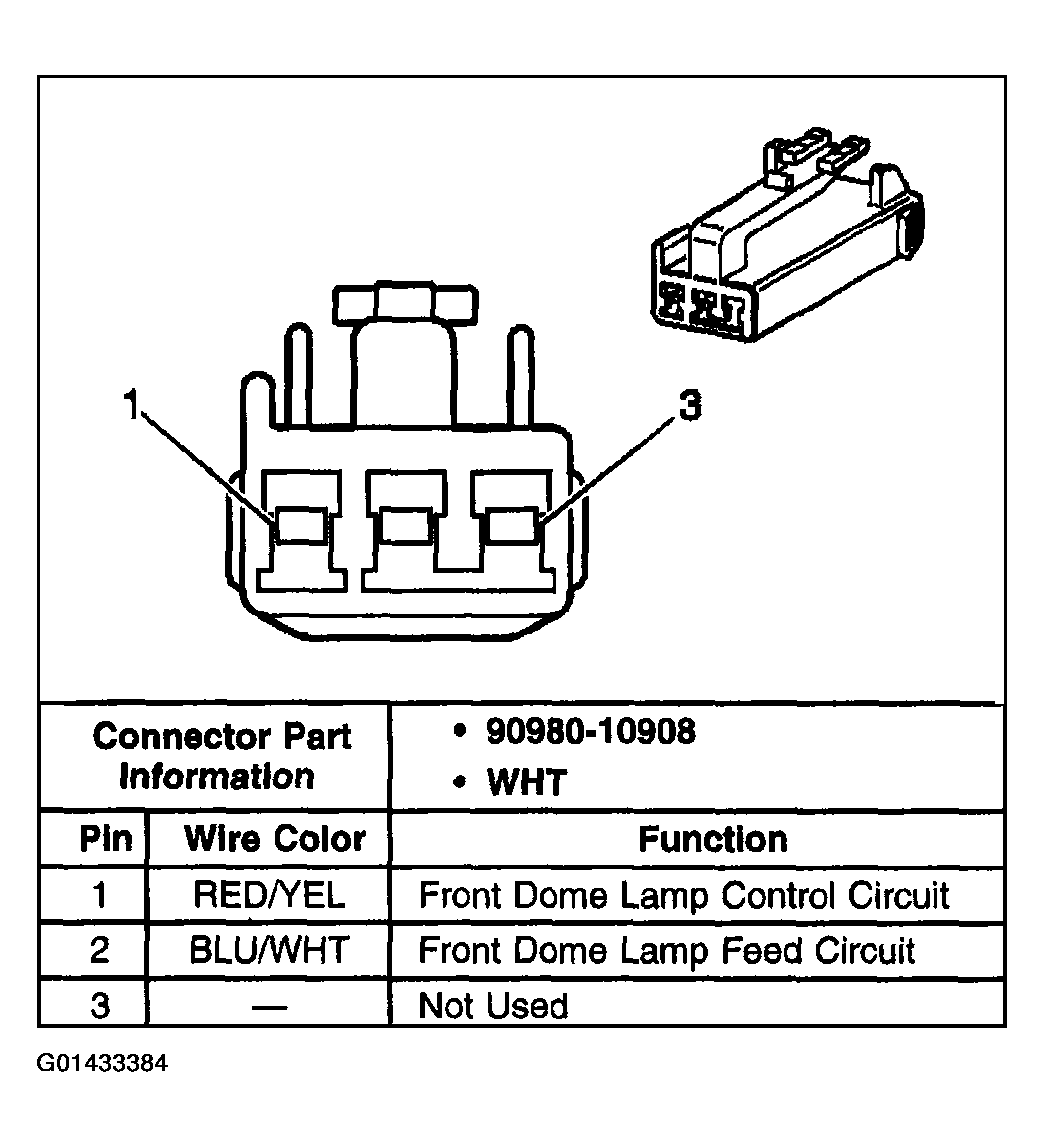

Fig 8: Identifying Front Dome Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

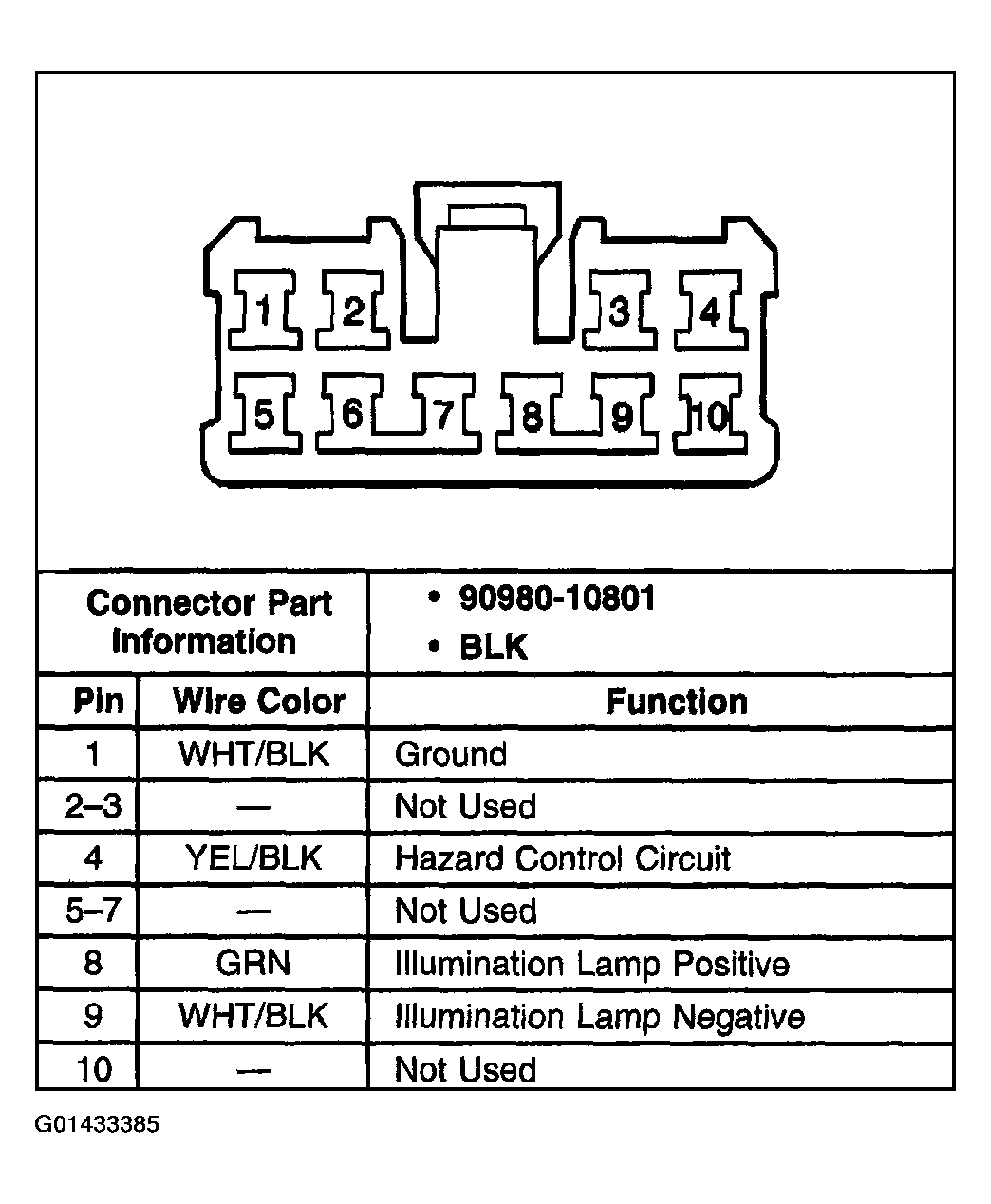

Fig 9: Identifying Hazard Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

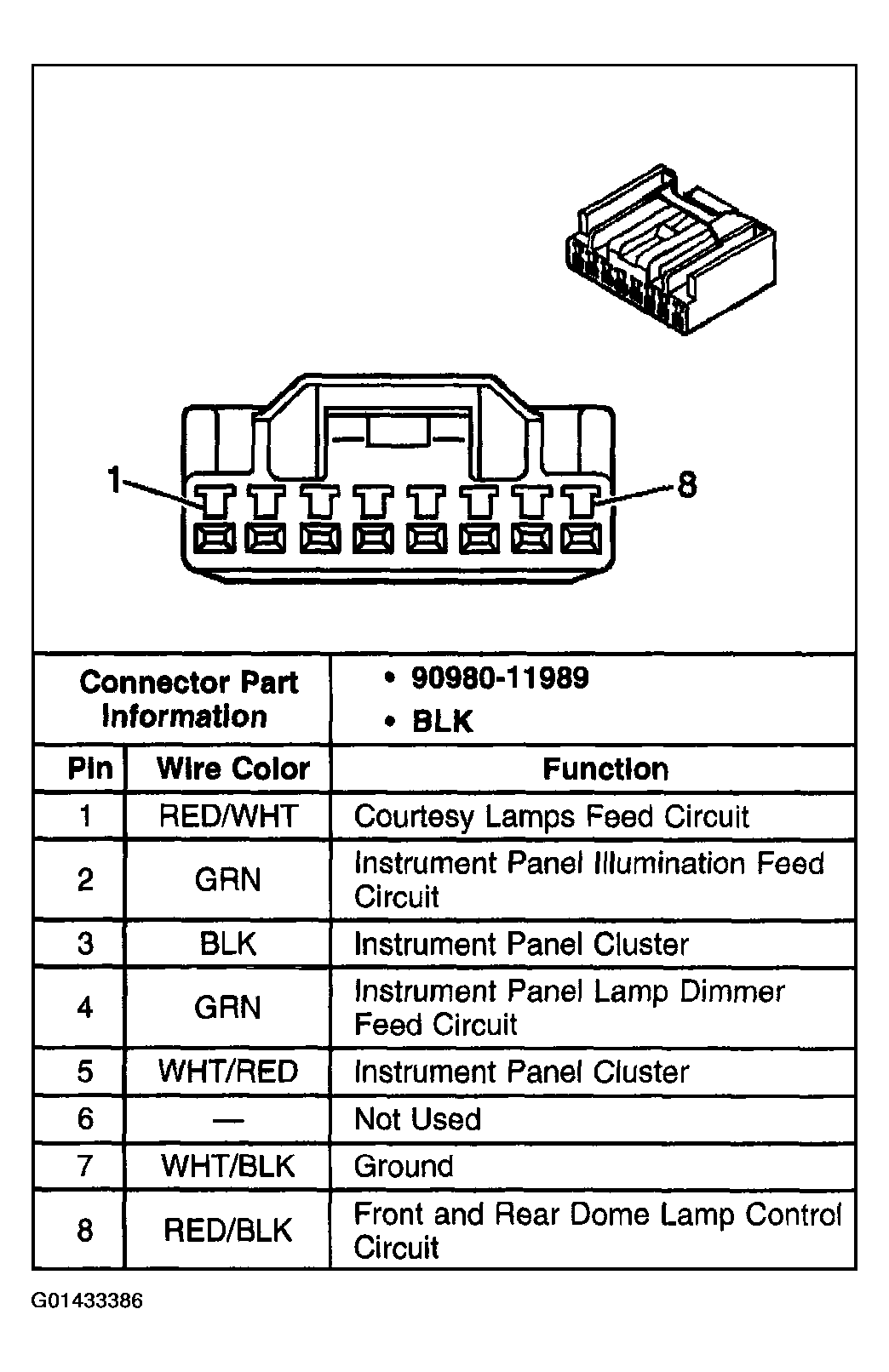

Fig 10: Identifying I/P Lamp Dimmer Connector End View
Courtesy of GENERAL MOTORS CORP.

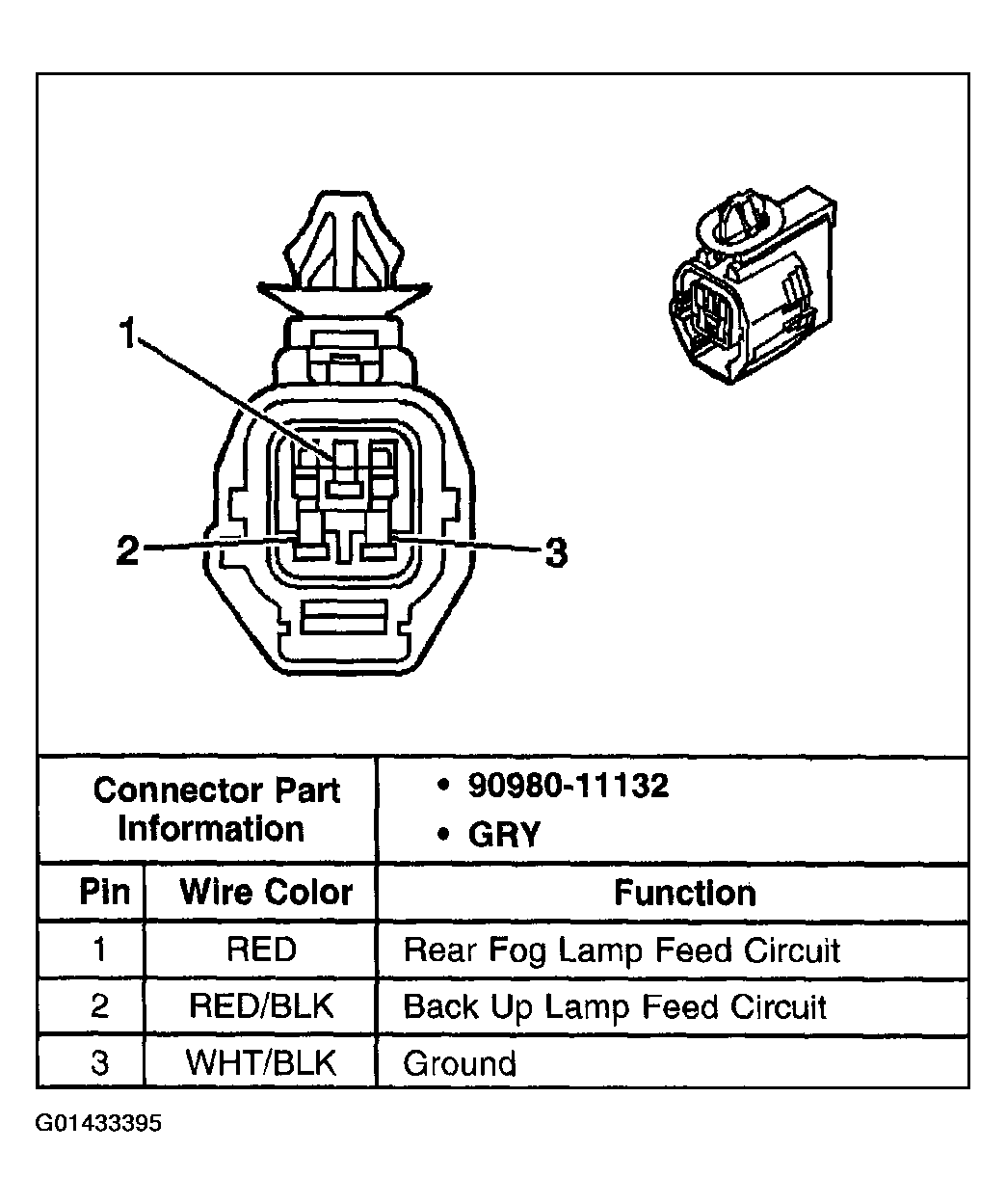

Fig 11: Identifying Left Back Up & Rear Fog Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

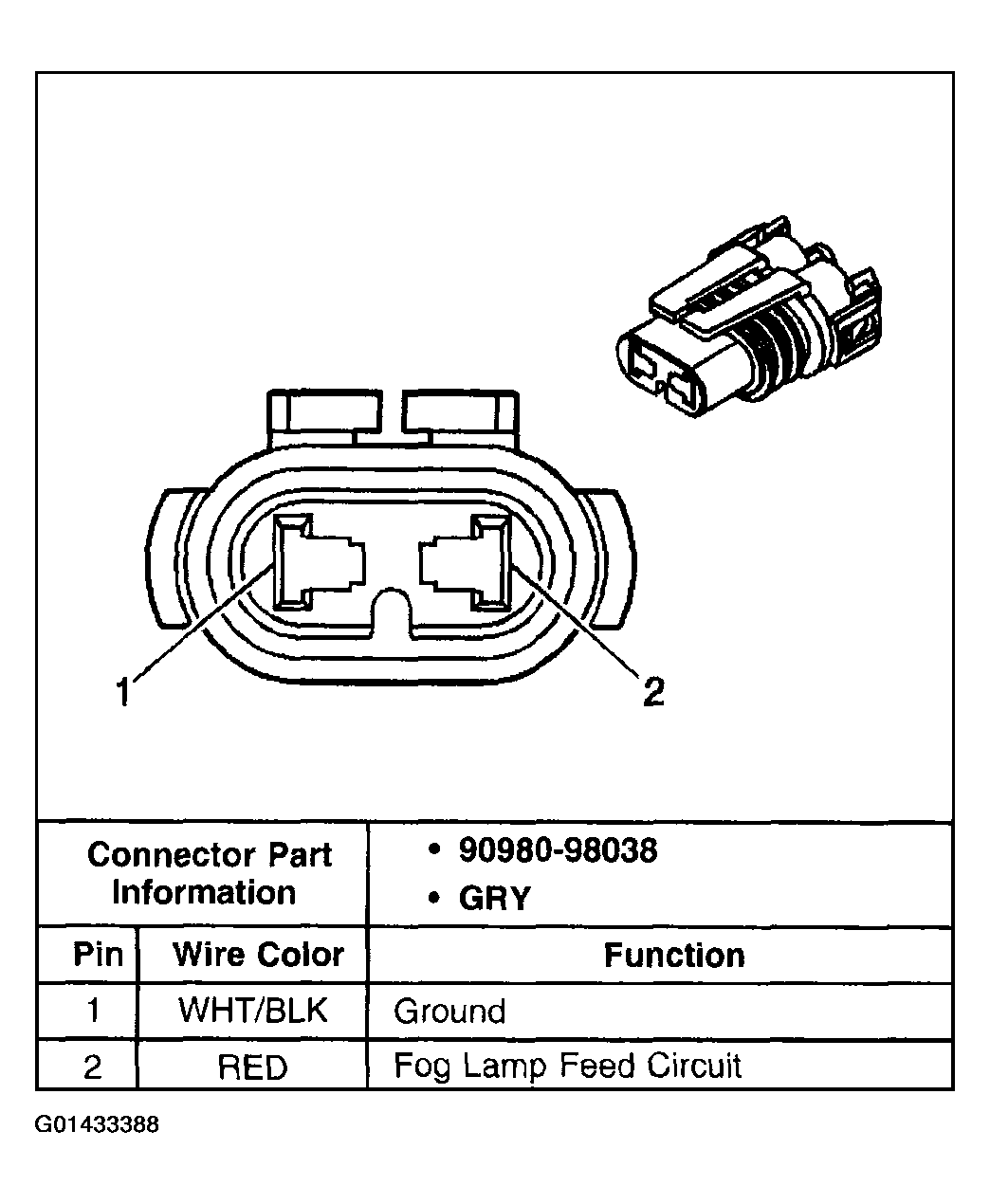

Fig 12: Identifying Left Fog Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

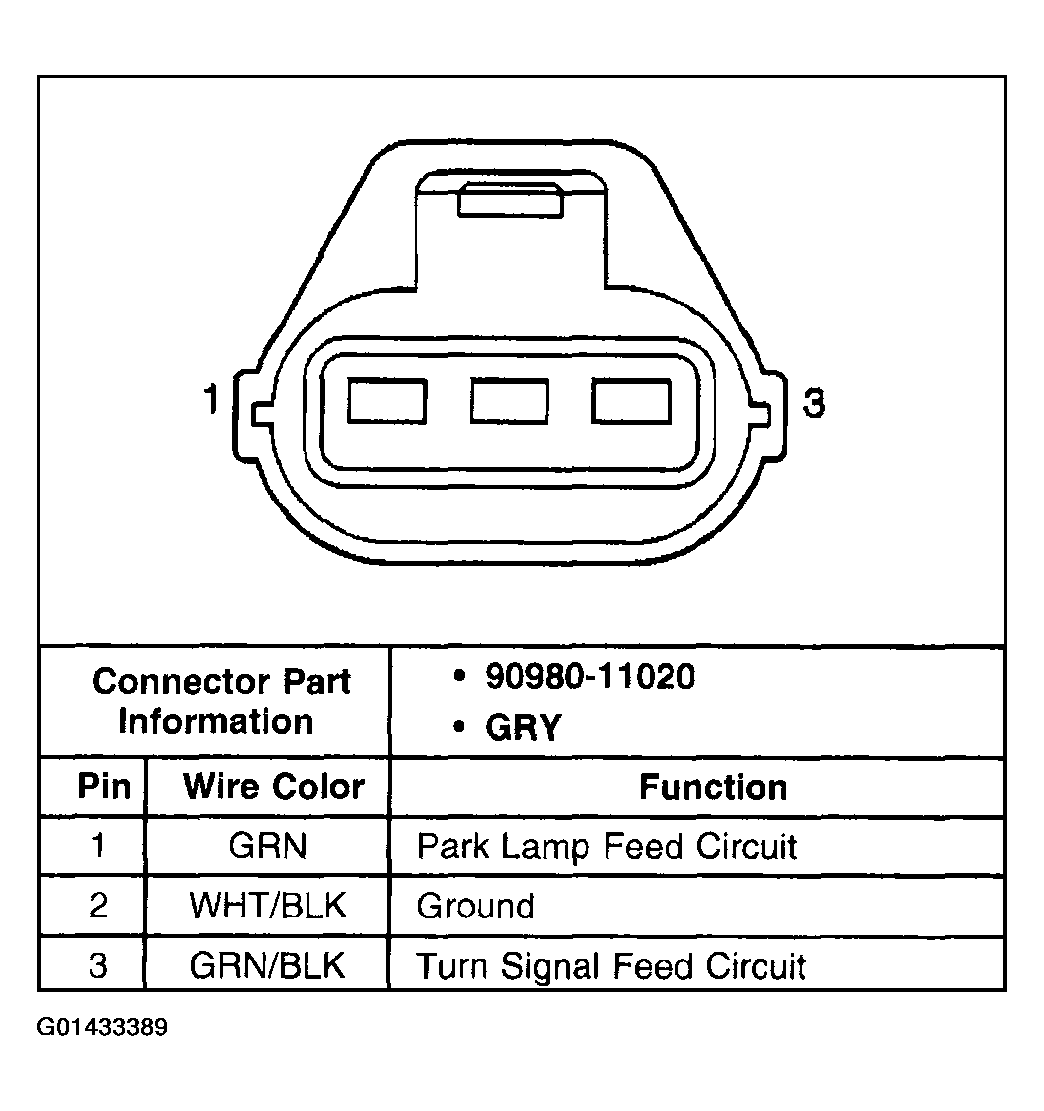

Fig 13: Identifying Left Front Park/Turn Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

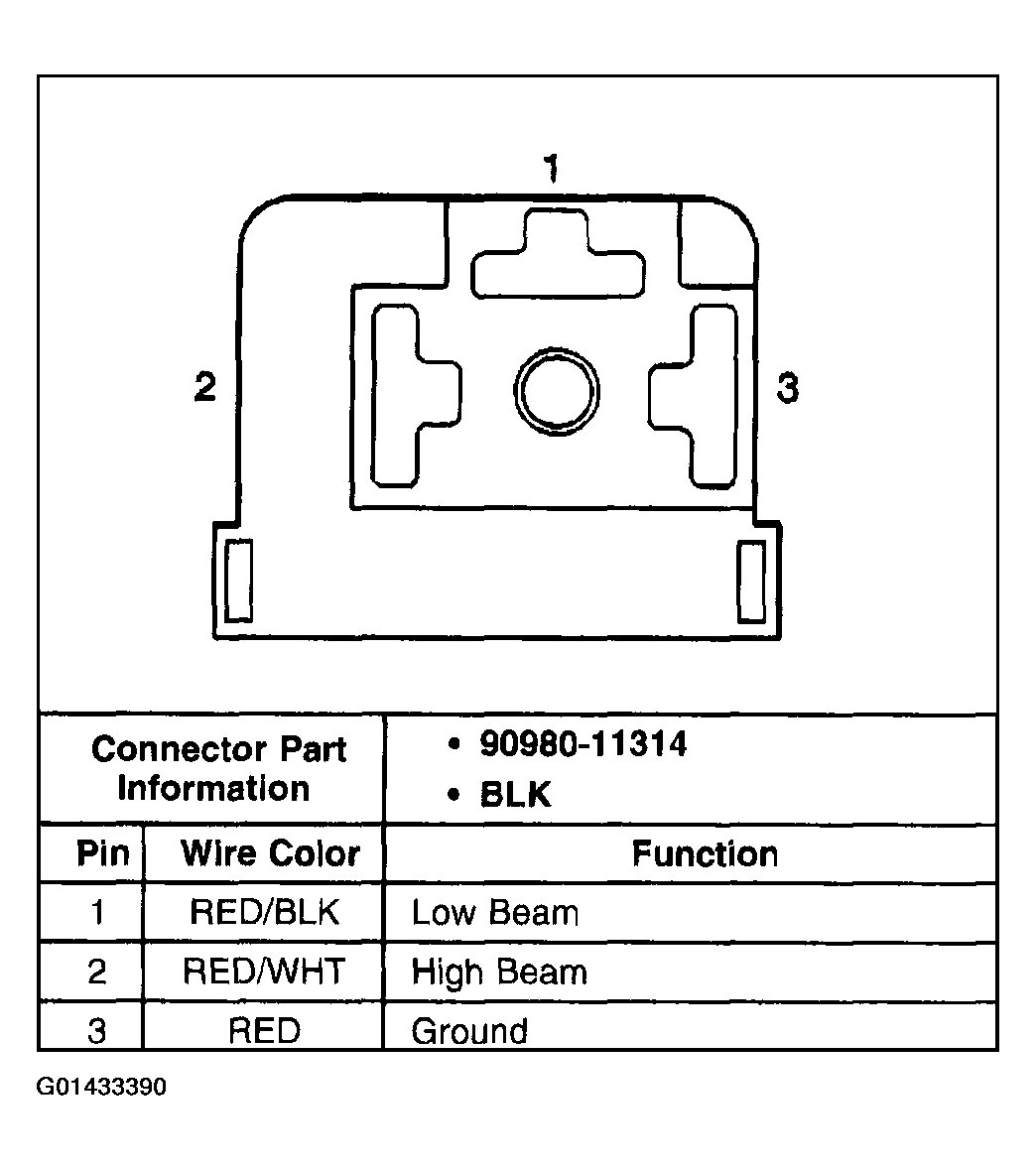

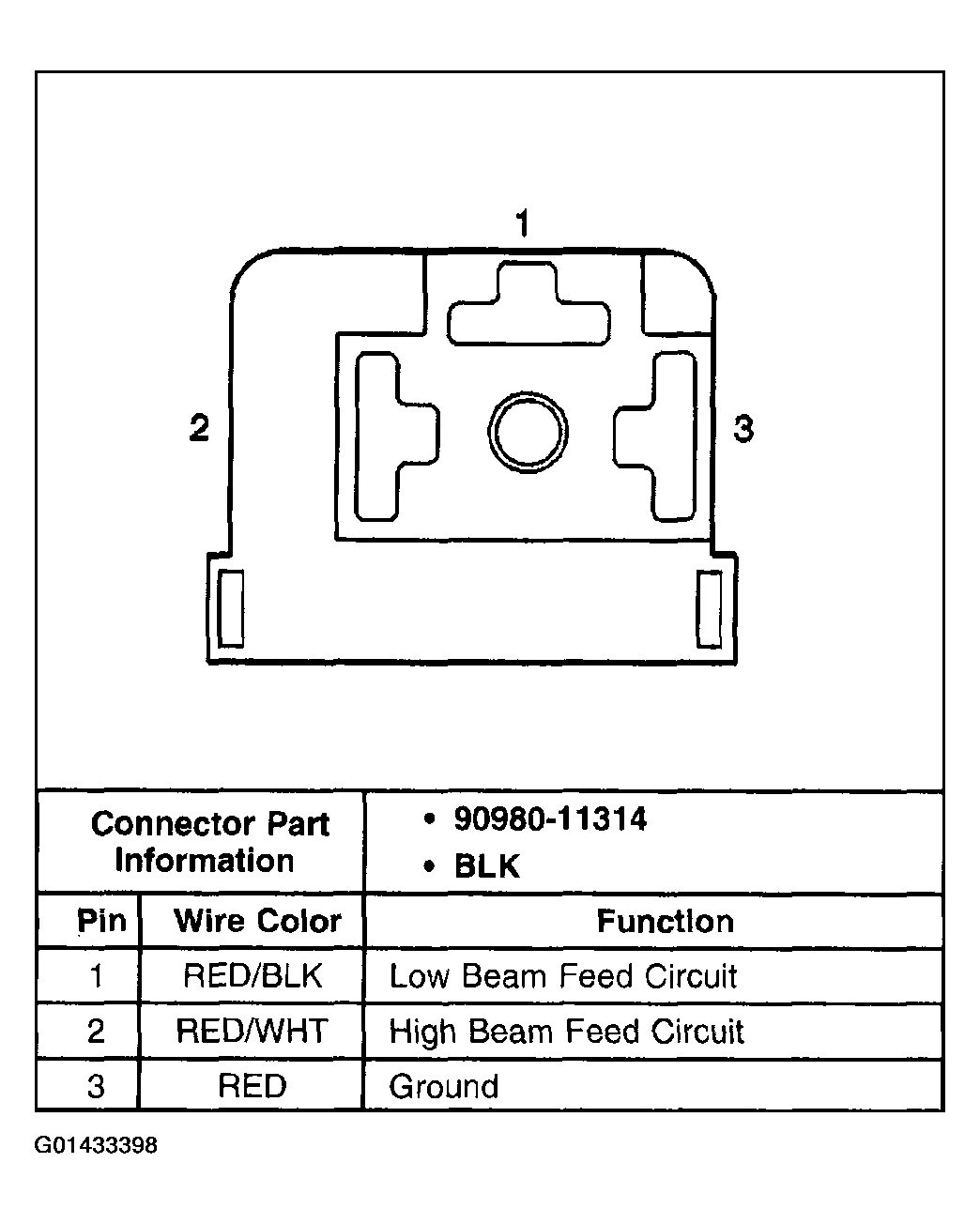

Fig 14: Identifying Left Headlamp Connector End View
Courtesy of GENERAL MOTORS CORP.

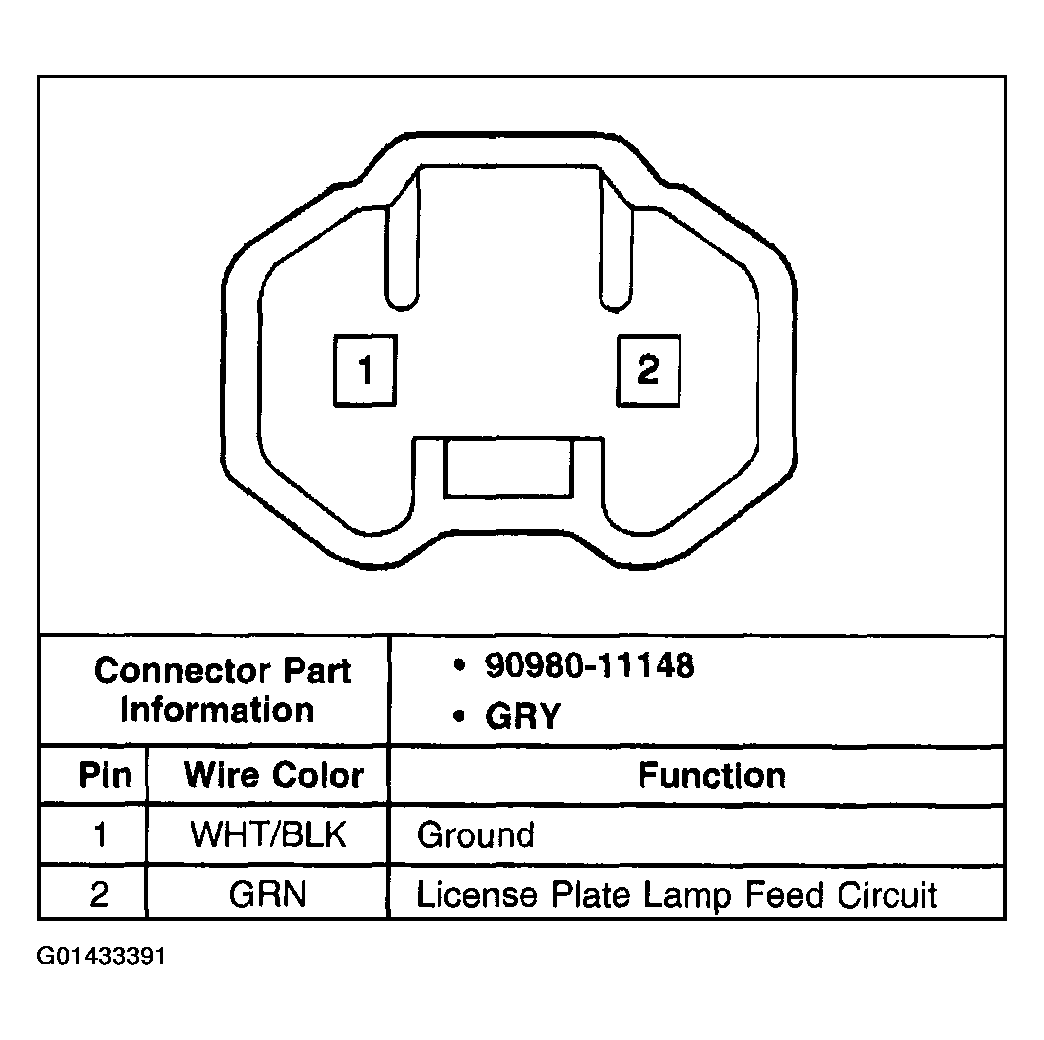

Fig 15: Identifying Left License Plate Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

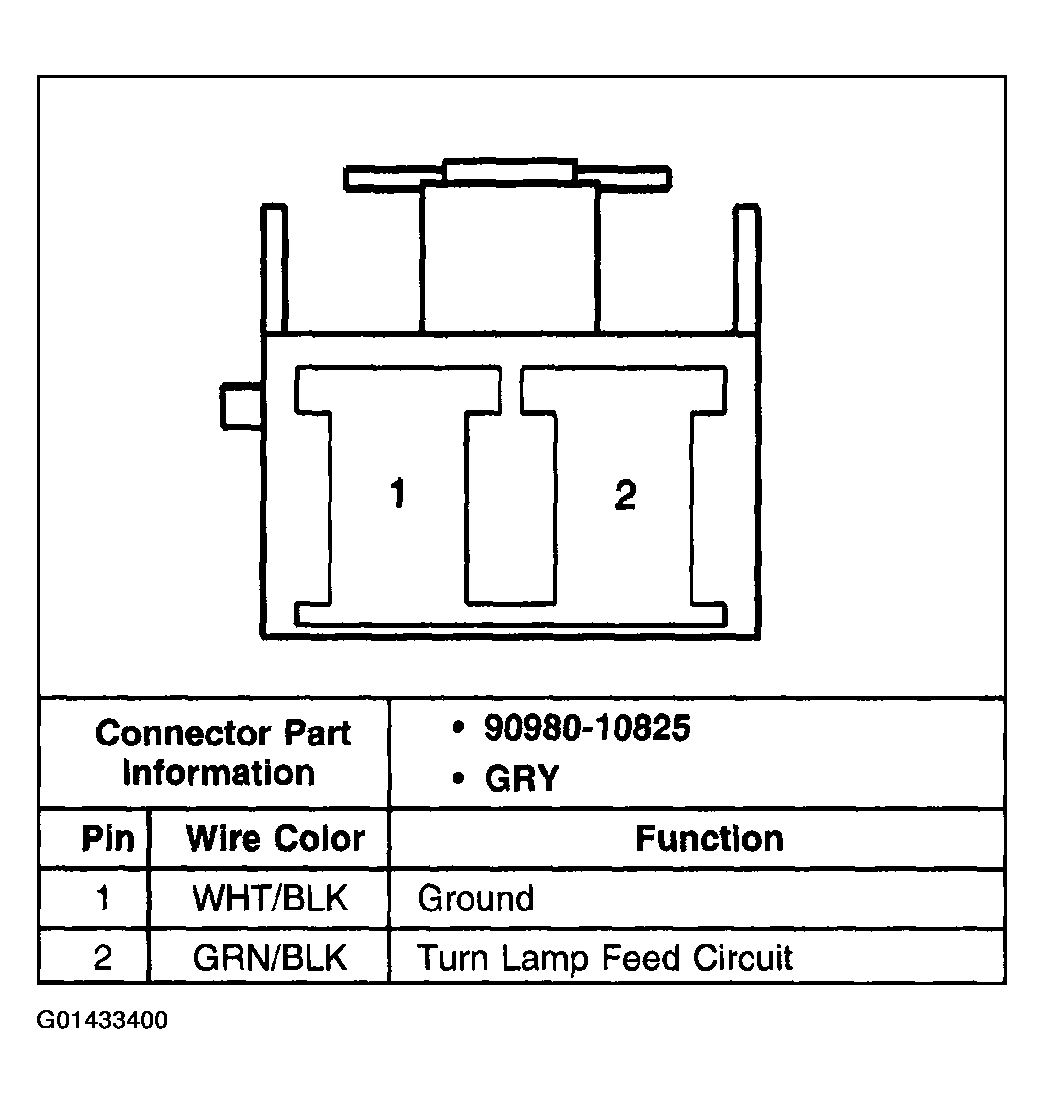

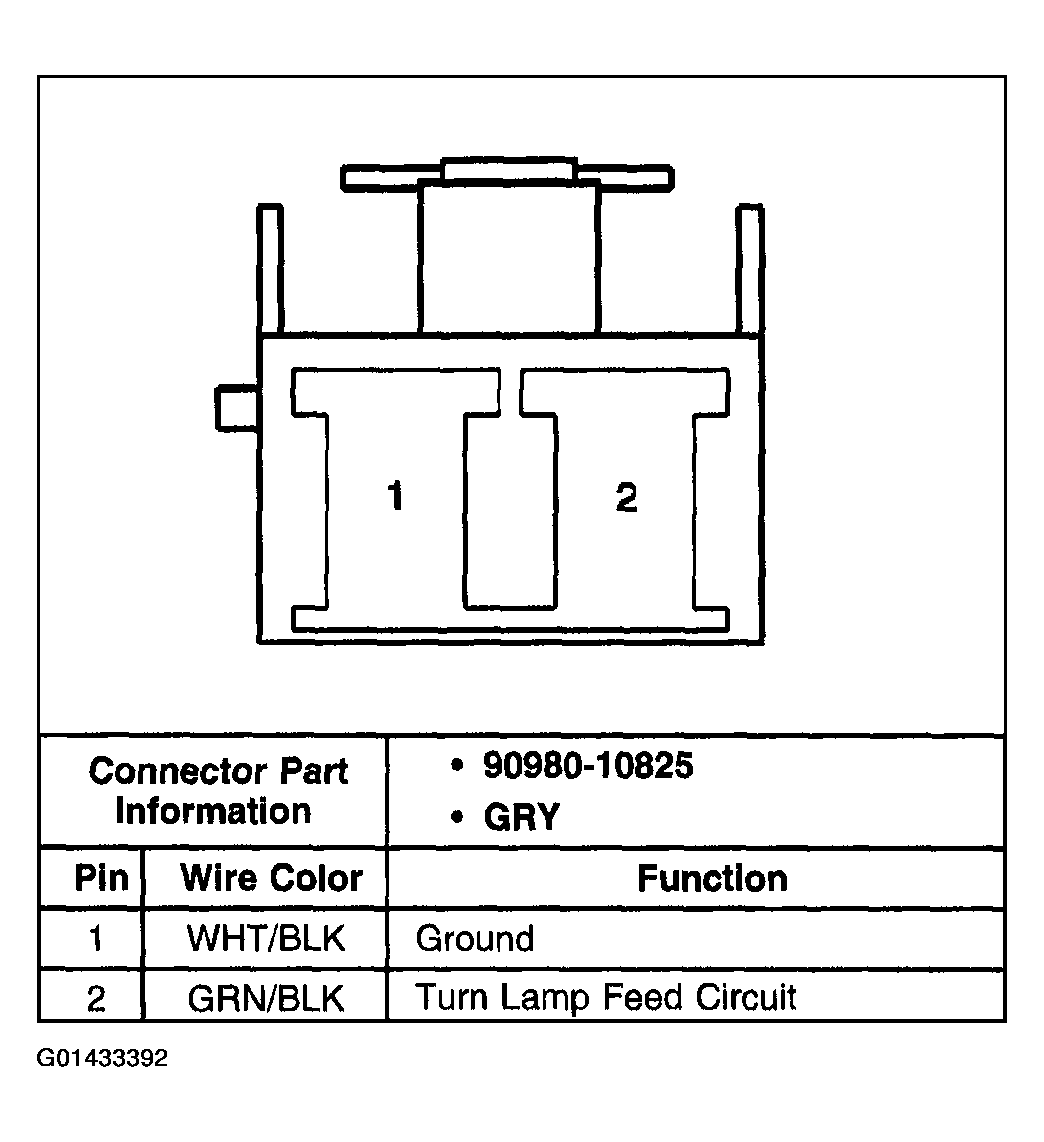

Fig 16: Identifying Left Rear Turn Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

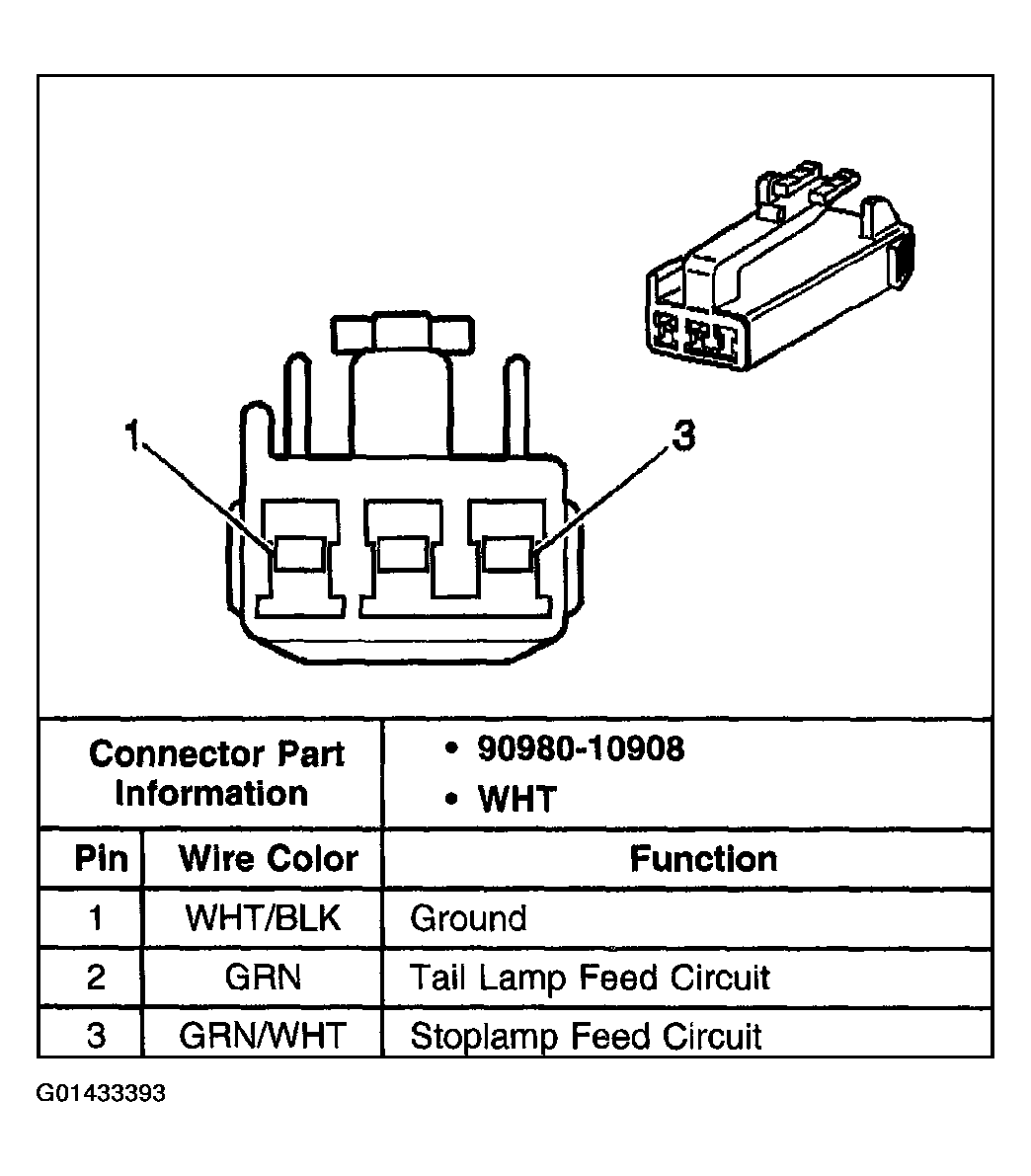

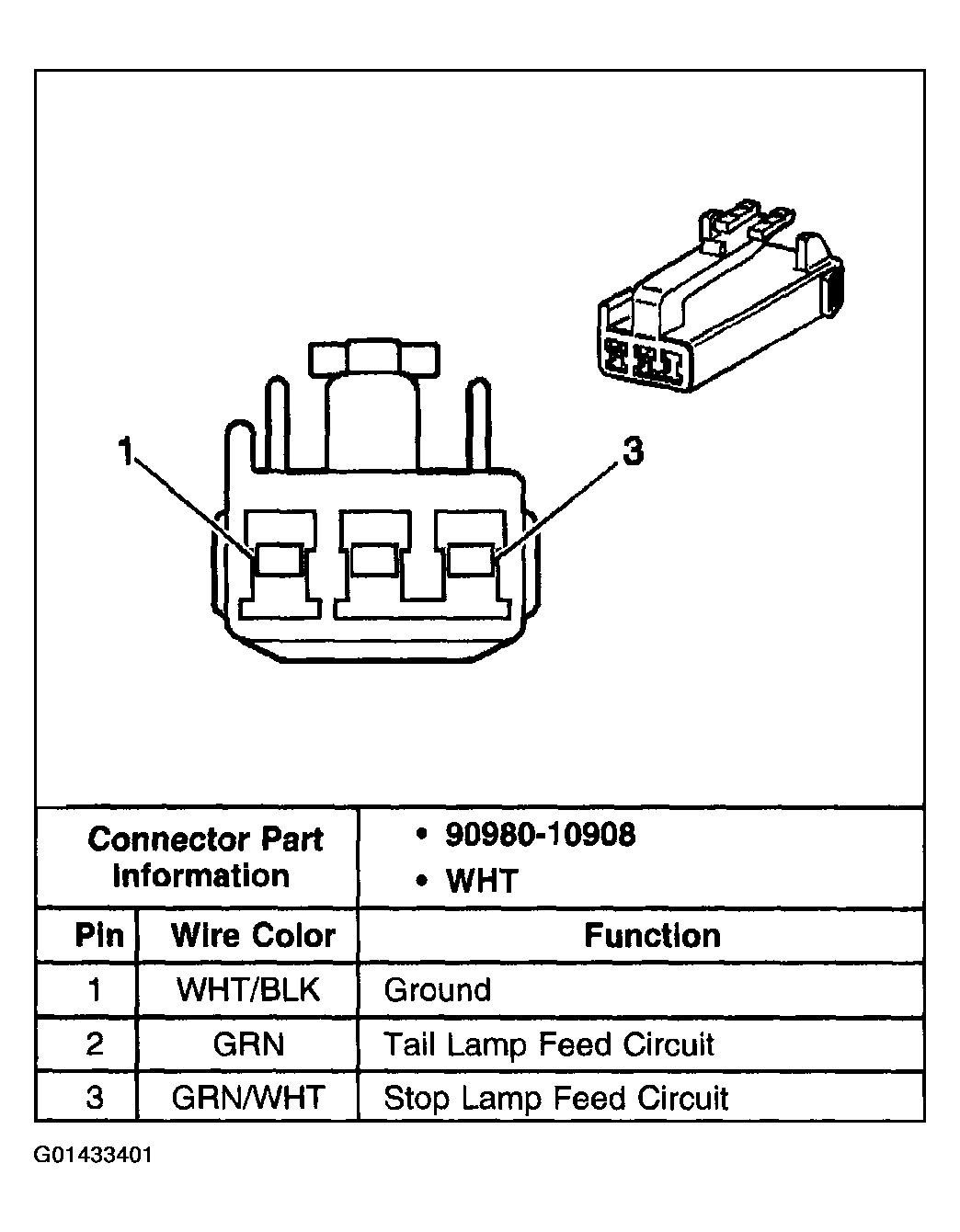

Fig 17: Identifying Left Tail/Stop Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

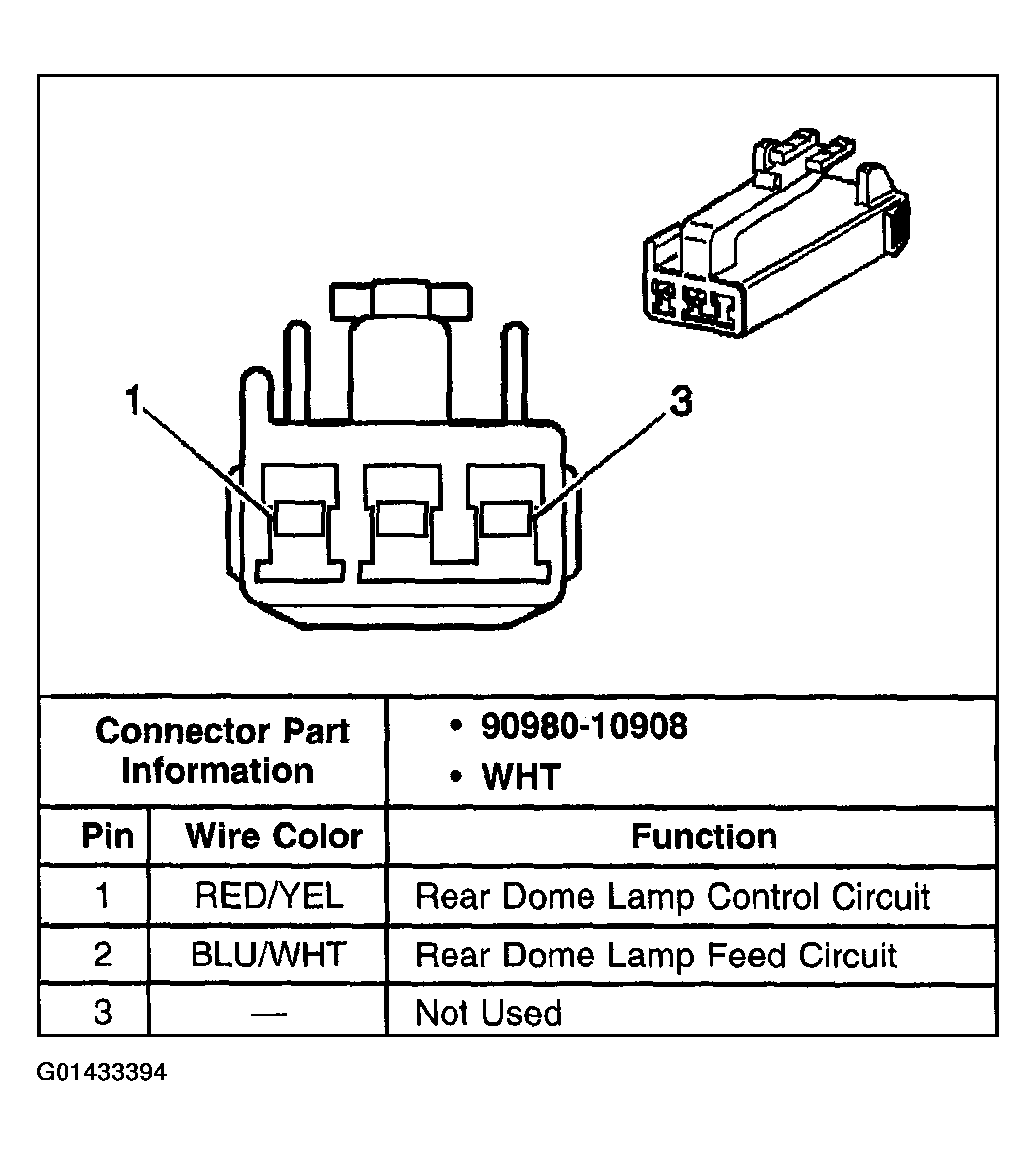

Fig 18: Identifying Rear Dome Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying Right Back Up & Rear Fog Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

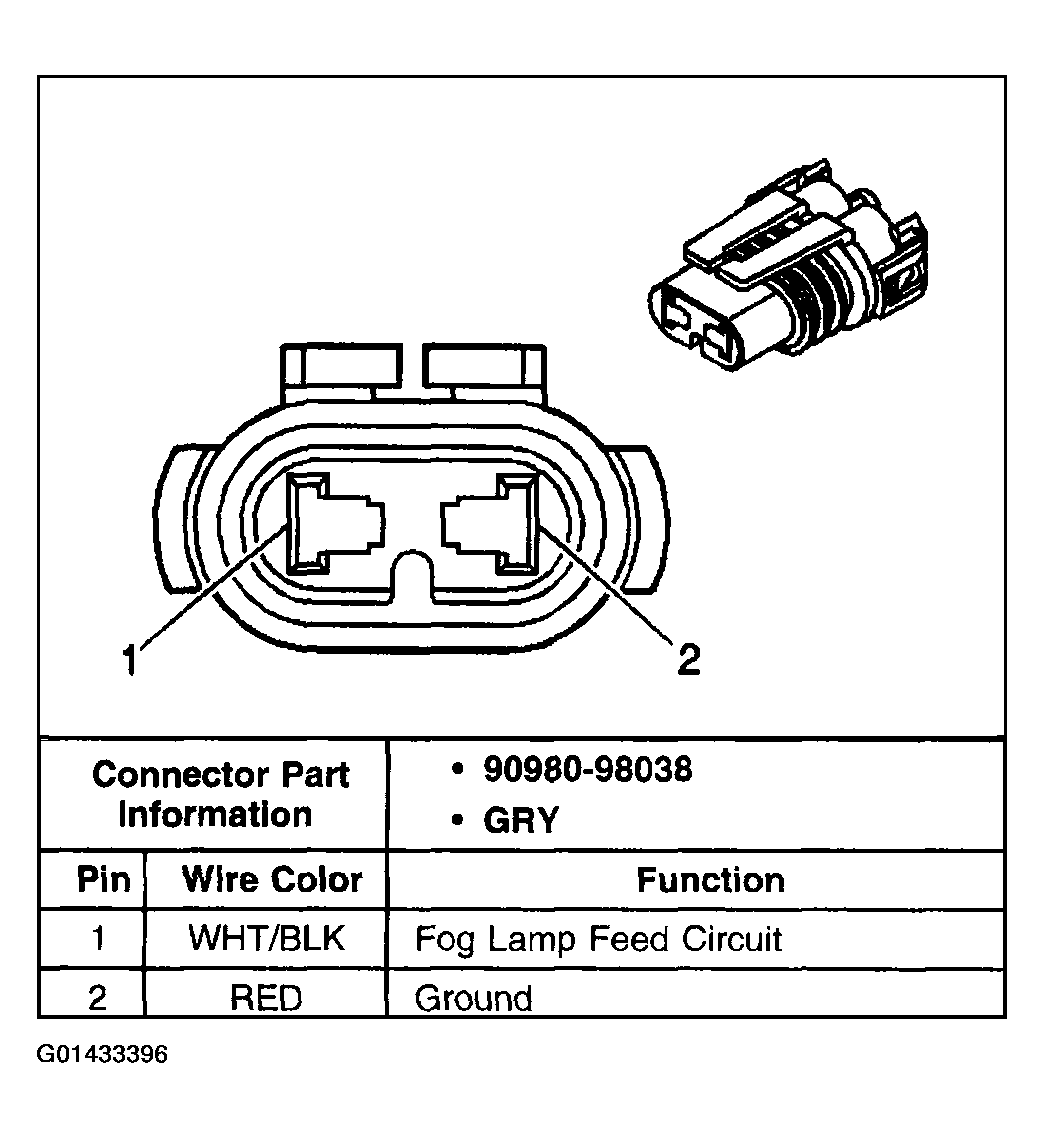

Fig 20: Identifying Right Fog Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

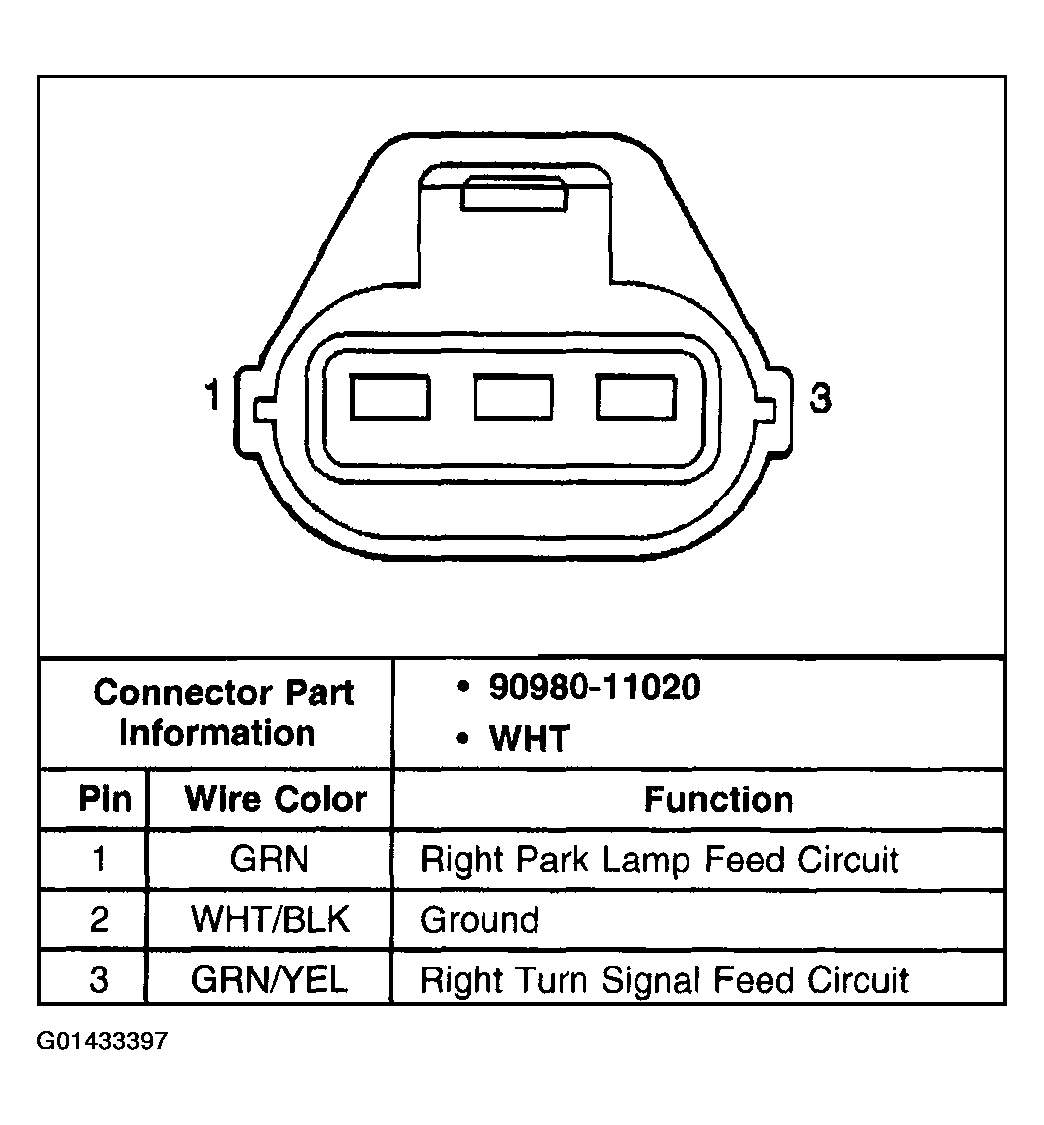

Fig 21: Identifying Right Front Park/Turn Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying Right Headlamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Right License Plate Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 24: Identifying Right Rear Turn Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Right Tail/Stop Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

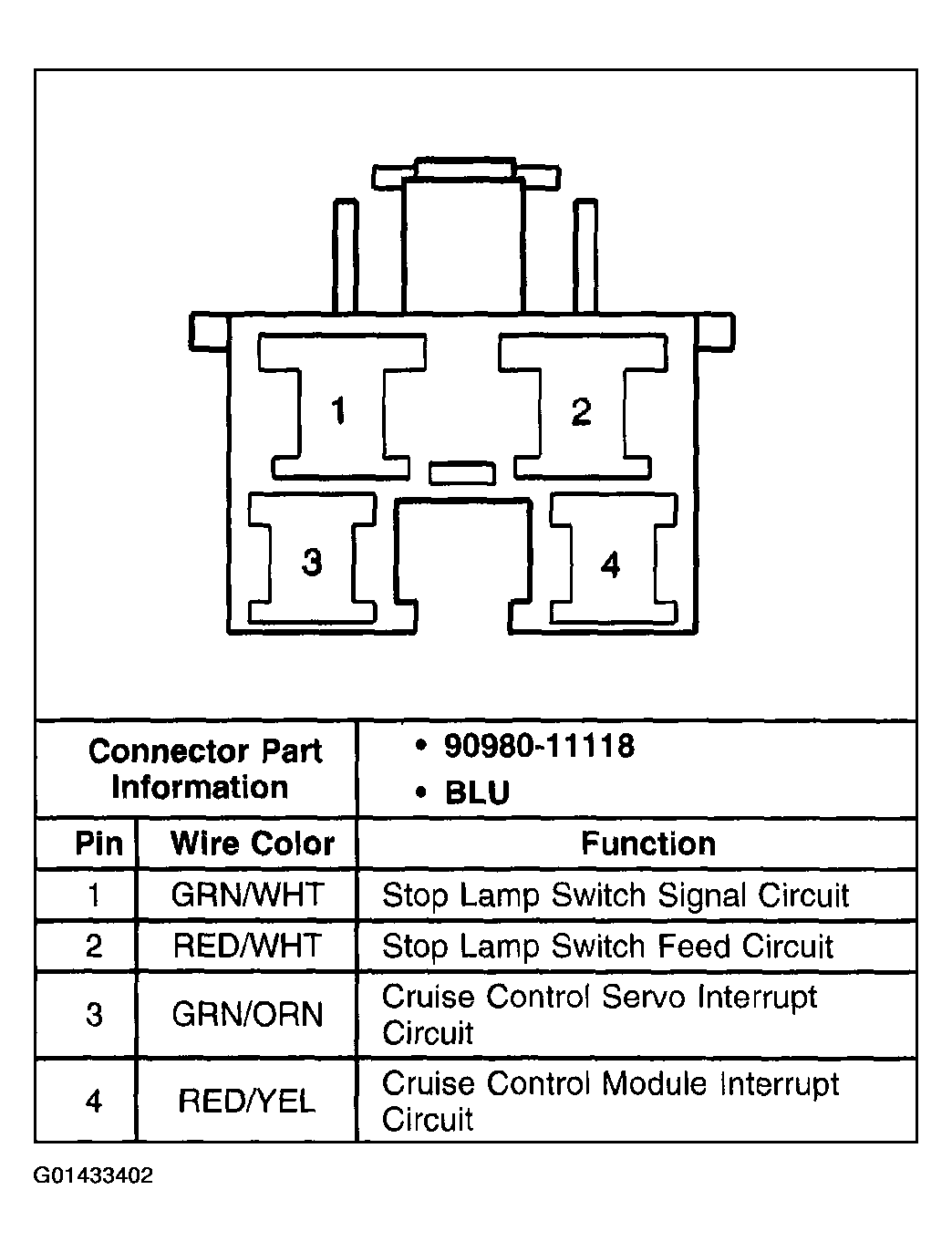

Fig 26: Identifying Stop Lamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

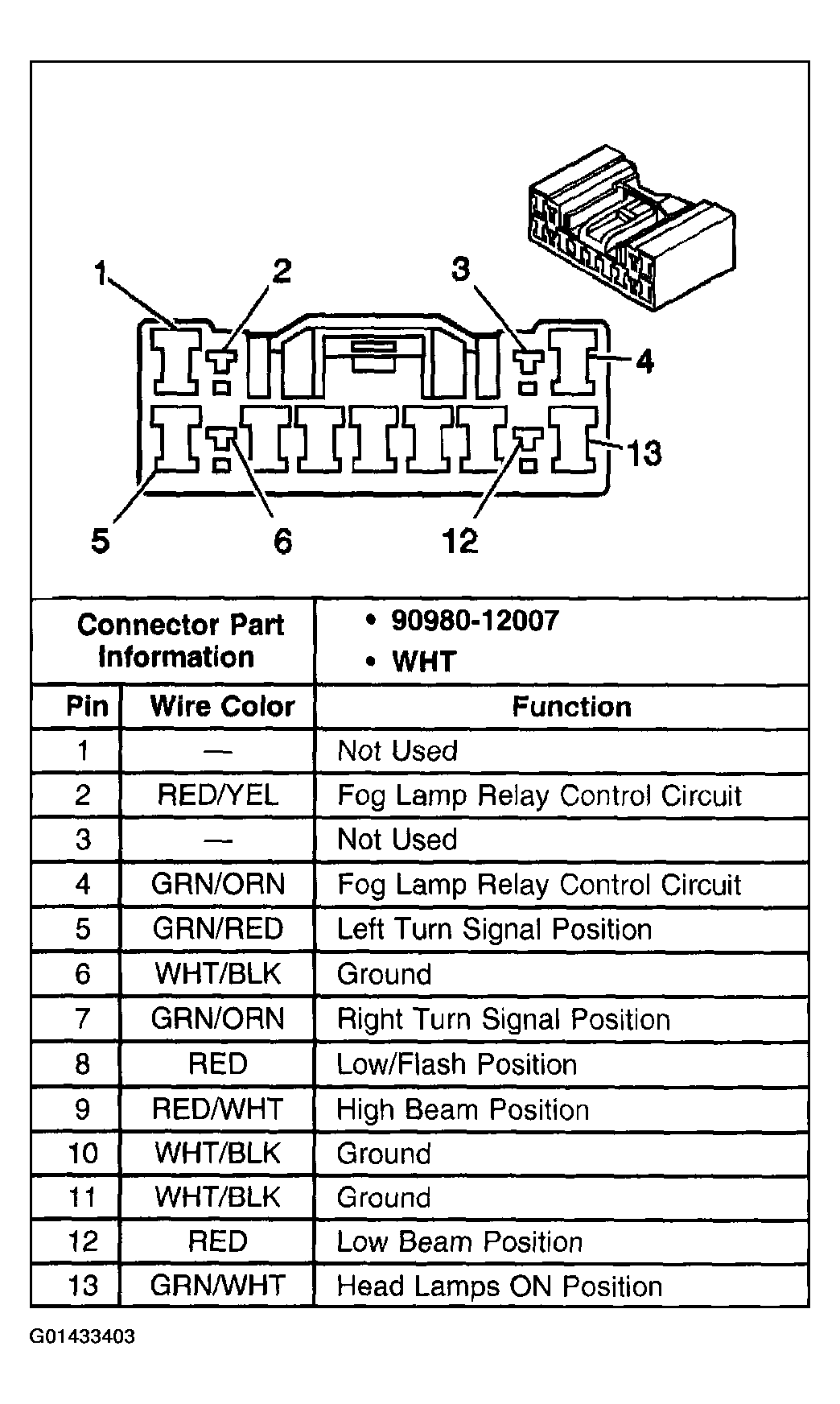

Fig 27: Identifying Turn Signal/Headlamp Switch Connector End View
