Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the DRL control module (1) to the mounting bracket, if removed.
  2. Install the DRL control module (1) with the mounting bracket attached to the instrument panel. Secure the bracket with the screw.
  3. Connect the DRL control module electrical connector (2).

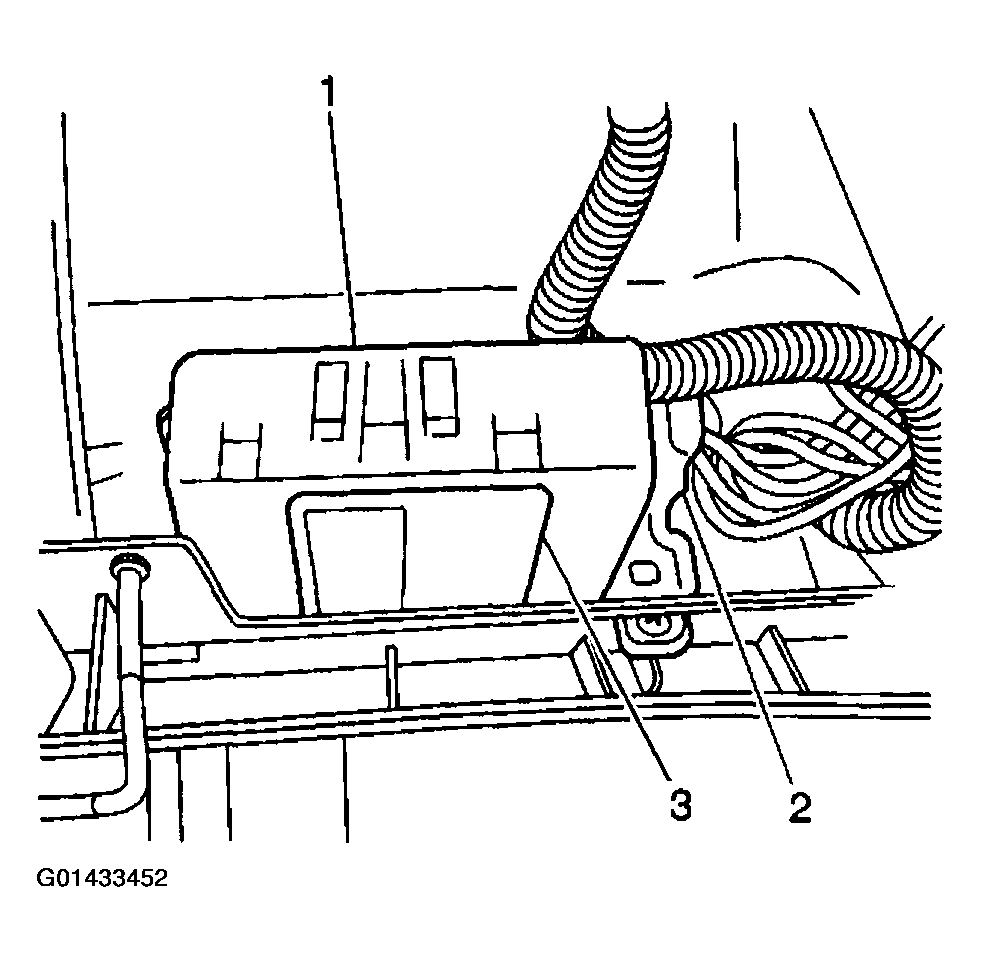

    Fig 1: Installing Daytime Running Lights (DRL) Control Module
    G01433452Courtesy of GENERAL MOTORS CORP.
