Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Important: The DRL control module is located under the driver side instrument panel.

Disconnect the DRL control module electrical connector (2).
Remove the screw which secures the DRL mounting bracket to the instrument panel.
Remove the DRL control module (1) with bracket from the instrument panel.
Remove the DRL control module (1) from the mounting bracket if necessary releasing the module case clip using a flat-bladed tool.

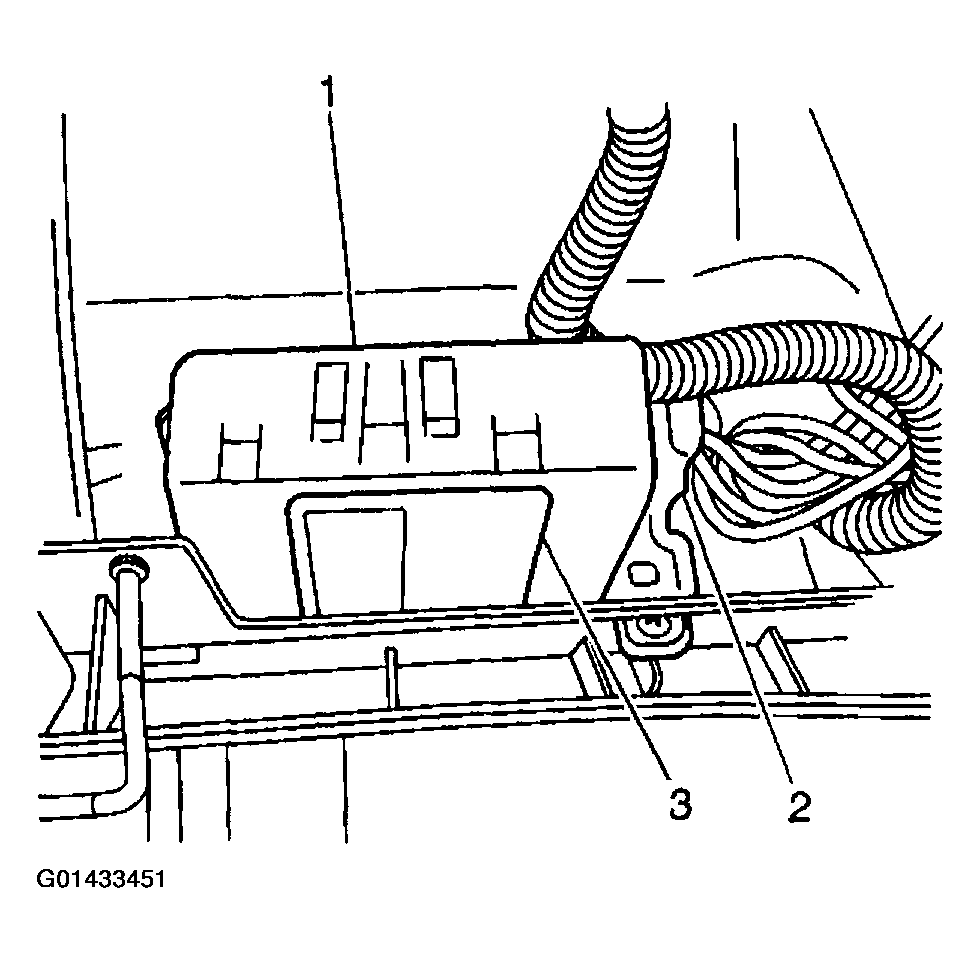

Fig 1: Removing Daytime Running Lights (DRL) Control Module
Courtesy of GENERAL MOTORS CORP.
