Remote CD Changer C2 (W/UW5)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

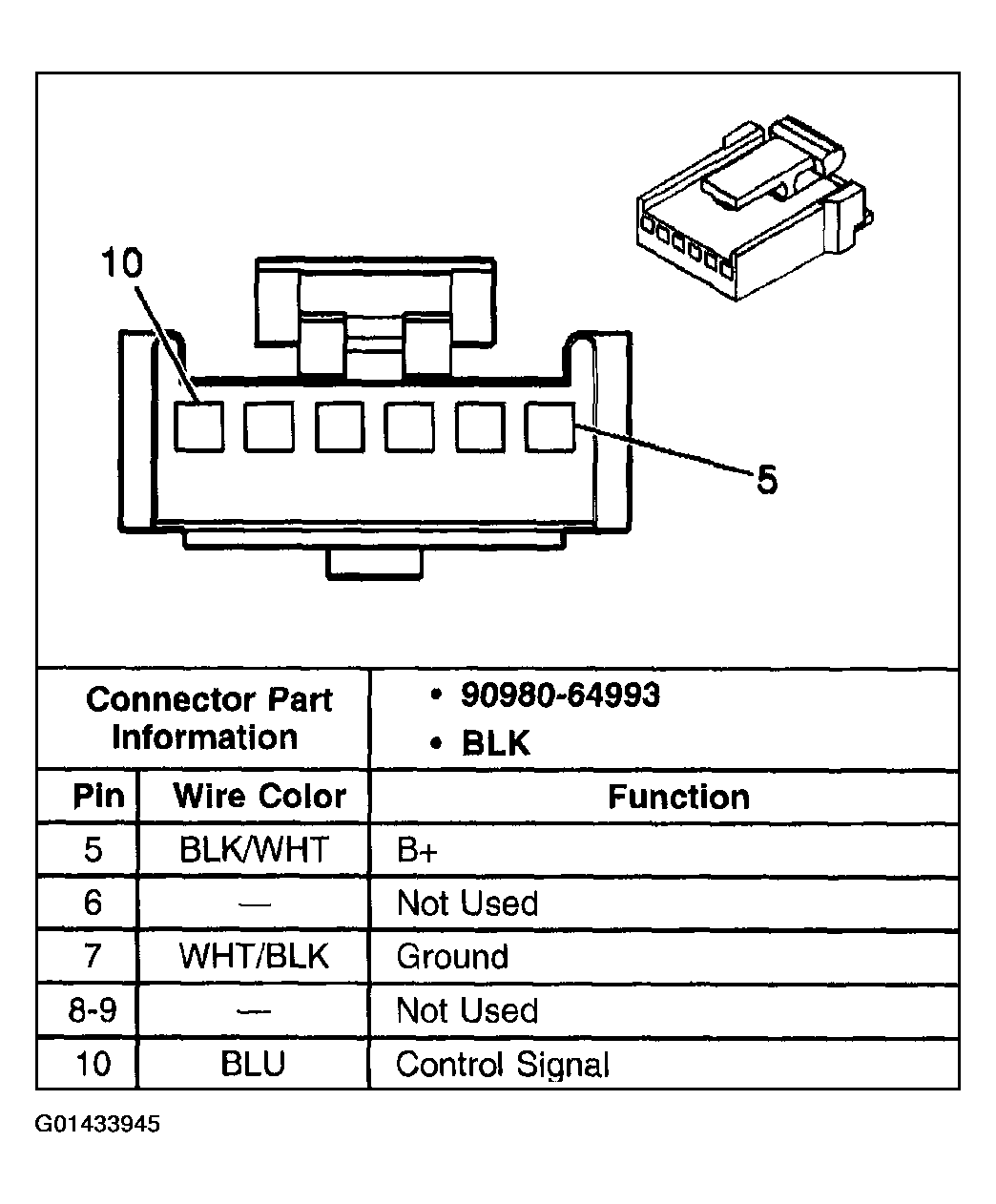

Fig 1: Identifying Remote CD Changer C2 (W/UW5) Connector And Pin Function Specifications
G01433945Courtesy of GENERAL MOTORS CORP.
