Navigation System Display Inoperative
WARNING:
This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

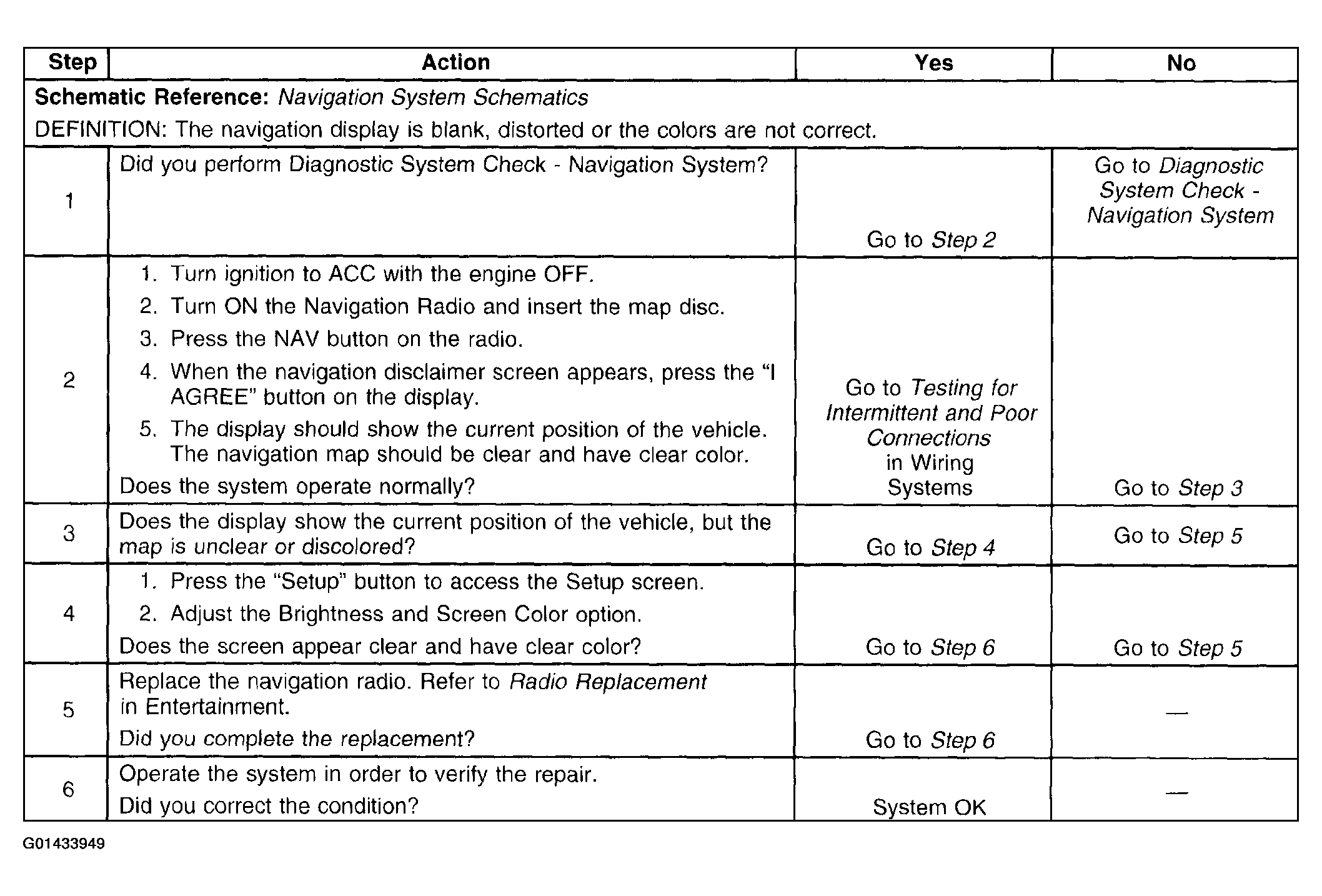

Fig 1: Diagnostic System Check Chart - Navigation System Display Inoperative
Courtesy of GENERAL MOTORS CORP.
