Cruise Control Component Views
WARNING:
This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

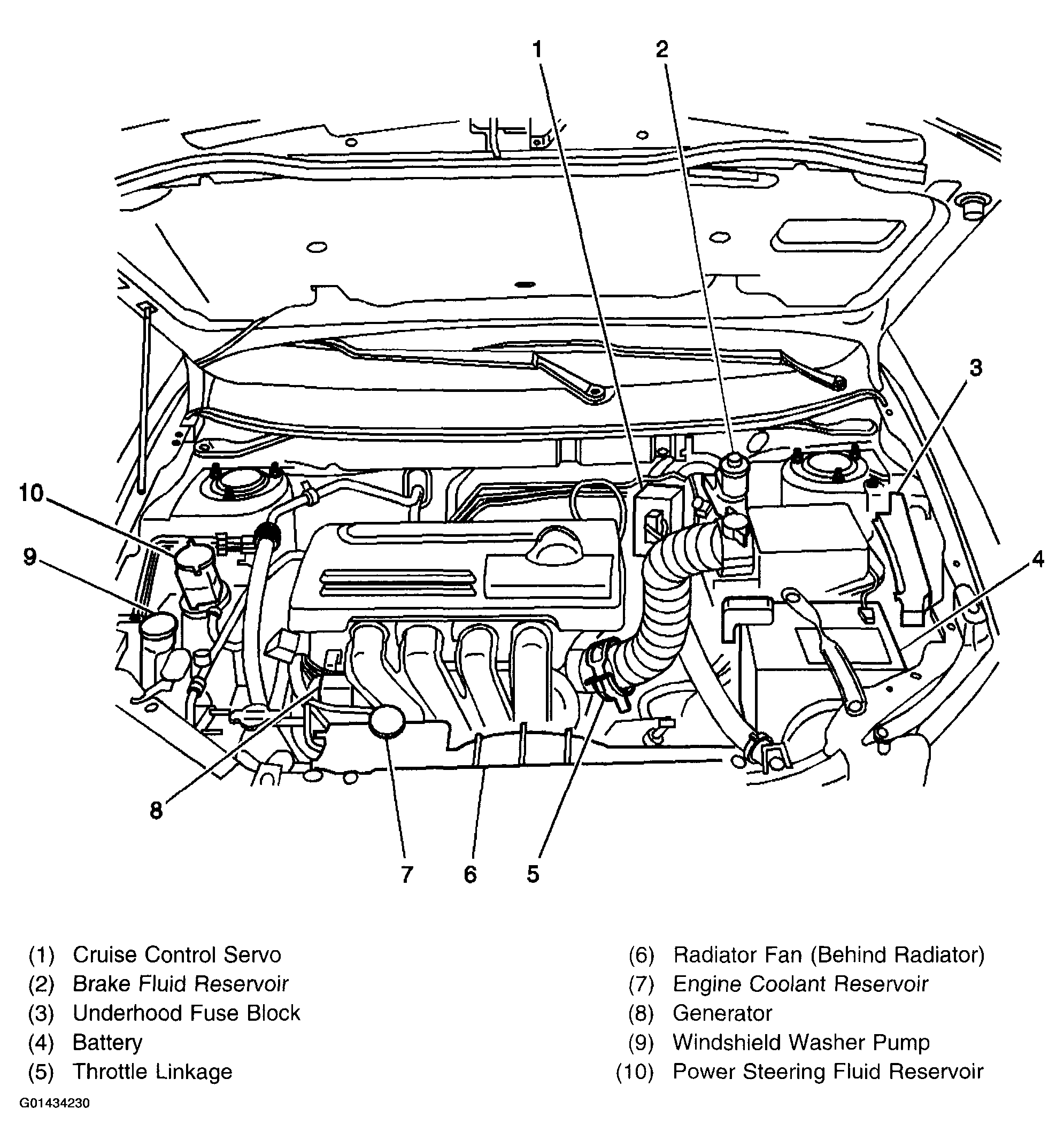

Fig 1: Locating Engine Compartment View
Courtesy of GENERAL MOTORS CORP.

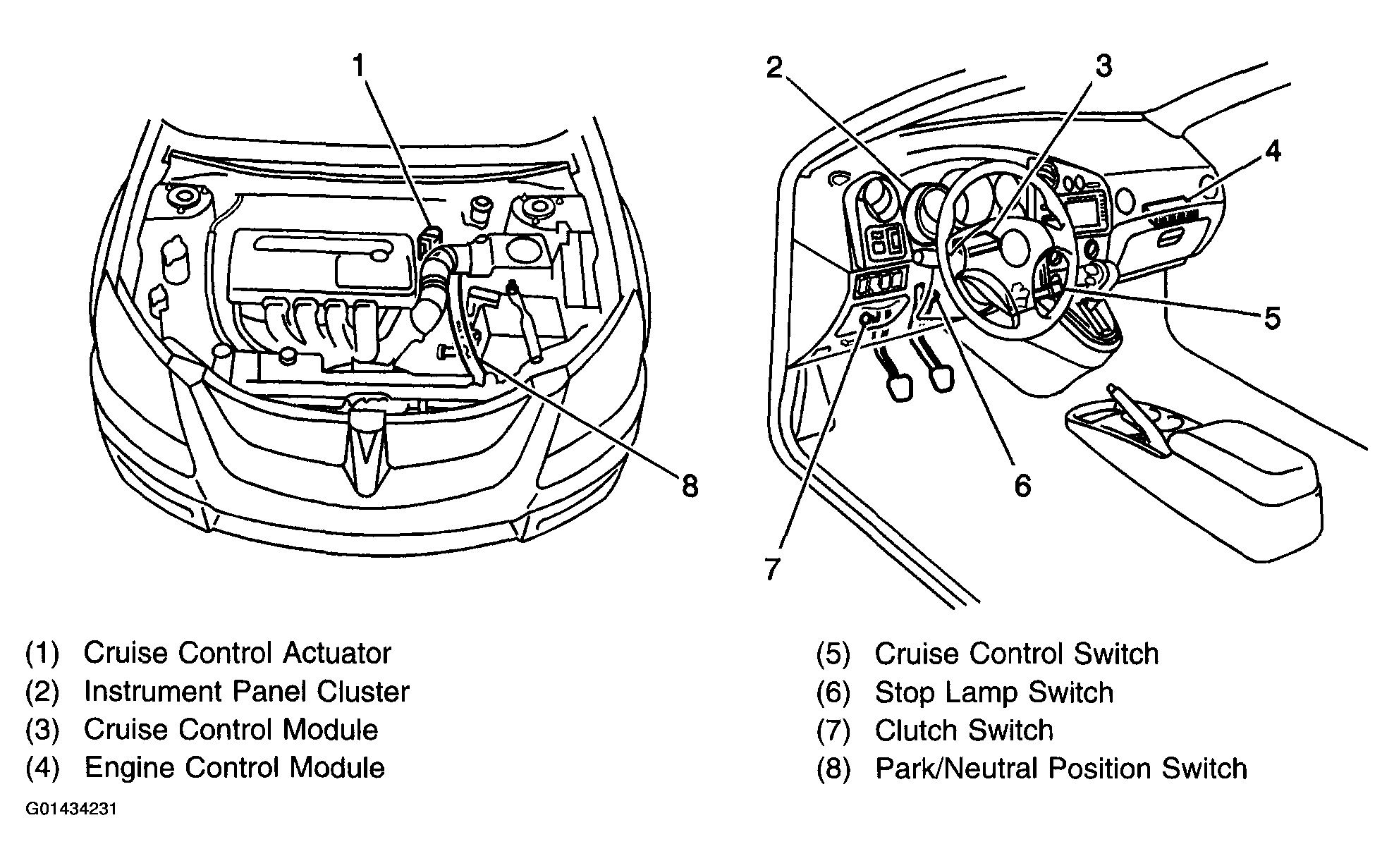

Fig 2: Locating Cruise Control Components
Courtesy of GENERAL MOTORS CORP.
