Navigation System Connector End Views
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

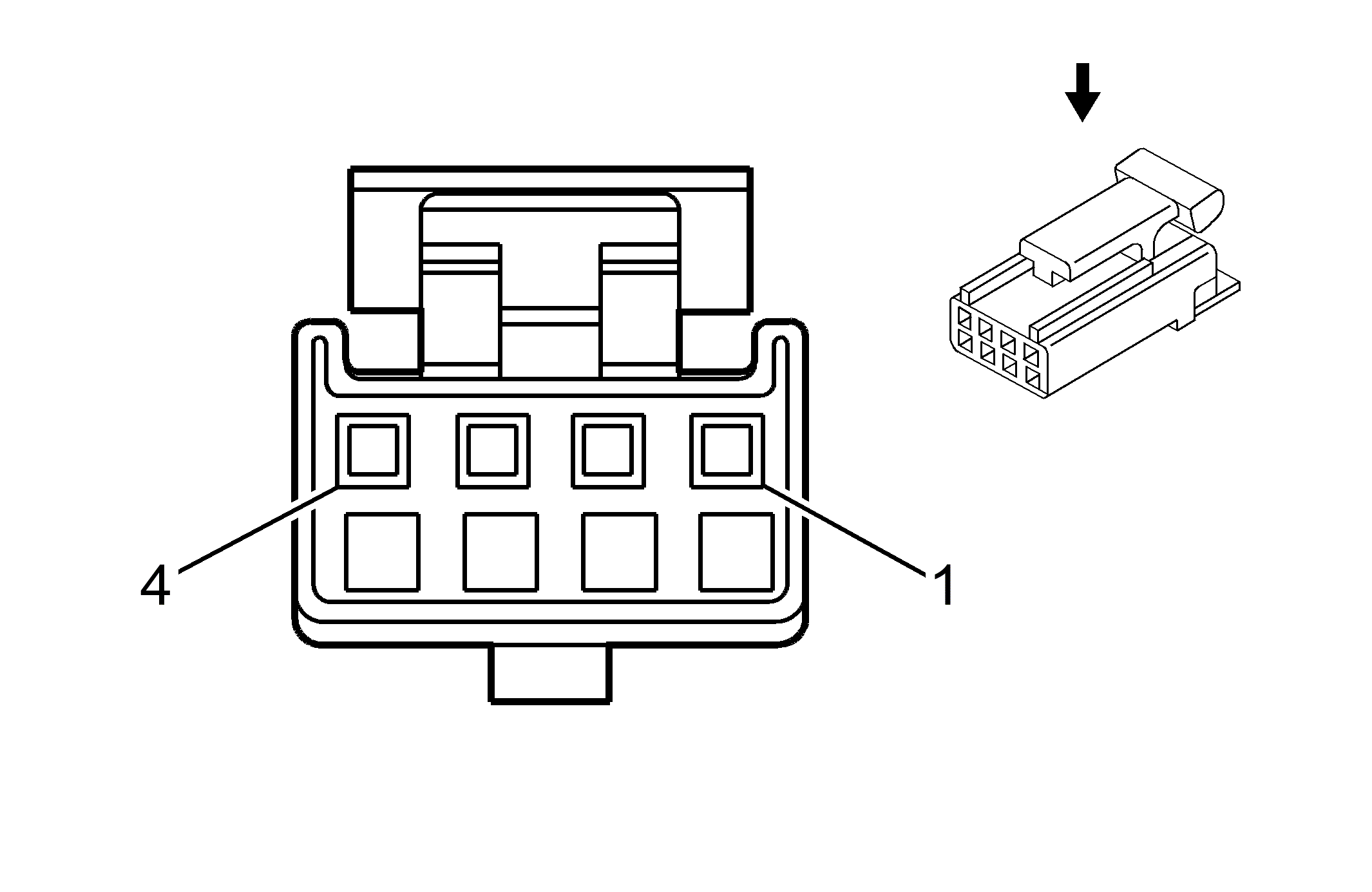

Remote CD Changer Connector End Views - C1 (W/UW5)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | WH | Left Audio Output |
| 2 | BK | Right Audio Output |
| 3 | RD | Signal Ground |
| 4 | Braided | Drain Wire |
Remote CD Changer Connector End View - C2 (W/UW5)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 5 | BU/WH | B+ |
| 6 | - | Not Used |
| 7 | WH/BK | Ground |
| 8 - 9 | - | Not Used |
| 10 | BU | CD Changer Control Signal |
Radio Connector End View - C1 (W/UW5 - Navigation)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A1 | BU | CD changer Control Signal |
| A2-A7 | - | Not Used |
| A8 | PK | Left Front Speaker Output (+) |
| A9 | PU | Left Front Speaker Output (-) |
| A10 | WH | Right Rear Speaker Output (-) |
| A11 | RD | Right Rear Speaker Output (+) |
| A12 | BN | Ground G202 |
| B1 | BU/WH | Battery Positive Voltage |
| B2 | GY | Ignition Positive Voltage |
| B3 | BK | Antenna Amplifier supply voltage |
| B4 | GN | LCD Backlighting Control |
| B5 | WH/BK | LCD Backlighting Dim ground |
| B6-B7 | - | Not Used |
| B8 | BK | Left Rear Speaker Output (+) |
| B9 | YE | Left Rear Speaker Output (-) |
| B10 | BU | Right Front Speaker Output (-) |
| B11 | LT GN | Right Front Speaker Output (+) |
| B12 | GN | Park Lamps Input |
Radio Connector End View - C2 (W/UW5 - Navigation)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A | - | Not Used |
| B | RD/BK | Backup/Reverse Signal |
| C | BARE | Drain Wire |
| D | - | Not Used |
| E | PU/WH | Vehicle Speed Signal |
| F - G | - | Not Used |
| H | BK | Right Audio Input |
| J | WH | Left Audio Input |
| K | RD | Signal Ground |
| L - M | - | Not Used |
