Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The vehicle communication interface module (VCIM) has a specific set of unique numbers that tie the module to each vehicle. These numbers, the 10-digit station identification and the 11-digit electronic serial number, are used by the National Cellular Network and OnStar® to identify the specific vehicle. Because these numbers are tied to the vehicle identification number of the vehicle, you must never exchange these parts with those of another vehicle.

Position the right rear seat bottom to a cargo position.

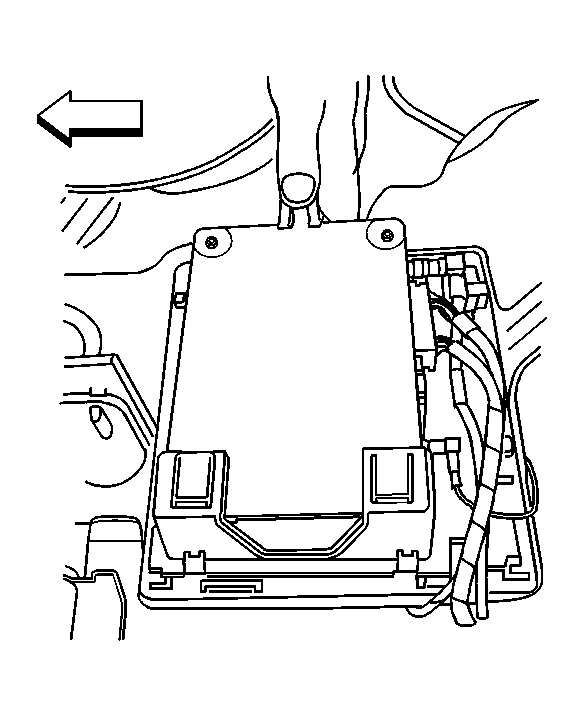

Fig 1: Removing Protective Cover From Vehicle Communication Interface Module (VCIM)

Courtesy of GENERAL MOTORS CORP.

Remove the protective cover from the vehicle communication interface module (VCIM).

Fig 2: Releasing Retaining Tab On Upper Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the module from the upper bracket by releasing the retaining tab.

Fig 3: VCIM Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Remove the electrical connectors from the VCIM.
Remove the VCIM from the vehicle
