Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not attempt to service the video display assembly components.

The video display is serviced only as an assembly.

Turn the ignition switch to the OFF position.
Using a plastic flat bladed tool, carefully remove the bolt cover bezel.

Fig 1: Using Plastic Flat Bladed Tool Removing Bolt Cover Bezel
Courtesy of GENERAL MOTORS CORP.
Fully loosen the two rear retaining bolts. The bolts will remain attached to the video assembly.
In order to expose the two front retaining bolts, adjust the video display screen to a full open position.
Fully loosen the front retaining bolts. The bolts will remain attached to the video assembly.
Close the video display screen.

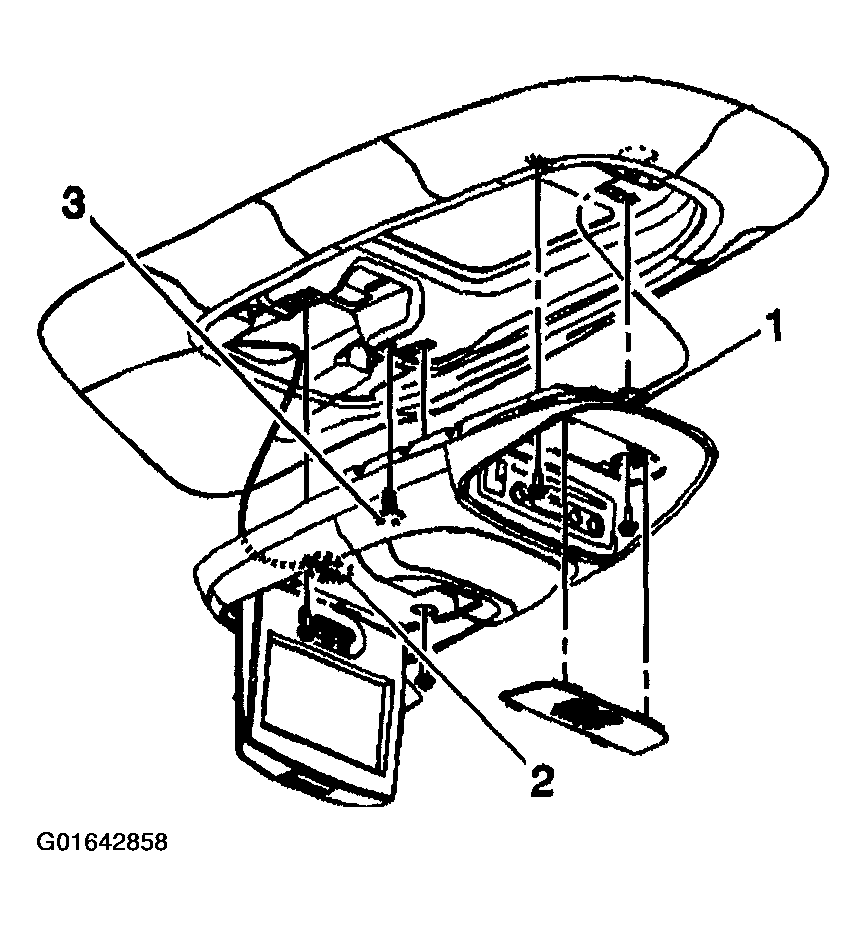

Slowly lower the front of the video assembly to release the retaining fastener (3).
Support the video assembly and disconnect the electrical connector (2).
Adjust the video assembly in order to release the T-hook (1) from the video player bracket.
Remove the video assembly from the vehicle.

Fig 2: Removing Video Assembly From Vehicle
Courtesy of GENERAL MOTORS CORP.
