Data Link Communications Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

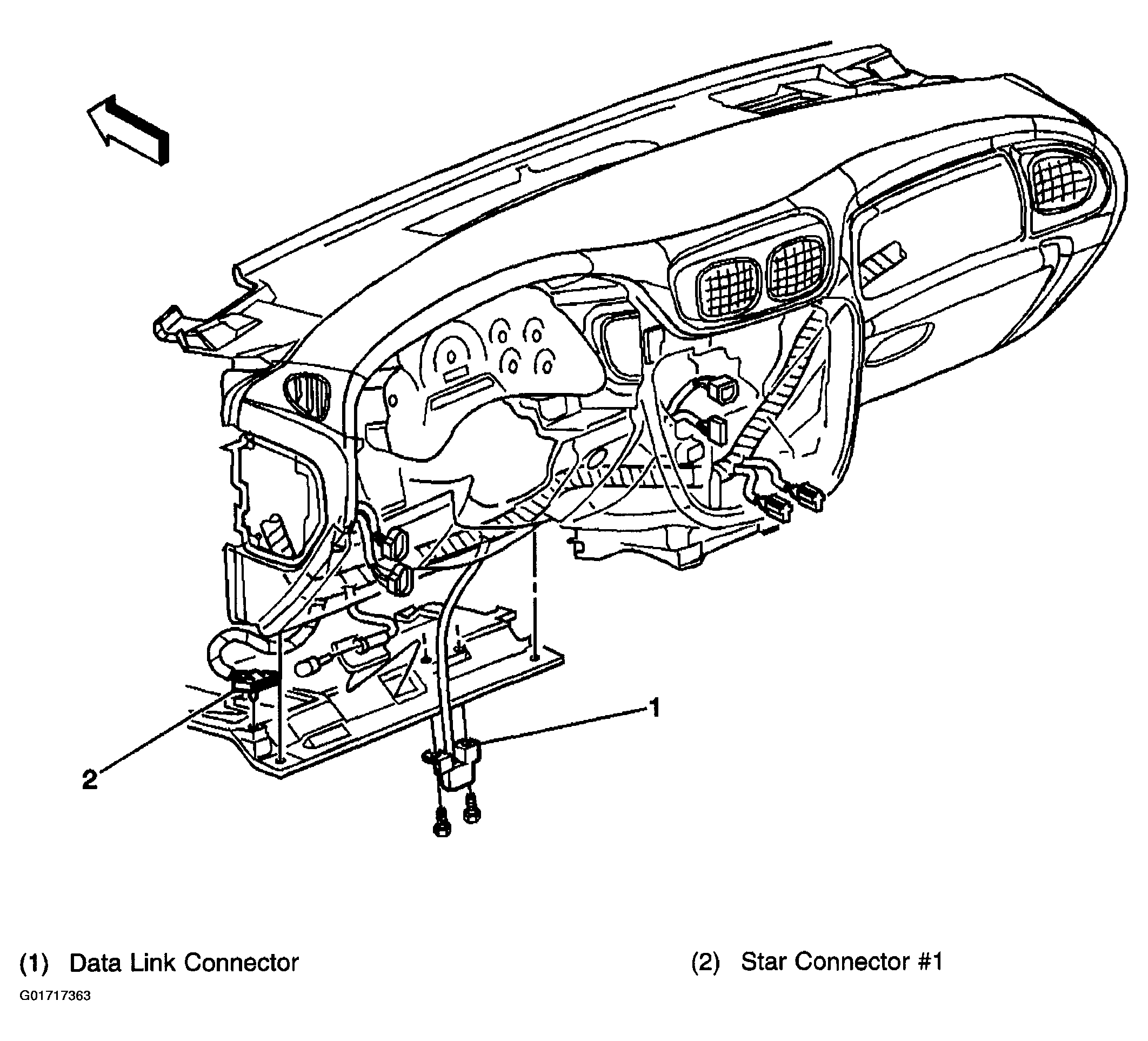

Fig 1: DLC & Star Connector #1
G01717363Courtesy of GENERAL MOTORS CORP.

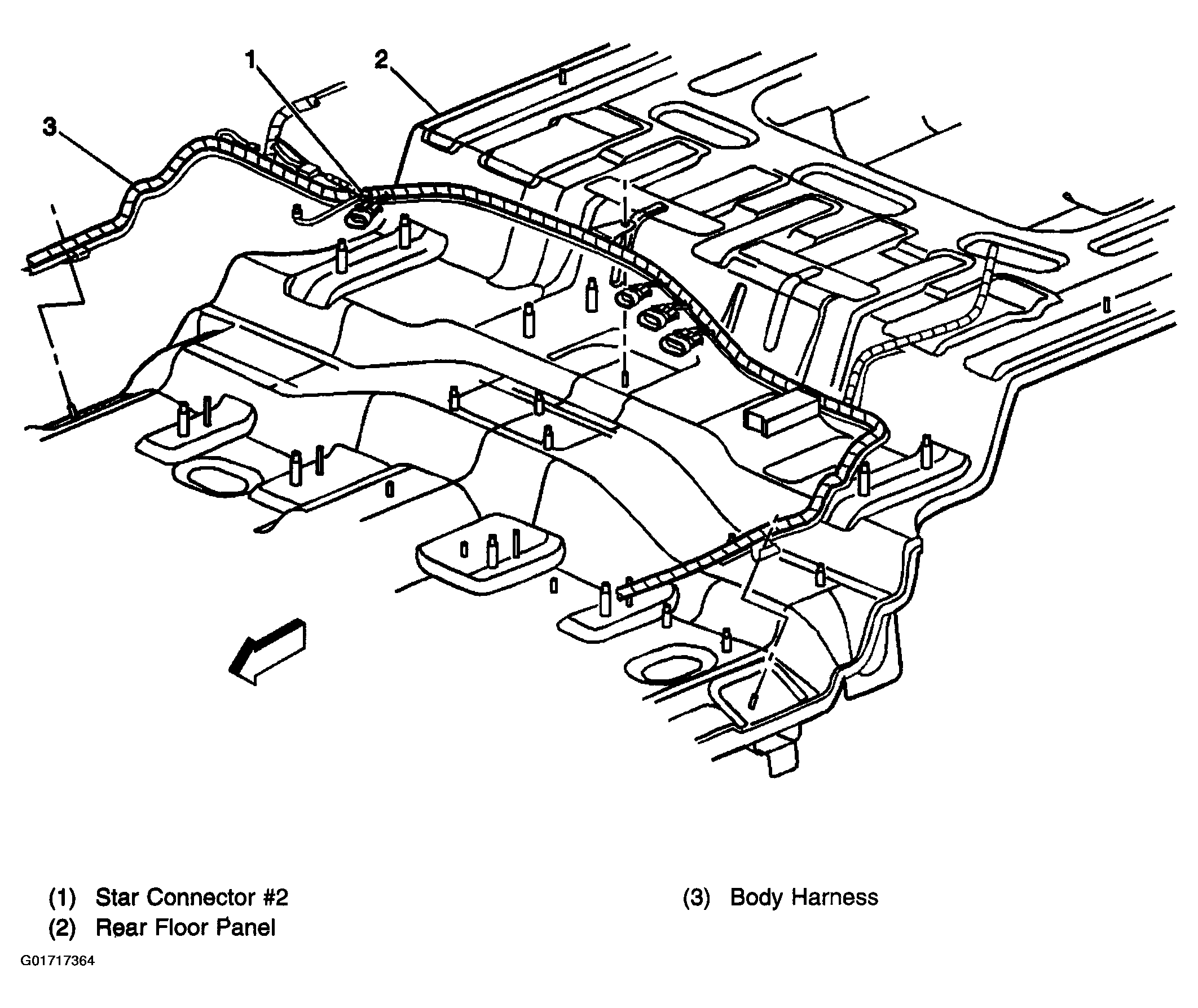

Fig 2: Star Connector #2
G01717364Courtesy of GENERAL MOTORS CORP.
