Data Link Communications Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

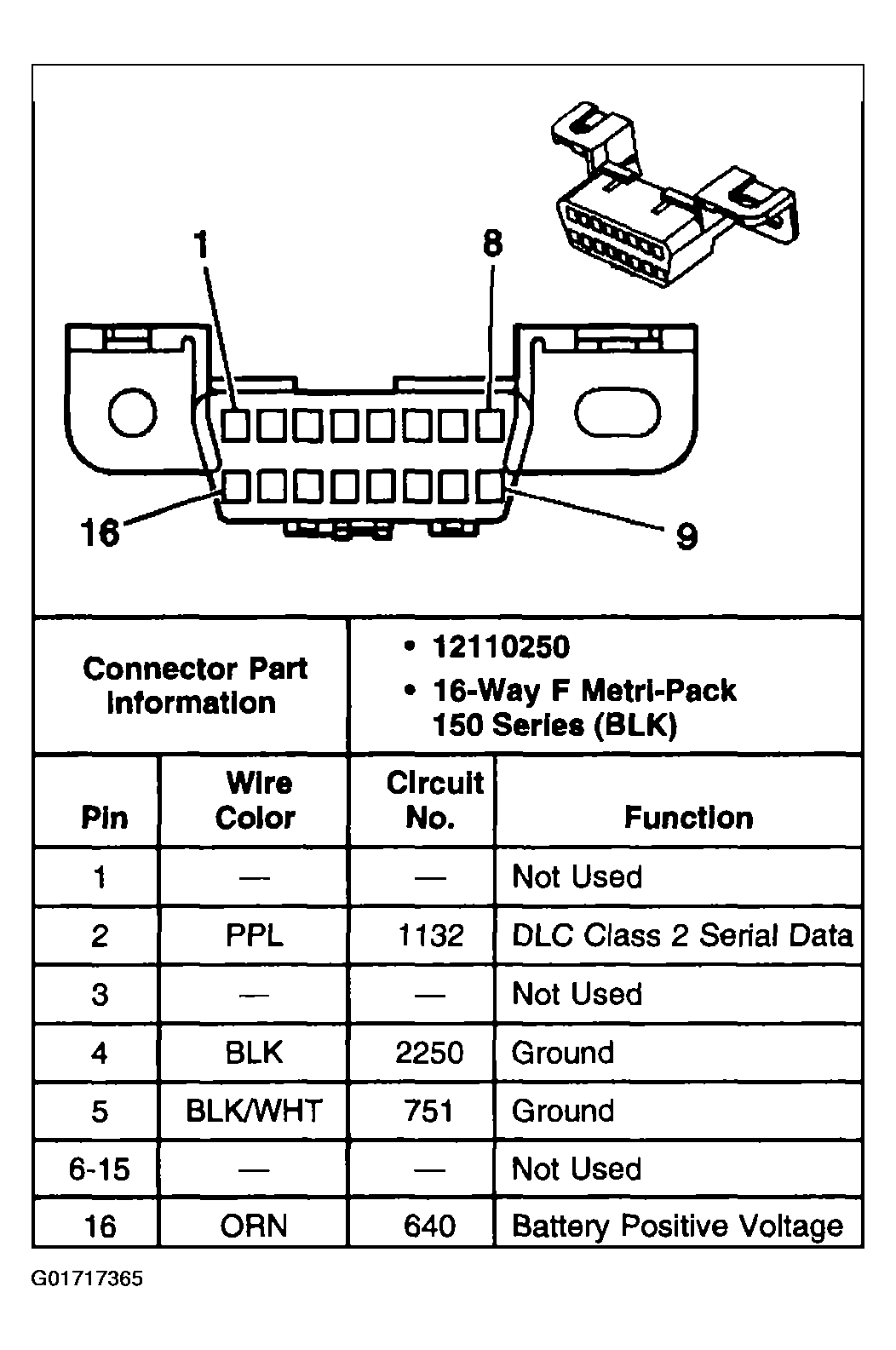

Fig 1: Data Link Connector (DLC)
G01717365Courtesy of GENERAL MOTORS CORP.

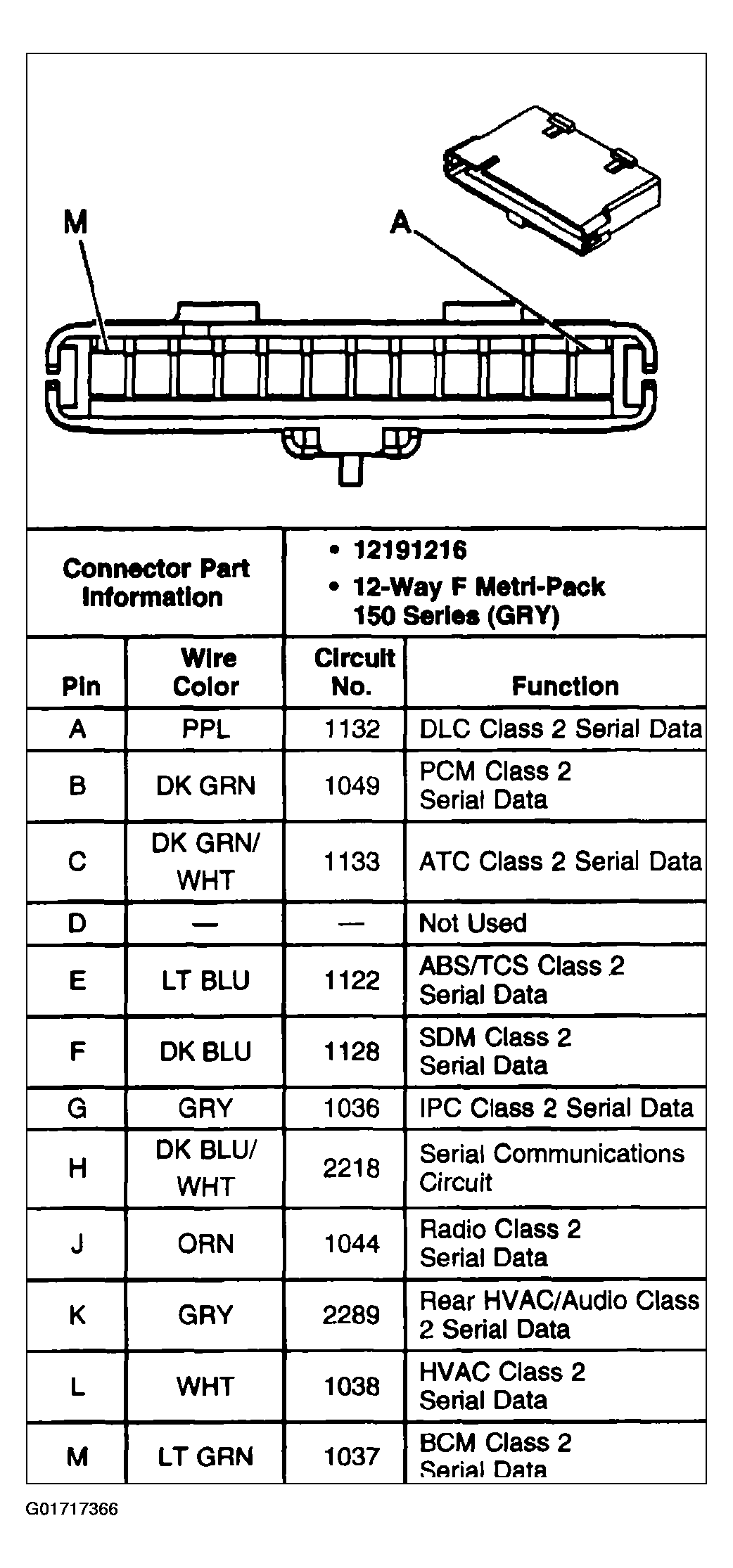

Fig 2: Star Connector #1
G01717366Courtesy of GENERAL MOTORS CORP.

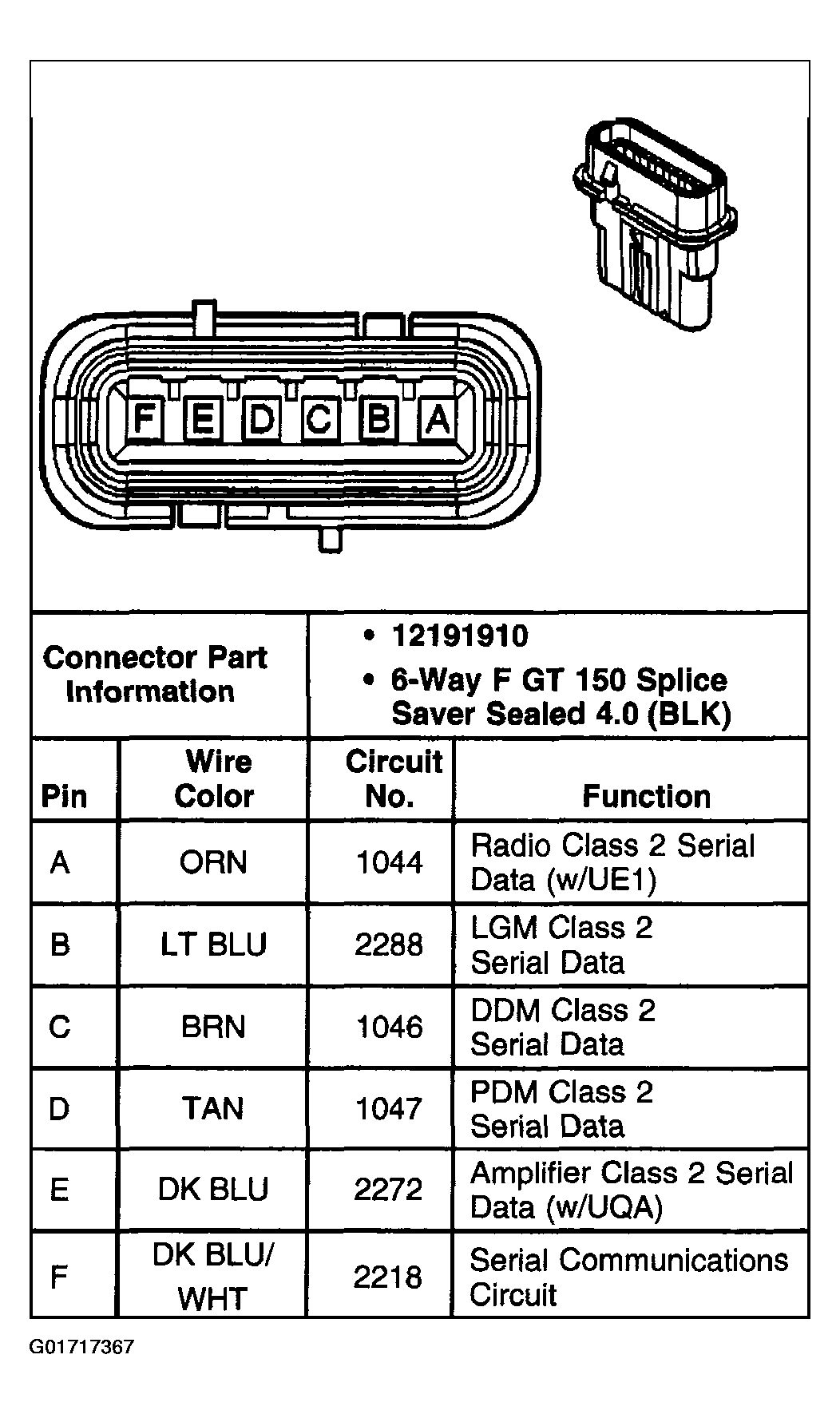

Fig 3: Star Connector #2
G01717367Courtesy of GENERAL MOTORS CORP.
