Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Lamps Component View, GMC

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp-Left
2	Headlamp Connector
3	Marker Lamp
4	Park/Turn Signal Lamp

Fig 2: Fog Lamp & Cornering Lamp Component View, GMC

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fog Lamp
2	Cornering Lamp

Fig 3: Fog Lamp Component View, Chevrolet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Fog Lamp

Fig 4: Front Lamps Component View, Chevrolet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp-Left
2	Headlamp Connector
3	Fog Lamp Connector
4	Park/Turn Signal Lamp
5	Marker Lamp

Fig 5: Front Lamps Component View, Oldsmobile

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Connector
2	Fog Lamp
3	Cornering Lamp
4	Marker Lamp
5	Forward Lamp Harness
6	Park/Turn Lamp

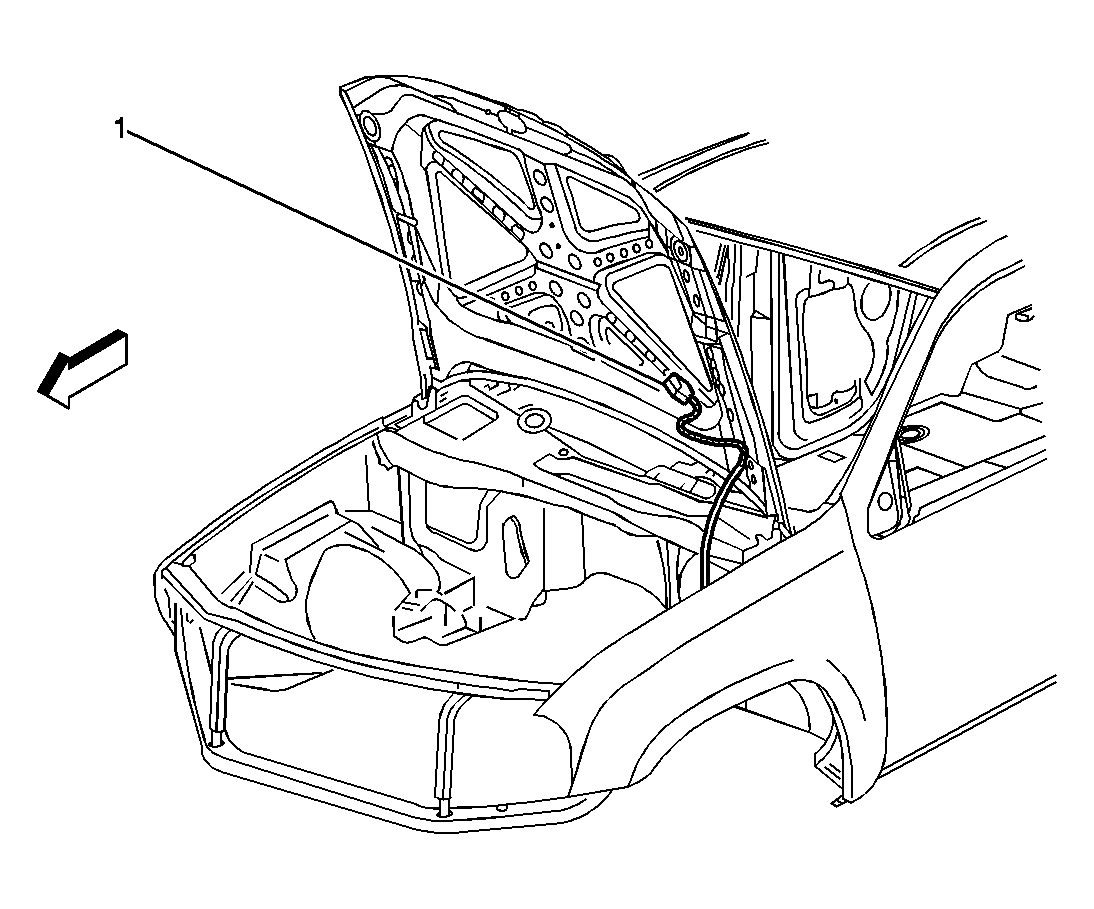

Fig 6: Underhood Lamp Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Underhood Lamp

Fig 7: Automatic Transmission, Left Side Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Switch

Fig 8: Courtesy Lamp & Headlamp Switch Connectors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy Lamp
2	Headlamp Switch Connectors

Fig 9: Stop Lamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch

Fig 10: Multi-Function Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multi-function Switch
2	C201

Fig 11: Hazard Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch
2	Steering Column

Fig 12: Cutaway View of Left Sunshade & Vanity Mirror Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamps, LF

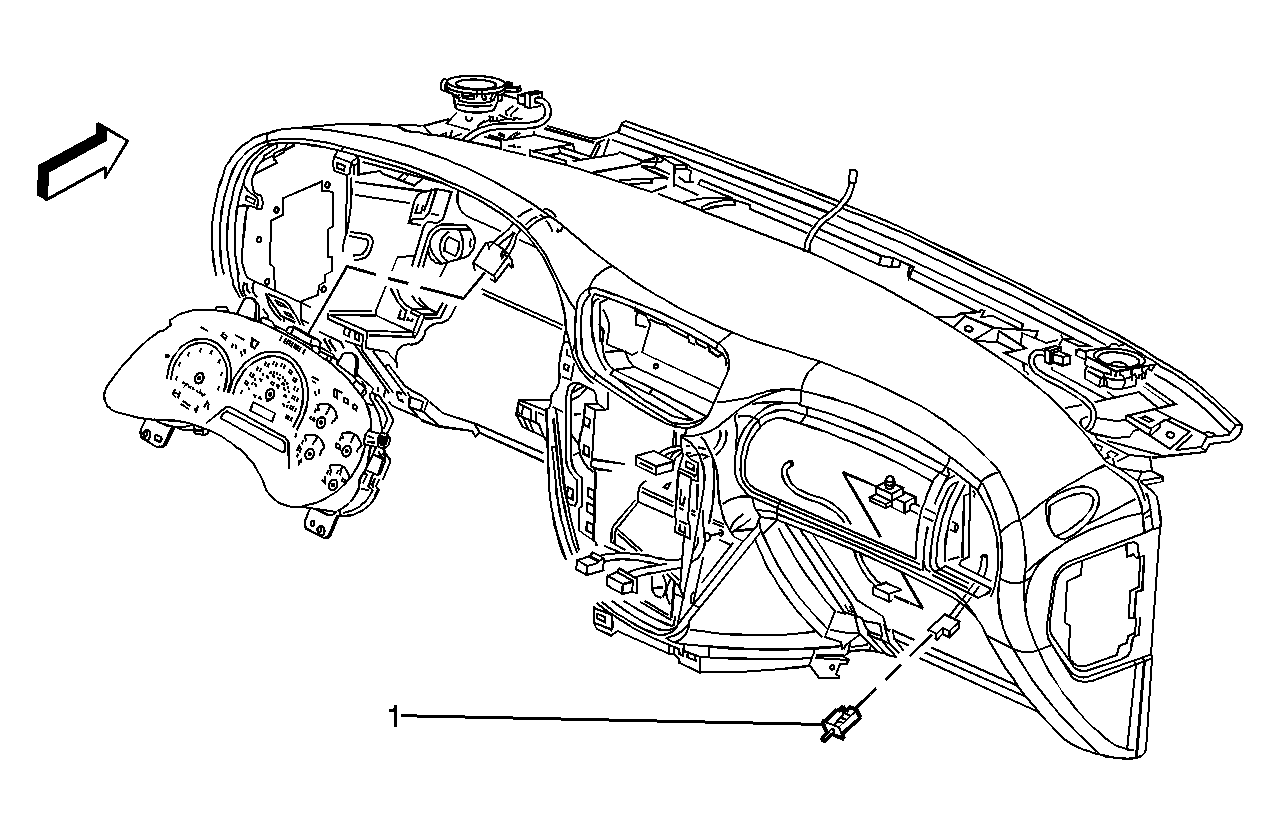

Fig 13: I/P Compartment Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp

Fig 14: Turn Signal/Hazard Flasher Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left IP Harness
2	Turn Signal/Hazard Flasher Module

Fig 15: Courtesy/Reading Lamps & Cargo Lamps Component View (Short Wheelbase Shown, Long Wheelbase Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp-LF
2	Courtesy/Reading Lamp-LR
3	Cargo Lamp
4	Headliner
5	Courtesy/Reading Lamp-RR
6	Courtesy/Reading Lamp-RF

Fig 16: Door Jamb Switch Component View, Miniwedge-LR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch, Miniwedge-LR

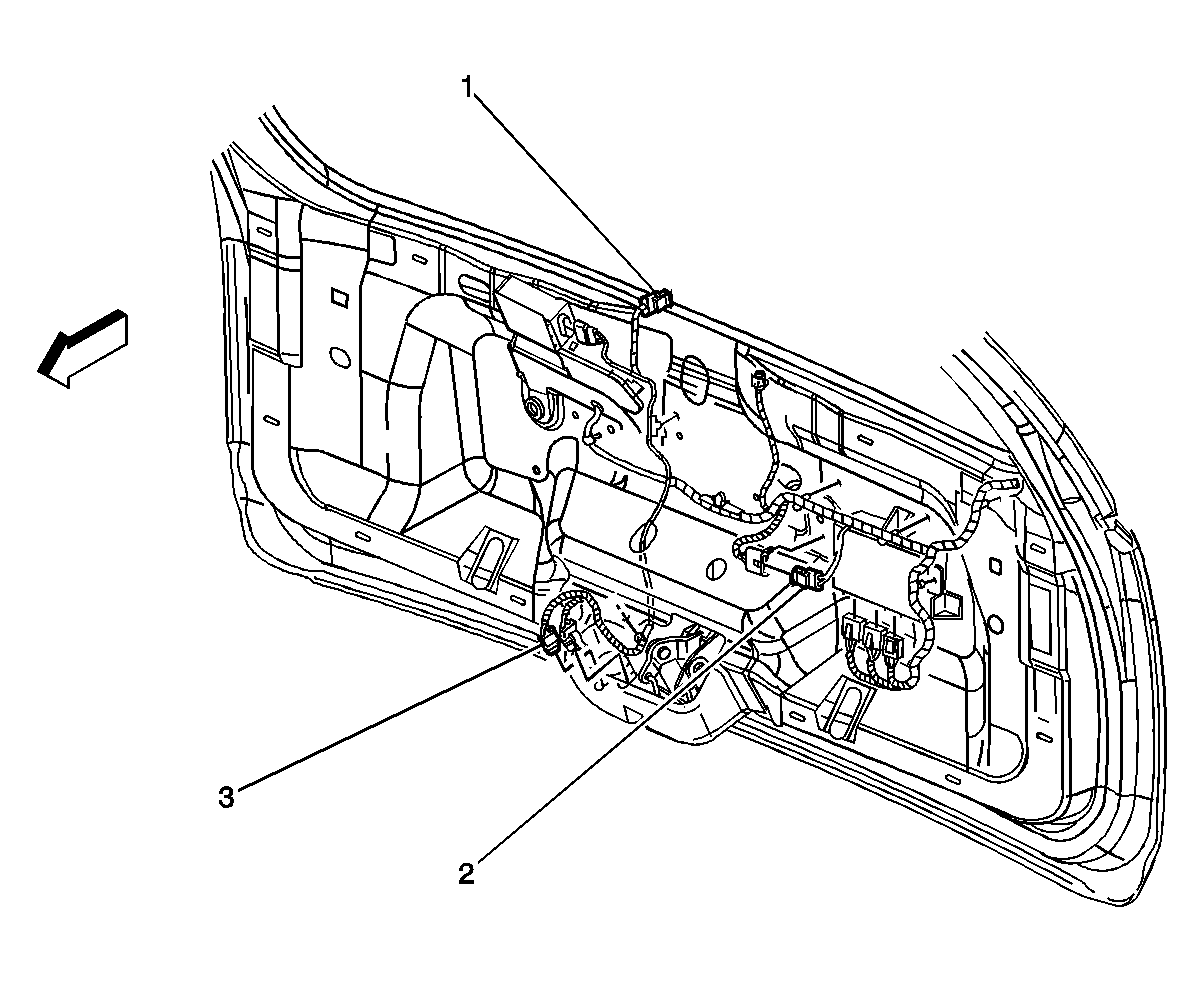

Fig 17: Liftgate Ajar Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftglass Ajar Switch
2	License Plate Lamp Connector
3	Liftgate Ajar Switch

Fig 18: Tail Lamp Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	Tail Lamp Connector
3	Tail Lamp

Fig 19: Backup Lamps Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamps

Fig 20: Center High-Mounted Stop Lamp Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Frame Above Body Back Opening
2	Tail Lamp Connector
3	Tail Lamp

Fig 21: Trailer Connector Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Trailer Connector
