Screen Method for Headlamp Aiming

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

The screen method requires an area set up specifically for headlamp aiming.

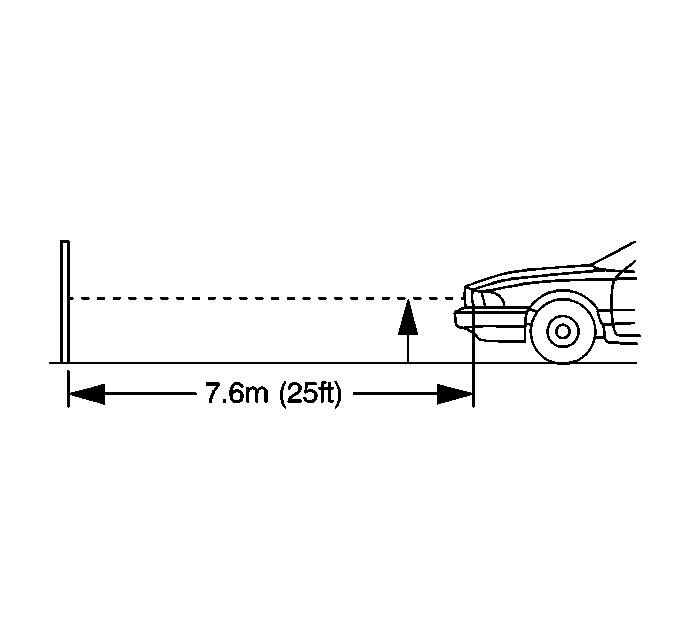

Fig 1: Measuring Distance Between Headlamps Face & Aiming Screen

Courtesy of GENERAL MOTORS CORP.

The area should consist of a level surface large enough to allow for a vehicle and an additional 7.62 m (25 ft) as measured from the face of the headlamps to the aiming screen.

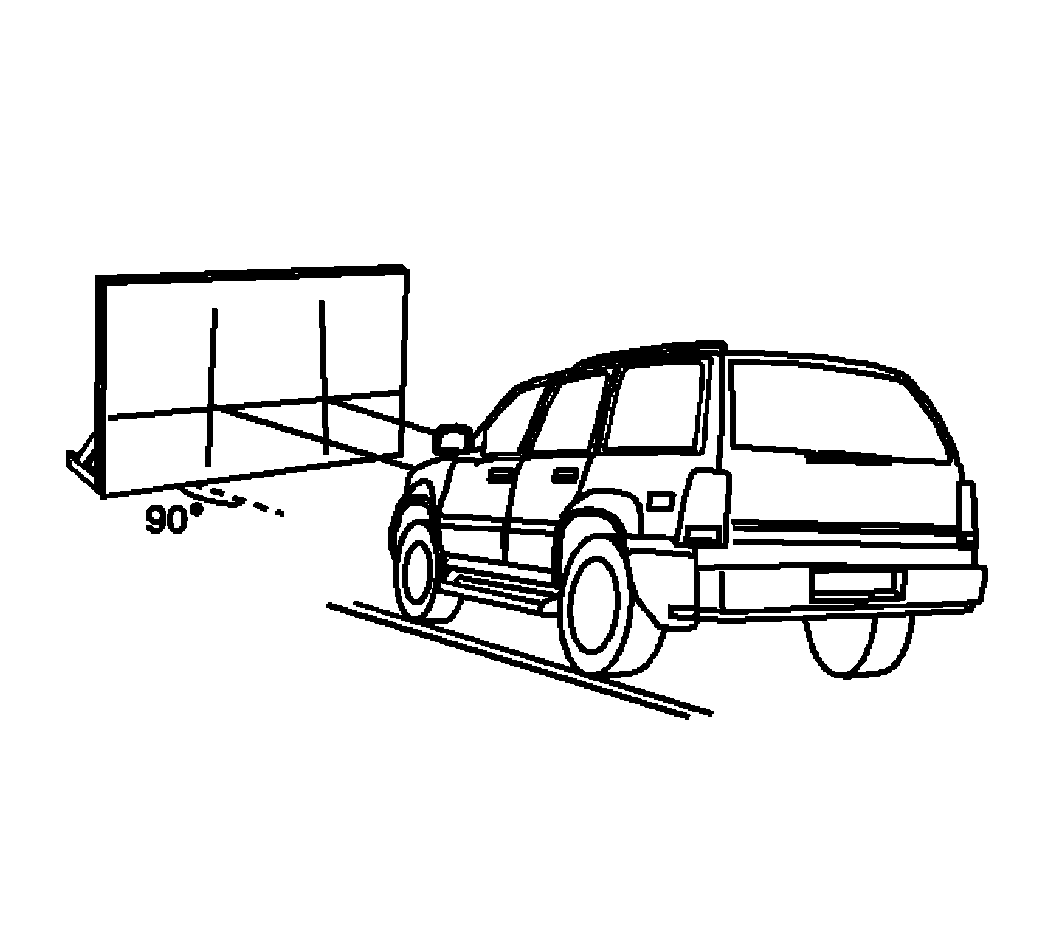

Fig 2: Screen Method For Headlight Aiming

Courtesy of GENERAL MOTORS CORP.

The screen should be a wall or other flat surface at least 1.52 m (5 ft) high by 3.66 m (12 ft) wide with a matte white surface well shaded from extraneous light, and 90 degrees to the floor. The screen should be provided with a permanent vertical reference line 0.61 m (2 ft) from the left edge of the screen, 2 laterally adjustable vertical tapes, and one vertically adjustable horizontal tape.

After the aiming screen has been set up and located, paint or tape a reference line on the floor 15.24 m (50 ft) from the vertical reference line on the screen. This line should be perpendicular to the aiming screen and a mark placed at 7.62 m (25 ft) from the screen.
