Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Ambient Light Sensor

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 1137 DRL/Ambient Light Sensor Signal
B YE/BK 1138 Low Reference

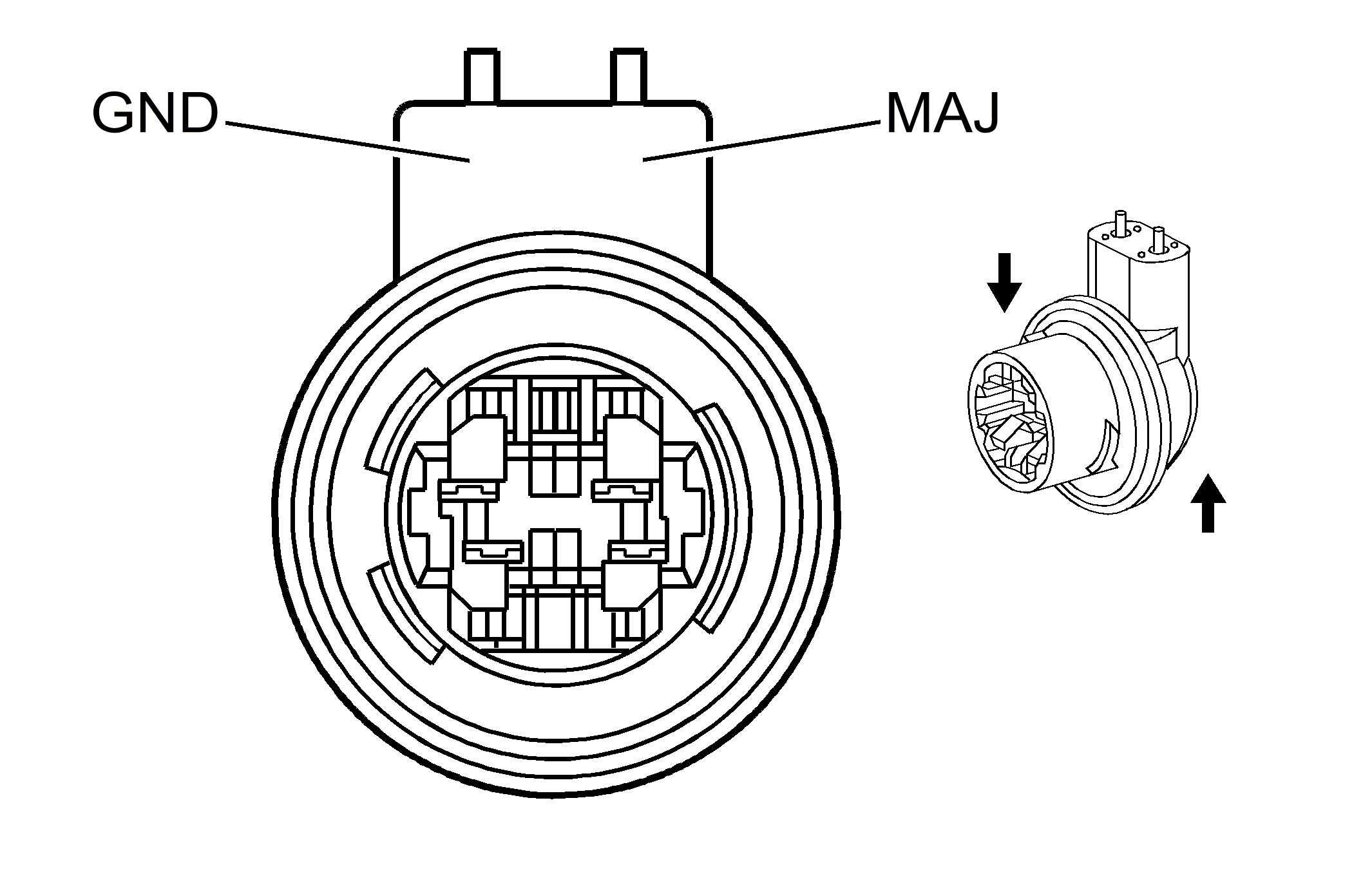

Backup Lamp - Left

GM1290411Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 021940259
  • 3-Way F Bulb 3057 Socket (BK)
Pin Wire Color Circuit No. Function
MAJ L-GN 24 Backup Lamp Supply Voltage
MIN - - Not Used
GND BK 750 Ground
Backup Lamp - Right

GM1290411Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 021940259
  • 3-Way F Bulb 3057 Socket (BK)
Pin Wire Color Circuit No. Function
MAJ L-GN 24 Backup Lamp Supply Voltage
MIN - - Not Used
GND BK 850 Ground
Backup Switch (L61 w/M/T)

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 239 Ignition 1 Voltage
B L-GN 24 Backup Lamp Supply Voltage

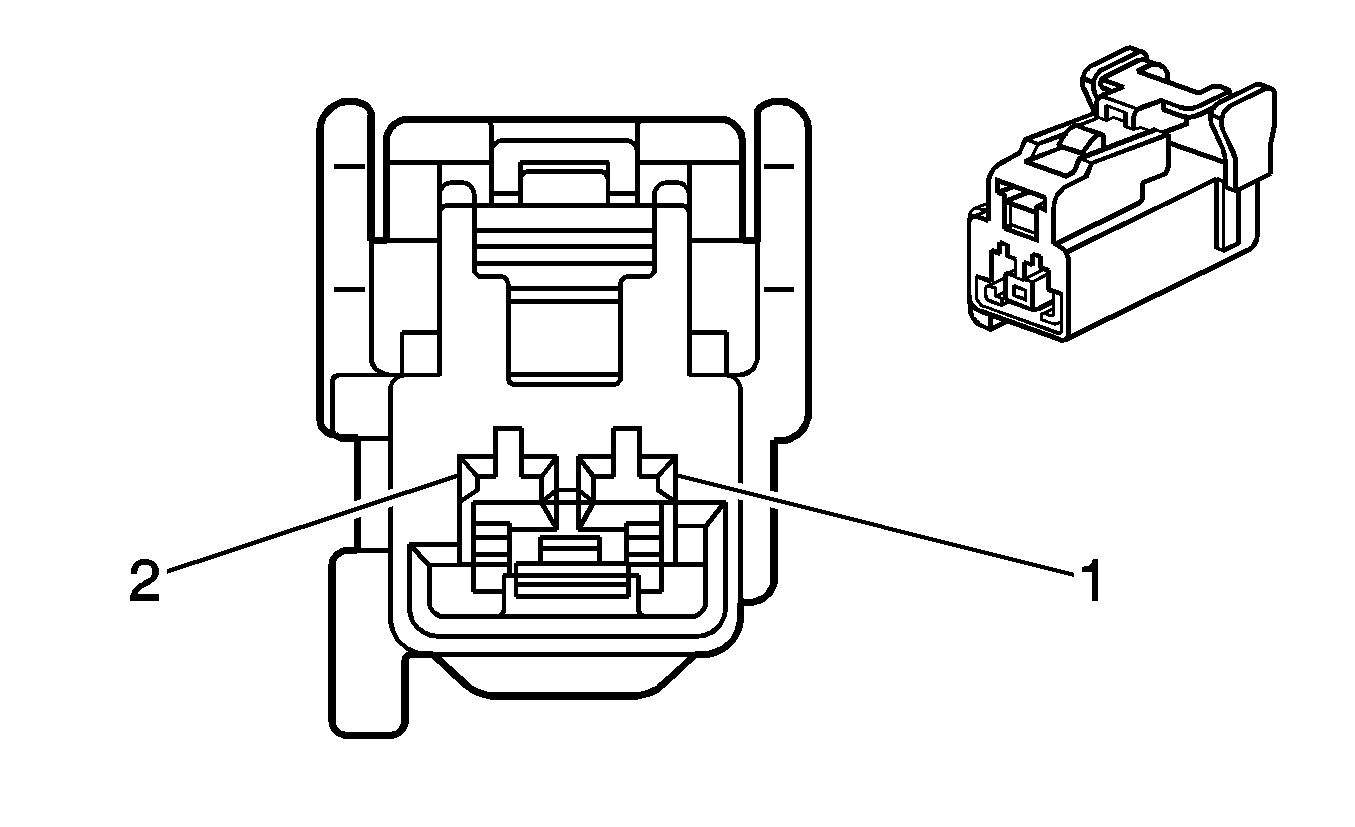

Center High Mount Stop Lamp (CHMSL)

GM1282958Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-5530-40
  • 2-Way F (L-GY)
Pin Wire Color Circuit No. Function
1 L-BU 20 Stop Lamp Switch Signal
2 BK 650 Ground
Courtesy/Map Lamp

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage
B BK 750 Ground
C GY 157 Courtesy Lamp Switch Signal
Cruise/Brake Switch

GM287957Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041433
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A PK 1339 Ignition 1 Voltage
B PU 420 Cruise Control Release Signal
Daytime Running Lamps (DRL) Resistor

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Sealed (BK)
Pin Wire Color Circuit No. Function
A GY 589 DRL Relay
B BK 150 Ground
Dimmer Switch (Dash Illumination)

GM808685Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020299
  • 5-Way F P/C Edgeboard - Standard (NA)
Pin Wire Color Circuit No. Function
A - - Not Used
B BN/WH 230 I/P Lamps Dimmer Control
C TN 470 Low Reference
D-E - - Not Used
Dome Lamp - Front

GM130635Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12045813
  • 4-Way F Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A WH 156 Courtesy Lamps Switch Signal
B GY 157 Courtesy Lamp Control
C BK 750 Ground
D OG 1732 Courtesy Lamps Supply Voltage
Dome Lamp - Rear

GM130635Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12045813
  • 4-Way F Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A - - Not Used
B GY 157 Courtesy Lamp Control
C - - Not Used
D OG 1732 Courtesy Lamps Supply Voltage
Fog Lamps

GM646148Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020599
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamp Relay
B BK 150 Ground
Fog Lamp Switch

GM258245Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065872
  • 7-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No. Function
1 YE 317 Fog Lamp Relay Coil Supply Voltage
2 OG 192 Front Fog Lamp Switch Signal
3 PK 139 Ignition 1 Voltage
4 - - Not Used
5 BK 550 Ground
6 GY 8 Instrument Panel Lamp Supply Voltage
7 - - Not Used
Hazard Switch

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A BK/WH 151 Ground
B OG 1040 Battery Positive Voltage
C YE 243 Accessory Voltage
D - - Not Used
E GY 8 Instrument Panel Lamp Supply Voltage
F L-BU 14 Left Turn Signal Lamps Supply Voltage
G D-BU 15 Right Turn Signal Lamps Supply Voltage
H PU 16 Turn Signal Flasher Signal
J-K - - Not Used
Headlamp - Left - High Beam

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059183
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A OG 740 Battery Positive Voltage
B PK 1200 Headlamp High Beam Signal
Headlamp - Left - Low Beam

GM684796Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059181
  • 2-Way F Metri-Pack 280 Series Sealed (M-GY)
Pin Wire Color Circuit No. Function
A OG 740 Battery Positive Voltage
B D-BU 1201 Headlamp Low Beam Signal
Headlamp - Right - High Beam

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059183
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A OG 640 Battery Positive Voltage
B PK 1200 Headlamp High Beam Signal
Headlamp - Right - Low Beam

GM684796Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059181
  • 2-Way F Metri-Pack 280 Series Sealed (M-GY)
Pin Wire Color Circuit No. Function
A OG 640 Battery Positive Voltage
B D-BU 1201 Headlamp Low Beam Signal
Headlamp Switch

GM1283124Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047976/929504-3
  • 8-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
1 BK 550 Ground
2 L-BU 14 Left Turn Signal Lamps Supply Voltage
3 OG 240 Battery Positive Voltage (w/o T82)
GY 691 Headlamp Relay Output (w/T82)
4 PU 16 Turn Signal Flasher Signal
5 D-BU 1201 Headlamp Low Beam Signal
6 D-BU 15 Right Turn Signal Lamps Supply Voltage
7 PK 1200 Headlamp High Beam Signal
8 BN 9 Park Lamp Supply Voltage (w/o T82)
L-BU 74 Park Lamp Switch Signal (w/T82)
License Lamp - Left

GM646148Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020599
  • 2-Way F 280 Series (BK)
Pin Wire Color Circuit No. Function
A BK 650 Ground
BK 650 Ground
B WH 9 Park Lamp Supply Voltage
WH 9 Park Lamp Supply Voltage
License Lamp - Right

GM646148Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020599
  • 2-Way F 280 Series (BK)
Pin Wire Color Circuit No. Function
A BK 650 Ground
B WH 9 Park Lamp Supply Voltage

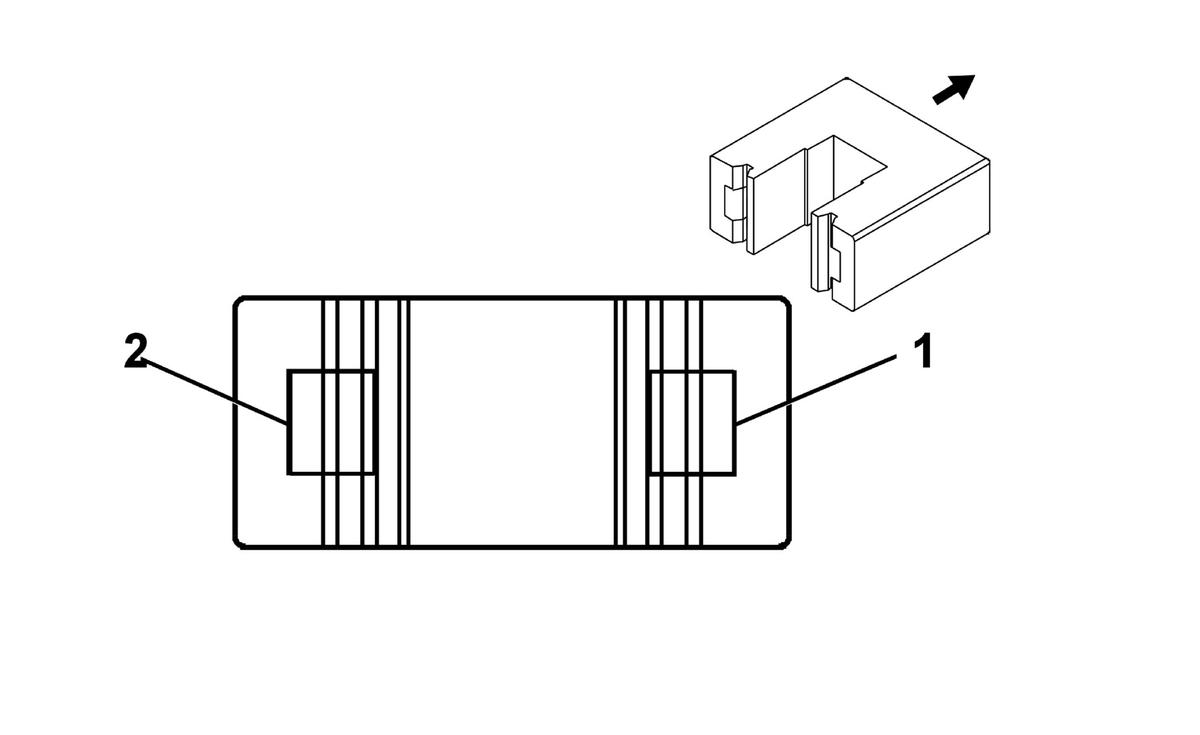

Liftgate Lamp - Left

GM1282874Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186713
  • 2-Way F (BK)
  • Indexing may vary
Pin Wire Color Circuit No. Function
1 OG 1732 Courtesy Lamps Supply Voltage
2 GY 157 Courtesy Lamp Control
Liftgate Lamp - Right

GM1282874Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186713
  • 2-Way F (BK)
  • Indexing may vary
Pin Wire Color Circuit No. Function
1 OG 1732 Courtesy Lamps Supply Voltage
2 GY 157 Courtesy Lamp Control
Marker Lamp - LF

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way F Lamp Socket Wedge Base W2 (L-GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 150 Ground
Marker Lamp - RF

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way F Lamp Socket Wedge Base W2 (L-GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 150 Ground

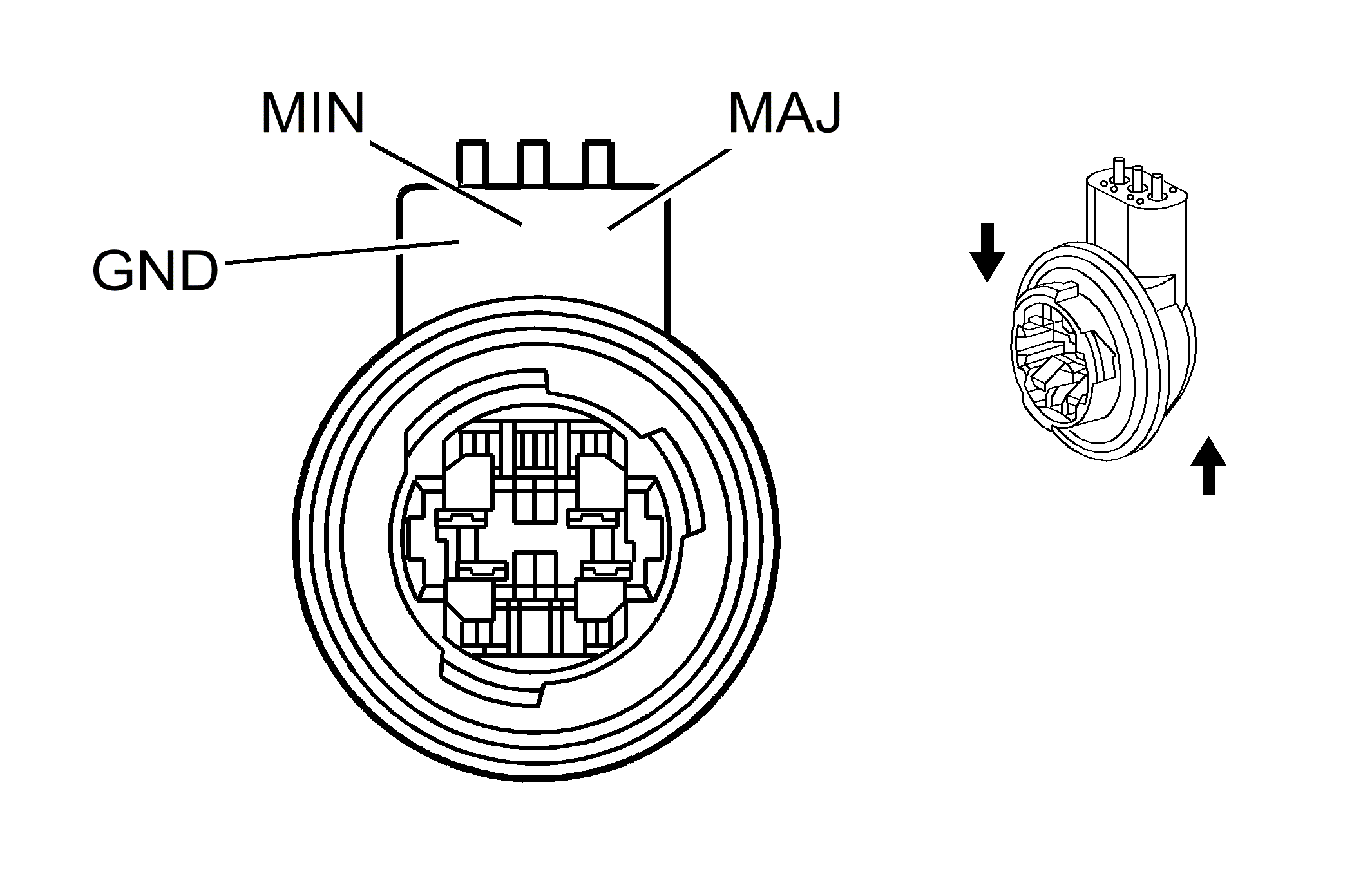

Park/Stop Lamp - LR

GM1290388Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 021940459
  • 3-Way F Bulb 3057 Socket (BK)
Pin Wire Color Circuit No. Function
MAJ L-BU 20 Stop Lamp Switch Signal
MIN BN 9 Park Lamp Supply Voltage
GND BK 750 Ground
Park/Stop Lamp - RR

GM1290388Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 021940459
  • 3-Way F Bulb 3057 Socket (BK)
Pin Wire Color Circuit No. Function
MAJ L-BU 20 Stop Lamp Switch Signal
MIN BN 9 Park Lamp Supply Voltage
GND BK 850 Ground

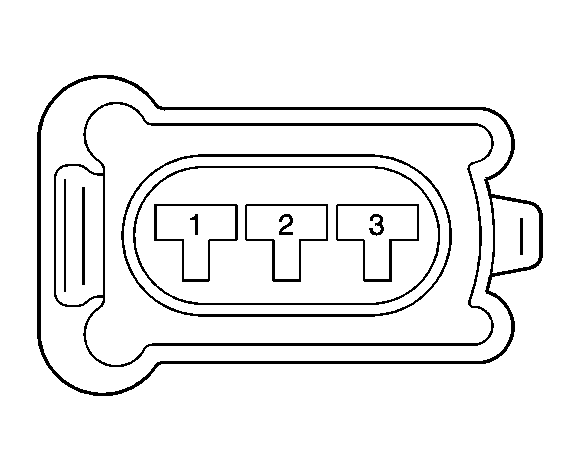

Park/Turn Signal Lamp - LF

GM1283128Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ZF1-00561-UA
  • 3-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 150 Ground
2 BN 9 Park Lamp Supply Voltage
3 L-BU 14 Left Turn Signal Lamps Supply Voltage

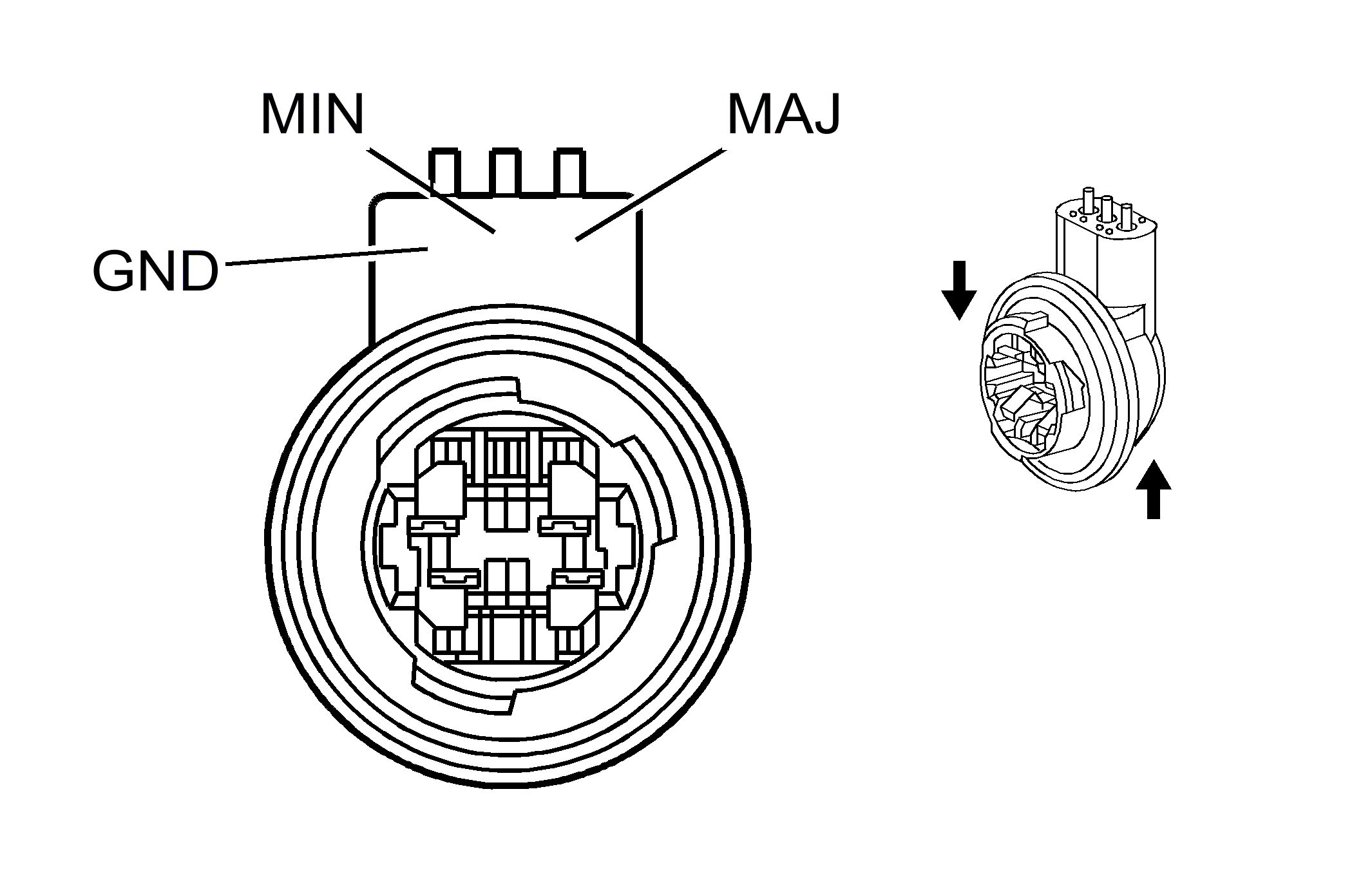

Park/Turn Signal Lamp - LR

GM1290375Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 021780959
  • 3-Way F Bulb 3057 Socket (BK)
Pin Wire Color Circuit No. Function
MAJ D-BU 18 Left Rear Turn Lamp Supply Voltage
MIN BN 9 Park Lamp Supply Voltage
GND BK 750 Ground
Park/Turn Signal Lamp - RF

GM1283128Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ZF1-00561-UA
  • 3-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 150 Ground
2 BN 9 Park Lamp Supply Voltage
3 D-BU 15 Right Turn Signal Lamps Supply Voltage
Park/Turn Signal Lamp - RR

GM1290375Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 021780959
  • 3-Way F Bulb 3057 Socket (BK)
Pin Wire Color Circuit No. Function
MAJ D-BU 19 Right Rear Turn Lamp Supply Voltage
MIN BN 9 Park Lamp Supply Voltage
GND BK 850 Ground
PRNDL Lamp

GM810080Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033701
  • Lamp Socket Bulb Base Type W-2 Axial (BK)
Pin Wire Color Circuit No. Function
A GY 8 I/P Dimmer Lamps Switch Signal
B BK 550 Ground
Stop Lamp Switch

GM73251Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033701
  • 2-Way F Metri-Pack 480 Series (GY)
Pin Wire Color Circuit No. Function
A OG 540 Battery Positive Voltage
B L-BU 20 Stop Lamp Switch Signal
