Digital Radio Receiver Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

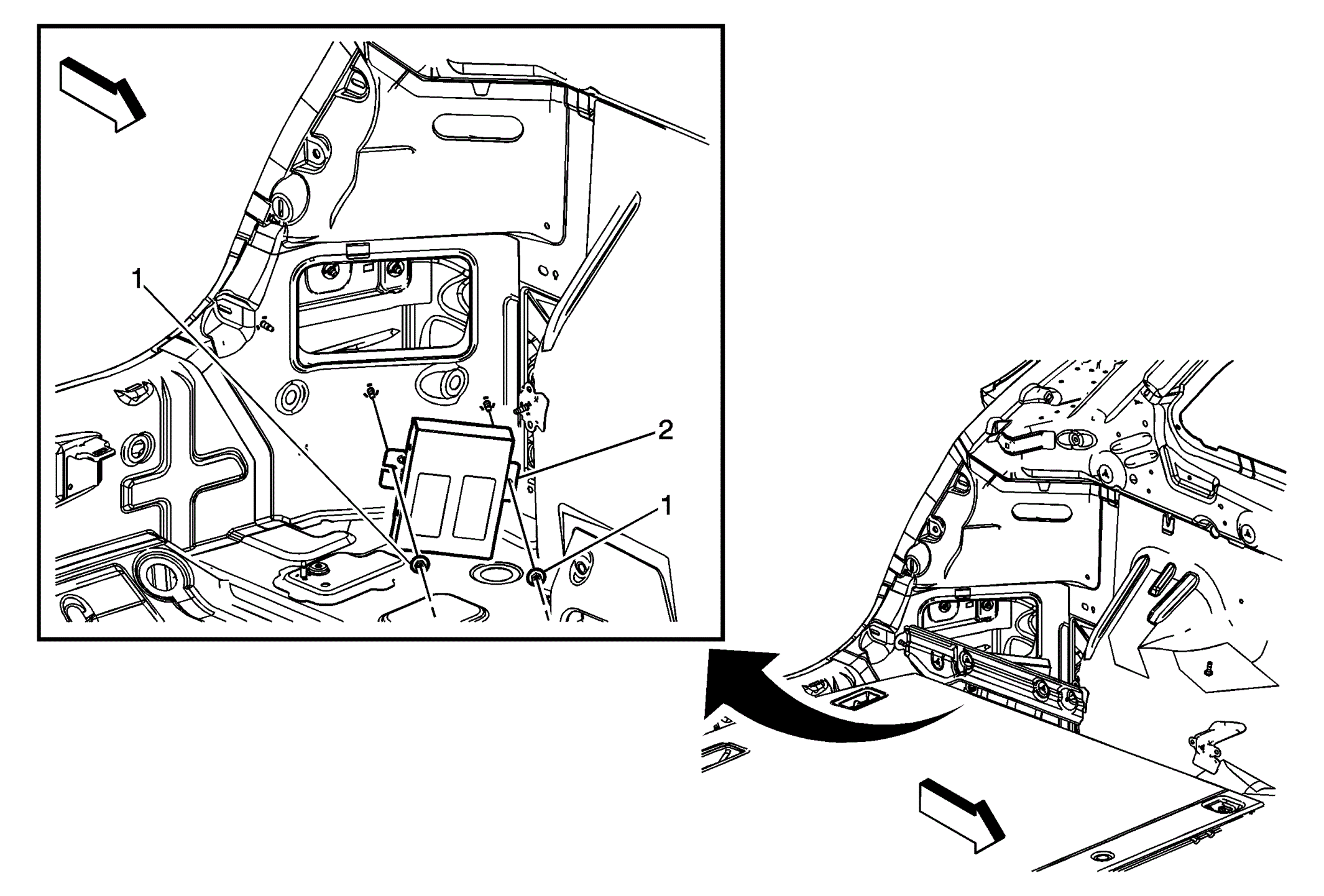

Fig 1: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the left rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Digital Radio Receiver Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Digital Radio Receiver Bracket Assembly Procedure: Disconnect the electrical connection.
