Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

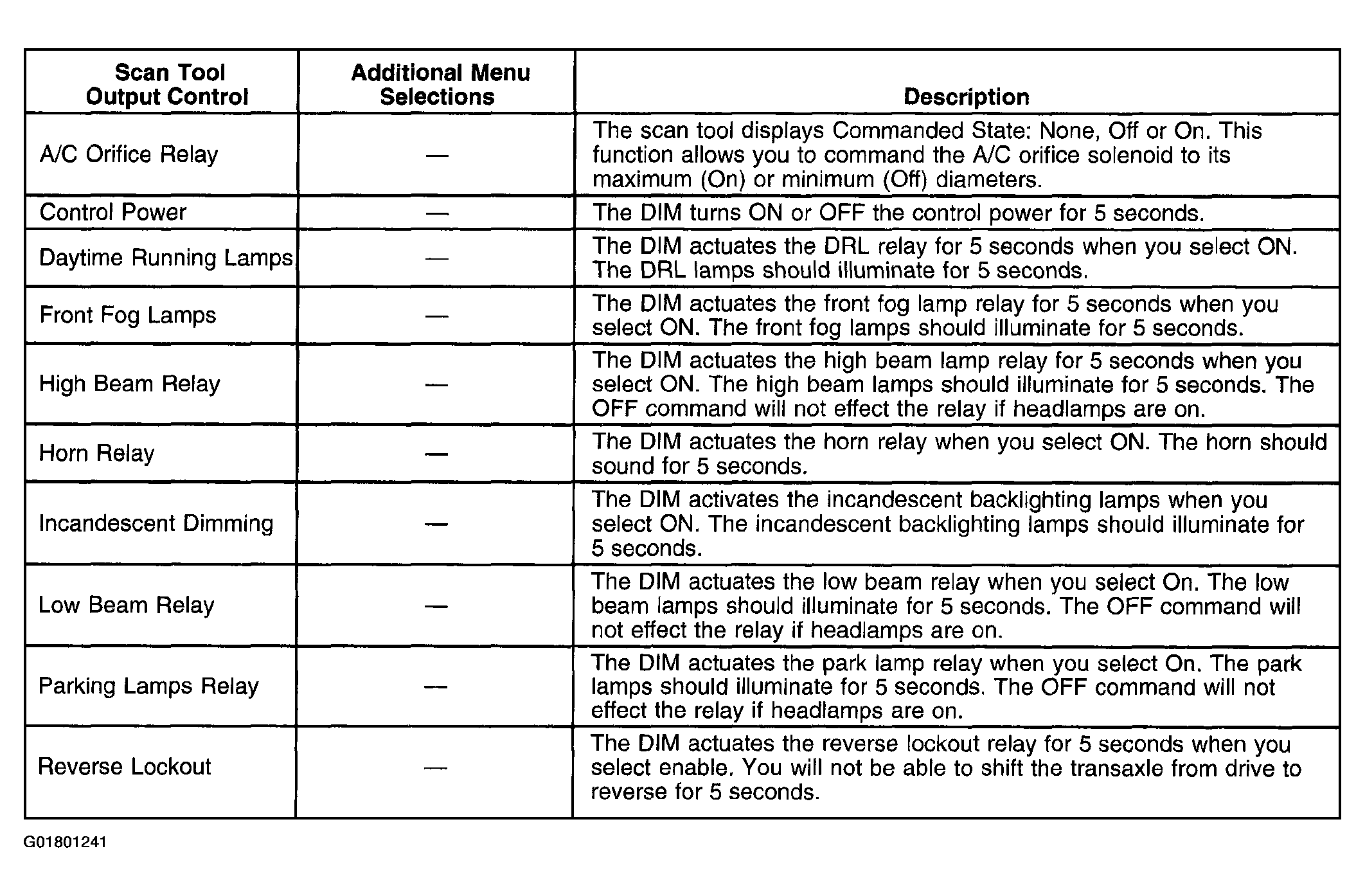

Fig 1: Scan Tool Output Controls - Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.

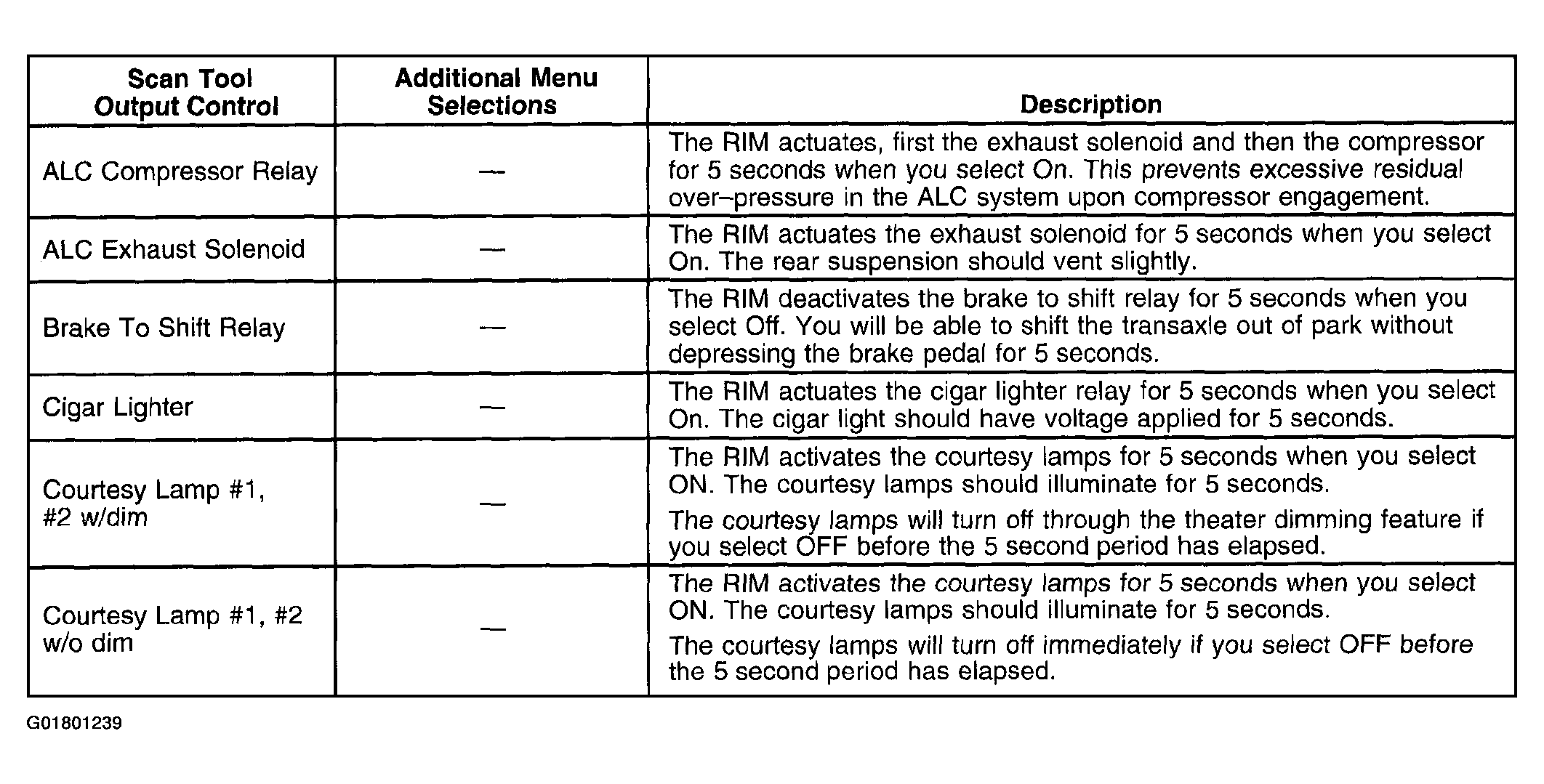

Fig 2: Scan Tool Output Controls - Rear Integration Module (RIM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

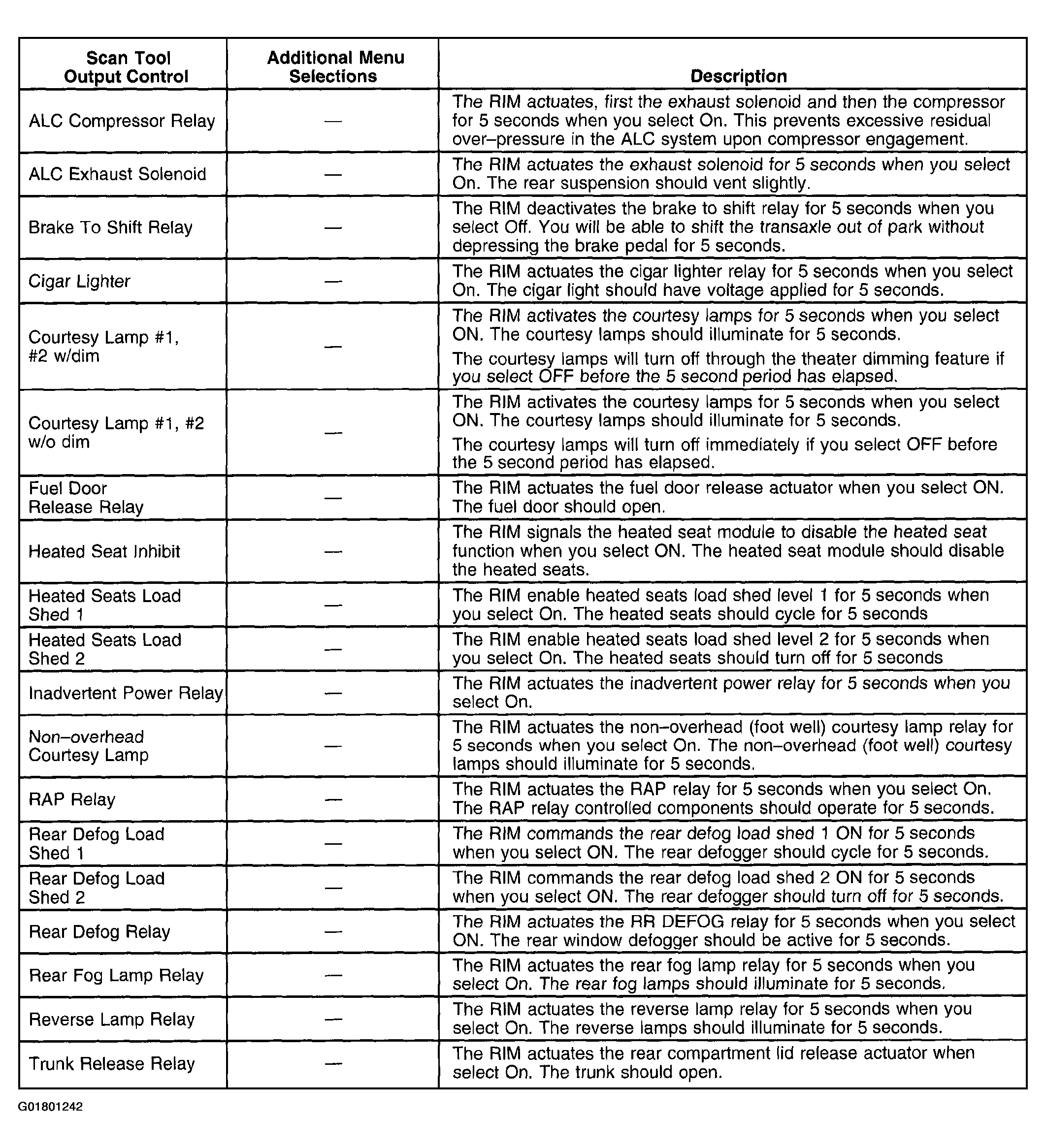

Fig 3: Scan Tool Output Controls - Rear Integration Module (RIM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Scan Tool Output Controls - Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.

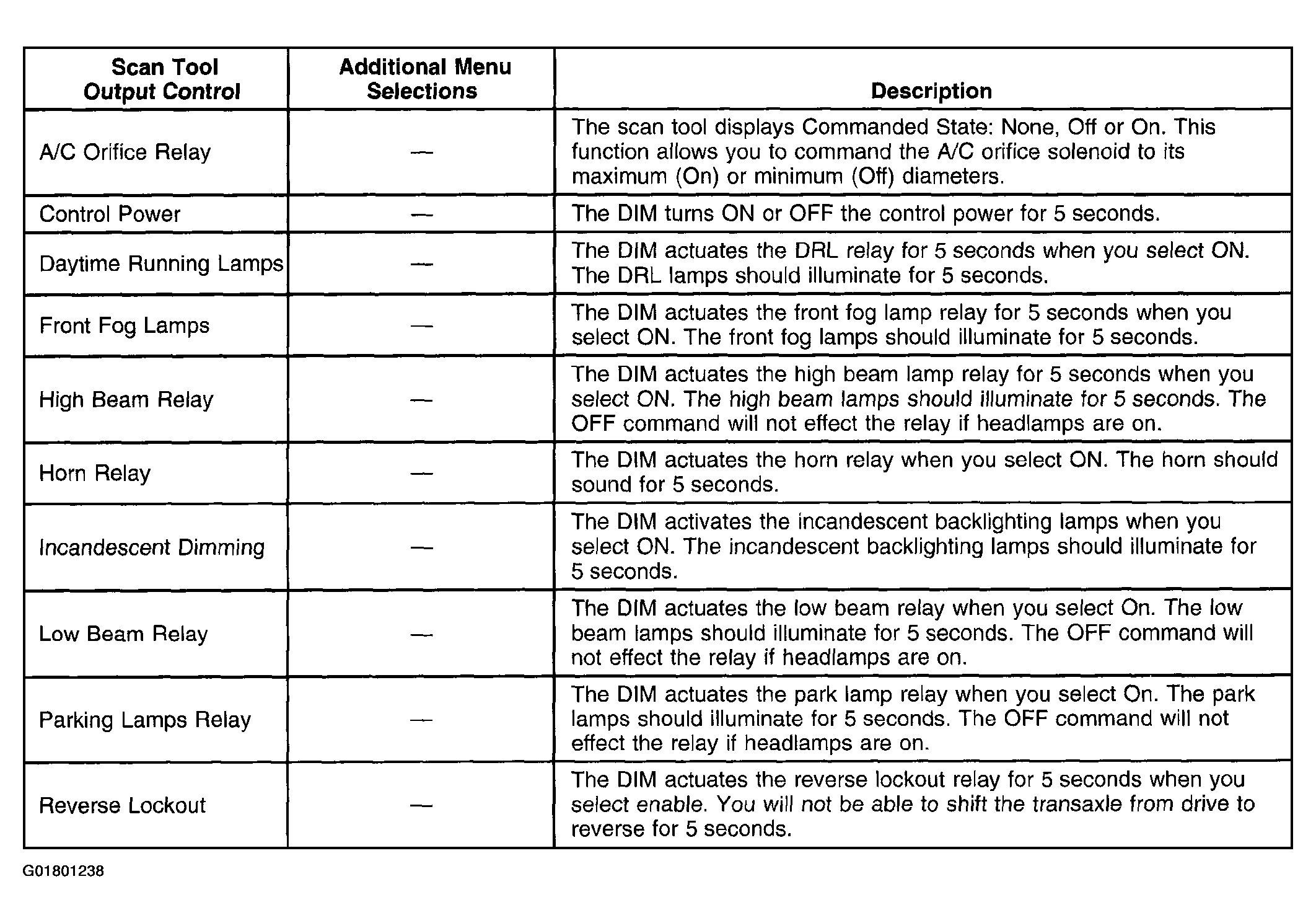

Fig 5: Scan Tool Output Controls - Rear Integration Module (RIM)

Courtesy of GENERAL MOTORS CORP.
